WATER CHILLER
USER MANUAL
MODEL: S2TL-3500
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR S2TL-3500
Summary of Contents for VEVOR S2TL-3500
- Page 1 Technical Support and E-Warranty Certificate https://www.vevor.com/support WATER CHILLER USER MANUAL MODEL: S2TL-3500 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Table Of Contents
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE EQUIPMENT AND KEEP IT FOR FURTHER REFERENCE Contents Ⅰ. SAFETY PRECAUTIONS Ⅱ. PRODUCT DESCRIPTION Ⅲ. DIMENSION Ⅳ. INSTALLATION Ⅴ. HOW TO USE Ⅵ. MAINTENANCE Ⅶ. CIRCUIT DIAGRAM Ⅷ. TROUBLE-SHOOTING Ⅰ. SAFETY PRECAUTIONS WARNING ：... - Page 4 hazard. 2, This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 5: Ⅱ. Product Description

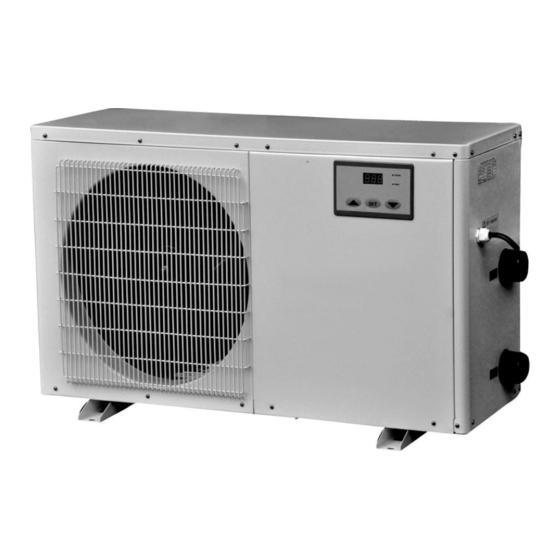

Ⅱ. PRODUCT DESCRIPTION INTRODUCTION: Many thanks for choosing the VEVOR water chiller. This product is with the following features. 1）High quality compressor with excellent durability, enerygy efficiency and low noise. 2）Finned condenser produced under strict quality control. 3）Radiator made with quality aluminum and coated with anti-corrosive paint. - Page 6 The chillers are widely used for water temperature adjustment in hotel, restaurant, fish farm, seafood market etc. TECHNICAL PARAMETER MODEL S2TL-3500 POWER 1/3HP VOLT. & FREQ. 115V/60HZ COOLANT R410A PUMP OUTFLOW ≥6000L/H REFRIGERATING CAPACITY 3500W RECOMMENDED TANK SIZE ≤2280L（600gal） WEIGHT (KG) 37.4...
-
Page 7: Ⅲ. Dimension
PERFROMANCE CURVES Temperature ℉ Work time S2TL-3500 (Min=Minute, H=Hour) NOTES: 1.Refrigerating effect will be impacted by ambient temperature, water circulation flow rate, installation position, lighting system, surrounding heat sources, room ventilation, aquarium/reservoir structure, etc. To get the best use of this machine, please strictly follow this instruction manual. -
Page 8: Ⅳ. Installation
Product Dimension MODEL L(mm) W(mm) H(mm) CL-600 Ⅳ. INSTALLATION The installation of the chiller should comply with the safety precautions and warnings. The unit must be used with a circulating system and a filtering system. Installation method: Aquarium/tank -- filtering system/filter -- water pump -- inlet of chiller -- outlet of chiller -- aquarium/tank. -
Page 9: Ⅴ. How To Use
1.The product has two fittings on one side for tubing connections, with the bottom one for inlet and the top for outlet. Connections of the aquarium/tank and water pump can be made with either soft or hard tubing (hard tubing is better for high water flow). For the tubing diameter please refer to the diameter of the connector supplied. - Page 10 Before using the machine, please check: (1)Power cord is securely plugged into a grounded, correctly rated outlet. Make sure the power voltage and frequency are in accordance with the data specified on the nameplate or in the instruction manual. (2)The fittings and joints are correctly and tightly fitted and there are no leaks. (3)The tubing and connections are all clean, no kinks, tangles or clogs.
-
Page 11: Ⅵ. Maintenance
Calibrate the temperature If the displayed water temp is different from the actual water temp, please calibrate the digital display as below steps: 1.Press and hold “SET” for 10 seconds to enter Temp Error Adjustment Function, digital display will show “CA”. 2.Press "▲"(turn up) or "▼"... - Page 12 - 11 -...
- Page 13 IX. CIRCUIT DIAGRAM - 12 -...
- Page 14 X. TROUBLE-SHOOTING Failures may be caused by improper operation or maintenance. Before sending the defective product for repair, check the troubleshooting table below. Failure Possible cause Possible solution The LCD doesn’t Bad power connection, Change fuse, check the power switch, plug. display and the blown fuse, broken...
- Page 15 Water temp Turn off or replace the heating switch; refer reaching set-up to operating instructions to adjust temp, but the unit Temperature sensor temperature control. continues to run not installed at right Digital display place, or temperature shows “E1”, sensor failed Check the temperature sensor installation.
- Page 16 TechnicalSupport and E-Warranty Certificate https://www.vevor.com/support...
Need help?
Do you have a question about the S2TL-3500 and is the answer not in the manual?
Questions and answers

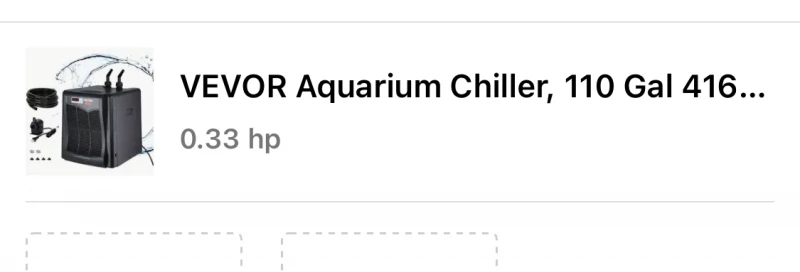

My Vevor 416L Aquarium chiller (discontinued) is not setting the tank to the desired temp of 36 degrees. It is only getting it to 68 degrees. Please advise how to troubleshoot.
