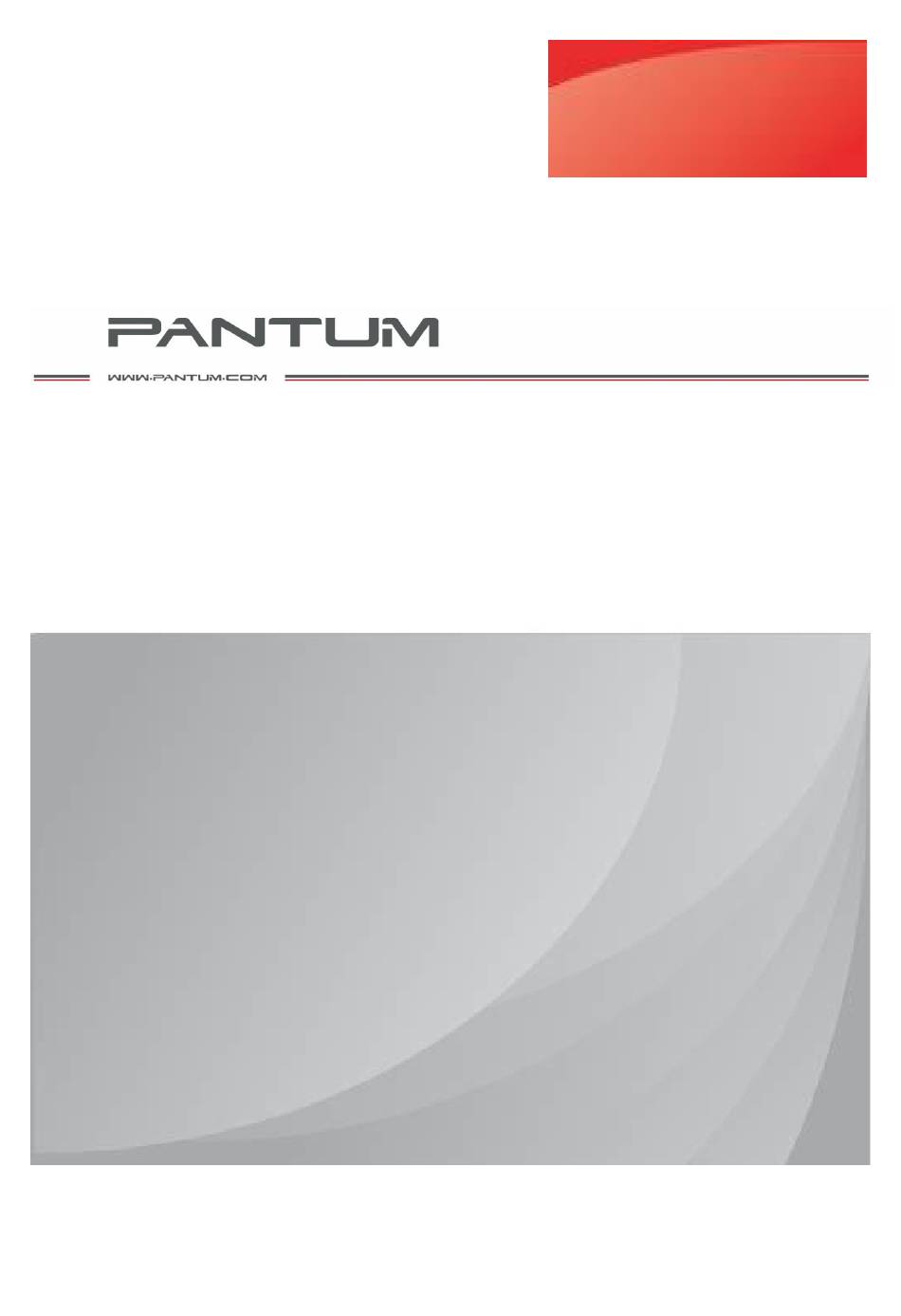

Service Manual
Service Manual for Pantum CP1100 Series
Single-Function Color Laser Printer
It is recommended to read this manual carefully before repairing
Version: V1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the CP1100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pantum CP1100 Series

Summary of Contents for Pantum CP1100 Series

  • Page 1 Service Manual Service Manual for Pantum CP1100 Series Single-Function Color Laser Printer It is recommended to read this manual carefully before repairing Version: V1.0...
  • Page 2 Service Manual for Pantum Single-Function Color Laser Printer Suitable printer: CP11** (“*”stands for any number and letter)
  • Page 3 Version change history Version Time Modified contents V1.0 March 3, 2021 New Service Manual Page:...
  • Page 4 The copyright of this user guide is possessed by Zhuhai Pantum Electronics Co., Ltd.. Without the prior written consent of Zhuhai Pantum Electronics Co., Ltd., it is forbidden to copy, translate, modify and transmit this user guide by any means or in any form.
  • Page 5 Recycling system of Pantum’s electronic products In order to protect the environment, Zhuhai Pantum Electronics Co., Ltd. has established a recycling system for discarded products. You can choose to hand over the discarded printers and consumables to the local Pantum maintenance center for unified recycling, and then the discarded...
  • Page 6 Safety Warnings Prior to the use of this printer, please pay attention to the following safety warnings: Warnings There are high voltage electrodes inside the printer. Prior to the cleaning of the printer, make sure that the power is cut off! Do not insert or uproot the power plugs with wet hands to avoid electric shock.
  • Page 7 Safety Information Appointment Note: information that may help you or things that may cause damage to the printer hardware or software. Caution: potential hazards that may cause physical injury. Different types of warning banners include: Caution - potential injuries: risk of physical injury. Caution - shock hazards: risk of electric shock.
  • Page 8 wear or press the power cord. Please do not place the power cord between objects, such as furniture and walls. There may be fire or shock hazard once these things happen. Please check the power cord regularly to identify signs of this problem in time.
  • Page 9 do not touch the location with the high temperature warning label immediately to avoid burns. Caution-pinching hazards: for the purpose of avoiding pinching hazards, please proceed with caution in the area marked with this label. Pinching may occur near moving parts such as gears, closing covers, trays, and covering plate.
  • Page 10 Important notes Precautions before use: 1. Read and understand all instructions; 2. Understand the common sense on how to use electrical appliances; 3. Follow the signs on the machine or the warnings and instructions in the manual supplied with the printer; 4.
  • Page 11 24. This product is sold as a whole, and consumers can purchase the required accessories at Pantum after-sales service center. If the sales product is inconsistent with the packaging list, please go to the designated after-sales service center for processing;...
  • Page 12 Regulatory Information This symbol indicates that this product cannot be discarded with other wastes. A better practice is to send the abandoned equipment to the designated pick-up point, so that the abandoned electrical and electronic equipment can be recycled. This product is suitable for indoor use, not for outdoor use. This product is only suitable for using in areas at an altitude of 2,000 meters or below.
  • Page 13 Names and contents of toxic and harmful substances or elements in products Toxic and harmful substances or elements Part names Cr (VI) PBDE ○ ○ ○ ○ ○ Circuit board × ○ ○ ○ ○ ○ Power supply × ○ ○...
  • Page 14 Contents Product series introduction ..................17 Whole machine structure and principle ............... 18 Component structure chart ..................18 Mechanical device ....................... 19 Paper Walk Path ......................20 Image-forming principle ..................... 21 Charging ........................21 2.4.1 Exposure........................22 2.4.2 Develop ........................23 2.4.3 First transfer ......................
  • Page 15 Image quality problems ....................67 Disassembly and Assembly ..................72 Disassembly Steps ....................... 72 Disassembly tools ....................... 73 Disassembly steps ....................... 74 Disassembly of left cover ..................74 6.3.1 Disassembly of right cover ..................75 6.3.2 Disassembly of toner cartridge assembly ..............78 6.3.3 Disassembly of rear cover ..................
  • Page 16 Appendix 1 Circumference of Each Roller of this Equipment ........... 103 Appendix 2 Descriptions of Product Serial Number ............104 Appendix 3 Descriptions of Terminologies in this Manual ..........105 Page:...
  • Page 17 Product series introduction CP1100DN CP1100DW Product series parameters CP1100 CP1100W ● ● ● ● Interface ● ● type ● ● Wi-Fi ● ● ● Printer ● Control Language ● Control ● ● ● panel ● ● ● ● Printing 18ppm speed ●...
  • Page 18 Whole machine structure and principle 2.1 Component structure chart Top cover assembly Discarded toner cartridge assembly Fuser Laser Double-sided Right cover rear cover assembly assembly High voltage board assembly Power supply board Transfer belt Toner cartridge assembly assembly Toner cartridge bracket assembly Controller board...
  • Page 19 2.2 Mechanical device Names Pickup roller Tip correction roller Second transfer roller Double-sided correction roller Fuser heat roller Fuser pressure roller Delivery roller First transfer roller Photoconductor drum Charging roller Developer roller Toner adder roller Page:...
  • Page 20 2.3 Paper Walk Path As shown in the above figure, the red line is the machine’s single-sided paper feed route (Line A is the manual paper tray feed route, and Line B is the automatic paper tray feed route), and the blue line C is the machine double-sided paper feed route.
  • Page 21 The visible image on the OPC is first transferred to the transfer Transfer belt belt, and then transferred to the paper through the transfer belt The fuser heats and pressurizes the paper passing by, melts the Fuser toner on the paper and makes it permanently adhere to the paper 2.4 Image-forming principle 2.4.1...
  • Page 22 2.4.2 Exposure Laser Photoco nductor drum In the exposure step, the laser printing head will emit a focused light beam to the surface of each photoconductor drum to write invisible images. The images formed for each color are called latent images or electrostatic images. The laser beam discharges only to the surface, causing the beam to hit the photoconductor drum.
  • Page 23 In case that the photoconductor drum is exposed for a long time, light or dark print quality problems may occur, and the print cartridge may need to be replaced. 2.4.3 Develop Toner adder Photoco roller nductor Develo drum Roller When the laser exposes the photoconductor drum, the HVPS will transfer the electric charge to the developer roller, which is evenly adhered with toner.
  • Page 24 to repeated blank spots on the page or light printing. The developer roller damaged may not contact the surface of the photoconductor drum correctly, which may lead to periodic spots, vertical white lines or vertical colored lines on the printed page. 2.4.4 First transfer Transfer belt...
  • Page 25 periodic blank spots on the page or light printing. Do not use solvent or other cleaners to clean the surface of the transfer belt. If surface scratch or charge difference is caused by solvent or other cleaners, there may be blank or light spots on the printed page. 2.4.5 Second transfer Second transfer...
  • Page 26 page may be light or partly blank due to the following reasons: a. The second transfer roller fails to get to the transfer belt correctly. b. HVPS has no voltage. The toner is transferred only by contact (no charge effect), and the contact between HVPS and the second transfer roller can be checked.
  • Page 27 When removing the jammed paper from the fuser, use the fuser release buckle to reduce the pressure on the paper. Do not transmit the unfused toner through the fuser, if possible. Try to remove the jammed paper from the fuser in the opposite moving direction. Page:...
  • Page 28 2.4.7 Cleaning/Wiping The printer will perform these two cleaning processes during the imaging process. During these two processes, the residual toner will be removed from the corresponding modules. a. Cleaning of transfer belt Transfer Screw belt Cleaning blade After the image is transferred to the paper by transfer belt, the cleaning blade transfers the residual toner to the waste toner bottle by the rotating screw.
  • Page 29 Maintenance Note: • The appearances of the printers with different models and functions are different, and the schematic diagram is for reference only. 3.1 Cleaning of printer ：Some parts of the printer are still at high temperature for a short time after using. When opening the front cover or rear cover to touch the internal parts, do not touch the location with the high temperature warning label immediately to avoid burns.
  • Page 30 4. Wipe the casing and the inside of the front cover of the printer with a soft and lint-free cleaning cloth 5. Wipe the rubber roller at the bottom with a soft and lint-free cleaning cloth Page:...
  • Page 31 3.2 Replacing parts and consumables 3.2.1 Replacing the toner cartridge Note: If the paper tray is opened, remove it before replacing the toner cartridge. 1. Open the front door and push it down firmly. 2. Pull out the printer toner cartridge tray. Page:...
  • Page 32 3. Remove the old printer toner cartridge. 4. Unpack the new printer toner cartridge. Note: Do not expose the bottom of the printer toner cartridge to direct light. Prolonged exposure to light may cause print quality problems. • Do not touch the bottom of the printer toner cartridge. Otherwise, the quality of future printing jobs will be affected.
  • Page 33 5. Push the new printer toner cartridge. 6. Push the printer toner cartridge, and then close the closing cover. Page:...
  • Page 34 3.2.2 Replacing the waste toner bottle 1. Remove the old waste toner bottle. Note: Place the waste toner bottle upright to avoid toner leakage. Page:...
  • Page 35 2. Unpack the new waste toner bottle. 3. Push the new waste toner bottle. Page:...
  • Page 36 3.2.3 Replacing the paper tray 1. Remove the old paper tray. 2. Unpack the new paper tray. 3. Push the new paper tray. Page:...
  • Page 37 3.2.4 Moving the printer 3.2.4.1 Moving the printer to another location : for the purpose of avoiding shock hazards, please do not place or use this product near water sources or in damp places. : the printer with a weight of more than 18 kg can only be safely lifted by two or more trained persons.
  • Page 38 Printer panel structure and function descriptions 4.1 LED control panel structure and function descriptions Consumables status indicator light Paper status indicator light Printer status indicator light Function button Power switch and power, sleep status light Page:...
  • Page 39 4.1.1 The button functions of LED models are defined as follows: Button Button name Action and function descriptions number Turn on: when the printer is turned off, short press or press and hold this key to turn on it Turn off: when the printer is turned on (in ready, error, printing, canceling and sleep Power button status), press and hold this key to turn off it Wake up: when the printer is in sleep status, short press this key to wake up it...
  • Page 40 Flashing (bright in paper, paper processing changes 500 milliseconds, not feed failure, etc. Green light flashing cyclically bright (bright in a cycle milliseconds): milliseconds, of 2s There is a little bit of bright toner in the toner milliseconds): cartridge; canceling Orange light always on: no waste...
  • Page 41 4.2 LED panel structure and function descriptions LCD panel includes 7 buttons, three LED lights and a 128*32 LCD screen. WiFi status Printer status indicator indicator light Page UP Cancel Return Page down Power button WiFi and power, sleep status light Page:...
  • Page 42 4.2.1 LCD model button functions Button function definition of LCD model: Button Button name Action and function descriptions number Turn on: when the printer is turned off, short press or press and hold this key to turn on it Turn off: when the printer is turned on (in ready, error, printing, canceling, Power calibration and sleep status), press and hold this key to turn off it button...
  • Page 43 Single parameter decreasing: cycle downward to select in the parameter setting interface IP address bit parameter setting: press this key to move the cursor to the next position to edit the parameters in the IP address setting interface Wake up: when the printer is in the sleep status, short press/press and hold this button to wake up the printer from the sleep status Short press this button in the ready status to enter the menu Menu item confirmation: confirm the selection item entry in the menu item...
  • Page 44 4.2.2 LCD model indicator light function The functions of LCD model indicator light are defined as follows: Power Printer WiFi status Printer status indicator LCD panel breathing status indicator light lamp Green light is always on: ready Green light flashing (bright WiFi model milliseconds, not bright...
  • Page 45 will be full) WiFi linked dynamic state WiFi model: displays WiFi status Show Printing Non-WiFi model: corresponding Green light flashing Always on Processing displays the opening status and closing of toner save mode WiFi model: displays WiFi status Show the Orange light is always Non-WiFi model: Error...
  • Page 46 Error display and troubleshooting 5.1 Inspection prior to repair 5.1.1 Precautions for inspection prior to repair Caution - shock hazards: this symbol on the product means that there is dangerous voltage in the working area. Unplug the power plug of the product before working. Be careful if the product must be powered on to perform the task.
  • Page 47 Avoid placing the printer in a place where its vents will not be blocked. 5.1.3 Preliminary printer troubleshooting Check whether its appearance is damaged (printer defects may be related to its appearance damage) Confirm the startup and shutdown (check whether the printer can warm up normally or what faults are reported) Check whether there is a large amount of toner or dust in the printer, and please clean.
  • Page 48 5) Ensure that the paper guide is placed correctly and the paper or envelope shall not be pressed tightly 6) After loading the paper, push the tray into the printer 2. Using paper recommended 1) Use new, undamaged paper and paper recommended or special media 2) Do not load wrinkled, shrunk, damp, bent or curled paper 3) Before loading paper, it shall be tightened, unfolded and the edges of the paper shall be aligned 4) Do not use paper that has been hand-cut or trimmed...
  • Page 49 5.1.3.3 How to restore the factory settings 1) LED model Method 1: After pressing the power button to turn on, press and hold the Cancel/Continue button until the two green status lights on the panel flash at the same time (the flashing interval is 100ms), and then release the button.
  • Page 50 5.1.3.4 Printing information report 5.1.3.4.1 LED panel model You can print the Demo page and the information page by pressing and holding the “Cancel/Continue” button on the printer control panel. These pages can help you quickly understand product information, and diagnose and resolve product faults. You can print other information pages in the following steps.
  • Page 51 5.1.3.4.3 Information page descriptions Firmware version Consumables information Machine serial number Number of pages printed by the machine Page:...
  • Page 52 5.1.3.4.4 Network configuration information page descriptions informat Page:...
  • Page 53 5.1.3.5 Color calibration setting method (LED model) 1. Open the computer’s “Start Menu” -” Control Panel” - view “Devices and Printers”. 2. Right click the printer icon, and select “Printer Properties” in the pull-down menu. 3. Enter the “Printer Settings” option. 4.
  • Page 54 5.1.3.6 Color calibration setting method (LCD model) 1. Press “ ”button on the printer control panel to enter the ready interface. 2. Press “▲” or “▼” to select “Printing Settings”-”Color Calibration” to carry out “Complete Calibration” and “Position Calibration”. Page:...
  • Page 55 5.2 Error messages Error prompts Error reasons Solutions The printer is not 1. The USB cable or power 1. Please connect the USB cable connected cord is not connected and power cord correctly; 2. The driver installed 2. Install the correct driver; incorrectly 3.
  • Page 56 4. The toner cartridge chip cartridge chip cable cable is pulled out or 5. Replace the spring of the contact broken point of the high voltage board 5. The spring of the contact chip point of the high voltage board chip has deformation C/M/Y/K toner 1.
  • Page 57 The paper source does not match 1. The paper used 1. Set the paper by the panel or the Automatic input tray inconsistent with the paper driver to be consistent with the set by the panel or the paper settings do not paper used driver match...
  • Page 58 5.3 Common malfunctions Defects Causes of defects Solutions 1. The power supply board 1. Re-connect/replace power Power when cable is pulled out/damaged supply board cable booting 2. Power supply board defects 2. Replace the power supply board 3. Controller board defects 3.
  • Page 59 5.4 Fault codes Warnings! This product has a self-diagnostic function. In the event that a fault is detected, an error code warning message will be displayed on the screen or computer. Error code Cause Inspection and measures Internal error of printer The heat roller works at full 01.001 power for a too long time...
  • Page 60 DC motor is at a slow rotating Internal error of printer speed (color toner cartridge 02.008 control motor) DC motor is at a fast rotating Internal error of printer speed (color toner cartridge 02.008 control motor) Internal error of printer DC motor is jammed (color toner 02.008 cartridge control motor)
  • Page 61 5.5 Removing the paper jammed 5.5.1 Identifying the location of the paper jammed Paper jam location Output bin Bypass tray assembly Automatic input tray Double-sided printing rear cover Page:...
  • Page 62 5.5.2 Removing the paper jammed 1. Paper jammed in automatic input tray 1) Pull out the tray 2) Remove the paper jammed 3) Push the tray 4) Open the rear cover 5) Remove the paper jammed Page:...
  • Page 63 6) Close the rear cover 2. Paper jammed in manual input tray 1) Remove the jammed paper 2) Open the front door and push it down firmly 3) Close the front door 3. Paper jammed in rear cover 1) Open the rear door Page:...
  • Page 64 : the inside of the printer may be very hot. To avoid the risk of being burned by hot components, please wait for the surface to cool down before touching the components. 2) Remove the paper jammed Paper jammed in fuser zone Paper jammed below the fuser Page:...
  • Page 65 3) Close the rear cover Page:...
  • Page 66 5.6 Paper jam troubleshooting Error reasons Solutions Paper jammed 1. Re-load the paper automatic input tray 2. Replace the automatic input tray 3. Clean/replace the rubber roller Automatic input tray 4. Replace the controller board fails to feed the paper No paper in automatic input tray Paper...
  • Page 67 5.7 Image quality problems Symptom Possible cause Suggested remedy   The printout is blank Laser FFC defects Re-connect or replace the laser FFC   Laser defects Replace the laser   High voltage board defects Replace the high voltage board ...
  • Page 68  The transfer belt cleaner and its waste toner nozzle are leaking or damaged   Colored lines appear Toner cartridge assembly defects Replace the toner cartridge assembly   vertically There are contaminants or spilled Clean the transfer belt assembly toner on the transfer belt assembly (transfer belt, transfer roller, and ...
  • Page 69   Gray colored Toner cartridge assembly defects Replace the toner cartridge assembly   background appears Laser defects Replace the laser   in the printout There are contaminants or spilled Clean the transfer belt assembly toner on the transfer belt assembly (transfer belt, transfer roller, and ...
  • Page 70   The printout is not Toner cartridge assembly defects Replace the toner cartridge assembly   uniform Laser defects Replace the laser   There are contaminants or spilled Clean the transfer assembly (transfer toner on the transfer module belt, transfer roller, coupling gear) ...
  • Page 71   Polychrome Laser defects Adjust the color calibration settings inaccurate (see Section 8.1.7 for concrete operation methods)  Replace the laser Page:...
  • Page 72 Disassembly and Assembly Preparations before disassembling: 1. The printer needs to be disconnected from all external power supplies prior to disassembly. 2. The cable tie needs to be removed prior to disassembly. The cable tie must be exchanged during reassembly to avoid wire pinching, paper path blocking, or restricted mechanical movement. 3.
  • Page 73 6.2 Disassembly tools Cross screwdriver Six-angle screwdriver (6 angles T10 blades) Spring hook Tweezers Page:...
  • Page 74 6.3 Disassembly steps 6.3.1 Disassembly of left cover 1. Pull out the automatic input tray, and use a six-angle screwdriver (T10) to remove the two fixing screws on the left cover (as shown below) 2. Open the front and rear covers of the printer 3.
  • Page 75 4. Unclench the two buckles connecting the left cover and the upper cover (from left to right) with tweezers 5. Loosen the buckle B at the bottom of the left cover and remove the left cover ○ B 6.3.2 Disassembly of right cover 1.
  • Page 76 2. Move the side of the printer out of the desktop, and open the back-end buckle of the right cover of the printer with your left hand while opening the buckle A at the bottom of the printer with your right hand ○...
  • Page 77 4. Loosen the buckle B at the bottom of the left cover and remove the left cover ○ B Page:...
  • Page 78 6.3.3 Disassembly of toner cartridge assembly 1. Open the front cover, push aside 4 pairs of toner assembly buckles, and then take out the toner cartridge (tips: do not touch the OPC surface of the toner cartridge with your hands, OPC shall be protected from light for a long term to avoid affecting the print quality) 2.
  • Page 79 2. Move to the left to remove the rear cover (along the direction of arrow) 6.3.5 Disassembly of front cover 1. Use the tip of a straight screwdriver to push out the hinge pins on the left and right sides of the front cover to the right (place the tweezers in the position shown below to prevent the hinge pins pushed out from falling and losing) 2.
  • Page 80 6.3.6 Disassembly of transfer belt assembly 1. Push aside the connecting wire protecting cover on the right side of the power supply board by hand, use a six-angle screwdriver (T10) to loosen the screws on high voltage board and take out the wiring harness, and disconnect the wiring harness connecting the power controller board 2.
  • Page 81 Left buckle Drive gear of transfer belt B. Pull out the transfer belt from the back of the printer and take it out (do not touch or scratch the surface of the transfer belt and the transfer roller while removing them to avoid print quality problems) 6.3.7 Disassembly of toner spot sensor...
  • Page 82 6.3.8 Disassembly of controller board cover Remove the left cover, use a six-angle screwdriver (T10) to remove one fixing screw, and then take out the protecting cover 6.3.9 Disassembly of controller board Remove the left cover and the controller board protection cover. Disconnect all connecting lines of the controller board, use a six-angle screwdriver (T10) to remove 5 fixing screws, and then take out the controller board.
  • Page 83 6.3.11 Disassembly of motor (CMY) 1. Remove the left cover, force apart the buckles on the motor cover in the frame to the direction that the arrow indicates and take out the black protecting cover, disconnect the motor connecting lines, and use a six-angle screwdriver (T10) to remove 3 fixing screws and take out the motor. 6.3.12 Disassembly of motor (K/transport belt) Remove the left cover, force apart the buckles on the motor cover in the frame to the direction that...
  • Page 84 6.3.14 Disassembly of graded clutch 1. Remove the controller board, use a six-angle screwdriver (T10) to remove 4 fixing screws on the controller board holder and take it out. 2. Use the tip of tweezers to remove the E-clip (A), and then remove the gear of the graded clutch (B).
  • Page 85 2. Use a six-angle screwdriver (T10) to remove 2 fixing screws, and use tweezers to pry up 3 buckles. 3. Lift the front end of the top cover, hold both sides of the top cover with hands, lift it to the front end and pull it out by swinging to the front end slightly.
  • Page 86 6.3.17 Disassembly of laser 1. Remove the left and right covers of the printer, remove the controller board protecting cover, and disconnect 3 flat connecting lines on controller board and 2 flat connecting lines on high voltage board 2. Disconnect the flat connecting harness (A) and release the locking spring (B) by the spring hook ○...
  • Page 87 6.3.18 Disassembly of exit sensing arm and exit sensor board 1. Remove the top cover of the printer, and back out the sensing arm towards the right as indicated by the arrow. Left sensing Right sensing Be careful not to damage sensing handle...
  • Page 88 2. Take the cable A out of the inner via hole, and use a six-angle screwdriver (T10) to loosen 6 fixing screws, and then remove the main drive assembly. ○ A 6.3.20 Disassembly of pickup clutch Remove the main drive assembly. Use tweezers to remove the E-clip (A), and then remove the gear of the pickup clutch (B).
  • Page 89 6.3.22 Disassembly of cooling fan Remove the right cover, disconnect the connecting line of the high-voltage board, and then remove the fan (pay attention to the direction of the fan when installing, and the gasket needs to be stuck on the indicated area of the fan) 6.3.23 Disassembly of high voltage board (HVPS) assembly 1.
  • Page 90 6.3.24 Disassembly of power supply board (LVPS) assembly 1. Remove the right cover of the printer. Remove the connector protecting cover after removing the screws with a cross screwdriver, and then press tweezers against two buckles inwards Connector protecting cover 2.
  • Page 91 3. Use a six-angle screwdriver to remove the two fixing screws, and then take out the power supply board (LVPS) 6.3.25 Disassembly of rubber roller 1. Place the printer as shown below, and then remove the leather sheath of the rubber roller by hands.
  • Page 92 6.3.26 Disassembly of tray sensor switch 1. Remove the controller board protecting cover, and disconnect the connecting lines of the controller board. 2. Use a six-angle screwdriver to remove the 4 fixing screws on the bottom holder of the printer, and then remove the holder (Tips: toner contamination may occur, in case that the printer is placed sidelong.
  • Page 93 6.3.27 Disassembly of fuser 1. Open the front and rear covers, remove the top cover and the controller board protecting cover, and disconnect the connecting line 2. Disconnect the fuser connecting line at the high voltage board, push aside the power supply board protecting cover and then disconnect the connecting line.
  • Page 94 6.3.29 Disassembly of automatic feed sensor 1. Remove the rear cover of the printer, use a six-angle screwdriver (T10) to remove 4 fixing screws on the bottom holder of the printer, and then remove the holder 2. Disconnect the sensor cable (A), use a six-angle screwdriver (T10) to remove one fixing screw (B), and then take out the sensor ○...
  • Page 95 6.3.31 Disassembly of fuser probe sensor Open the rear cover, use a six-angle screwdriver (T10) to remove one screw on the fuser sensor, and then use tweezers to pry up the right buckle, disconnect the cable and take out the sensor 6.3.32 Disassembly of manual feed sensor Use a six-angle screwdriver (T10) to remove the 4 fixing screws at the bottom of the printer, and...
  • Page 96 Precautions for replacement of spare parts: 7.1 Manually performing the calibration function after replacing any accessories 7.1.1 Calibration method (LED model) 1. Open the computer's “Start Menu” -” Control Panel” - view “Devices and Printers”. 2. Right click the printer icon, and select “Printer Properties” in the pull-down menu. 3.
  • Page 97 • When your printer completes a certain amount of tasks, it may perform color calibration Note: automatically. • When you use a new laser toner cartridge, the printer will automatically perform color calibration. Page:...
  • Page 98 7.1.3 Maintenance instructions for replacement of controller board, laser, IDC spare parts When replacing the controller board, laser (LSU) and IDC (toner spot sensor) spare parts of this series of machines, the corresponding calibration data of the spare part must be imported into the printer prior to use, otherwise the printing quality effect may be affected, and the operation is as follows: 7.1.3.1 Instructions for controller board replacement...
  • Page 99 with the setup 1820 tool, and then send the downloaded “Download IDC Parameter File” to the printer, and the printer will be ready after the automatic calibration is completed. 1. Enter the SN of the IDC that the printer uses finally in the after-sales system interface, and click “Download IDC Parameter File”...
  • Page 100 7.1.3.2 Instructions for laser LSU replacement 1. Obtaining maintenance information Maintenance Information to be obtained history There is no LSU or IDC history It is necessary to obtain the serial number SN of the LSU to be replaced for maintenance the printer, and the serial number SN of the current printer.
  • Page 101 with the setup tool, and then send the downloaded “Download IDC Parameter File” to the printer, and the printer will be ready after the automatic calibration is completed. Page:...
  • Page 102 7.1.3.3Instructions for IDC replacement 1. Obtaining maintenance information Maintenance Information to be obtained history There is no IDC history It is necessary to obtain the serial number SN of the LDC to be replaced for maintenance the printer. records of the machine IDC has been It is necessary to obtain the...
  • Page 103 Appendix 1 Circumference of Each Roller of this Equipment Names Portrait cycle mm First transfer roller 25.12 Second transfer roller 59.66 Stretch roller 28.26 ITU backup roller 43.96 ITU cleaning backup roller 43.96 ITU driving roller 64.7782 Transfer belt 655.004 Photoconductor drum 75.4 Developer roller...
  • Page 104 Appendix 2 Descriptions of Product Serial Number All machines are affixed with their own product serial number labels. The meaning of the product serial number code and the location of the label are described below. Code meaning: Production Date Machine Commodity serial number code...
  • Page 105 Appendix 3 Descriptions of Terminologies in this Manual The following table includes the explanations of all the terminologies involved in this manual. Terminologies Explanations Safety standard for a kind of laser products Liquid crystal display Scanner Number of pages printed per minute HVPS High voltage power supply board LVPS...
