Plantronics CA10CD - QUICK START GUIDES Quick Start

Cordless Push-to-Talk Headset Amplifier
Quick Start User Guide
WELCOME
Thank you for selecting the CA10CD Push-to-Talk Headset
Amplifier from Plantronics. This User Guide will help you install
your CA10CD Amplifier and learn its basic operation. The
operation of your chosen H top headset is described in a
separate guide.
1
1.3
Set-up
1.1 Set up the CA10CD
Amplifier as shown.
1.2 Plug one end of the Console
Interface Cable into the CA10CD
Telephone Jack and the other end
into the headset receptacle on
your console.
1.3 Plug the AC Adapter into the wall
outlet. The Base Power indicator light will
illuminate.
Operation
4
4.1 Connect the Quick Disconnect to
the H-Top Headset of your choice.
Put on your headset.
4.2 Press the Power Button on either the
Remote or the Base. The green Remote
Power Indicators on the Remote and
Base will illuminate.
4.3 Depress and hold the Talk Button on the Remote Unit to
generate the "Key" signal to your console or radio. While the
Talk Button is depressed, the Talk Indicator Light will illuminate.
Releasing the Talk Button will remove the "Key" signal to
your console or radio and extinguish the Talk Indicator.
4.4 Adjust the volume from your headset by using the Listen
Volume Control.
The CA10CD is compatible with most systems on the market.
The user must initially set the Transmit Level Switch and the
Configuration Switch to the optimum settings. These switches
determine how the adapter interacts with a particular system.
4.5 The CA10CD Transmit Level Switch provides three levels:
"1" (high or carbon), "2" (medium or electret), and "3" (low
or dynamic). The standard setting is"1".
Adjusting the transmit output level by moving the
1 2 3
Transmit Level Switch to position 1, results in more
output.
Moving the Transmit Level Switch to position 2 or 3
4.5 reduces your output. You can further fine tune the
transmit level with the Talk
Volume Control buttons.
A B
4.6 The Configuration Switch has
two settings: "A" and "B". The
standard setting is "B".
4.6
4.7 If you have misplaced the
Remote, press the Page Button
for 3 seconds and the Remote will emit two
long loud beeps.

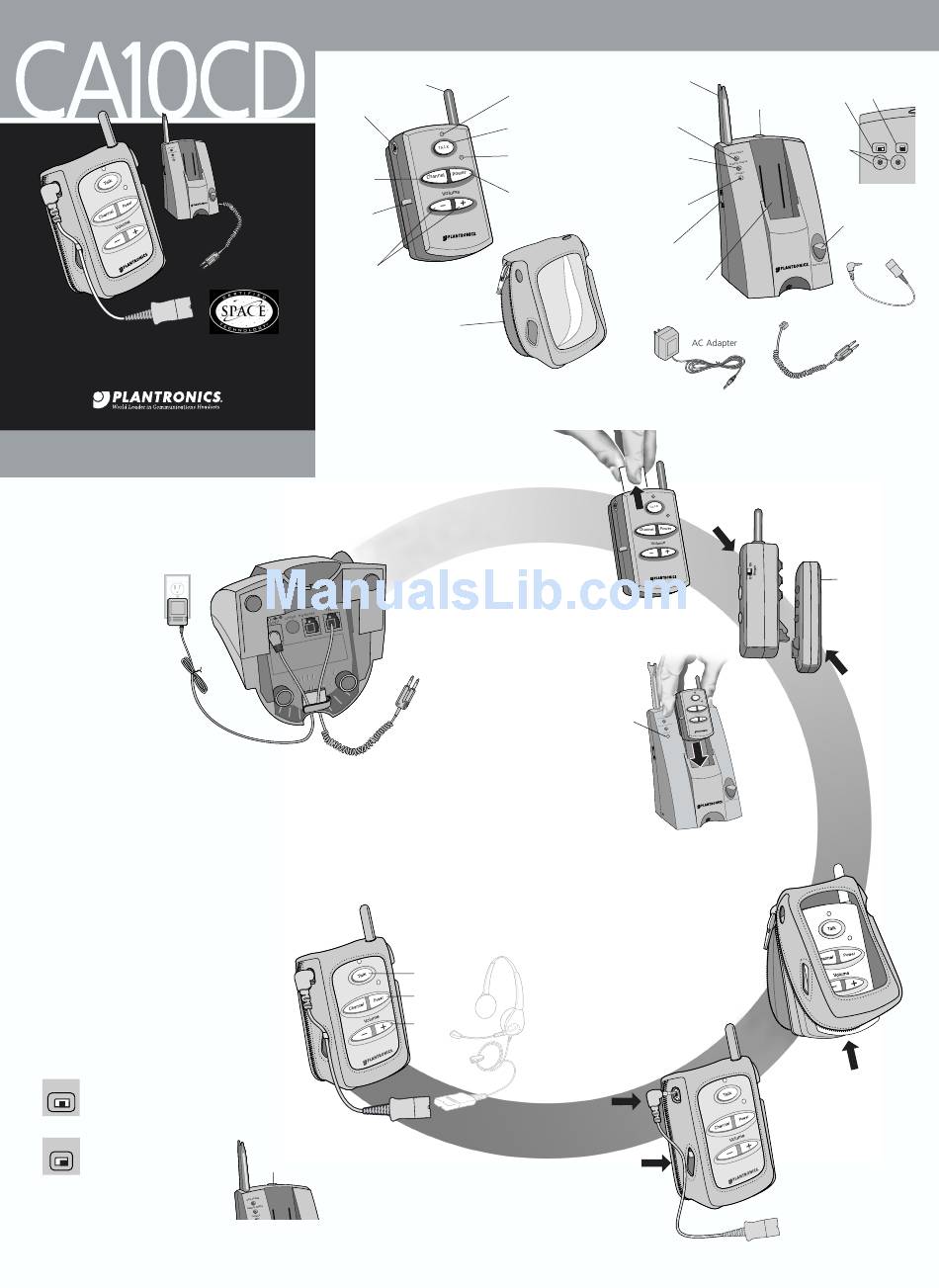

COMPONENTS OF THE CA10CD
Antenna
Headset
Jack
Channel
Button
Headset
Cord
Clip
Listen
Volume
Controls
Remote Pocket
w/Belt Clip
1.2
4.3
4.2
4.4
4.7
Top of Base Unit
Talk (In-Use)
Indicator Light
Talk Button
Remote Power
Indicator Light
Remote Power
Button
REMOTE UNIT
2
2.1
Battery
Preparation
2.1 If present, remove the shipping
insulator pull-tab on the battery,
located between the Remote Unit
and the Battery Pack.
2.2 If necessary, attach the Remote
Unit to the Battery Pack. The Remote
and Battery Pack slip together easily
and snap into place. Do not force
them together.
2.3 Slide the Remote Unit and Battery
Pack into the Charging Well until the
Charge Indicator illuminates.
battery
Note: Remote Unit must remain in
charge
the Base for 5 seconds to establish a
light
communications link before the system
can function.
Prior to using the CA10CD, the Battery
must be charged for 8 hours. (You may,
however, use the Remote while it is in the
Charging Well. This will increase charging
time). The Battery Charge Light will turn
off after the Battery is fully charged.
3
3.1 Slide Remote into the unzipped
Pocket. Be sure the antenna goes
through the hole in the Pocket as
shown. Zip up the Pocket to neatly
contain the Remote and Battery.
3.2 Connect the Headset Adapter
Cable to the Remote Unit Headset Jack.
3.3 Press the Headset Quick Disconnect
Cable into the Headset Cord Clip.
4.1
3.2
Headset
Holder/
Antenna
Page
Button
Base Power
Indicator
Light
Remote
Power
Indicator
Light
Battery
Charge
Light
Talk
Volume
Control
Remote Unit
Charging
Well
Console
Interface
Cable
BASE UNIT
2.2
2.3
Preparing
the Remote
unit for use
3.3
Configuration
Transmit
Level Switch
Switch (A/B)
(1/2/3)
Manual
Channel
1 2 3 A B
Settings
Back of Base Unit
Remote
Power
Button
Headset
Quick Disconnect
Cable
battery
3.1
