Plantronics SHS1890 Brochure

PLANTRoNICS
SHS1890
Product Specifications
Complete Headset
(including H31CD capsule, 15-foot cord,
push-to-talk switch)
Net weight: 230 grams (8.1 oz.)
H31CD capsule only: 10 grams (.35 oz.)
Shipping weight: 490 grams (17.3 oz.)
Operating and Storage Ranges
Operating current range: 10 to 120 mA dc
Operating temperature: 0°C to 50°C (32°F to 122°F)
Storage temperature: -40°C to 66°C (-40° F to 151° F)
Receiver Characteristics of Tops Used with SHS1890 Push-to-talk Amplifier
Plantronics Top StarSet ®
H31CD
1kHz sensitivity 20.5
(dBPa/V, ±4 dB)
Receiver Impedance 600 ± 150
(ohms, at 1 kHz)
Source Drive 600
Impedance (ohms)
Measuring Brüel & Kjaer
Device 4157 Ear
Simulator
Note 1: A proprietary Plantronics adapter is used with the specified Brüel & Kjaer measuring device.
© 2008 Plantronics, Inc. All rights reserved. Plantronics, the logo design, Encore, SHS1980, Sound Innovation, Starset, SupraPlus and Tristar are trademarks or registered trademarks of Plantronics, Inc. Plantronics
does not endorse or sponsor any promotional offers made in this advertisement. Please contact the reseller directly with any questions related to promotional offers. Printed 05.08 SP54
SHS1890_PS_110810_B.indd 1
ptt amplifi er
Microphone/Amplifier
Output level: -23.5 ± 5 dbV (37.6 to 119 mV RMS)
Frequency range: 300 to 3300 Hz
Distortion: < 5%, 300 to 3300 Hz
DC resistance: > 35 ohms
Impedance: 50 ohms
Polarity: Nonpolar
Terminal voltage: 2.3 Vdc @ 10 mA; 5.0 Vdc @ 100mA
Downward Expander Depth: 20 dB
III StarSet ® III TriStar ®
H31/H31N H81/H81N
19.5 22.0
480 ± 50 450 ± 112.5
10 10
Brüel & Kjaer Brüel & Kjaer
4157 Ear 4157 Ear
1 Simulator 1 Simulator 1
For more information about the SHS1890
or other Plantronics products, please visit
our Web site at

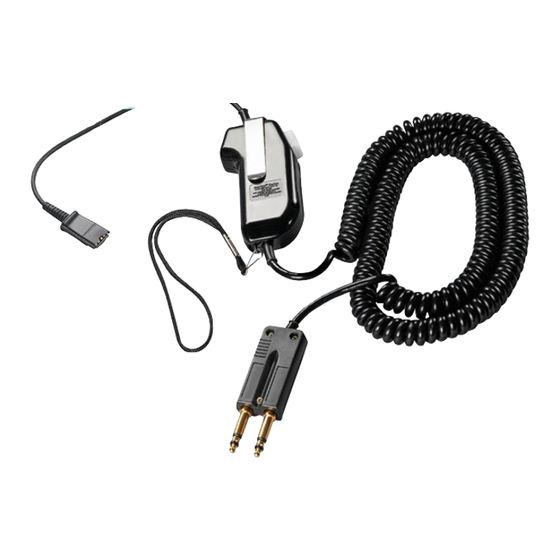

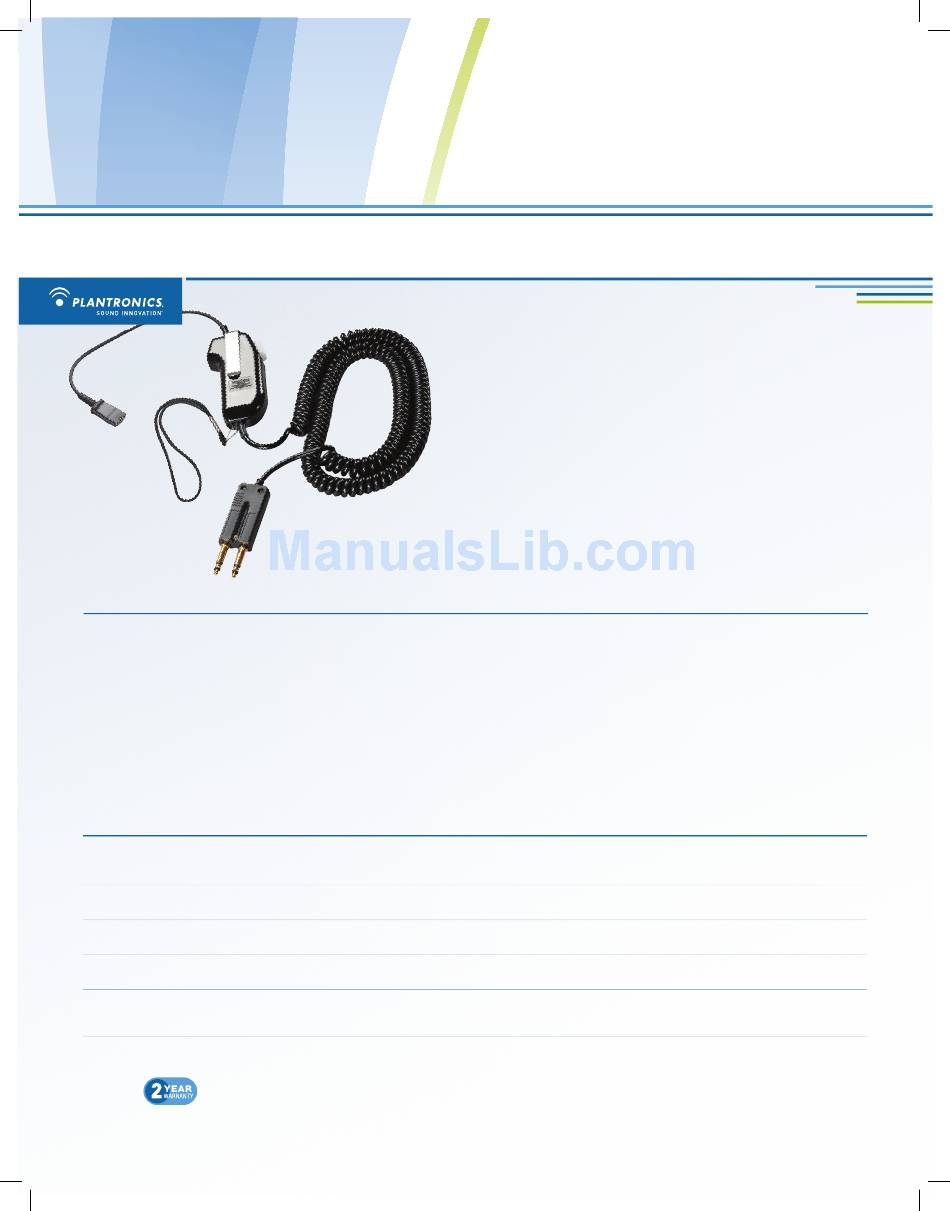

SHS1890 Push-to-talk Amplifier
Features:
• Allows the use of any H-series headset top in 6-wire controller
and dispatch operations
• Push-to-talk switch with selectable locking or momentary operation
• PJ-7 (equivalent to WE-425) connector
• Choice of 3 different coil cord lengths
• CE compliant
Cable options available:
• SHS1890-10 10-foot coil cord
• SHS1890-15 15-foot coil cord
• SHS1890-25 25-foot coil cord
Plantronics also offers the SHS2310, which features 10 dB of receiver amplification.
SupraPlus ® SupraPlus ®
Monaural Binaural
H251/H251N H261/H261N
14.0 9.0
150 ± 37.5 300 ± 75
10 10
Brüel & Kjaer Brüel & Kjaer
4157 Ear 4157 Ear
Simulator 1 Simulator 1
www.plantronics.com.
™
Receiver
The SHS1890 allows the use of a wide variety of
receiver styles. In addition to the characteristics
listed in the table below, each receiver has the
following features:
Acoustic limiter: Solid-state limiting device across the
receiver transducer
Frequency range: 300 to 3300 Hz
Distortion: < 5%
Unless otherwise specified, all specifications are nominal, and
assume a 50 ohm resistive load with a bias of 4.8 V dc through
226.5 ohms, and an input of 94 db SPL at 1000 Hz into an
attached headset top. Specifications are subject to change.
Encore ® Encore ®
Monaural Binaural
H91/H91N H101/H101N
wide band: 26.0 wide band: 19.5
narrow band: 37.0 narrow band: 31.5
wide band: 205 ± 30.8 wide band: 395 ± 59.3
narrow band: 250 ± 37.5 narrow band: 440 ± 66
10 10
Brüel & Kjaer Brüel & Kjaer
4157 Ear 4157 Ear
Simulator 1 Simulator
TEL: 800-544-4660 (USA AND CANADA)
