Plantronics M12 User Manual
  1. Manuals
  2. Brands
  3. Plantronics Manuals
  4. Amplifier
  5. M12
  6. User manual

Plantronics M12 User Manual

Universal modular amplifier
Hide thumbs Also See for M12:

Advertisement

Quick Links

Download this manual See also: User Manual
VISTA cov.eng.mech
9/16/02
3 4 5
S a n t a
C A
T e l
w w w . p l a n t r o n i c s . c o m
Printed in USA
© 1998 Plantronics, Inc.
5:18 PM
Page 30
E n c i n a l
S t r e e t
C r u z
9 5 0 6 0
1 . 8 0 0 . 5 4 4 . 4 6 6 0
43346-01 (9•98)
V i s t a
™
U n i v e r s a l M o d u l a r A m p l i f i e r
M 1 2
1
U s e r ' s G u i d e

Advertisement

loading
Need help?

Need help?

Do you have a question about the M12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Plantronics M12

Summary of Contents for Plantronics M12

  • Page 1 1 . 8 0 0 . 5 4 4 . 4 6 6 0 w w w . p l a n t r o n i c s . c o m Printed in USA © 1998 Plantronics, Inc. Page 30 S t r e e t 43346-01 (9•98)

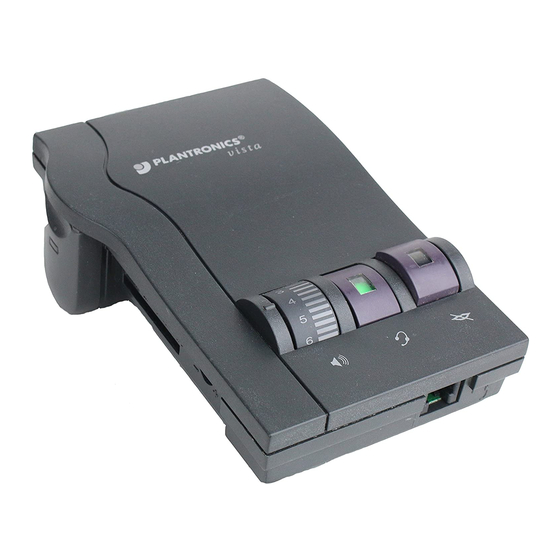

  • Page 2 P l a n t ro n i c s The Vista Universal Modular Amplifier adapts your telephone to a Plantronics headset and provides control of the sound through your headset. The Vista amplifier has built-in sound conditioning and protection.
  • Page 3 VISTA.engl.mech 9/16/02 5:12 PM connections & f e a t u res Connect the Vista amplifier to your telephone as shown. Follow the four easy steps on the following pages for complete installation details. Amplifier Features •SoundGuard ® Plus ™...
  • Page 4 VISTA.engl.mech 9/16/02 5:12 PM install S T E P b a t t e r i es The Vista Amplifier requires power to work with most phones. 1. Remove the Battery Access Door located on the side of the amplifier by placing your thumb on the door and pushing down.
  • Page 5 VISTA.engl.mech 9/16/02 5:12 PM set default S T E P s e t t i n g s These are the default settings for headset use. 1. Headset /Handset Selector is depressed (colored indicator showing). 2. Mute Switch is released (no colored indicator showing).
  • Page 6 VISTA.engl.mech 9/16/02 5:12 PM Page 6 1. Put on headset. Refer to your headset’s User Guide to adjust the microphone position for best performance. 2. Lift the phone’s handset off the cradle and place it on your desk. 3. Make sure your Vista amplifier settings are in default. See page 4 for details.
  • Page 7 VISTA.engl.mech 9/16/02 5:12 PM D E FA U LT S E T T I N G S M A K I N G A N D R E C E I V I N G C A L L S W I T H A H E A D S E T A D J U S T I N G •...
  • Page 8 VISTA.engl.mech 9/16/02 5:12 PM Adjusting Headset Incoming Volume 1. Adjust the volume by turning the Thumbwheel on the top panel. 2. Try different volume settings. 1 is the quietest and 9 is the loudest. 3. “Make a Test Call” (see page 7) provides more details about adjusting your incoming volume.
  • Page 9 Experimenting with various switch settings will not harm the amplifier or your phone. The Plantronics Help Desk is ready to assist you! Monday through Friday 8:00 AM to 5:00 PM PST 800 544-4660...
  • Page 10 VISTA.engl.mech 9/16/02 5:12 PM Maintenance Hints Trouble Shoot ing Guide P R O B L E M I T E M S T O C H E C K Make sure the microphone of your headset is MY CALLERS SAY THAT THEY CAN’T positioned in front or near your mouth.
  • Page 11 VISTA.engl.mech 9/16/02 5:12 PM For information on accessories and spare parts, call Plantronics at 1-800-544-4660, or visit the Plantronics web site at www.plantronics.com AC Power Supply I T E M AC Power Supply Telephone/Amplifier Compat ibility Slide Switch Door I T E M...

  • Page 12: Warranty And Service

    Damage occurring during shipment is deemed the responsibility of the carrier, and claims should be made directly with the carrier. The name Plantronics, the Plantronics logo and SoundGuard are registered trademarks of Plantronics, Inc. Vista, Quick Disconnect, Call Clarity and SoundGuard Plus are trademarks of Plantronics, Inc.
