3/11/24, 3:06 PM
Schwinn 190 & 290 Bikes: Why is the resistance not changing correctly?
Follow this troubleshooting guide to help resolve resistance issues on the Schwinn 190 and 290 bikes.
Some common complaints may include:
Resistance doesn't change
Resistance isn't displayed on the console
Bike is too easy to pedal
Bike is too difficult to pedal
Follow these steps to troubleshoot the issue
Tools you may need:
Phillips head screwdriver
Flat head screwdriver
6mm hex/Allen wrench, or the wrench from the hardware
card included with your machine
2mm hex/Allen wrench
1.
Start a workout using the Start button on the console. Pedal your bike and adjust the resistance using the Resistance
Up/Down and Quick Level buttons. Observe the console and check if the displayed resistance changes:
Resistance displayed as 000, does not change
Resistance momentarily changes, then reverts to the original level
Resistance is erratic/inconsistent
Resistance displayed on the console is 000 and does not change
Check the cable connection between the console and the base hub board.
1.
Remove the console pivot cover from behind the console (reference 1) and inspect the cable connection for damage
or missing connections.
2.
If damage is present,

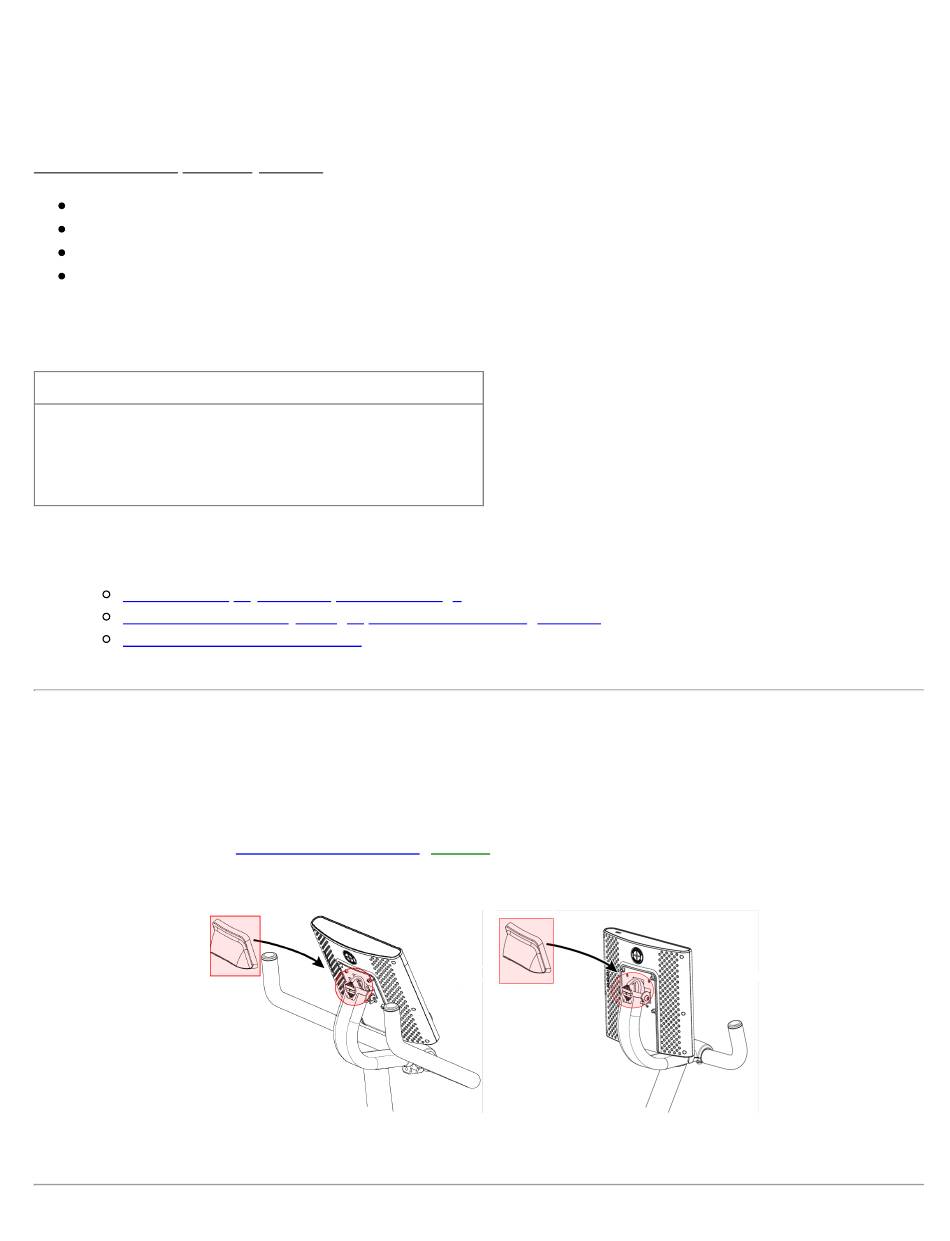

Remove the pivot cover (red square) and inspect the cable connection inside the mast (red arrow).
about:blank
Schwinn 190 & 290 Bikes: Why is the resistance not changing correctly?
order Main Mast Cables
Schwinn 190 (left) and Schwinn 290 (right).
[14518.B].
Reference 1
ID: 14518.4
1/6
