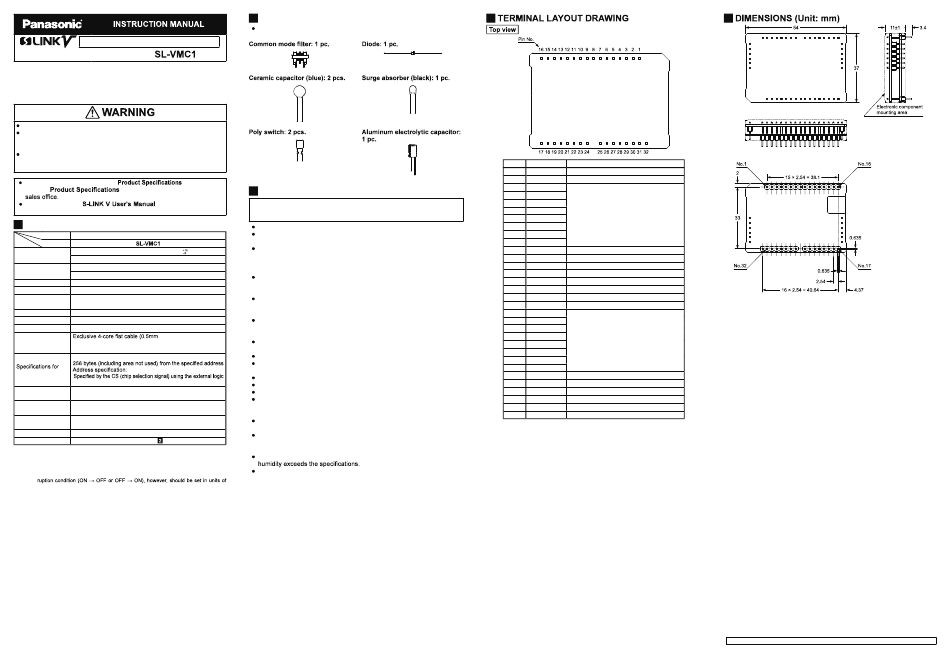

Panasonic S-LINK V SL-VMC1 Instruction Manual

Flexible Wire-saving System S-LINK V
S-LINK V Control Module
MJE-SLVMC1 No.0101-21V
Thank you very much for purchasing Panasonic products.
Please read this Instruction Manual carefully and thoroughly for the correct
and optimum use of this product.
Kindly keep this manual in a convenient place for quick reference.
Never use this product in a device for personnel protection.
In case of using devices for personnel protection, use products which
meet laws and standards, such as OSHA, ANSI or IEC etc., for person-
nel protection applicable in each region or country.
Before touching this product, remove any electrostatic charge that may
be present on your body. There is a danger of this product getting dam-
aged due to the electrostatic charge.
For details of this product, refer to " " of the product.
For the " " of this product, contact our nearest
Please refer to the " " for details of the entire
S-LINK V system.
1 SPECIFICATIONS
Description S-LINK V control module
Item Model No.
[S-LINK V system side] 24V DC %
Supply voltage
(Note 1)
[Control module side] 5V DC±5%
[24V DC] 60mA or less (Note 2)
Current consumption
[5V DC] 200mA or less
Transmission speed A mode: 110kbps, B mode: 27.5kbps, C mode: 6.9kbps
Connection method "T" branch connection or multi-drop connection
Max. 512 points (Using DIP switches, in increments / decre-
I/O points
ments of 32 points is also possible.)
Connectable nodes Max. 256 nodes
Transmission distance A mode: max. 50m, B mode: max. 200m, C mode: max. 800m
Total cable length A mode: 100m or less, B mode: 400m or less, C mode: 1,600m or less
2
) or
Suitable
4-core VCTF cable (non-shield) conductor cross section of
transmission cable
0.3 to 2.0mm 2
Address occupation:
CPU side
Data bus width: 8 bits
Interruption function When the input is changed, or when an error occurs
(Note 3) [Validity (valid or invalid) of interruption can be set.]
Ambient temperature
0 to +55°C (No dew condensation), Storage: -20 to +70°C
(Note 4)
Ambient humidity
20 to 85% RH, Storage: 20 to 85% RH
(Note 4)
Weight Approx. 20g
Accessory Parts kit: 1 set (refer to " PARTS KIT.")
Notes: 1) 24V DC and 5V DC are insulated.
2) The current consumption value is the total of the maximum current value (D-G line
only) supplied to the S-LINK V I/O units and the current consumption value of the
S-LINK V control module.
3) Validity (valid or invalid) of input interruption can be set for every point. The inter-
32 points. If the input change interruption signal and the error occurrence interrup-
tion signal are output at the same time, the priority will be given to the error occur-
rence interruption signal.
4) Values of control module single body are shown in these areas. To mount this
product on your device, these values may be subject to change so that the values
can be optimum for both the control module and your device.
2 PARTS KIT
The following parts are attached to this product. Make sure to check
those before use.
3 CAUTIONS
In case of designing a board, take care of the bottom of this product that is
the area of being prohibited from mounting parts, mounting of the parts kit,
and pattern width.
This product has been developed / produced for industrial use only.
This product is not equipped with a short-circuit protection circuit. Use a
power supply having a short-circuit protection function (e.g. fuse, etc.).
Verify that the supply voltage variation is within the rating. Also, check
the voltage variation at the end terminal of the transmission route, since
voltage drop occurs depending on the diameter or the length of the
transmission cable.
If power is supplied from a commercial switching regulator, ensure that
the frame ground (F.G.) terminal of the power supply is connected to an
actual ground.
Do not use during the initial transient time after the power supply is
switched ON. Furthermore, transmission is not possible when the system is
in Busy state (during switching ON of the power supply or system setting.)
Make sure to use an isolation transformer for the DC power supply. If an
auto-transformer (single winding transformer) is used, this product or the
power supply may get damaged.
In case a surge is generated in the power supply used, connect a surge
absorber to the supply and absorb the surge.
Solder terminals at 260°C or less within 10 seconds.
Do not run the wires together with high-voltage lines or power lines or put
them in the same raceway. This can cause malfunction due to induction.
Make sure to carry out wiring in the power supply OFF condition.
Take care that wrong wiring will damage the product.
In order to reduce noise, make the wiring as short as possible.
In case noise generating equipment (switching regulator, inverter motor,
etc.) is used in the vicinity of this product, connect the frame ground (F.G.)
terminal of the equipment to an actual ground.
This product does not have a dust-proof or water-proof construction. Do
not use it in a place having excessive vapor, dust, etc.
Take care that the product does not come in contact with water, chemi-
cals or organic solvents, such as thinner, etc. Furthermore, do not use it
in an environment having corrosive gas.
Do not use the product in places where the ambient temperature or the
Do not touch this product while operation since there are some parts
whose temperatures become high.
4
Pin No. Name Description
1 S-LINK V-24V Opration power for S-LINK V side
2 N.C. Not connected
3 D7
4 D6
5 D5
6 D4
Data I/O
7 D3
8 D2
9 D1
10 D0
11 *RESET Reset input
12 *RD Read input
13 *WAT Wait output
14 *WR Write input
15 *CS Chip selection input
16 GND Grounding terminal for control module side
17 V
Operation power for control module side
DD
18 SEND Transmission indicator output
19 A0
20 A1
21 A2
22 A3
Address input
23 A4
24 A5
25 A6
26 A7
27 *INT S-LINK V interruption output
28 *READY S-LINK V READY output
29 *24V MON. S-LINK V supply voltage detection output
30 N.C. Not connected
31 S-LINK V-D D of S-LINK V side
32 S-LINK V-G G of S-LINK V side and operation power of 0V
