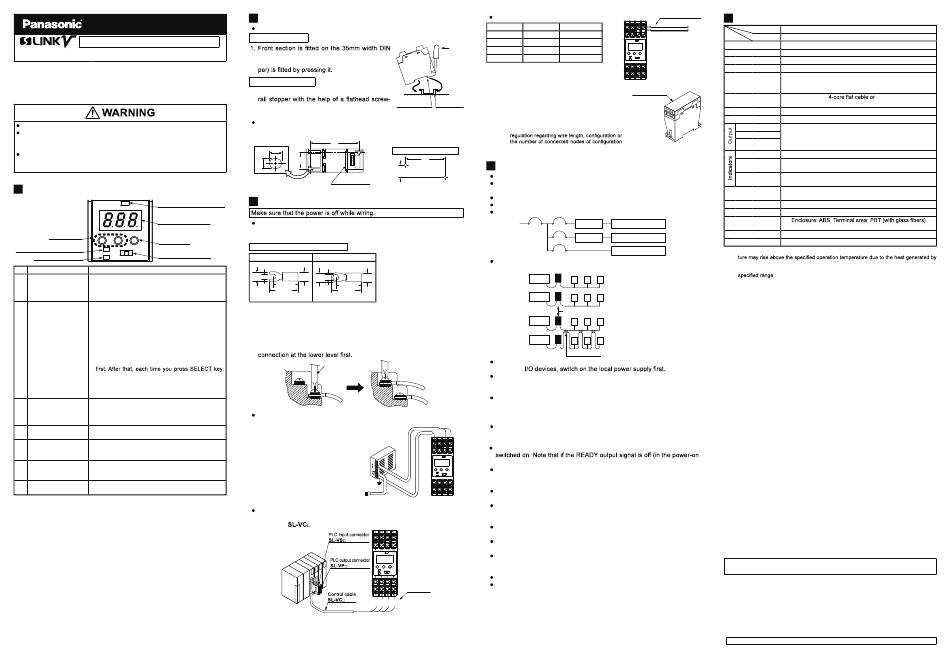

Panasonic S-LINK V SL-VCU1 Instruction Manual

INSTRUCTION MANUAL
Flexible Wire-saving System S-LINK V
S-LINK V Controller SL-VCU1
MJE-SLVCU1 No.0097-83V
Thank you very much for purchasing Panasonic products.
Please read this Instruction Manual carefully and thoroughly for the correct
and optimum use of this product.
Kindly keep this manual in a convenient place for quick reference.
Never use this product in a device for personnel protection.
In case of using devices for personnel protection, use products which
meet laws and standards, such as OSHA, ANSI or IEC etc., for person-
nel protection applicable in each region or country.
Before touching this product, remove any electrostatic charge that may
be present on your body. There is a danger of this product getting dam-
aged due to the electrostatic charge.
1 FUNCTIONAL DESCRIPTION
1. Hexadecimal number display
mode indicator (Orange)
2. Address display (Red)
4. SELECT key
3. ENTER key
5. Transmission mode indicator
(Green)
7. Mode selection switch
6. Error indicator (Red)
No. Designation Function
Indicates the current display mode of the address dis-
Hexadecimal number
play.
1 display mode indicator
• ON: The hexadecimal number display mode is selected.
(Orange)
• OFF: The decimal number display mode is selected.
The displayed item depends on the mode ("RUN,"
"CHECK," or "CONFIG" mode).
<RUN mode>
• Each transmission mode (A, B and C mode) will
be indicated and the LED of each character will
sequentially light up just like rotating clockwise. (the
display depends on each mode.)
2 Address display (Red) • If an error occurs, the error message will appear.
<CHECK mode>
• The number of connected nodes will be displayed
the recognized addresses will be displayed one af-
ter another.
<CONFIG mode>
• Settings will be displayed sequentially.
• Press ENTER key to determine the set condition
value.
3 ENTER key
• In the system setting mode, press and hold ENTER
key for 3 sec. or more. The system will be set.
Use these keys to switch the displayed item or set item.
4 SELECT key
Also use these keys to change the set condition value.
This indicator will blink during transmission (when the
Tr ansmission mode
5 transmission signal is being output). The indicator
indicator (Green)
blinking cycle depends on the transmission speed.
Error condition will be indicated.
6 Error indicator (Red) • Lights up when an error occurs.
• Blinks when the cause of the error is eliminated.
Switches the mode ("RUN," "CHECK," or "CONFIG"
7 Mode selection switch
mode).
2 MOUNTING
Mounting on 35mm width DIN rail
Mounting method
rail.
2. Rear section (side towards the DIN rail stop-
Dismantling method
1
3. Dismantling can be done by pulling out the DIN
DIN rail stopper
driver, etc.
Mounting with screws
• Use M4 screws. The tightening torque should be 0.78N·m or less.
70
5.5
Mounting hole dimensions
70
22
(Bottom view)
4.5
22
DIN rail stopper
(Top view)
3 CONNECTION
Wiring of terminal block
• SL-VCU1 uses M3 terminal screws.
The crimp-style terminals should be of the following dimensions.
Dimensions of suitable crimp-style terminals
(Unit: mm)
Note: Please use crimp-style ter-
Y type Round type
minals which have insulating
3.2 or more ø3.2 or more
tubes.
6 or 6 or
6 or 6 or
less less
less less
15 or less
15 or less
20 or less 20 or less
(After crimping) (After crimping)
Recommended crimp-style terminals (manufactured by J.S.T Mfg Co., Ltd.):
• Round crimp-style terminal with vinyl insulator (V2-S3.3)
• Round crimp-style terminal with nylon insulator (N2-S3.3)
• Y-shaped crimp-style terminal with vinyl insulator (V1.25-B3A, V2-N3A)
• The tightening torque should be 0.29 to 0.49N·m.
• Since the terminal block is divided into upper and lower levels, make
Screw-driver
Connection of main power supply unit
• Connect 0V and +24V to terminal Nos. 15 and 16, respectively, of SL-VCU1.
Notes: 1) Verify that the supply voltage
variation is within the rating.
F.G.
2) If power is supplied from a com- Main power supply unit
mercial switching regulator, en-
sure that the frame ground (F.G.)
terminal of the power supply is
connected to an actual ground.
Connection of PLC I/O connector
• Connect SL-VCU1 and PLC I/O connector as follows by using the con-
trol cable ( ) with attention to the color code.
SL-VCU1
Color code
(Black)(Whi t e)(Bl u e)(Brown)
Note: One control cable can connect up to 8 PLC I/O connectors to the controller. To connect
9 or more PLC I/O connectors, use 2 control cables. In this case, overlap the lead wires
of both cables, and connect them to the terminals.
Connection of transmission cable
Terminal No. Cable color Terminal name
9 Black G
10 White D
3
11 Blue 0V
12 Brown +24V
2
Notes: 1) Ensure to fit the protective cover NPS-CV (ac-
cessory) after the wiring operation.
35mm width 2) Shorting pieces are attached to connect terminal
DIN rail 11 to terminal 15 and terminal 12 to terminal 16.
Do not remove these shorting pieces. If you re-
move these pieces, the system will not operate
properly.
3) Refer to "S-LINK V User's Manual" for each
(Unit: mm)
device.
4 CAUTIONS
This product has been developed / produced for industrial use only.
This product has no short-circuit protective function. Use a power sup-
ply having a short-circuit protective function (e.g. fuse, etc.).
Make sure that the power supply is OFF while wiring.
Take care that wrong wiring will damage the product.
Separate the S-LINK V cables from the PLC supply or power lines.
Transformer
Transformer
Use a separate signal cable for each system. Do not use a single cable
to wire several systems.
PLC
PLC
SL-VCU1
PLC
PLC
Multi-core cable
In case a local power supply is used for the connected devices and the
S-LINK V
Do not run the wires together with high-voltage lines or power lines or
put them in the same raceway. This can cause malfunction due to in-
duction.
Verify that the supply voltage variation is within the rating. Also, verify
the voltage variation at the end terminal of the transmission route, since
voltage drop occurs depending on the diameter or the length of the
transmission cable.
If power is supplied from a commercial switching regulator, ensure that
the frame ground (F.G.) terminal of the power supply is connected to an
0V +24V
13 14 15 16 actual ground.
Do not use during the initial transient time after the power supply is
9 10 11 12
or system setting), transmission will not be possible.
Make sure to use an isolation transformer for the DC power supply.
If an auto-transformer (single winding transformer) is used, this product
5 6 7 8
or the power supply may get damaged.
In case a surge is generated in the power supply used, connect a surge
1234
absorber to the supply and absorb the surge.
SL-VCU1
In case noise generating equipment (switching regulator, inverter motor,
etc.) is used in the vicinity of any S-LINK V device, connect the frame
ground (F.G.) terminal of the equipment to an actual ground.
Do not use in an airtight place. Use in a place provided with ventilation
holes or a fan.
This product does not have a dust-proof or water-proof construction.
Do not use it in a place having excessive vapor, dust, etc.
Take care that the product does not come in contact with water, oil,
chemicals or organic solvents, such as thinner, etc. Furthermore, do not
use it in an environment having corrosive gas.
In case of using this product in outdoor, put the product into a box, etc.
Any protective devices or safety circuits against system malfunction
should be designed to be external to the system.
Transmission cable
5 SPECIFICATIONS
13 14 15 16
Designation
To I/O unit Item
Model No.
9 10 11 12
Supply voltage
Current consumption 135mA or less (excluding the load drive current of error output)
SL-VCU1
Transmission distance A mode: Max. 50m, B mode: Max. 200m, C mode: Max. 800m
5 6 7 8
Total cable length A mode: 100m or less, B mode: 400m or less, C mode: 1,600m or less
PLC I/O connector side: Multi-drop connection
1234
Connection method Signal transmission line side: "T" - branch connection or
Protective cover
(NPS-CV)
Exclusive 0.5mm
Transmission cable
4-core VCTF cable (non-shielded) having 0.3 to 2.0mm
Number of I/O points
Number of connected nodes
READY output NPN open-collector transistor
• Maximum sink current: 100mA (without short-circuit protective function)
Error output 1
• Applied voltage: 30V DC or less (between output and 0V)
Error output 2
• Residual voltage: 1.5V or less (at 100mA sink current)
Transmission
Red LED (lights up when an error occurs, blinks when the er-
Error
ror is eliminated)
Hexadecimal Orange LED (lights up when the hexadecimal number dis-
number play mode is selected to display the addresses)
3 digit red LED display (displays the number of connected
Address indicator
nodes, recognized addresses, error addresses, etc.)
Ambient temperature 0 to +55°C (No dew condensation) (Note), Storage: -20 to +70°C
Ambient humidity
Material
S-LINK V system
Protective cover: Polycarbonate
Weight
PLC
Accessory
Power machine Note: If this product is stored in the control panel together with the other units, the tempera-
the other units.
In this case, install a cooling fan, etc. so that the ambient temperature can be in the
Correct
Incorrect
Please refer to the "S-LINK V User's Manual" for details of the entire
S-LINK V system.
Panasonic Industry Co., Ltd.
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan
https://industry.panasonic.com/
Please visit our website for inquiries and about our sales network.
Panasonic Industry Co., Ltd. 2024
April, 2024
S-LINK V controller
SL-VCU1
24V DC +10 %
– 5
multi-drop connection
2
2
conductor cross section
Max. 512 points
Max. 256 nodes
Green LED (blinks during transmission)
10 to 90% RH, Storage: 10 to 90% RH
Approx. 140g
NPS-CV (Protective cover): 1 pc.
