05/2014 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.

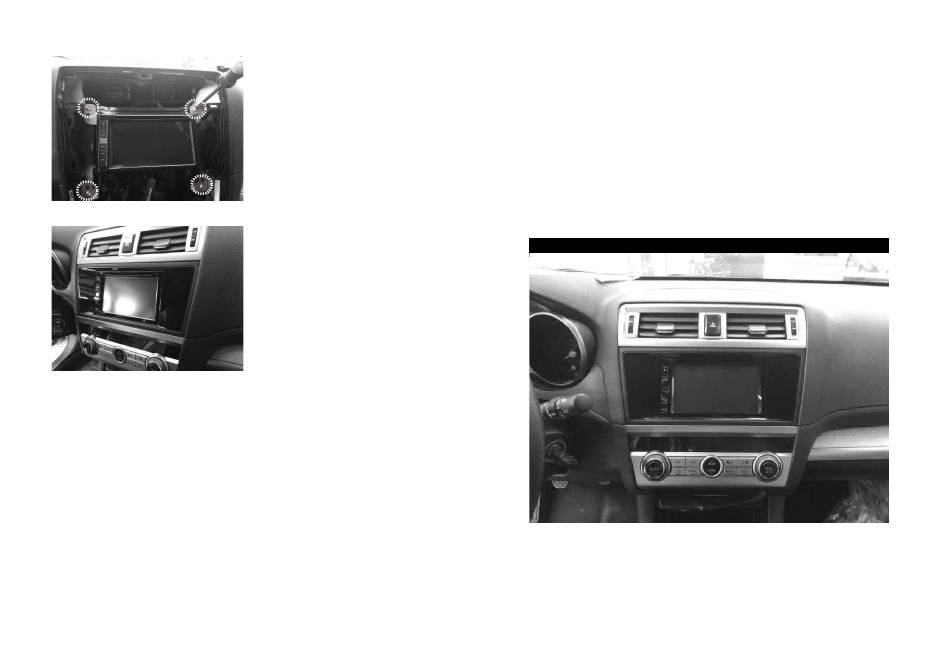

Mount the unit with the screws
and verify the proper functioning
of the system.
Reassemble, in reverse order,
using parts saved before (white
clips) and mount the facia plate
provided.
This is the final result.
CA-HM-SUB.005
SUBARU
OUTBACK 2015->
Compatible with double DIN devices
Double DIN Kit content
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
Facia Plate
Mounting Brackets + Screws
