Pioneer CA-HM-SUB.005 Manual page 2

Installation Manual Double DIN Kit
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

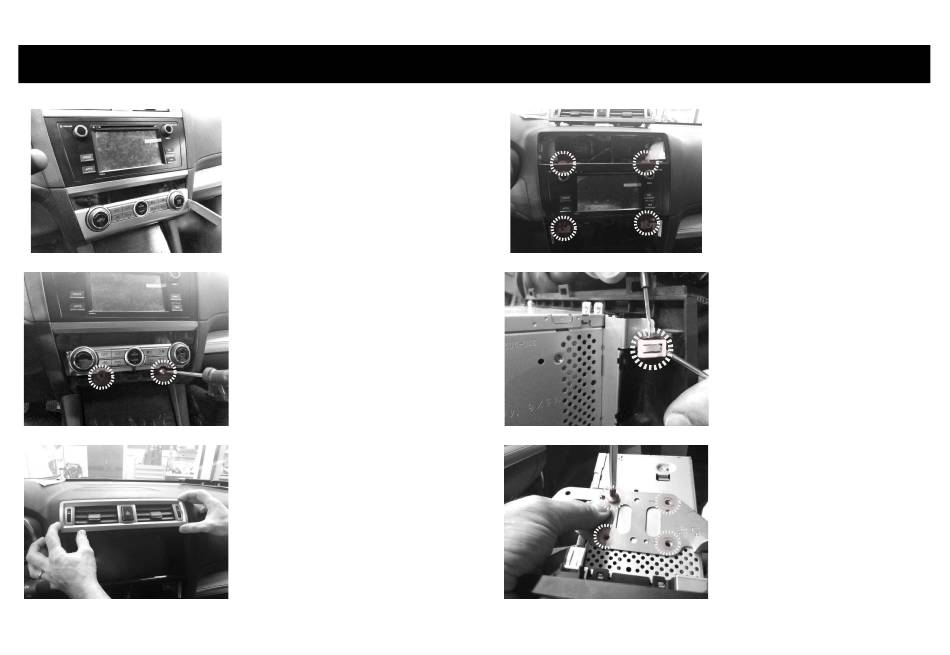

Carefully remove the silver
plastic cover of the clima
controls.
Unscrew the two screws shown
in the picture and remove the
clima controls panel.
Carefully remove the air vents
panel.
Unscrew the four screws of
the original OEM shown in the
picture and remove it.
Remove and save the white
clips shown in the picture.
Mount the brackets on the
aftermarket unit with the screws
supplied.
