9
ATTENTION!
This kit is NOT compa�ble with OEM touch display!
11/02 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
FOISMA70013/T+KIT
9 Install the panels you have removed
and install the facia plate supplied in
the kit.
This is the final result.
RENAULT
Model:
Master
2020>
Year:

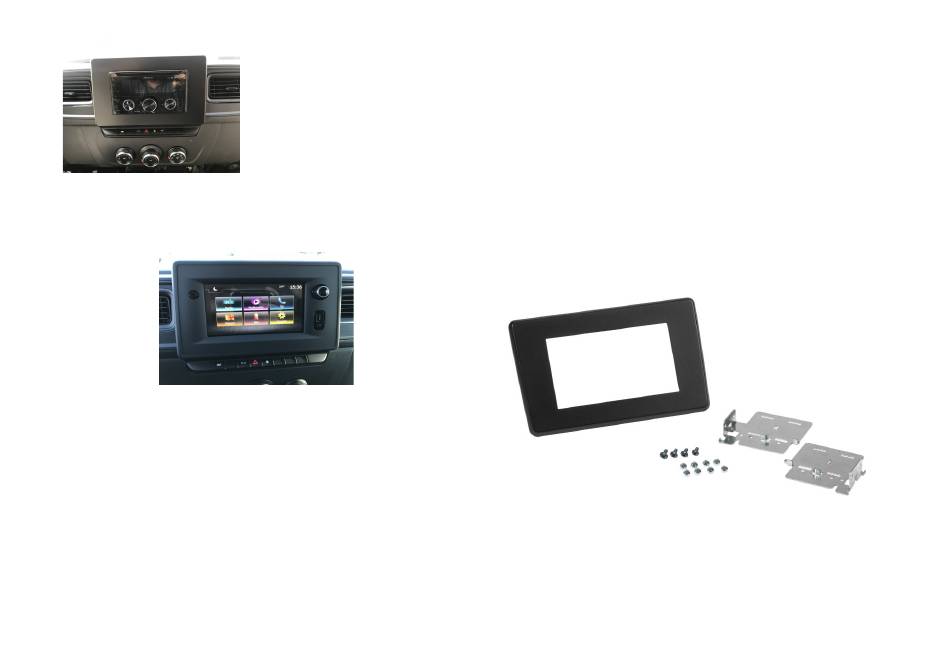

facia plate
Kit content:
moun�ng brackets+ screws
Compa�bility:
Compa�ble with double DIN device
CA-HM-NRO.005
Customer code:
INSTALLATION MANUAL
All installa�on work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
Advertisement
Related Manuals for Pioneer CA-HM-NRO.005
Summary of Contents for Pioneer CA-HM-NRO.005
- Page 1 Kit content: moun�ng brackets+ screws Compa�bility: Compa�ble with double DIN device CA-HM-NRO.005 Customer code: ATTENTION! This kit is NOT compa�ble with OEM touch display! INSTALLATION MANUAL All installa�on work must be performed by a qualified professional installer only.
- Page 2 5 Unscrew and save the 6 screws 1 This is how the original dashboard circled in red. looks like. 2 Unscrew and save the 4 screws 6 Unscrew and save the 2 screws circled in Red and remove the plas�c circled in red.
