Summary of Contents for Vermeiren Alois

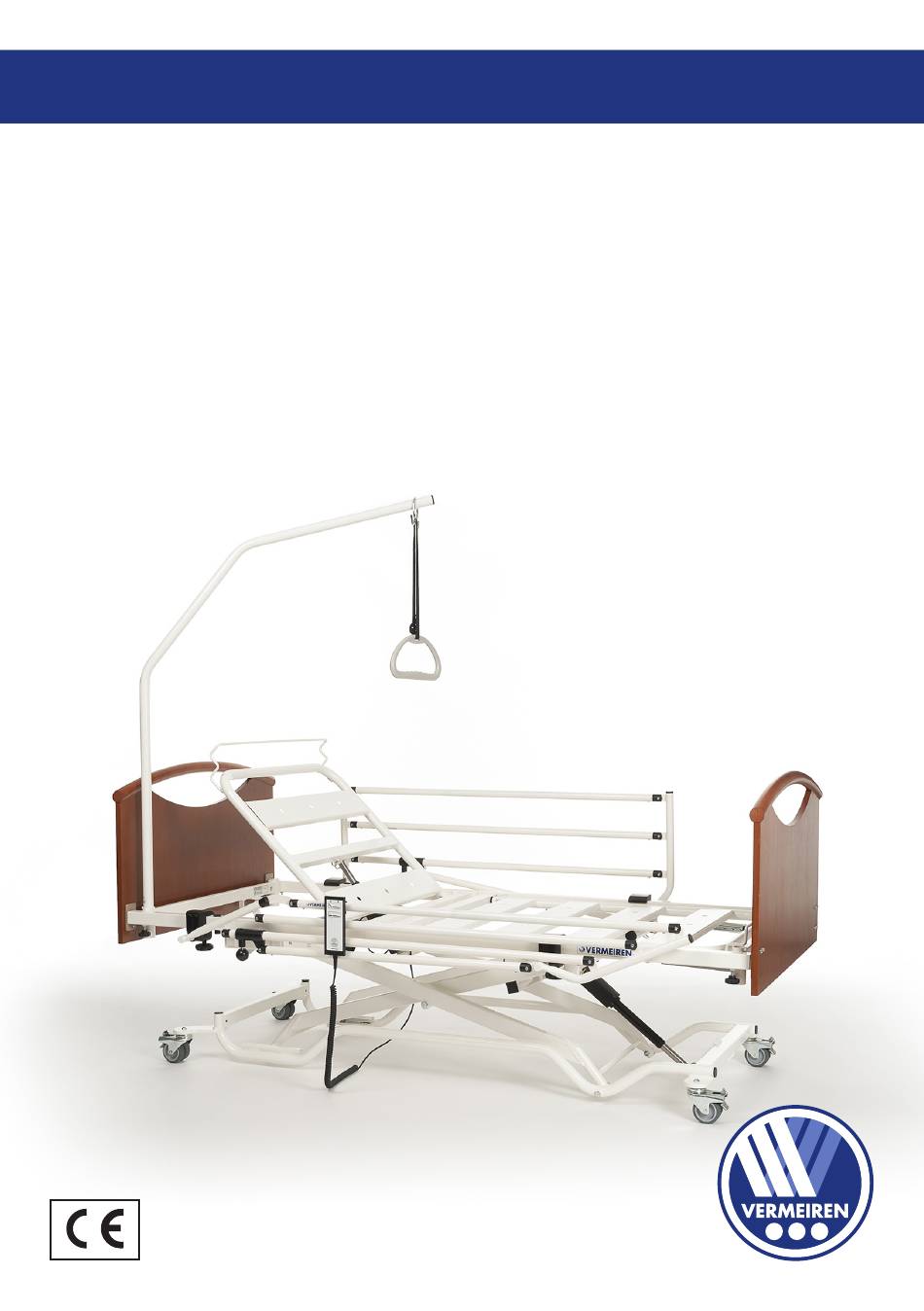

- Page 1 M A N U A L D E I N S T R U C C I O N E S I N S T R U K C J A O B S Ł U G I N Á V O D K O B S L U Z E Alois...
-
Page 3: Table Of Contents
Operating the side rails 3.6. Adjusting leg section manually (optional) 3.7. Moving to/from the bed Maintenance 4.1. Time of maintenance 4.2. Maintenance instructions 4.3. Troubleshooting 4.4. Expected lifespan 4.5. Reuse 4.6. End of use 4.7. Warranty Technical specifications User manual | 2024-10 Alois... -
Page 4: Preface
Vermeiren. Thank you for your trust in the products of Vermeiren. To support you on the use of this bed and its operating options, this manual is offered. Please read it carefully; it will help you to get familiar with the operation, capabilities and limitations of your bed. - Page 5 User manual For user and specialist dealer Installation instructions For specialist dealer Service manual for beds For specialist dealer EC declaration of conformity User manual | 2024-10 Alois...
-
Page 6: Your Product
Lifting pole / Trapeze handle Mattress retainer Foot panel Side rail Castor wheel with brake Foot section Head section Undercarriage 10. Handset 1 1. Identification plate 1.1. Options Contact your specialist dealer about options. He will gladly advise you. User manual | 2024-10 Alois... -
Page 7: Before Use
• Only use accessories and spare parts approved by Vermeiren. • The warranty on this product is based on normal use and maintenance as described in this manual. -
Page 8: General Safety Instructions
Any serious incident [MDR (EU) 2017/745 §2 (65)] that has occurred in relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user and/or patient is established. User manual | 2024-10 Alois... -
Page 9: Symbols On The Nursing Bed
Maximum mattress thickness (in mm) Mattress dimensions (in cm) Type designation Catalogue number Serial number Medical device Declaration of conformity Manufacturer Date of manufacture Attention: important information Risk of entrapment It is advised to read the manual User manual | 2024-10 Alois... -
Page 10: Using Your Bed
Release all brakes of the castor wheels, see §3.4.. Roll the empty bed in place. When in position, apply the four brakes, see §3.4.. Connect the power cable of the bed to the 220/230V AC power socket. User manual | 2024-10 Alois... -
Page 11: Using The Handset
3.4.1. Releasing the brakes (A) Use your foot to press the top of the brake lever backwards. 3.4.2. Activating the brakes (B) Use your foot to press the brake lever down towards the castor wheel. User manual | 2024-10 Alois... -
Page 12: Operating The Side Rails
Lower the side rails gently. Always take hold of the upper wooden slat only. To raise the side rails: Pull the upper rail up until it is locked. User manual | 2024-10 Alois... -
Page 13: Adjusting Leg Section Manually (Optional)
(18). 3.6.2. Lowering legs/feet To lower, pull the strap to the highest position to unlock rastomat (18). Hold the strap and move the leg section slowly down. User manual | 2024-10 Alois... -
Page 14: Moving To/From The Bed
ɣ Adjust the height of the bed to a low position with the handset; see §3.3.. Turn yourself to sitting position with your legs outside the bed. Use the lifting pole with trapeze handle to help move yourself from the bed. User manual | 2024-10 Alois... -
Page 15: Maintenance
The service frequency depends on the frequency and intensity of use. Contact your dealer to agree to a common timetable for inspection/maintenance/repair. To find a service facility or specialist dealer near you, contact the nearest Vermeiren company division. 4.1.1. Once a year / for every new user This nursing bed needs to be serviced and disinfected before passing on to a new user, but at least once a year. -
Page 16: Maintenance Instructions
4.2.2. Disinfection CAUTION Risk of damage • Disinfections may only be undertaken by trained persons. Consult your specialist dealer. Use a soft, damp cloth and lukewarm water with a mild household disinfectant to clean the bed. User manual | 2024-10 Alois... -
Page 17: Troubleshooting
The average lifespan of your bed is 5 years. Depending on the frequency of use and maintenance, the lifespan of your bed will increase or decrease. 4.5. Reuse Before each reuse, have the bed disinfected, inspected and serviced according to the instructions in §4.1. and §4.2.. User manual | 2024-10 Alois... -
Page 18: End Of Use
Take these details into account during use. The values are no longer applicable if your nursing bed has been modified, damaged or suffers from severe wear. Brand Vermeiren Product group Type Alois / Alzeis Description Dimensions Maximum occupant mass 135 kg Overall length... - Page 19 Brand Vermeiren Product group Type Alois / Alzeis Description Dimensions Mattress Min. RG 35, thickness 120 mm, 2000 x 900 mm, max. 20 kg Under clearance for patient lift 130 mm Steering castors (4 pieces) Ø 75 mm , can be locked...
- Page 20 By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date: Date: User manual | 2024-10 Alois...
- Page 21 User manual | 2024-10 Alois...
- Page 22 User manual | 2024-10 Alois...
- Page 23 User manual | 2024-10 Alois...
- Page 24 VERMEIREN GROUP Vermeirenplein 1/15 2920 Kalmthout Belgium www.vermeiren.com Version: C, 2024-10 Basic UDI-DI: 5415174 181210Alois 4Q All rights reserved, including translation.
