QUICK START GUIDE
TRANSCENDENT
NETWORK
FEATURES:
•
1/3.0" 4.0 MegaPixel CMOS Image Sensor
•
Full Color at Night Camera with Active Deterrence
•
Up to 30fps @ 4MP (2592 × 1520)
•
2.8~12mm Motorized AF Lens
•
White Light + Matrix IR (130' Range)
•
GEN IV Advanced Analytics including Face Detection
•
Integrated Audio + Speaker*
•
MicroSD Card Slot (256GB)
•
IP66 Weather Resistance
•
12VDC + PoE Operation
•
3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.

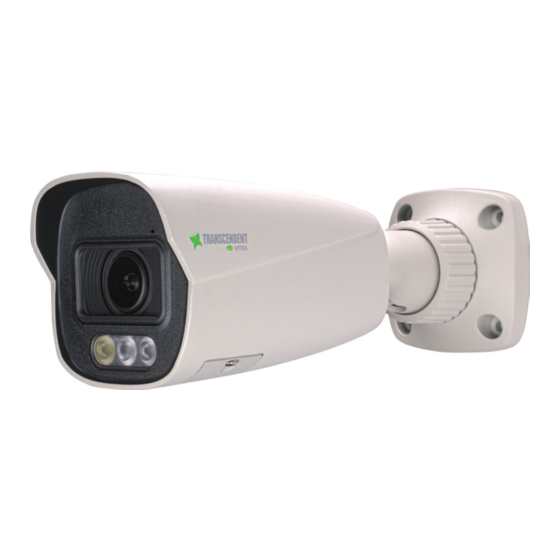

VTC-TNB4MADW
Transcendent Knight Guard Active
Deterrence 4MP Advanced A.I.
Motorized AF Bullet Camera
INTEGRATED
4 MEGAPIXEL
MOTORIZED AF
AUDIO
LENS
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
WHITE LIGHT +
GEN. IV
IR ILLUMINATION
ANALYTICS
Advertisement
Table of Contents
Related Manuals for Vitek VTC-TNB4MADW
Summary of Contents for Vitek VTC-TNB4MADW

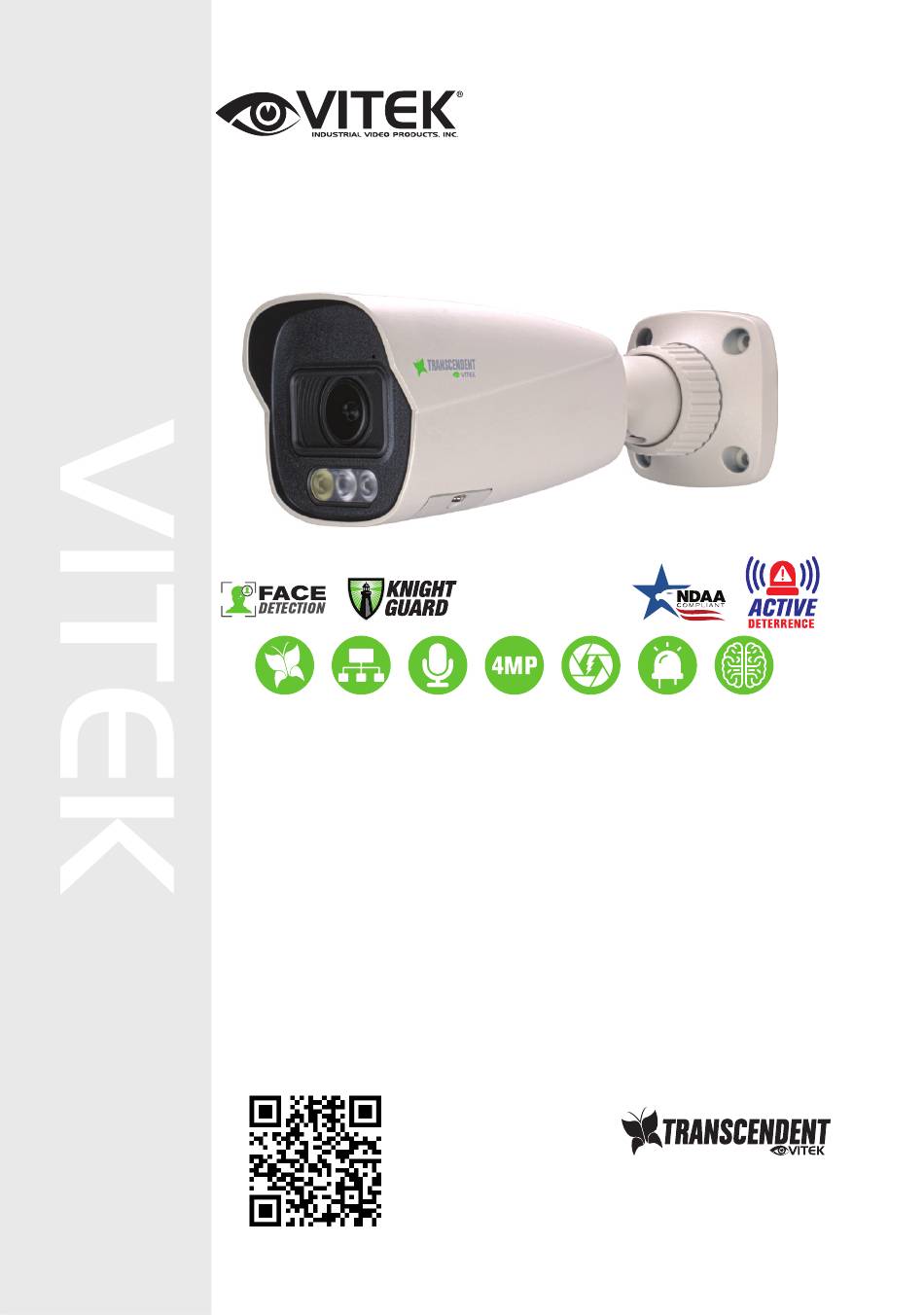

- Page 1 VTC-TNB4MADW Transcendent Knight Guard Active Deterrence 4MP Advanced A.I. Motorized AF Bullet Camera QUICK START GUIDE TRANSCENDENT NETWORK INTEGRATED 4 MEGAPIXEL MOTORIZED AF WHITE LIGHT + GEN. IV IR ILLUMINATION ANALYTICS AUDIO LENS FEATURES: • 1/3.0” 4.0 MegaPixel CMOS Image Sensor •...
-
Page 2: Components And Accessories
Components and Accessories Camera Drill Template Quick Guide Plastic Plugs Screws Network Coupler Overview 1. Ethernet Connector 2. Audio Input Connector 3. Audio Output Connector 4. Alarm Input / Output 5. Power Connector 6. Speaker 7. Lock Ring 8. Mounting Base 9. -
Page 3: Installation
Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 4 2. Route and connect relevant cables using the Weather Resistant Network Coupler instructions provided on the previous page. Ground Wire Connection 3. Attach the mounting base to the wall with the provided screws. 4. Loosen the locking ring to adjust the viewing angle of the camera.
-
Page 5: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM. Edge in IE mode / IE browser will download the Active X. control. After downloading, a login window will pop up as shown below: Input the user name and password to log in.
-
Page 7: Wan Configuration
2. Open Edge in IE mode / IE browser and input the default address of IP-CAM and confirm. Edge in IE mode / IE browser will download an Active X control. 3. After downloading the Active X control, the login box appears. 4. - Page 8 How to Set Up Audio / Light Alert on Event 1. Log into camera. Default username is admin and password is 123456. 2. Click on Config Tab. 3. Under Event click on event that will trigger audio and / or light. Line crossing as an example.
- Page 9 5. Click on “Area” at top and then click on “Draw Area”, then left click and hold to draw the line. After the line is in the image, select which direction trips the event, A>B, A<B or A><B, then click “Save”. 6.
- Page 10 7. If you want to customize the voice, you can choose “Customize”. Click “Browse” under Upload Audio to choose the audio file you want to upload and then enter the audio name. Finally, click “Upload” to upload the audio file. Note that the format of the audio file must meet the requirement (see Tips), or it will not be uploaded.
- Page 11 Step 1. - Insert the microphone into your PC. - Click “Browse” to choose the save path of the audio you want to record. - Set the record audio volume and then click “Start” to start recording your voice. - Click “Upload” to upload your customized voice. Step 2.
- Page 12 DETAILED SPECIFICATIONS - VTC-TNB4MADW Image Sensor 1/3.0” 4.0 MegaPixel Progressive Scan CMOS Image Size 4 MegaPixel (2592×1520) 4MP (2592×1520), 2K (2560×1440 ), 3MP (2304×1296),1080P (1920 ×1080), 720P (1280×720), D1, VGA (640×480), Resolution CIF, 480 × 240 Frame Rate 30fps @ 4MP and Lower...
- Page 13 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNB4MADW VT-TJB08 Optional Junction Box VT-TCNMT VT-TPLMT Transcendent Universal Transcendent Universal Corner Mount (reqs. VT-TJB08) Pole Mount (reqs. VT-TJB08) 8.47” 6.43”...
- Page 14 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs! TRANSCENDENT NVRs! A Standalone Solution with GEN. IV Advanced Analytic Support and NDAA Compliance! • Up to 12MP Recording • H.265S / H.265+ / H.265 / H.264 Video Compression •...
- Page 15 Also Consider Vitek NDAA Compliant Wireless Bridge Products to Reduce Costly Cable Installation! VT-WB1150, VT-WB2150, and VT-WB5900 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, High Speed Transmission, and Point-to-Multi- Point (P2MP) Topology VT-WB1150...
-
Page 16: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
