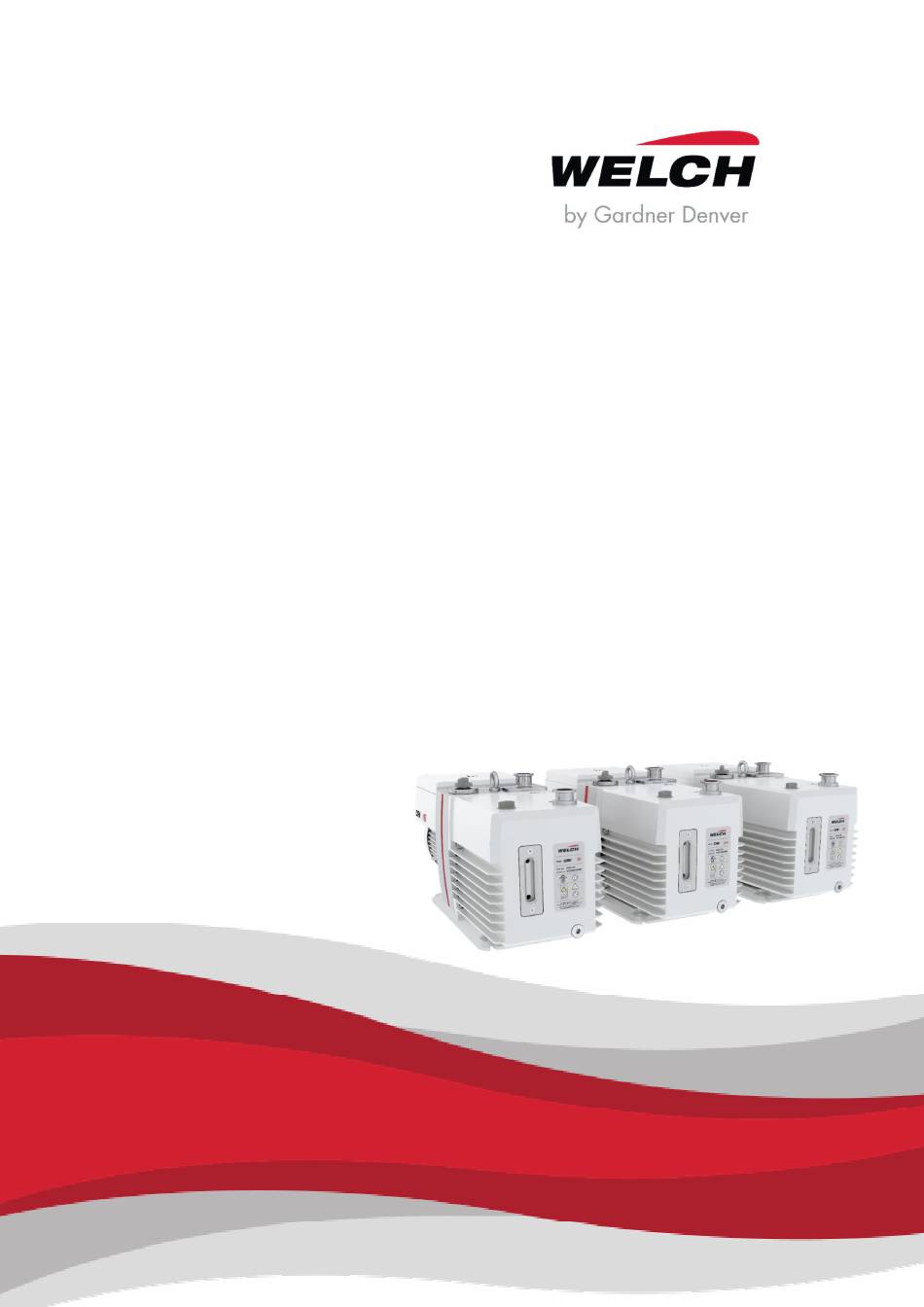

- Page 1 Operation Manual (EN) Original version of the operation manual Rotary vane pumps Two-stage Series CRVpro CRVpro 16 CRVpro 24 CRVpro 30 P1700017 2018-05-04...
- Page 2 Co. Gardner Denver Thomas GmbH. All rights under the copyright laws are expressly reserved by Co. Gardner Denver Thomas GmbH. We reserve the right to make changes and amendments.
-
Page 3: Table Of Contents
Contents Contents Important Information ......................1 Meaning of the Warning and Information notes ..............1 General Information ......................1 Target Groups ........................2 Intended Use ........................2 Use for an Unauthorized Purpose ..................2 Product Standards, Safety Regulations ................3 Basic Safety Instructions .................... - Page 4 Contents 5.5.3 Motor Protection ......................19 Starting-up........................19 Operating Temperature ....................20 Oil for Drawing off Oxygen ....................20 Gas Ballast Control ......................20 5.10 Trap installation and maintenance ................... 21 5.11 Closing down ........................21 5.12 Storage ........................... 21 5.13 Scrap Disposal ........................
-
Page 5: Important Information
Important Information Important Information 1.1 Meaning of the Warning and Information notes Take note of the warning notes which are in the following boxes: CAUTION ! / WARNING ! Hazard which may lead to serious injuries or material damage. WARNING ! Hot surface which may lead to serious injuries or material damage. -
Page 6: Target Groups
Important Information ONLY RELEVANT FOR CE (220-240V / 50HZ ) OPERATION The Rotary vane pump conform to the following directives: Directive on machinery 2006/42/EC Directive on waste electrical and electronic equipment 2012/19/EU Directive on the restriction of the use of certain hazardous substances in 2011/65/EU electrical and electronic equipment 1.3 Target Groups... -
Page 7: Product Standards, Safety Regulations
Important Information 1.6 Product Standards, Safety Regulations ONLY RELEVANT FOR CE (220-240V / 50HZ ) OPERATION The rotary vane pump meet the following product standards: Safety of machinery - Electrical equipment of machines - EN 60204-1 Part 1: General requirements Observe the standards and regulations applying in your country when you use the rotary vane pump. -
Page 8: Basic Safety Instructions
Basic Safety Instructions Basic Safety Instructions IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS 2.1 General Information CAUTION ! To reduce the risks of fire or explosion, electrical shock, and the injury to persons, read and understand all instructions included in this manual. Be familiar with the controls and the proper usage of the equipment ·... -
Page 9: Hazardous Substances
Basic Safety Instructions CAUTION ! Solid particles in the pumping medium impair the pumping action and can lead to damage. Prevent solid particles penetrating into the pump! 2.4 Hazardous Substances CAUTION ! The operating company bears the responsibility for the use of the Rotary vane pump. Hazardous substances in the gases to be pumped can cause personal injuries and property damage. -
Page 10: Description
Description Description 3.1 Design The CRVpro series vacuum pumps are oil-sealed, two-stage rotary vane pumps. The drive motor is directly flange-mounted onto the motor cover of the pump holder and the pump shaft and the motor shaft are connected to each other by an elastic coupling. The bearings of the interior pump body are force-fed lubricated sliding bearings. -
Page 11: Scope Of Delivery
Description 3.3 Scope of Delivery Followed the scope of delivery for standard model numbers. The scope of delivery for other model numbers is specified in the supply contract. Americas EMEA Asia 115V, 115V, Hose 115V, Flare 230V, hose 230V, 230V, CN Description Standard barb adapter... -
Page 12: Working Principle Of Two-Stage Rotary Vane Pumps (Crvpro Series)
Description Fig. 2 Rotary vane pump Principle The rotary action of the pump creates a hollow space of chamber (1) which expands as the pump rotates. As the chamber expands, the pressure in the chamber decreases. As a result, gas is drawn into the chamber due to the difference in pressure between the chamber and the inlet (4) to the chamber (The inlet is the only place where gas can flow into the chamber). - Page 13 Description When in operation, the intake stage is at lower pressure and the exhaust stage is at higher pressure relative to each other. Each stage contains a rotor assembly consisting of a rotor with two vanes and a stator. The two rotors are combined on one shaft, and the two stators are combined in a common housing.
-
Page 14: Oil Functions
Description 3.4.4 Oil Functions WARNING ! Vacuum pump is shipped without oil inside to prevent possible spillage during shipment. Oil must be added prior to use! The oil fulfils the following functions in the vacuum pump: · lubricating the sliding parts, such as rotor, vane, radial shaft seals ·... - Page 15 Description CAUTION ! Operating with gas ballast increases the operating temperature of the vacuum pump by 5 – 10 K. The gas ballast valve can increase the pump’s water vapour tolerance. In many vacuum pump applications the gases being pumped from a system are a combination of permanent gases and undesirable vapours such as water vapour.
-
Page 16: Technical Data
Technical Data Technical Data 4.1 Dimensions Fig. 4 Dimensions (in mm) Pump series (in mm) CRVpro 16 CRVpro 24 CRVpro 30 4.2 Pumping Speed / Intake Pressure – Diagram Fig. 5 Pumping Speed / Intake Pressure - Diagram CRVpro 16, 24, 30 P1700017... -
Page 17: Device Data
Technical Data 4.3 Device Data 316x-xx 324x-xx 330x-xx Parameter Unit (CRVpro 16) (CRVpro 24) (CRVpro 30) Free Air Displacement (max. pumping speed) - @ 50Hz /h (L/min) 18.3 (306) 26.2 (438) 33.1 (553) - @ 60Hz CFM (L/min) 12.8 (362) 18.3 (518) 22.1 (625) Pumping speed (Ø-data 133 to 1013... -
Page 18: Lubrication Data
Technical Data 4.5 Lubrication Data Welch Directorr™ Premium vacuum oil is a triple-distilled hydrocarbon oil using severely hydrotreated base stock. The oil is designed to resist breakdown at higher RPMs and operating temperatures of direct-drive vacuum pumps. The hydrotreating virtually eliminates aromatics and sulfur to give good resistance to sludge and varnish formation over time in corrosive environments. -
Page 19: Installation And Operation
Installation and Operation Installation and Operation 5.1 Unpacking Carefully unpack the rotary vane pump. Keep all paperwork and inspection tags for future reference. Check the pump for: · Transport damage · Conformity with the specifications of the supply contract (model, electrical supply data) ·... -
Page 20: General References
Installation and Operation 5.4 General References CAUTION ! On continuous operation it’s recommended to run the pump below 10mbar maximum vacuum pressure. According to its intended use the capacity of the vacuum pump depends on: · the kind of assembly ·... -
Page 21: Connecting To The Electricity Supply
Installation and Operation 5.5.1 Connecting to the Electricity Supply The standard pump is supplied with complete electrical wiring. It is connected via an appliance cable and a power supply plug. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 22: Installation Of The Grounding Plug
Installation and Operation 5.5.2 Installation of the Grounding Plug For UL ONLY RELEVANT FOR UL (115V, 230V / 60HZ) OPERATION This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. -
Page 23: Motor Protection
Installation and Operation 5.5.3 Motor Protection All A.C. motors are provided with a thermal overload protection ex works, protecting the motor and vacuum pump from damage or destruction, respectively. The motor manufacturer makes motor thermal overload protection available as an aid to minimize motor failure. Overload protection is a standard feature on the single-phase motor. -
Page 24: Operating Temperature
Installation and Operation 5.7 Operating Temperature The function of the vacuum pump filled with Directorr™ Premium vacuum oil is guaranteed between ambient temperatures of 10°C and 40°C. The lowest starting temperature is 12°C. The pump must be vented on the suction-side (suction port open). WARNING ! In dependence on the operation mode, the casing temperature can reach 90°C. -
Page 25: Trap Installation And Maintenance
Installation and Operation 5.10 Trap installation and maintenance Where corrosive vapors or large quantities of condensable vapors are evolved from vacuum processing, a cold trap may be used in the connecting line to the pump. It will help prevent damage to the pump mechanism and reduce oil contamination. The cold trap, immersed in a suitable Dewier flask, is installed so that the vapors may come in contact with the surfaces of the trap and condense. -
Page 26: Scrap Disposal
Installation and Operation 5.13 Scrap Disposal CAUTION ! The rotary vane pumps must be disposed of in accordance with the 2012/19/EU directive and the specific national regulations. Contaminated rotary vane pumps must be decontaminated according to the laws. P1700017... -
Page 27: Maintenance And Servicing
Maintenance and Servicing Maintenance and Servicing Under normal operating conditions the maintenance of the Rotary vane pump is limited to: · external cleaning · checking running noises · checking the level and quality of the oil · regular oil changes These maintenance intervals must be specified according to the prevailing operating conditions and adhered to. -
Page 28: Oil Colour Check
Maintenance and Servicing Oil fill plug Oil drain plug Lower marking MIN Oil sight glass Upper marking FULL Fig. 9 Oil level control 6.2 Oil Colour Check WARNING ! The condition and quality of the pump oil have a substantial effect upon the performance and operational readiness of the vacuum pump! Comparing the colour of a sample of the pump oil with fresh oil provides an indication of the contamination of the pump oil. -
Page 29: Filling Up With Oil
Maintenance and Servicing WARNING ! Avoid skin contact with the oil! Dispose of the oil in accordance with the valid environmental protection regulations! 6.3.2 Filling up with Oil 1. Switch off the pump, disconnect from the power outlet and from the vacuum system. 2. -
Page 30: Frequency Of Oil Changes
Maintenance and Servicing 6.3.4 Frequency of Oil Changes The oil change interval is completely dependent upon the running conditions of temperature, operating pressure, hours of daily operation, and upon the materials pumped. Clean, dry air at pressures below 0.7 mbar (50 mtorr) are the most forgiving conditions. To determine your own oil change interval, visually monitor the pump oil conditions at regular intervals. -
Page 31: Troubleshooting
Troubleshooting Troubleshooting Only manufacturing firm and authorized service workshops may work on the pump and their accessories during the warranty period. Remedy Trouble Cause with: Qualified No power supply Check electrical installation electrician Motor defective Service Exchange workshop Coupling defective Repair and/or exchange Vacuum pump Put vacuum pump in a warm place... -
Page 33: Overview Of Accessories
Overview of Accessories Overview of Accessories 8.1 Overview and Order Numbers for EMEA, Asia Type Product name Description Order no. Oil Mist Separator AKD 25 DN 25 KF 320017 Replacement element for AKD 25 800160 Oil Mist Filter OME 10/25 DN 25 KF 700011 Exhaust Filter... -
Page 34: Overview And Order Numbers For Americas
Overview of Accessories 8.2 Overview and Order Numbers for Americas Type Product name Description Order no. Oil Mist Separator AKD 25 DN 25 KF 320017 Replacement element for AKD 25 800160 Oil Mist Filter OME 10/25 DN 25 KF 700011 Exhaust Filter Oil Mist Filter OME 25/30 DN 25 KF... -
Page 35: Inlet Condensor Aks 25
Overview of Accessories 8.3 Inlet Condensor AKS 25 Order no. 320018 Connecting flange DN 25 KF Separator – basic body Aluminium Collector or condensate vessel Borosilicate glass Technical Data Seals Max. filling volume 380 ml Order no. Beaker glass AKS 828835 Order no. -
Page 36: Oil Mist Separator Akd 25
Overview of Accessories 8.4 Oil Mist Separator AKD 25 320017 Order no. Connecting flange DN 25 KF Separator – basic body Aluminium Collector vessel Borosilicate glass Seals Technical Max. filling volume 270 ml Data Filter cartridge Optical fiber Order no. Spare-filter 800160 cartridge Order no. - Page 37 Overview of Accessories The connecting direction is indicated by an arrow (G) on the sorption trap. The rotary vane pump and the sorption trap (A) are located next to each other on an even surface. Initially fasten the sorption trap (A) to the metal hose (B) using the centering ring with an O-ring (D) and the normal clamping ring (C).
-
Page 38: Overview Of Spare Parts
Overview of Spare Parts Overview of Spare Parts The overview of spare parts contain all service kits, single spare parts with all the information necessary for ordering. When ordering please quote the order number, description and quantity! CAUTION ! We are not liable for any damage caused by the installation of any parts not supplied by the manufacturer. -
Page 39: Seal Kit
Overview of Spare Parts 9.2 Seal Kit The seal kit contains all the seals which must be exchanged during a preventive maintenance or repair. · For the rotary vane pumps CRVpro 16, 24, 30 Order no. S3192-99 Description CRVpro 16,24,30: S3192-99 Item no. -
Page 40: Service Kit
Overview of Spare Parts 9.5 Service Kit The service kit contains, in addition to the seals, all the spare parts which are subject to high wear and tear and therefore have to be replaced. · For the rotary vane pump CRVpro 16: Order no. S3193-99 ·... -
Page 41: List Of Spare Parts
Overview of Spare Parts 9.6 List of Spare Parts Fig. 10 Exploded view CRVpro 16, CRVpro 24, CRVpro 30 CRVpro 16 CRVpro 24 CRVpro 30 Item no. Description Order no. Order no. Order no. Motor-115V version S3201-99 S3201-99 S3201-99 Motor-230V version S3202-99 S3202-99 S3202-99... - Page 42 Overview of Spare Parts CRVpro 16 CRVpro 24 CRVpro 30 Item no. Description Order no. Order no. Order no. Anti-Suck Back Plate S3021-99 S3021-99 S3021-99 O-Ring S3171-99 S3171-99 S3171-99 Inlet Port S3158-99 S3158-99 S3158-99 Filter S3157-99 S3157-99 S3157-99 O-Ring S3168-99 S3168-99 S3168-99 Rubber Sheet...
-
Page 43: Warranty
Gardner Denver Thomas, Inc. under this warranty is limited to servicing, adjusting, repairing or replacing any unit or component part which in the judgment of Gardner Denver Thomas, Inc. has not been misused, abused or altered in any way causing impaired performance or rendering it inoperative. -
Page 44: Ec Declaration
EC Declaration 11 EC Declaration P1700017... -
Page 45: Global Contact
Global Contact P1700017... - Page 46 Global Contact Date Version Change description Production 2017.8.2 Update EC declaration to delete EMC information. 2017.8.7 1.2 Delete directive 2014/30/EU ; update name of directive 2006/42/EC, 2012/19/EU ; 2011/65/EU 1.6 Delete product standards EN61000-6- 2 and EN61000-6-4. 4.3 Update oil filling parameter. And delete noise level at 60Hz.
