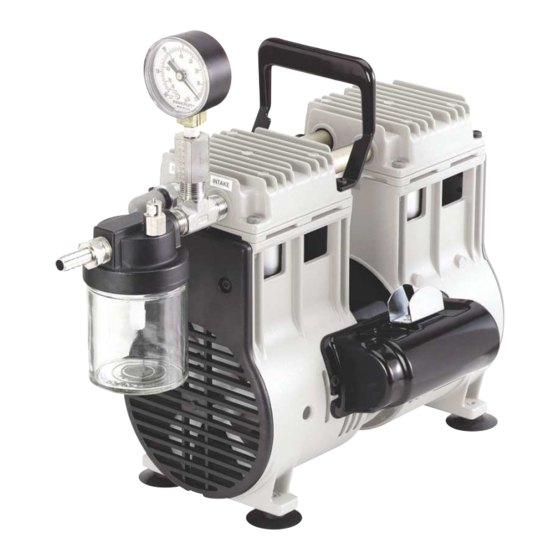

OWNER'S MANUAL
FOR DRY VACUUM PUMP
MODELS 2580B-01, 2580C-02, 2580B-50, 2580C-50,
2585C-02, 2585C-05, 2585C-50, 2585C-55 & 2585C-57
Warning
Not recommended for pumping acid, base or
organic vapors or gases.
Warning
Be sure to properly identify intake and discharge
before using pump. See section 2.5
Part No. 642830A 7/01/20
Printed in USA
Advertisement
Table of Contents
Related Manuals for Gardner Denver Welch 2580B-01
Summary of Contents for Gardner Denver Welch 2580B-01
- Page 1 OWNER’S MANUAL FOR DRY VACUUM PUMP MODELS 2580B-01, 2580C-02, 2580B-50, 2580C-50, 2585C-02, 2585C-05, 2585C-50, 2585C-55 & 2585C-57 Warning Not recommended for pumping acid, base or organic vapors or gases. Warning Be sure to properly identify intake and discharge before using pump. See section 2.5 Part No.
- Page 2 INSTRUCTION WARNING AND CAUTION PLEASE READ BEFORE OPERATION While reading your manual, please pay close attention to areas labeled: WARNING AND CAUTION. The description of each is found below. WARNING Warnings are given where failure to observe instruction could result in injury or death to people.
-
Page 3: Table Of Contents
TABLE OF CONTENT Section 01 - Installation 1.01 Unpacking 1.02 Pump Mounting 1.03 Pump Location / Environmental Conditions 1.04 Exhaust Provisions 1.05 Electric Power 1.06 Vacuum Connections 1.07 Vacuum Gauges 1.08 Vacuum Pump Oil Section 02 - Pump Features & Principles of Operation 2.01 General Description 2.02... - Page 4 Section 1: SAFETY INFORMATION I.10 CAUTION: To prevent injury..I.11 Never operate this product if it has a damaged cord or plug. If it is not working properly, has been dropped, damaged or has fallen into water, please return the product to a Welch service center for examination and repair.
-
Page 5: Section 01 - Installation
Section 2: INSTALLATION 2.10 Introduction This manual has been compiled not only for the care and maintenance of the Welch Dry Vacuum System now in your possession, but as a helpful reference and guide to prevent many problems which can occur if used improperly. -
Page 6: Electric Power
2.20 Electrical Power 2.21 Power Source Review Review the power source and the voltage rating on the units serial number tag to be sure they agree in voltage, phase and frequency. Serious damage may occur to the system if it is connected to an improper voltage. -
Page 7: Vacuum Connections
This product is for use on a nominal 120V circuit, and has a grounding plug that looks like the plug illustrated in Sketch A in Figure #1. A temporary adapter, which looks like the adapter illustrated in sketches Band C, may be used to connect this plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available. - Page 8 2.30 Traps 2.31 The need for a Trap The pumps will handle humid air. All wetted aluminum parts are treated for corrosion protection from moisture. All other wetted parts are stainless steel. If there is a chance liquid may be drawn from the process under evacuation, Welch recommends a liquid trap be placed between the process and the pump.
-
Page 9: Section 05 - Operation
Section 3: OPERATION 3.10 Starting Procedures 3.11 Starting a Welch Dry Vacuum Pump Before attaching the pump to a system it is well to familiarize yourself with the function and action of the pressure vacuum pump that you have acquired. Review the power requirements as described in Section 2.6. - Page 10 Section 5: TROUBLESHOOTING 5.10 Vacuum Problems Leakage, contamination and unusual outgassing are the general causes of problems with poor vacuum. To operate at maximum effi ciency a system must be thoroughly clean. If the system is completely clean and free from leaks, and unwarranted vacuum problems still exist, the pump should be checked. A simple criterion for the condition of the pump is the determination of its maximum vacuum capability.
-
Page 11: Pump Specifi Cation Chart
Section 6: SPECIFICATION 6.10 Pump Specifi cation Chart Welch Model 2580 2585 Free Air Displacement CFM (L/min.) @60Hz 3.5 (99) 7.1 (201) M3 (L/min.) @50Hz 4.9 (83) 10.0(168) Ultimate Pressure Torr (mbar) (12) (80) Maximum Vacuum In.Hg. 29.6 29.6 Motor Horsepower Horsepower (watts) (250) -
Page 12: Pumping Speed Curves
6.11 Pumping Speed Curves... -
Page 13: Dimensional Drawing
6.12 Dimensional Drawing Dimensions of Pump Model 2580 & 2585 (inches) 12.5 11.69 7.37 5.25 10.5 8.75 3.06 0.75 4.62 0.75... -
Page 14: Parts List And Exploded View For Pump Model 2580 & 2585
6.17 Parts List and Exploded View for Pump Model 2580 & 2585 Model 2580 Model 2585 Note 1: Parts available in kits shown in the following last three columns. Service Seal Kit Feet Kit Item Qty. Part No. Description Number 2585K-03 2585K-04 2500K-04 Note 1 Connecting Rod Assembly... -
Page 15: Vacuum System For Vacuum Chamber, Glove Box, Annular Space & Transfer Line
Section 7: APPLICATION INFORMATION 7.20 Vacuum System for Vacuum Chamber, Glove Box, Annular Space & Transfer Line: - 2585B-50 - 2585C-50 - 2585C-56 7.21 System Components Qty. 2585 Description 1415B Replacement Jar 1 or 1 638788 Vacuum Gauge, kPa / in. Hg. 633210 Vacuum Gauge, cm Hg. -
Page 16: Warranty
Gardner Denver Welch Vacuum Technology under this warranty is limited to servicing, adjusting, repairing, or replacing any unit or component part which in the judgment of Gardner Denver Welch Vacuum Technology has not been misused, abused, or altered in any way or damaged by ingestion of foreign material causing impaired performance or rendering it inoperative.
