aXp RACING AX1715 Assembling Instructions

AX1715
Xtrem skid plate
Rieju MR250 / MR300 Pro
What's in the box ?
4 NE01-02-001 - TFHC 6x16 screws
2 NE01-02-002 - TFHC 6x20 screws
2 NE01-02-004 - TFHC 6x30 screws
3 NE01-04-002 - Clamped bolts
5 NE01-04-003 - EM6F bolts
3 NE01-03-001 - M6 washers
2 NE01-11-001 - Special screws
1 PM03-04-120 - Front fixation
1 PM01-04-270 - 20mm plastic block
1 PM01-06-077 - Linkage plate
1 PM01-10-020 - 30mm plastic block
1 NE04-01-248 - Sticker
The paper instructions may
be limitless, a tutorial video is
available online to help you.
Scannez le QR code pour
regarder le tutoriel de
montage.

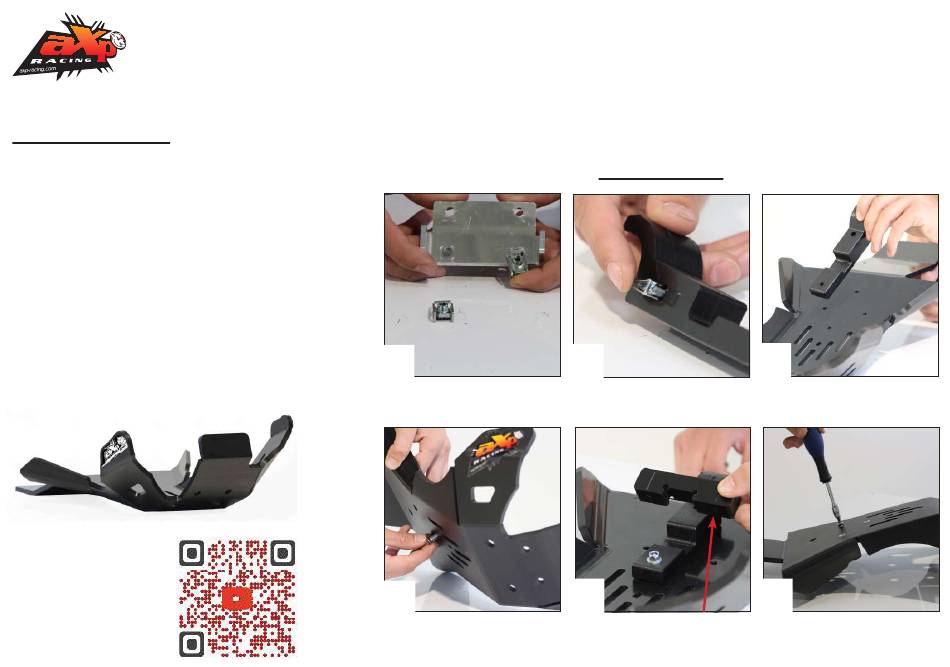

Assembling instructions
Approximate time of assembly: 15 minutes.
A skid plate is made to protect the vital components of your bike and does not have a « life warranty ».
However, production default may happen and we cover it during the first year of use.
In case of premature breakage, please write to contact@axpracing.com
1
Insert the two clamped bolts on
the front fixation.
4
Fix the plastic block using a TFHC
6x30 screw + EM6F bolt and M6
washer then tighten.
Follow the steps
2
Insert the clamped bolt in the
30mm plastic block.
5
Place the 20mm plastic block.
Make sure that the longest part is
on the right side.
3
Place the 20mm plastic block on
the rear part of the plate.
6
Fix the block using 2 TFHC 6x16
screws.
