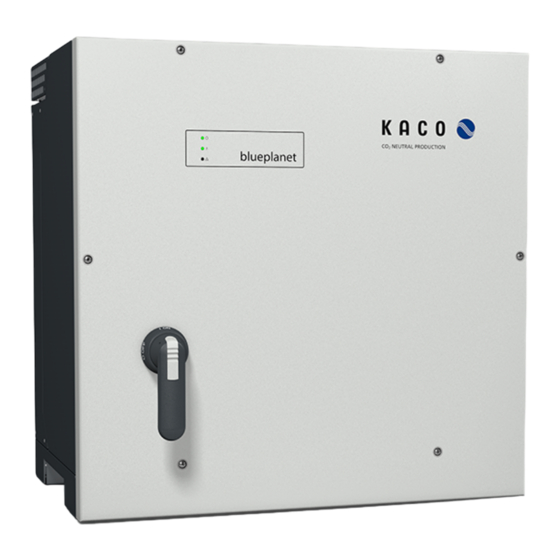

Kaco blueplanet 125 TL3 US Manual

S, xl - grid support interactive inverter
Hide thumbs Also See for blueplanet 125 TL3 US:

Advertisement

Quick Links

Download this manual
Manual
nEnglish translation of German original
Authorized electrician
Important safety instructions
These instructions form part of the product and must be carefully read, observed and stored in a place which is freely accessible at all
times.
blueplanet 125 TL3 US
blueplanet 155 TL3 US
blueplanet 125 TL3 US GEN2
blueplanet 155 TL3 US GEN2
S, XL - Grid Support Interactive
Inverter

Advertisement

loading
Need help?

Need help?

Do you have a question about the blueplanet 125 TL3 US and is the answer not in the manual?

Questions and answers

Related Manuals for Kaco blueplanet 125 TL3 US

Summary of Contents for Kaco blueplanet 125 TL3 US

  • Page 1 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2 S, XL - Grid Support Interactive Inverter Manual nEnglish translation of German original Authorized electrician Important safety instructions These instructions form part of the product and must be carefully read, observed and stored in a place which is freely accessible at all...
  • Page 2 | Legal provisions Manual Legal provisions The information contained in this document is the property of KACO new energy GmbH. Publication, in whole or in part, requires the written permission of KACO new energy GmbH. KACO warranty The latest version of our warranty conditions is available for download at http://www.kaco-newenergy.com.
  • Page 3 7.9 Connecting the interfaces......34 15.1 Scope of certification from third-party sup- pliers.............. 7.10 Sealing the connection area ......38 8 Start-up .............. 39 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 4 Layout of Instructions 1.3.1 Symbols used General hazard Fire and explosion hazard Electrical voltage Risk of burns Earthing - ground conductor Page 4 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 5 Interface protection according to country specific requirements, details see manual – Disposal information ZPDA Fig. 1: Name plate – Certification marking, CE marking. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 5 155 TL3 US GEN2...
  • Page 6 – Education concerning the installation and start-up of electrical units and plants. – Knowledge of applicable standards and directives. – Knowledge and adherence to this document with all safety notices. Page 6 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 7 – When working on the PV generator, it is also necessary to switch off the DC voltage with the external DC isolator switch (e.g. at the string combiner or the KACO DC switchbox) in addition to disconnecting the PV generator from the grid.
  • Page 8 1. In case of maintenance, the device must also be deenergized on the AC-side. 2. We recommend attaching an appropriate hazard warning on the string combiner. Page 8 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 9 2. Transport the device using the intended carrying handles of the packaging box. 3. Do not expose the device to any shocks. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 9 155 TL3 US GEN2...
  • Page 10 Page 10 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 11 The device is intended for indoor and outdoor applications and may only be used in countries for which it has been ap- proved or for which it has been released by KACO new energy and the grid operator. Operate the device only with a permanent connection to the public power grid. The country and grid type selection must be commensurate with the respective location and grid type.
  • Page 12 The potential-free relay contact closes as soon as there is a fault during operation. You use this function, for example, to signal a fault visually or acoustically. Page 12 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 13 In addition to the safety functions, the internal interface switches can also be actuated via the "Inverter Off" input. If a Powador-protect is used as the central interface protection, the fail-safe disconnection of suitable KACO inverters from the public grid can be carried out by the internal interface switches instead of separate interface switches. This re- quires the inverters in the photovoltaic system to be connected to the Powador-protect.
  • Page 14 The PV generator converts radiant energy from sunlight into electrical energy. String combiner A string combiner can be connected to the KACO device to bundle the DC strings. *) If the supply line from the PV generator to the device is longer, the string com- biner can also be installed near the PV generator.
  • Page 15 Class A. In no condition the design may result in a greater short circuit current than ISC of the inverter [See section 7.6.2} Page 28]. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 15 155 TL3 US GEN2...
  • Page 16 Environmental data Environmental conditions Max. installation height 9842 ft (Derating at 6561 ft) Distance to coastline from in- >1640 ft stallation Page 16 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 17 PID connection set 1001888 WLAN adapter, Digitus 150N 3013222 micro Accessory articles KACO order no. Replacement fuses (10x85mm 1001883 1500V 5A PID) blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 17 155 TL3 US GEN2...
  • Page 18 Internal hex Spanner size or number Torx Outer contour Slot Fig. 9: Presentation format Tab. 2: Key and description of tool codes Page 18 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 19 – Close to the ground, accessible from the front and sides without requiring additional resources. – In outdoor areas, KACO new energy recommends protecting the device from direct weather exposure and sunlight. Realisation through constructional measures (e.g. wind catchers) in order to reduce thermal heating of the compo- nents, earlier derating and greater wear of the fans.
  • Page 20 2. The device must be transported and installed by at least 2 persons. DETAIL Z4:1 Fig. 14: Opening the cardboard packaging Fig. 15: Setting the device upright Page 20 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 21 Recommended clearance excluding device:18.70 In Minimum clearance: 11.81 In Minimum clearance: 19.69 In Recommended clearance: 39.37 In ²) Recommended clearance with DC breaker:60,74 In blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 21 155 TL3 US GEN2...
  • Page 22 Fig. 19: Fitting the device onto the mount Legend Opening Mounting bracket Center of gravity Mount Lifting and mounting the device ↻ The mount has been installed. Page 22 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 23 2. Check the interior space for any condensation water prior to electrical installation and, if necessary, allow it to dry out sufficiently. 3. Immediately remove any moisture from the housing. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 23 155 TL3 US GEN2...
  • Page 24 Fig. 23: Connection area (XL - Version) AC connection point DC connection point AC overvoltage protection base DC overvoltage protection AC earthing bolt PID connection point Page 24 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 25 All installations must conform to the laws, regulations and standards that are applicable in the country of in- stallation. KACO new energy does not assume any responsibility for compliance or lack of compliance with such laws or codes in connection with the installation of the product.
  • Page 26 CU cable lugs with suitable AL/CU washers. Otherwise, with the electrolytes present (e.g. Condensation water), the aluminum could be destroyed by the copper bus bars. Page 26 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 27 If the type A is used, the insulation threshold must be set to greater than/equal to (≥) 200 kOhm in the “DC pa- rameters” menu [see [See section 9.4.2} Page 54]]. For questions regarding the appropriate type, please contact the installer or our KACO new energy customer service.
  • Page 28 PV generator The absolute limit for the PV generator is the value of the maximal short circuit current (ISC .) and the maximal open circuit voltage (U ). See Footnote under [See section 4.1} Page 15] DCmax. Page 28 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 29 1. For the UL market, a larger connection space is required by standard. For this purpose, the DC input plate must be replaced by an external bending box (see chapter Accessories under Technical data). blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 29...
  • Page 30 CU cable lugs with suitable AL/CU washers. Otherwise, with the electrolytes present (e.g. Condensation water), the aluminum could be destroyed by the copper bus bars. Page 30 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 31 4. Align PID cable at zero potential and secure cables with cable fittings. [ W_20 / 13,27 In-Ibs ] ð Connection prepared for PID box. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 31 155 TL3 US GEN2...
  • Page 32 1 DC base ð Proceed with the installation of the device. 2 DC overvoltage protection module (3 slots) 3 Jumper Page 32 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 33 Depending on the local installation specifications, it may be necessary to earth the device with a second ground connection. To this end, the threaded bolt on the underside of the device can be used. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 33...
  • Page 34 9 Ethernet – only for starting up by means of static IP ( [See section 8.4.2} Page 42]) 5 RS485 - default 10 RS485 - connection for string combiner (CON 200) Page 34 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 35 Note that the wire designations (DATA+ and DATA-) for wires A and B may vary from one manufacturer to another. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 35...
  • Page 36 The contact is designed as an N/O contact and is labeled "ERR" or "Relay" on the circuit board. Maximum contact load 30 V/1A Page 36 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 37 - Connect wire A (+) to wire A (+) and wire B (-) to wire B (-). 6. After commissioning: In the menu item Features / Functions of External Overvoltage protection - Configure external device. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 37 155 TL3 US GEN2...
  • Page 38 44.25 In-Ibs ]. ð The device has been mounted and installed. ð Put the device into operation. Fig. 41: Close the housing cover Page 38 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 39 F Attach the provided safety sticker to the outside of the device housing where it is - Réseau de distribution -Panneux photovoltaïques clearly visible. Fig. 42: Adhesive label UTE_C15-712-1 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 39 155 TL3 US GEN2...
  • Page 40 Controller >100m) it may also be necessary to connect in segments that are further away via a glass fibre con- nection. Page 40 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 41 Start-up | 8 Within a segment, it is possible to link KACO devices to one another as part of an Ethernet daisy-chain by way of an inte- grated switch, whereby the Segment Controller is connected at the first element in the chain. For this purposes of an ex- ample, this topology is shown in segment 2.
  • Page 42 Fig. 46: Login screen 8.4.2 Commissioning via LAN connection The following figure provides an example of the structure of a KACO device with string collector (SC) and directly con- nected mobile devices via Ethernet. Page 42 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet...
  • Page 43 – Ethernet cable (uncrossed patch cable) Establishing a connection to the KACO device 1. The device must be opened in order to connect the Ethernet cable! For safety reasons, KACO therefore recommends establishing a connection via WiFi. 2. The device's communication circuit board has 3 Ethernet ports that can be used: –...
  • Page 44 ð Once the parameters have been adopted and the device has been restarted, the device is put into operation. 8.4.4 Starting up a network The following illustration provides an example of the structure of a KACO unit with a string collector (SC) and an external network connection. MODBUS RTU...
  • Page 45 Fig. 49: Commissioning via segment controller Application Network infrastructure is already in place. All KACO units in the segment are accessible via a segment controller via Ether- net. NOTE: Note that if there are several segment controllers in the system, they must not be connected to each other via the network during commissioning.
  • Page 46 It is only possible to configure the grid parameters with DC voltage. The further parameters can also be config- ured with a present AC voltage. Page 46 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 47 It is preferable to install this on a plant component. It is also possible to select an NTP server localized on the internet provided the device has direct access to the internet. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 47...
  • Page 48 If the LED is flashing, internal communication between the components is being established. When the LED stops flashing, the device is ready to feed in. Page 48 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 49 The green “Operating” LED and the green “Feed-in” LED are flash- successfully. ing slowly and in tandem. Note: Check the new SW version via the web interface [See sec- tion 9.3} Page 50]. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 49 155 TL3 US GEN2...
  • Page 50 Previous page Inverter DC Status history Language Export Activity indicators for communication interfaces Current meassurements Selected meassurements Fig. 60: Monitoring interface Page 50 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 51 Field of action Menu interface language Fig. 62: Parameterization interface Area Description Menu bar Menus and commands for operating the interface. Tool bar blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 51 155 TL3 US GEN2...
  • Page 52 Software Displays the firmware package installed Network Displays the current grid parameters Tab. 7: Description of the areas Page 52 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 53 Yearly view Displays the recorded operating data graphically. F Select a year. ð The web interface shows the selected data. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 53 155 TL3 US GEN2...
  • Page 54 2. Enter the degree of longitude and latitude of the installation loca- tion. 3. Enter the plant ID. 4. Confirm the action field. DC-Settings Input masks for DC source (PV generator/battery) Page 54 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 55 100 – 2000 [kOhm] / 2. Confirm the action field. 300 [kOhm] / 1[kOhm] AC-Settings Input screens for grid parameters blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 55 155 TL3 US GEN2...
  • Page 56 Mode 1 | Mode 2 F Set reference voltage for the active control process. Reference voltage 80.0 – 110.0 [% Unom] Page 56 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 57 Off | ROCOF operation F Activate active grid influence by application of a frequency. mode active Off | blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 57 155 TL3 US GEN2...
  • Page 58 This percentage relates to the nominal power/maximum power. 1 – 65534 [%/min] / F Confirm the action field. 65534 / Page 58 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 59 2. Activate optional password protection. 1000 - 1800000 3. Confirm the action field. [ms] / 60000 / 1000 Status blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 59 155 TL3 US GEN2...
  • Page 60 NOTE: Opportunity to activate standard protection shutdown Trip with intentional 1. If necessary, activate delayed trip-off. delay 2. Confirm the action field. Check to enable Page 60 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 61 45.– 66 [Hz] / 51.5 [Hz] / 0.01 Trip overfrequency time level 2 – 5 0 – 1000000 [ms] / 100 [ms] / blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 61 155 TL3 US GEN2...
  • Page 62 100 – 125 [% U 114.8 [% U Trip overvoltage time level 2 bis 5 0–180000 [ms] / 100 [ms] / Page 62 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 63 NOTE: Option to set the Modbus port. Modbus TCP / UDP Ac- F Allow Modbus TCP / UDP reading access. tivation Check to enable blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 63 155 TL3 US GEN2...
  • Page 64 1,0 – 100,0 [% F Enter the value or set the value using the slider. Slim] / 100[% Slim] / Page 64 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 65 1. Select a control process. Specification cos-phi 2. Confirm the action field.. | Specification Q | Cos- phi(P/Plim) | Q(U | blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 65 155 TL3 US GEN2...
  • Page 66 /min in the event of a 1 – 65,534 [% Slim / change to under-excited mode. min] / 65,534 / Page 66 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 67 F Set the active power as % of rated power below which control is de- activated. 0-100 [% Slim] / [%Slim] / blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 67 155 TL3 US GEN2...
  • Page 68 NOTE: The maximum number of configurable nodes depends on the selected grid type. 2 - 10 F Specify the number of nodes. Page 68 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 69 2. Set frequency thresholds for activating the power limitation with [Hz] overvoltage. Activation threshold at overfrequency 50 – 60 [Hz] 0.01 [Hz] blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 69 155 TL3 US GEN2...
  • Page 70 F Select the voltage to be rated. Maximum phase Defines which voltage in a three-phase system is to be evaluated. voltage | Positive se- quence voltage Page 70 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 71 NOTE: Opportunity to detect the external grid protection de- disconnection vices External grid protection F Select device. No device | Powador-protect | third-party device blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 71 155 TL3 US GEN2...
  • Page 72 Positive logic | Neg- 2. Select the form of activity. ative logic 3. Confirm the action field. inactive | active Page 72 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 73 2. Select the parameters for export into a file or the plant manager. Import Configuration 1. Select the parameter file using the "Browse" button. 2. Import the parameters using the "Upload" button. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 73 155 TL3 US GEN2...
  • Page 74 Change password Restart the Device NOTE: Transfer safety-related parameters to a storage medium. F If necessary, re-start the device. Page 74 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 75 It is only possible to configure the grid parameters with DC voltage. The further parameters can also be config- ured with a present AC voltage. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 75...
  • Page 76 - Operation mode in the menu on the device or on the web interface. 2. If necessary, allow write access. 3. Set up the Port for access. [Default: 502] Page 76 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 77 Manual Configuration and operation | 9 ð Access via Modbus enabled. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 77 155 TL3 US GEN2...
  • Page 78 Fig. 69: P-Q operating range for bp 105 TL3 (Q Fig. 70: Apparent power subject to the grid voltage for bp 105 TL3 Page 78 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 79 Fig. 77: P-Q Betriebsbereich für bp 155 TL3 (Q Fig. 78: Apparent power subject to the grid voltage for bp 155 TL3 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 79 155 TL3 US GEN2...
  • Page 80 Scaling factor R/RW Range Description 1-0,3 [°] Set the power factor to a certain 123. OutPFSet OutPFSet_SF %value. cos-phi const. Page 80 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 81 The settling time is 1s with the transient response of a first-order filter (PT-1) with a time constant of Tau=200ms. The specified reactive power can be configured on the display or by way of communication via the KACO RS485 protocol and MODBUS/SunSpec.
  • Page 82 4) 0 | 248 5) 43,6 | 253 U[V] Q(U) standard characteristic Fig. 82: Q(U) standard characteristic curve with 5 nodes Page 82 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 83 Lock-in voltage The control is activated above this voltage. 10 – 126.6 [% Unom] / 80 [% Unom] / [0.1] blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 83 155 TL3 US GEN2...
  • Page 84 Page 84 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 85 As a result, the reference voltage of the Q(U) characteristic curve is dynamically adjusted to the grid voltage via a PT1 filter. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 85 155 TL3 US GEN2...
  • Page 86 – P target value (MPPT(communication)) [See section 10.2.1} Page 87] – P limit (communication) [See section 10.2.2} Page 87] – P(U) (characteristic curve) [See section 10.2.3} Page 87] – P(f) (characteristic curve) [See section 10.2.4} Page 89] Page 86 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 87 The function is deactivated once the voltage falls be- low dp1. In case of [See figure 84 [} Page 88] the function is activated once the voltage exceeds the configured voltage blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 87...
  • Page 88 0 – 60,000,000 fore the function is deactivated. [ms] / 100 [ms] Page 88 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 89 , the actual power at the moment of activation. f is the actual frequency and f is the activation threshold as configured. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 89 155 TL3 US GEN2...
  • Page 90 Mode 3: Without hysteresis activated - Set NOTE: In mode 3, the pre-fault power is stored and the power moves along this characteristic curve. Page 90 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 91 Deactivation gradient the set value for the set duration. decrease after fault 0 – 65534 [%/Min] / 65534 [%/min] / blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 91 155 TL3 US GEN2...
  • Page 92 If a reduction in power occurs, the power is brought back up to the pre-fault level within 100 ms of the voltage returning. Page 92 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 93 Δu berechnet sich für Mit- und Gegensystem jeweils aus der Differenz der Vorfehlerspannung und der aktuellen Span- nung bezogen auf die Referenzspannung. Die Vorfehlerspannung wird als 1-Min.-Mittelwert berechnet. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 93...
  • Page 94 0 – 80 [% Unom] / 10 [% Unom] / 108 – 129 [% Unom] / 125 [% Unom] / Page 94 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 95 45 – 125,0 [% Unom] / 80 [% Unom] / & Maximum operating voltage activation 45 – 125,0 [% Unom] 80 [% Unom] / blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 95 155 TL3 US GEN2...
  • Page 96 Some grid connection rules insist that the agreed reactive power be supplied from every operating point of the plant without a reduction in the actual active power. Considering the fact that all KACO TL3 inverters have a semi-circular(PV) full-circular(BI) P-Q operating range, a reduction in the active power is, however, required during operation at maximum active power because an apparent power reserve is not available.
  • Page 97 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 97...
  • Page 98 – In case of maintenance work in a distribution grid, personnel may be placed in danger if the deactivated part of the grid remains live as an island. This is especially the case if not all safety rules are followed. Page 98 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 99 Enhanced island detection method KACO new energy's advanced islanding detection, uses a strategy to reliably detect islanding formation that is based on the characteristic differences between an interconnected grid and an islanded grid, thus ensuring reliable fast detection and prevention of false tripping.
  • Page 100 (1) Normal operation: Active power and reactive power provision at different voltages. (2) „Q on Demand“ operation : Reactive power provision at nominal grid voltage outside of feed-in operation. Page 100 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 101 1. Never touch the heat sinks after starting up the device. 2. Wait until a cooling time of at least 10 minutes has elapsed before starting the cleaning process. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 101...
  • Page 102 ð Proceed with the cleaning or removal of the fans. 1 Cover 2 Fastening screw 3 Mounting clips 4 Fans Page 102 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 103 6. Mount the fan grille on the housing. 3 Collar 7. Mount the ventilating plate on the board. 4 Fan ð Interior fan successfully replaced. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 103 155 TL3 US GEN2...
  • Page 104 1. Switch off the grid voltage by turning off the external circuit breakers. 2. Disconnect the DC side using the DC isolator switch. . DANGER! The DC cables are still live Page 104 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 105 Severe injuries or death may occur if the cables and/or terminals/busbars in the device are touched. 1. If a fault occurs, notify an appropriately authorized and qualified electrician or KACO new energy GmbH Service.
  • Page 106 B = Action of the operator; E = The indicated work may only be carried out by an authorized electrician! ; K = The indi- cated work may only be carried out by a service employee of KACO new energy GmbH!
  • Page 107 Check polarity according to chapter 7.5. > Is the firmware completely installed? => Reinstall the firmware according to “Soft- ware-Update-Guide xxx”. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 107 155 TL3 US GEN2...
  • Page 108 (after P(f), restart, after grid error, after every connect) RCD module error A fault has occurred in the all-current sensitive residual current circuit breaker. Page 108 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 109 See remedy in Status 41 age L2 Grid failure overvoltage See explanation in Status 41 See remedy in Status 41 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 109 155 TL3 US GEN2...
  • Page 110 This is a requirement of the grid operator. - power reduction. If only reactive power is specified, this message does not appear. Standalone mode Page 110 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 111 Protect. shutdown grid See explanation in Status 81 See remedy in Status 81 volt. L2 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 111 155 TL3 US GEN2...
  • Page 112 LEDs light up on the device. and replaced if necessary. The device continues to feed in. Page 112 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 113 164 Error: Filter relay L1 The self-test detected a fault for the relay If this occurs repeatedly, contact Service. - in the device. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 113 155 TL3 US GEN2...
  • Page 114 See remedy in Status 184 overcurrent L2 int. 186 Protect. shutdown See explanation in Status 184 See remedy in Status 184 overcurrent L3 int. Page 114 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 115 Con- roneous. nect AC/DC - switch it back on after 5 trol board minutes.) => If unsuccessful, contact Service. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 115 155 TL3 US GEN2...
  • Page 116 Event numbers that are displayed in the device and not listed here generally require a service call by your in- stallation partner. Page 116 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 117 You must download and send this under the menu item “Service” – “Export Service Package” See table : Config- uration via web user interface [} Page 74] blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 117...
  • Page 118 DC cable must be severed at the cable lug. 4. Place protective caps on the ends of the DC cables. Page 118 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 119 ↻ The device is packaged. F Store the device in a dry place, in accordance with the ambient temperature range [See section 4.3} Page 16]. blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 119 155 TL3 US GEN2...
  • Page 120 Packaging: Ensure that the transport packaging is disposed of properly. Page 120 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 121 Service and warranty | 14 Service and warranty If you need help solving a technical problem with one of our KACO products, please contact our service hotline. Please have the following information ready so that we can help you quickly and efficiently: –...
  • Page 122 UTE C 15-712-1: 2013 DEWA: 2016 Version 2.0 ÖNORM E8001-4-712:2009+A1:2014+A2:2016 TOR D4:2016 C10/11:2012-06 IEEE 1547.1 Issued:2005/06/09 AS 4777.2:2005 AS 4777.3: 2005 Page 122 blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet 155 TL3 US GEN2...
  • Page 123 IEC60068-2-1, 2007. Environmental testing - Part 2-1 IEC60068-2-2, 20007. Envi- ronmental testing - Part 2-2 IEC60068-2-14, 2009. Environmental testing - Part 2-14 Efficiency IEC 61683: 1999 EN50530:2008 CEC Efficiency blueplanet 125 TL3 US blueplanet 155 TL3 US blueplanet 125 TL3 US GEN2 blueplanet Page 123 155 TL3 US GEN2...
  • Page 124 4040 Binz-Engleman · San Antonio · TX U.S.A · usa.siemens.com/pvinverters · Service.pv.us@siemens.com...

This manual is also suitable for:

Blueplanet 155 tl3 usBlueplanet 125 tl3 us gen2Blueplanet 155 tl3 us gen2
