6 - PRODUCT INSTALLATION

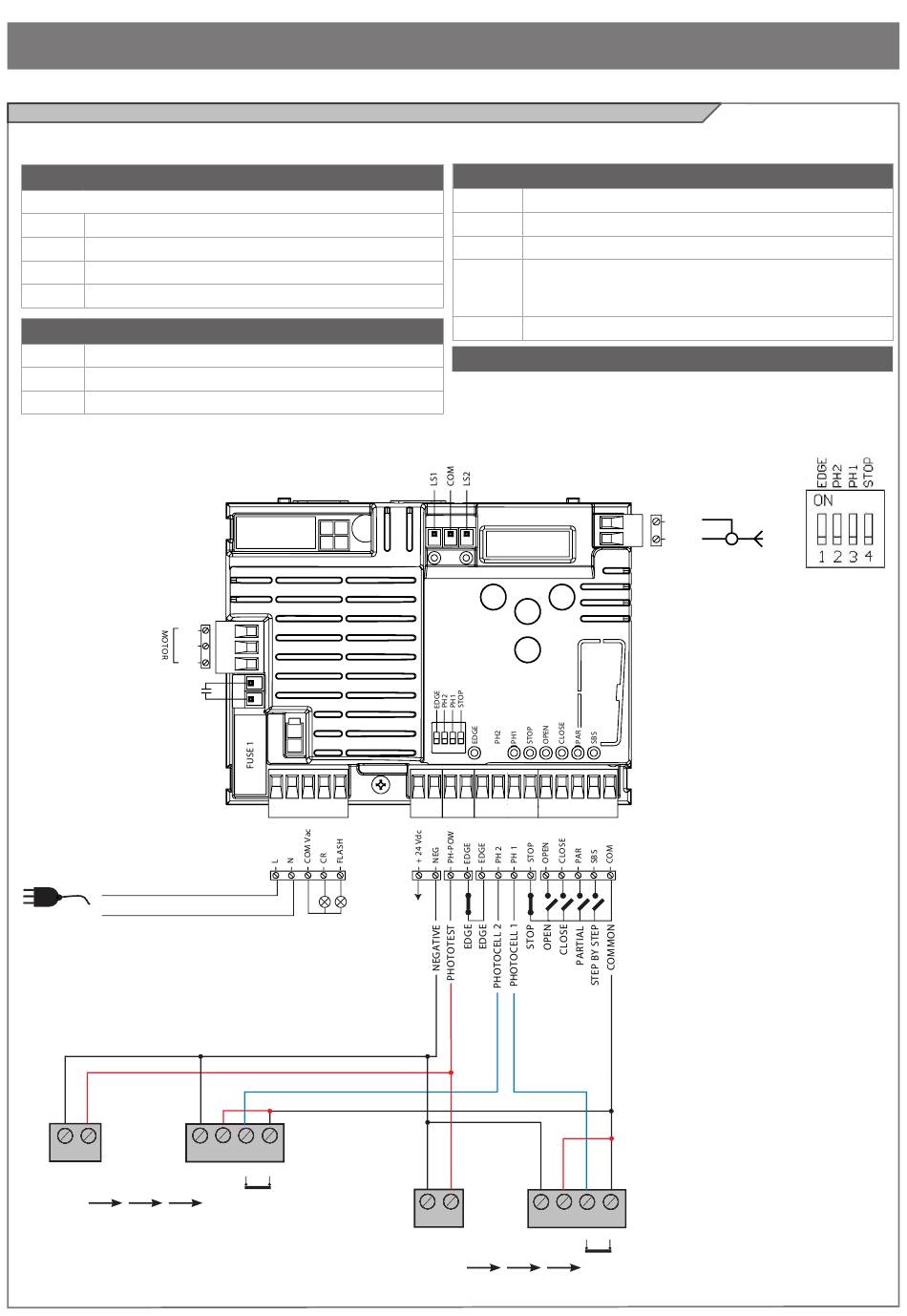

6.1 - Electrical connections
WARNING - Before making the connections, ensure that the control unit is not powered up.
MOTOR CONNECTOR
Power supply connection terminal board
L1 Motor live
COM Motor common
L2 Motor live
COND Motor capacitor
MOTOR LIMIT SWITCH CONNECTION
LS1 Limit switch 1 input
COM Limit switch common
LS2 Limit switch 2 input
L1
COM
L2
COND
L
N
2
1
GND 12/24
GND
_
AC/DC
TX
RX
PH2
FUSE 2
1 2 3 4
12/24 COM OUT
_
AC/DC
NC
POWER SUPPLY CONNECTOR
L Power supply live 230 Vac 50-60 Hz
N Power supply neutral 230 Vac 50-60 Hz
COM Vac Common of the "CR" and "FLASH" outputs
CR Courtesy light, 230 Vac 100 W, output controllable also
via radio ON-OFF command (radio channel 4 selecting
fC.y. = 2, tC.y. = 0 )
FLASH Flashing light, 230 Vac 40 W
DIP SWITCH
Set on "ON" to disable inputs EDGE, PH2, PH1, STOP.
Eliminates the need to bridge the terminal board inputs.
WARNING - with the dip switch ON, the safety
devices are disabled
MENU
UP DOWN
SBS
OUTPUT
24 Vdc
1 2 1 2
GND 12/24
GND 12/24
_
_
AC/DC
AC/DC
TX
RX
PH1
SHIELD
ANT
3 4
COM OUT
NC
