olympia electronics BSR-5132/WP/MAR Manual

4
4
Technical Characteristics
COMMUNICATION PROTOCOL
MAIN VOLTAGE
STANDBY CONSUMPTION
ALARM CONSUMPTION
MAXIMUM SOUND LEVEL IN 1 METER
BEACON
ENVIROMENTAL TYPE
MOUNTING
MAXIMUM LOOP CURRENT (Ic max, -L in/out)
MAXIMUM SWITCH CURRENT (Is max, -L in/out)
MAXIMUM SERIES RESISTANCE (Zc max, -L in-out)
MAXIMUM LEAKAGE CURRENT IN ISOLATION MODE (I max, -L in/out)
ISOLATION VOLTAGE (Vso min-max)
RECONNECT VOLTAGE (Vsc min-max)
MOUNTING HEIGHT (x)
COVER AREA CODE
COVER AREA
FLASHING RATE
FLASHING COLOUR
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
OPERATING TEMPERATURE RANGE
RELATIVE HUMIDITY
CONSTRUCTION MATERIALS
EXTERNAL DIMENSIONS
TYPICAL WEIGHT
GUARANTEE
Warranty
Olympia Electronics guarantees the quality, condition and operation of the goods. The period of
warranty is specified in the official catalogue of Olympia Electronics and also in the technical
leaflet, which accompanies each product. This warranty ceases to exist if the buyer does not
follow the technical instructions included in official documents given by Olympia Electronics or if
the buyer modifies the goods provided or has any repairs or re-setting done by a third party,
unless Olympia Electronics has fully agreed to them in writing. Products that have been damaged
can be returned to the premises of our company for repair or replacement, as long as the
warranty period is valid.
Olympia Electronics reserves the right to repair or to replace the returned goods and to or not
charge the buyer depending on the reason of defection. Olympia Electronics reserves the right to
charge or not the buyer the transportation cost.
72nd km. O.N.R. Thessaloniki-Katerini
P.C. 60300 P.O. Box 06 Εginio Pierias Greece
921513202_09_003 5
BSR-5132/WP/MAR
Olympia A Protocol
12-30V DC
90μΑ
11.2 to 52.4mΑ
101dB
1 power LED
Type Β
Wall mounted
1A
5A
300mΩ
L 25mA pulses (6ms duration every 2sec)
8.8 - 11
10.2 - 13
2.3 meters max
O-2,3-2,4-4,8
26.5m³ maximun
Adjustable to 1 Hz or 0.5 Hz
White
IP65
EN 54-3, ΕΝ-54-17, EN 54-23
IEC 60092-504 , IEC 60533
o
-25 to 70 C
Up to 95%
ABS/PC,PC
127x137x82 mm
313 gr.
2 years
www.olympia-electronics.com
info@olympia-electronics.gr
921513202_09_003
European
manufacturers

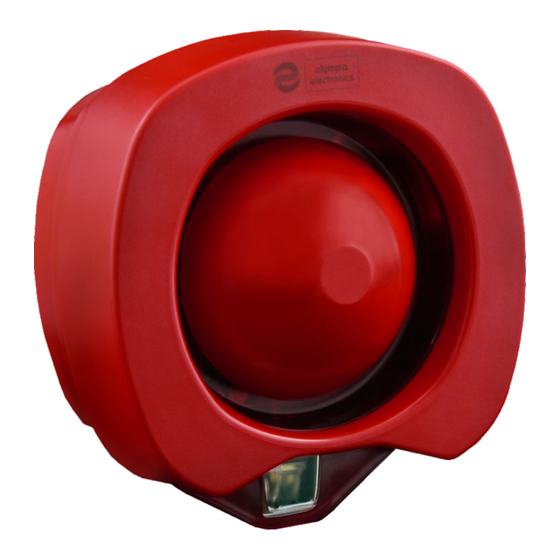

BSR-5132/WP/MAR
WATERPROOF ADDRESSABLE
SOUNDER WITH BEACON
AND INTEGRATED ISOLATOR
IP65
Thank you for your trust in our products
Olympia Electronics - European manufacturer
