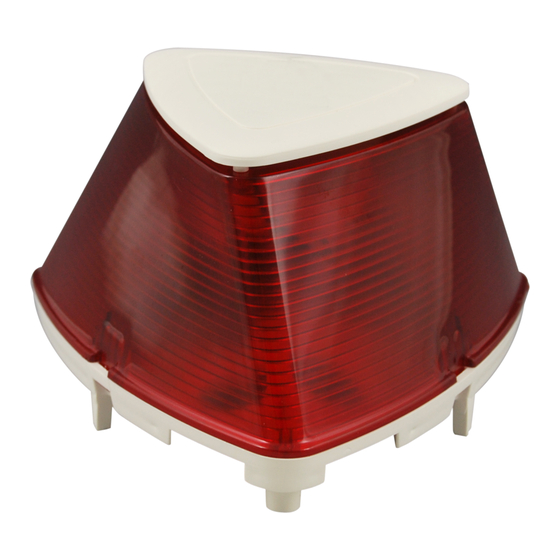

Waterproof sounder for fire detection panel

Advertisement

ΒS-530/1/WP
OPERATION VOLTAGE
MAXIMUM CONSUMPTION
MAXIMUM SOUND OUTPUT in1m
ΤYPE OF APPLICATION ENVIRONMENT
MOUNTING
DEGREES OF COVER PROTECTION
PRODUCED IN ACCORDANCE WITH
OPERATION TEMPERATURE RANGE
RELATIVE HUMIDITY
CONSTRUCTION MATERIAL
EXTERNAL DIMENSIONS
TYPICAL WEIGHT
GUARANTEE
GENERAL
This device is a sounder for fire detection
panels that offer a strong sound that
covers many square metres. It features
two inputs (N1, N2) for the production of
two different sounds.
This device can co-operate with any fire
detection panel (BSR-2104, BSR-2114,
BS-1632, BS-1634, BS-1636, BS-636).

Installation and Connection

1. First, remove the retaining screw, place
a flat blade screwdriver in the holes of the
plastic hooks and remove the plastic cover
(Image 1 on page 2).
2. Use the supplied mounting parts to install
the siren's base on the wall. Place the
plastic plugs and fasten the screws to the
mounting holes.
3. Insert the included sealing rings around
the respective recesses (image 2,3 page 2).
4. Place the caps and make a hole in the
center using a small screwdriver. Pass
through the caps the cables to connect the
device.
5. The (+N1 or the +N2) terminal block is
connected to the (+) output of Alarm-1 or
Alarm-2 of the panel and the (-) of the
terminal block is connected to the (-) output
of Alarm-1 or Alarm-2 of the panel.
Accordingly connect in parallel all the
sirens. (The maximum number of sirens
Page 1 from 4
WATERPROOF SOUNDER FOR FIRE DETECTION PANEL
TECHNICAL CHARACTERISTICS
Thank you for your trust in our products.
Olympia Electronics - European manufacturer.
High Quality European based Manufacturers
21-28V DC
94dB (sound effect 1)
EN 54-3:2001 +A1:2002 +A2:2006
0 to 60 C
Up to 95%
Bayblend FR3010, transparent polycarbonate
141 x 141 x 95 mm
depends on the type of the panel).
6. To select various sound effects use the
dipswitch 1, 2 and 3 and choose the
diserable sound effect, according to tables 2
and 3 on page 3.
7. On the last siren of the line, we must
connect in parallel with its power cables,
the terminal resistor that was removed
from the alarm contacts of the panel.
8. Refit the plastic cover until the plastic
hooks are securely attached (step 1) and
fasten the retaining screw (torque
0.6Nm).
9. Test the device after installation.
1.2W
Τype B
Wall
IP 65
o
230gr.
2 years
921530005_09_004
