HC Flow Meter
The flow meter consists of two parts:

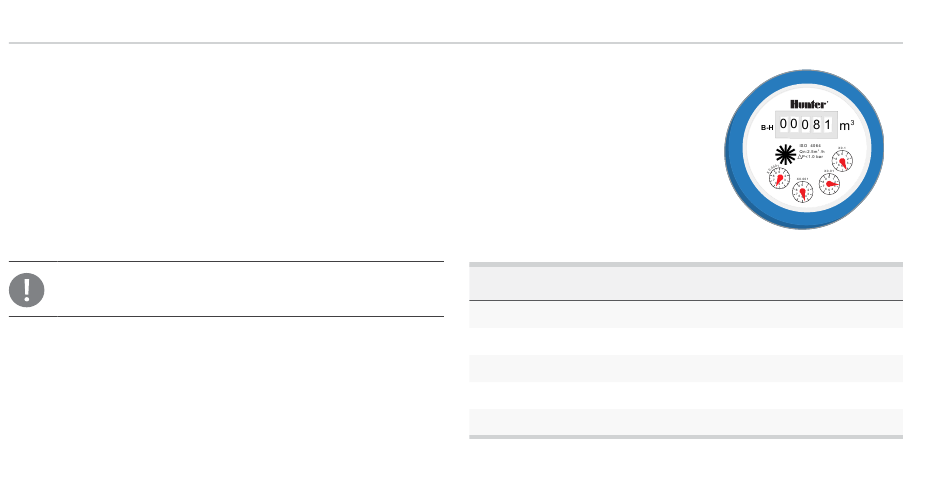

1. Flow meter body: The flow meter body contains an analogue dial for manual
readings as follows. Your flow meter will have 3 wires protruding from the body. The
wires need to be connected to the sensor inputs on the controller for readings in the
software application. In all models, only 2 wires (blue and white) are used.
2. Adapter: Each flow meter has an adapter to allow connection to your irrigation system.
Note: The flow meter displays litres.
4
DIAL MARKING MEASUREMENT UNIT
m 1,000 Litres
3
X0.1 100 Litres
X0.01 10 Litres
X0.001 1 Litre
X0.0001 0.1 Litre
