- Page 1 HC FLOW METER Hydrawise Ready ™ Quick Start Guide hunterindustries.com...
- Page 2 HC SUPPORT Thank you for purchasing the Hunter HC Flow Meter. In this Quick Start Guide, you will learn how to install and configure the HC Flow Meter. For support of Hydrawise™ cloud software or help with your Hydrawise account,...
- Page 3 SENSOR 1 SENSOR 2 COMMON ZONE 1 ZONE 2 Min. of 5 Min. of 10 times pipe times pipe diameter diameter Note the flow meter’s flow direction arrow if present...

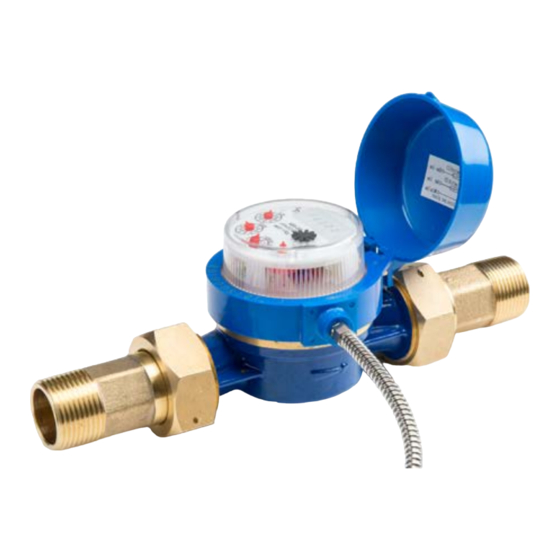

- Page 4 HC Flow Meters The flow meter consists of two parts: 1. Flow meter body: The flow meter body contains an analog dial for manual readings as follows. Your flow meter will have three wires protruding from the flow meter’s body. The wires need to be connected to the sensor inputs on the controller for remote measurement.
- Page 5 PLANNING Planning is an important step in the successful installation of your Hunter flow meter and the reliable operation of your irrigation system. 3. Flow meter entry location: Flow meters are installed between the master valve and zone valves. To avoid false alerts, there should be no water taps or other uncontrolled water use on the downstream side of the flow meter.
- Page 6 All HC flow meters must be installed horizontally with the dial facing upwards. 2. Connect flow meter wire: Two-wire cable is required. The cable required to connect your flow meter must be dedicated to the flow meter and not shared with the common wire of the valves or other sensors.
- Page 7 2. Create a flow sensor: It is important that you select the correct flow meter when configuring your Hydrawise app. Choosing the wrong model may cause the Hydrawise controller to measure the wrong water flow. HC FLOW METER SELECTION CHART FOR THE HYDRAWISE APP METER SIZE DESCRIPTION U.S.
-
Page 8: Troubleshooting
TROUBLESHOOTING Need more helpful information on your product? Find tips on installation, controller programming, and more. hunter.direct/hchelp RESIDENTIAL & COMMERCIAL IRRIGATION Built on Innovation® Learn more. Visit hunterindustries.com LIT-694-QS-US 07/17...
