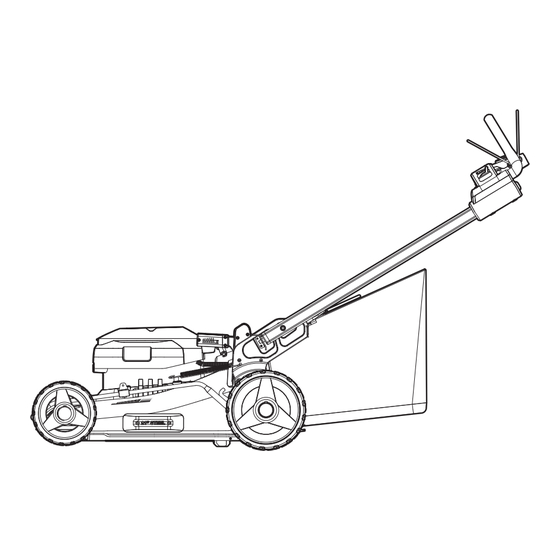

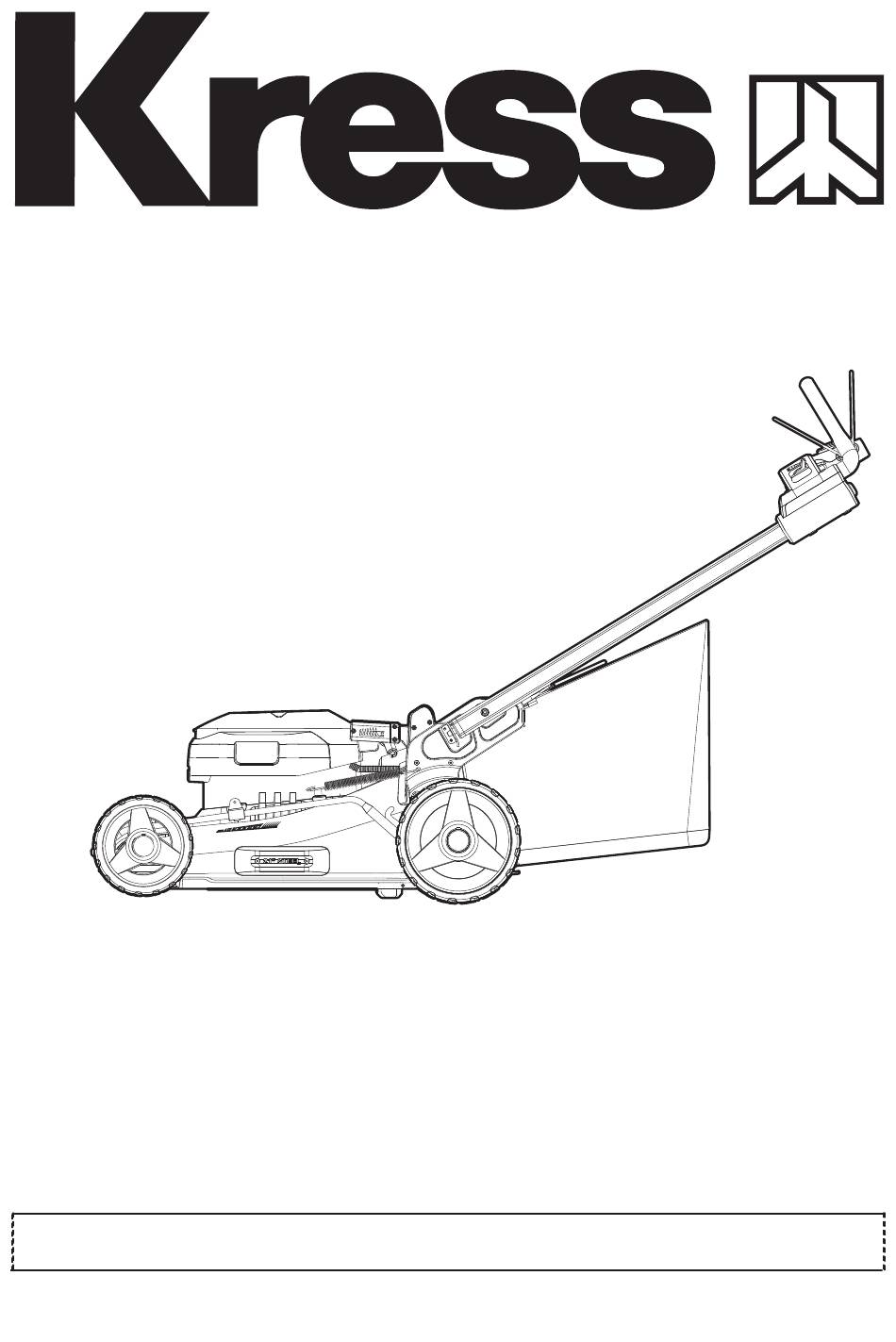

- Page 1 Cordless Lawn Mower KG761 KG761.X...
- Page 3 SIDE DISCHARGE...
- Page 4 SIDE DISCHARGE 100% Front Rear Battery Battery Port Port...
- Page 5 7 — 100mm 4” 6 — 90mm 3-1/2” 5 — 80mm 3-1/8” 4 — 70mm 2-3/4” 3 — 60mm 2-3/8” 2 — 50mm 2” 1 — 40mm 1-1/2”...
- Page 8 Thank you for buying this Kress product. We are dedicated to developing high quality products to meet your lawn & garden requirements. The Kress brand is synonymous with premium quality service. Over the years of your products life, if you have any questions or concerns about your product, please contact your location of purchase or our Customer Service Team for assistance.
- Page 9 PRODUCT SAFETY Dress properly - Do not wear loose clothing or jewelry. They can be caught in moving WARNING: Some dust created by power parts. Use of rubber gloves and footwear is sanding, sawing, grinding, drilling recommended when working outdoors. and other construction activities contains Use safety glasses - Always use face or chemicals known to the State of California...
- Page 10 SAFETY INSTRUCTIONS FOR WALK- appliance before making any adjustments, BEHIND MOWERs changing accessories, or storing appliance. Such preventive safety measures IMPORTANT reduce the risk of starting the appliance accidentally. SAFE PRACTICES FOR WALK-BEHIND Recharge only with the charger specified by MOWERS the manufacturer .A charger that is suitable I.
- Page 11 generally a warning of trouble. before starting. 17. Always wear eye protection when operating Never make any adjustments or repairs with machine. the motor running. 18. See manufacturer’s instructions for proper Always unplug electric mowers before operation and installation of accessories. adjusting, cleaning, or repairing.
- Page 12 at all times. remove some metal from the heavy or Stop the blade(s) when crossing gravel lower end until the blade is balanced. It is drives, walks, or roads. balanced when neither end drops. After striking a foreign object, stop the SAVE THESE motor, unplug, thoroughly inspect the mower for any damage, and repair the...
- Page 13 Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment. o) Retain the original product literature for future reference.
- Page 14 SYMBOLS Wear protective gloves CPSC Danger label. KEEP HANDS AND FEET AW AY GARDER MAINS ET PIEDS À DI S TANCE Remove battery from the compartment before carrying out any adjustment, servicing Severing of toes or fingers- or maintenance. Rotary mower blade. Blade continues to rotate after the machine is switched off.
- Page 15 TECHNICAL DATA designation of machinery, representative of Cordless Lawn Type KG761 KG761.X (7- Mower) KG761 KG761.X * Voltage Max** No load speed 2800/min Deck width 21” (53 cm) Cutting width 20” (51cm) Front wheel diameter 8” (200 mm) Rear wheel diameter 10”...
- Page 16 COMPONENT LIST SELF-PROPELLED ENGAGEMENT BAIL OPERATING BAIL (BLADE ENGAGEMENT) HANDLE BAR MULCHING / SIDE DISCHARGE -BAGGING SWITCH LEVER BATTERY COMPARTMENT COVER LED HEADLIGHT FRONT STORAGE / LIFT HANDLE CUTTING HEIGHT ADJUSTMENT INDICATOR CUTTING-HEIGHT ADJUSTMENT LEVER REAR LIFT HANDLE SAFETY FLAP GRASS COLLECTION BAG SELF-PROPEL SPEED-CONTROL FOLDING HANDLE QUICK RELEASE...
- Page 17 OPERATION INSTRUCTION Three green 35% ≤ Power level < NOTE: Read instruction handbook lights are before operation this machine. illuminated. ASSEMBLY: Two green 20% ≤ Power level < Lifting the Handle bar && Adjusting lights are Handle’s height(See Fig. A1,A2) illuminated.
- Page 18 position after each use. (See Fig. C1) week. This will help prevent matting and graining of the lawn. Operating the self-propel system (See 6) Do not mow on a slope that has an angle of Fig. H) greater than 15 Press the Safety lock-out button, then push the CUTTING AREA Self-propel speed-control lever to operate.
- Page 19 AFTER OPERATION: of material from both ends. NOTE: Storage (See Fig. L1, L2) 1. Be sure the mower is turned off and remove the batteries. Stop the mower and remove the batteries. Clean 2. Place the mower in stand up storage mode. the exterior of the machine thoroughly using a soft brush and cloth.
- Page 20 TROUBLESHOOTING PROBLEM SOLUTION 1. Mower doesn’t run when A. Check to make sure that Safety lock-out button is Operating Bail is activated. being completely pushed. B. Release Operating Bail to turn mower off. Remove the batteries, turn mower over and check that blade is free to turn.
- Page 21 7. Battery charger LED’s not on. A. Check plug connection. B. Replace charger. 8. Battery charger LED does not flip A. Battery needs to be diagnosed. Take to authorized to green. service center. 9. Mower not picking up clippings A. Place Mulching / Side Discharge -Bagging Switch Lever with the Grass Collection Bag.
- Page 24 Copyright © 2022, Positec. All Rights Reserved.
