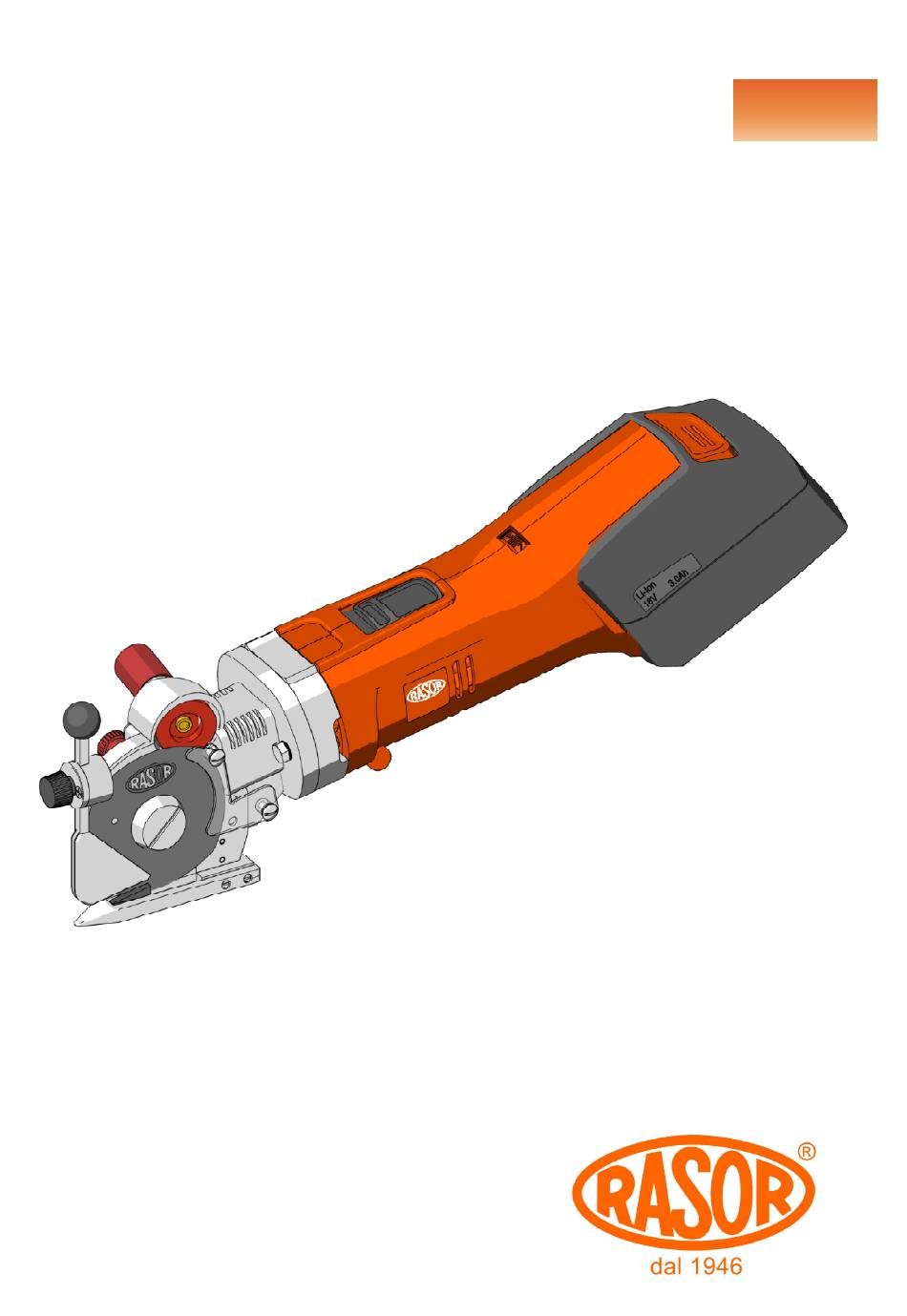

- Page 1 USE MANUAL English BATTERY SCISSORS MOD. TT703 TurfTrimmer...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended using only original spare parts and to contact the head office...
- Page 3 Do not use large clothes or accessories that might get stuck in the moving parts. • GOGGLES AND PROTECTIVE METAL MESH GLOVES. Always use goggles, protective metal mesh gloves approved by Rasor during ® use and maintenance operations (according to UNI EN 388:2004 standard).
- Page 4 The original configuration of the battery scissors must not be changed at all. On receiving them, make sure the supply corresponds to what has been ordered. In case of non-compliance immediately inform Rasor ® Also make sure the scissors have not been damaged during transport.
- Page 5 22. TRANSPORT AND PACKING The scissors are delivered in a carrying case with the battery and the charger. The code of the ordered product and its serial number are indicated outside the package (see picture 1). The following accessories are contained in a bag inside the carrying case: 1) 4-edge blade 2) Grease tube 3) Pin for blade assembly/disassembly...
- Page 6 4. PRODUCT DESCRIPTION This manual describes battery scissors model TT703 TurfTrimmer which are used in order to cut synthetic (sports and ornamental) grass and surfaces (e.g. playgrounds). The battery scissors are effective on all types of grass, with any kind of fibre, with classical or thermowelded backings.
- Page 7 5. TECHNICAL FEATURES Battery scissors TT703 TurfTrimmer features Features of the available blades Blade diameter 70 mm with carbide counterblade 70SHSS HSS steel 4-edge blade Ø 70 mm 70SHSS, HSS steel 4-edges 70EHSS HSS steel 6-edge blade Ø 70 mm Blade supplied blade Teflon coated HSS steel 4-4dge blade...
- Page 8 Do not make any adjustment while the blade is working. · It is allowed to assemble battery scissors TT703 TurfTrimmer on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ® 9. RESIDUAL RISKS Even though the battery scissors are safe, operators must pay attention to preserve their and other people’s safety.
- Page 9 10. RULES FOR THE CARE OF THE LITHIUM-ION BATTERIES The following rules should be noted when caring for your lithium-ion batteries if you want to maintain the performance of the energy store for as long as possible: · The first charge is crucial. Fully charge the battery before using it for the first time. ·...
- Page 10 11. USE To use the battery scissors manually, proceed as follows: Release the battery (if it is charged) from the charger as described at paragraph 13; Connect the battery to the motor and fix it following the slots on the battery; Prepare the synthetic grass to cut;...
- Page 11 13. BATTERY CHARGING When the battery is discharged, it is necessary to charge it using exclusively the charger provided with the tool. WARNING Always check if the charger voltage corresponds to the network voltage of the country where the scissors are used. WARNING Do NOT use chargers that are different from the one provided (FEIN ALG80 - 50Hz/230V -10,8-18V).
- Page 12 14. BLADE SHARPENING After many hours of a continuative use of the battery scissors or if they are not able to cut anymore, it is necessary to sharp the blade. To carry out this operation, start the blade and press sharpening button “1” for 3-4 seconds (as shown in picture 8).
- Page 13 Rasor positioned towards the external side of the battery scissors. 6) Assemble all the components again and carry out...
- Page 14 BALL FOR SUPPORT F7037 RING GEAR FRN70B TT703 COMPLETE ACCESSORIES SET OPTIONAL ACCESSORIES CODE DESCRIPTION â BATTERY Li-Ion 18V, 6.0 Ah WITH BAT18 CH22 STANDARD CHARGER (230 V) THE COMPLETE EXPLODED VIEW OF THE SPARE SPARTS IT'S AVAILABE AT: WWW.RASOR-CUTTERS.COM/EN/PRODOTTI/TT703/...
- Page 15 The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. If in-warranty goods need to be repaired, the customer must always send the complete machine to Rasor ®...
- Page 16 CERTIFICATO PER BATTERIE AL LITIO TRANSPORTATION CERTIFICATE Concerning the transport according to the dangerous goods regulations of the different transport modes as in force since January, 1st 2003 and changes effective from 2013 WE HEREWITH CERTIFY THAT EACH BATTERY PACK IS OF THE TYPE PROVED TO MEET THE REQUIREMENTS OF EACH APPLICABLE TEST IN THE UN MANUAL OF TESTS AND CRITERIA, PART III, SUB-SECTION 38.3, Rev.5, Amend.1 CERTIFICATE / REPORT NO.: BU-2013-000402-UN...
- Page 17 RASOR ELETTROMECCANICA SRL Via Giannetto Mattei 41/43 20044 ARESE (MI) - ITALY ph. +39 02 66 22 12 31 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
