RASOR NERA Use Manual

Battery scissors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NERA
BATTERY SCISSORS
USE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NERA and is the answer not in the manual?

Questions and answers

Related Manuals for RASOR NERA

Summary of Contents for RASOR NERA

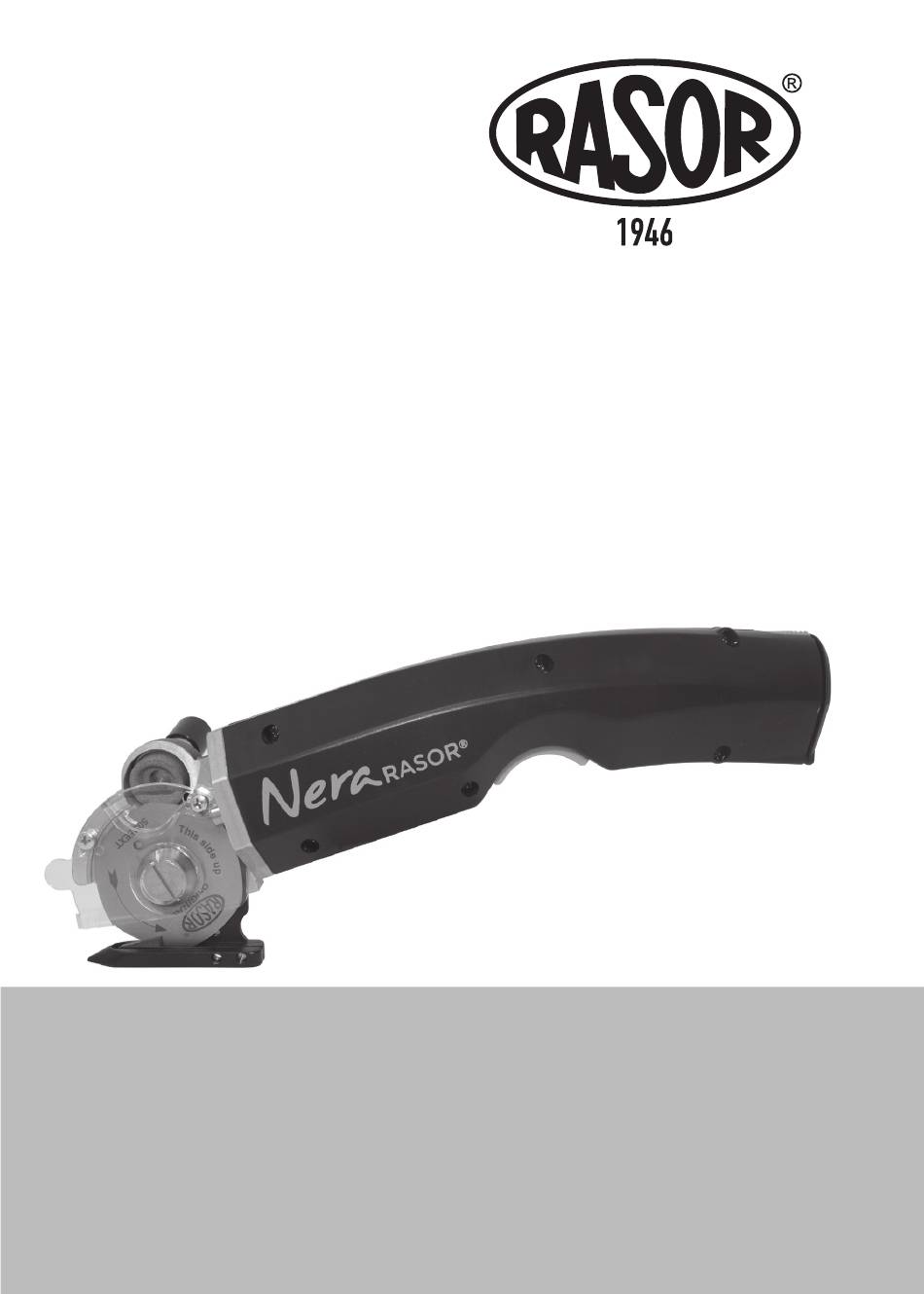

  • Page 1 NERA BATTERY SCISSORS USE MANUAL...
  • Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended using only original spare parts and to contact the head office...

  • Page 3: General Safety Rules

    1. GENERAL SAFETY RULES This manual is an integral part of battery scissors NERA and must be carefully read before using it, since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care.
  • Page 4 Moreover, they cannot work in case of rain. In case of damage or malfunction, battery scissors NERA must not be used until the Customer Care Technical Service has repaired them.
  • Page 5 2. TRANSPORT AND PACKING The scissors are delivered in a cardboard with the batteries and the charger. The code of the ordered product and its serial number are indicated outside the package (see picture 1). The following accessories are also contained inside the cardboard (see picture 2): 1) Hexagonal blade (6 sides);...

  • Page 6: Product Description

    4. PRODUCT DESCRIPTION This manual describes battery scissors model NERA which are used in order to cut fabrics in the textile industry, technical fabrics and light leathers. They are extremely versatile, light and precise in the cutting operation. The 3.7 V Lithium -Ion battery-powered miniature ®...

  • Page 7: Technical Features

    The technical data is only indicative and it can be changed without notice 6. NOISE LEVEL The maximum acoustic pressure level emitted by battery scissors NERA is about 60 dB (A). Noise tests have been carried out in compliance with Standard UNI EN ISO 11202:2010. The device noise levels, measured at different distances (without any sound wave filtering system), vary in the extent of few db (A).

  • Page 8: Use Warnings

     Only one operator must use the battery scissors always standing behind the guide handle. Do not make any adjustment while the blade is working.  It is allowed to assemble battery scissors NERA on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®...
  • Page 9 10. RULES FOR THE CARE OF THE LITHIUM-ION BATTERIES The following rules should be noted when caring for your lithium-ion batteries if you want to maintain the performance of the energy store for as long as possible:  The first charge is crucial. Fully charge the battery before using it for the first time. ...
  • Page 10 11. USE To use the battery scissors manually, proceed as follows: Release the battery (if it is charged) from the charger as described at paragraph 12; Connect the battery to the motor and fix it following the slots on the battery; Lay the material to be cut on a table;...

  • Page 11: Battery Charging

    12. BATTERY CHARGING When the battery is empty, it is necessary to recharge it using only the special docking station supplied with the device. The docking station must be connected to the standard charger with European or American plug, also supplied with the scissors. WARNING Always check if the charger voltage corresponds to the network voltage of the country where the scissors are used.

  • Page 12: Blade Sharpening

    13. BLADE SHARPENING After many hours of a continuative use of the battery scissors or if they are not able to cut anymore, it is necessary to sharp the blade. To carry out this operation, start the blade and press sharpening button “1” for 3-4 seconds (as shown in picture 7).

  • Page 13: Blade Replacement

    6) Replace the worn blade with the new one “2”, being careful to center the blade on the gear, in the correct position, and remember to assemble it with its sharp side (the one with the writing Rasor) positioned towards the external side of the battery scissors.

  • Page 14: Troubleshooting

    SCREW FIXING THE GEAR RING F 5071/1 F 5084CPL COMPLETE MOTOR SUPPORT PROTECTION GUARD BA 021 ENGINE SUPPORT FASTENING SCREW F 5084SET COMPLETE CUTTING PART FRNN504 NERA COMPLETE ACCESSORY SET F 5027 JOINT OPTIONAL ACCESSORIES CODE DESCRIPTION BAT36  3.7 V, 2400 mA Li-Ion...
  • Page 16 The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. If in-warranty goods need to be repaired, the customer must always send the complete machine to Rasor ®...
  • Page 17 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
