Summary of Contents for RASOR Optima 702

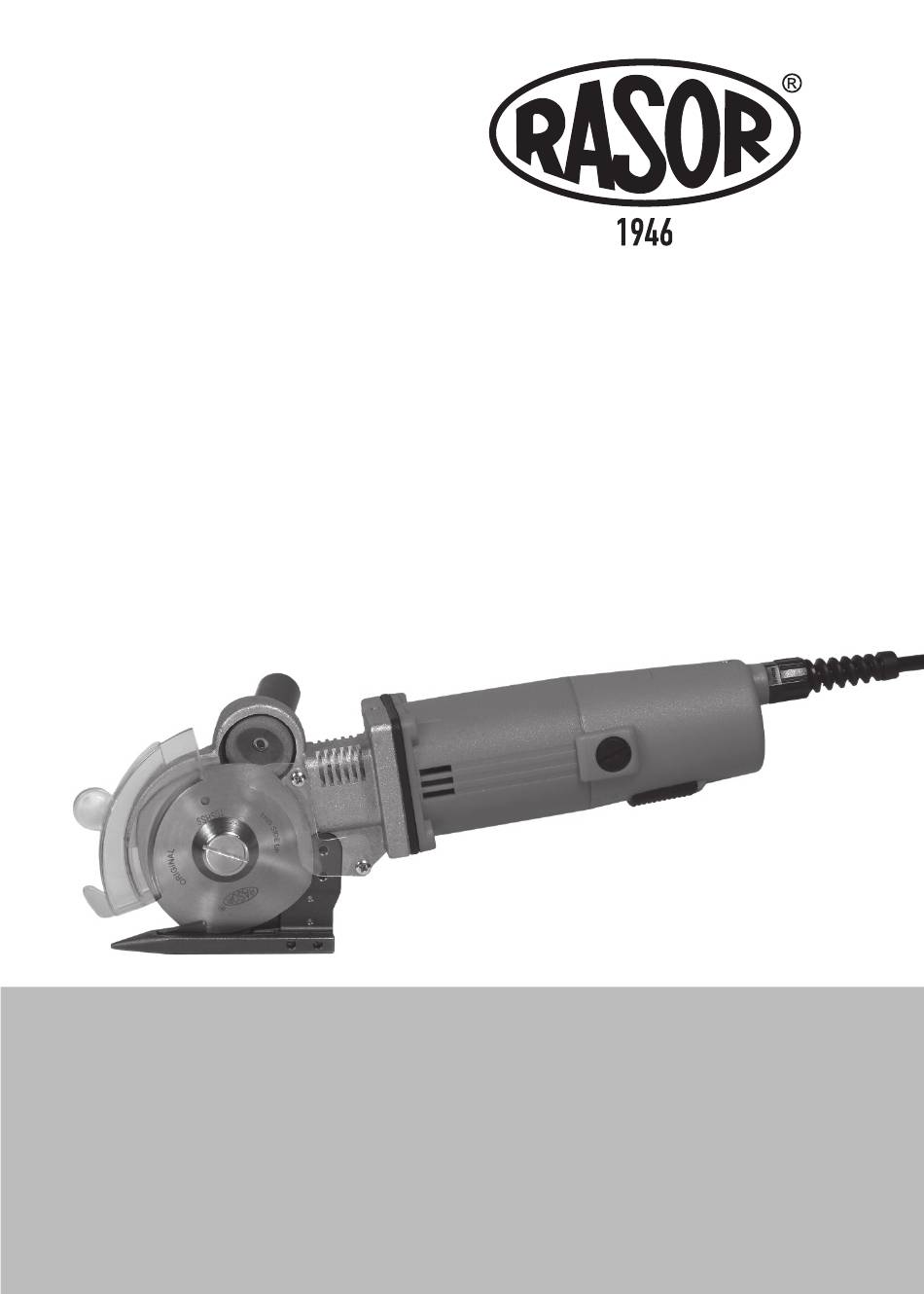

- Page 1 Optima ELECtRiC SCiSSORS USE maNUaL...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended using only original spare parts and to contact the head office...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of electric scissors OPTIMA 702 and must be carefully read before using it, since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. -
Page 4: Informative Letter
Moreover, they cannot work in case of rain. In case of damage or malfunction, electric scissors OPTIMA 702 must not be used until the Customer Care Technical Service has repaired them. -
Page 5: Transport And Packing
In such a case, the operator is the only person responsible. Class II double insulation Model W___________ Serial number OPTIMA 702 Elect ri c READ THE 220 230 50 60 SHEARING... -
Page 6: Product Description
(even hide). One special feature of electric scissors OPTIMA 702 is their ability to sharpen the blade in each moment, without disassembling it, by means of a grinding wheel mounted on the scissors head. -
Page 7: Technical Features
The technical data is only indicative and it can be changed without notice. 6. NOISE LEVEL The maximum acoustic pressure level emitted by electric scissors OPTIMA 702 is about 60 dB (A). Noise tests have been carried out in compliance with Standard UNI EN ISO 11202:2010. -
Page 8: Use Warnings
· Always pay attention to the electric cable position to prevent it from being cut or damaged by the blade. · It is allowed to assemble electric scissors OPTIMA 702 on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... - Page 9 10. USE To use the electric scissors manually, proceed as follows: Lay the material to be cut on a table; Connect the scissors to the power supply; Put the material on the cutting foot; Enable the enabling push button (see picture 3); Push the electric scissors in the desired direction, being careful to keep the material in front of them as stretched as possible and preventing it...
-
Page 10: Blade Sharpening
12. REPLACEMENT OF THE MOTOR BRUSHES Electric scissors OPTIMA 702 are provided with a high power permanent magnet motor and torque. For this reason it is necessary to check periodically if the carbon brushes are worn in order not to jeopardize the motor operation and its duration period. Unscrew the caps located on the cover by means of a slotted screwdriver (see picture 8);... -
Page 11: Blade Replacement
5) Replace the worn blade with the new one “2”, being careful to center the blade on the shaft, in the correct position, and remember to assemble it with the side with the writing Rasor positioned towards the external side of the electric scissors. -
Page 12: Troubleshooting
F 5007L LONG MOTOR CARBON BRUSH F 5061L CONTACT FASTENING SCREW F 7030CPL COMPLETE WORM SCREW - MOD. 1 F 7061 SUB-BLADE RING OPTIMA 702 COMPLETE F 5008 SWITCH FIXING PLATE F 5062 CARBON BRUSH HOLDER F 7031 ANTIFRICTION BUSHING... -
Page 14: Warranty
The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. If in-warranty goods need to be repaired, the customer must always send the complete machine to Rasor ®... - Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
