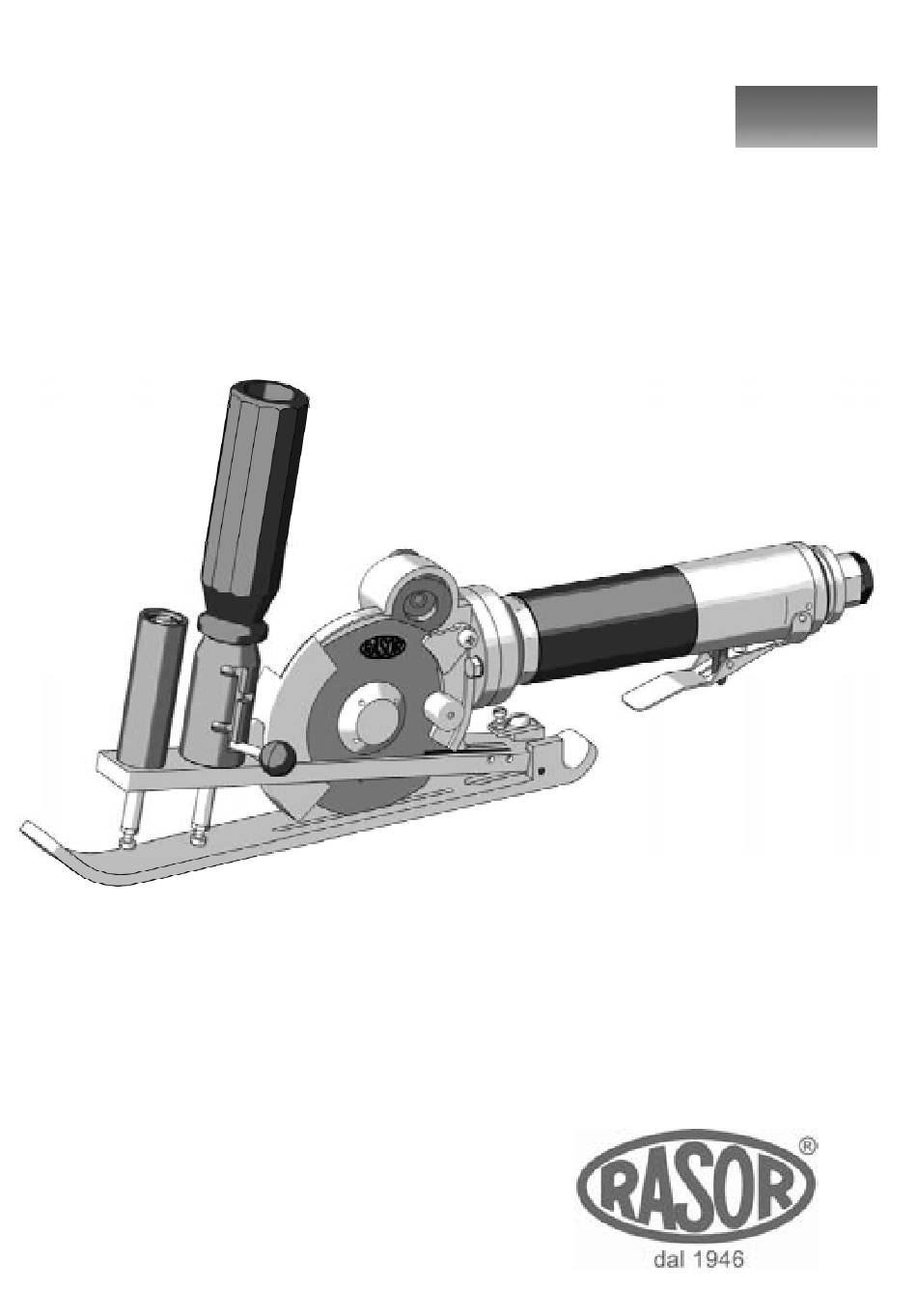

- Page 1 USE MANUAL english PNEUMATIC SCISSORS MOD. FP861RC ED.2-02/14...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended using only original spare parts and to contact the head office...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of pneumatic scissors FP861RC and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. - Page 4 Moreover, they cannot work in case of rain. In case of damage or malfunction, pnaumatic scissors FP861RC must not be used until the Customer Care Technical Service has repaired them.
-
Page 5: Transport And Packing
In such a case, the operator is the only person responsible. Model Serial number FP861RC RC________ M o t o r Year of production data... -
Page 6: Product Description
4. PRODUCT DESCRIPTION The fixture described in this manual is a pneumatic scissor model FP861RC which is used in order to quickly cut paper, fabric and plastic rolls.. It is extremely versatile, light and precise in the cutting operation, suitable also for very difficult cuttings. -
Page 7: Technical Features
The technical data are only indicative and they can be changed without notice. 6. RUMOR LEVEL The maximum acoustic pressure level emitted by pneumatic scissors FP861RC is about 60 dB (A). Noise tests have been carried out in compliance with Standard UNI EN ISO 11202:2010. -
Page 8: Use Warnings
• Always pay attention to the air hose position to prevent it from being cut or damaged by the blade. • It is allowed to assemble pneumatic scissors FP861RC on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... -
Page 9: Residual Risks
9. RESIDUAL RISKS Even though the pneumatic scissors are safe, operators must pay attention to preserve their and other people’s safety. � The cutting blade can work even when the protective guard is disassembled. 10. USE To use the pneumatic scissors manually, proceed as follows: Lay the roll to be cut on the table;... - Page 10 11. AIR PRESSURE GAUGE (OPTION) The pneumatic scissors must be necessarily fed with lubricated air with a pressure of maximum 6 bar. Rasor offers a reduction unit filter with a pressure ® gauge already calibrated with the quantity of oil to be delivered as option.
-
Page 11: Blade Replacement
“2”, being careful to center the blade on the shaft, in the correct position, and remember to assemble it with sidee with the writing Rasor positioned towards the external side of the pneumatic scissors. 7) Assemble all the components again and carry out some cutting and sharpening tests. -
Page 12: Troubleshooting
15. TROUBLESHOOTING PROBLEM SOLUTION � � Check the kind of material Sharpen the blade Check the material thickness The roll is not cut or it gets stuck Check the compatibility between blade and material Make sure that the turbine turns correctly Reduce the feeding speed Carry out the lubrication Disassemble the blade and remove the material residues... -
Page 14: Warranty
The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. In case of returned goods for repair under warranty, the Customer must send to Rasor ®... -
Page 15: Declaration Of Conformity
12100:2010. Noise tests have been carried out according to UNI EN ISO 11202:2010 Standards. Pneumatic scissors FP861RC have been produced according to workmanlike standards. We declare that the above-mentioned goods comply with the standards in force concerning safety and hygiene at work that can be applied to the material itself according to the Italian legislative decree No.
