Summary of Contents for RASOR DS504

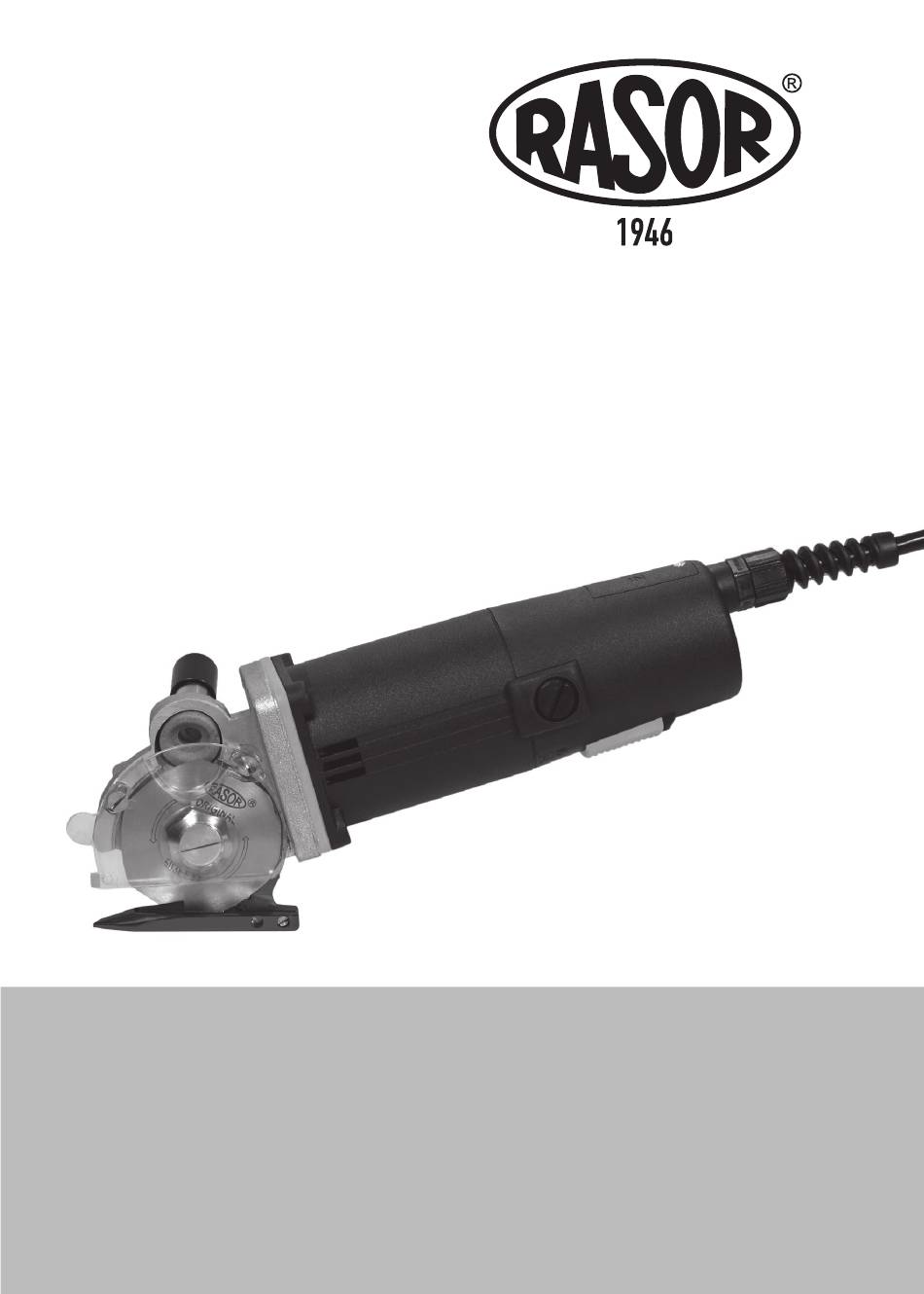

- Page 1 DS504 ELECTRIC SCISSORS USE MANUAL...
- Page 2 All the parts of the devices have been designed and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended using only original spare parts and contacting the head office...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of electric scissors DS504 and must be carefully read before using them, since it gives important indications with regards to their safe installation, use and maintenance. Keep them with care. -
Page 4: Informative Letter
Moreover, they cannot work in case of rain. In case of damage or malfunction, electric scissors DS504 must not be used until the Customer Care Technical Service has repaired them. -
Page 5: Transport And Packing
The company is not to be held responsible for damage to property or accidents to people which might occur if the above-mentioned warnings are not observed. In such a case, the operator is the only person responsible. Class II double insulation Model READ THE DS504 Serial number SHEARING INSTRUCTION Elect ri c R ISK... -
Page 6: Product Description
4. PRODUCT DESCRIPTION This manual describes electric scissors model DS504, which are used in order to quickly cut textile materials and leathers. They are extremely versatile, light and precise in the cutting operation. Thanks to the use of a new foot, the cutting procedure is very quick and effective, even when the bending radius is particularly narrow. -
Page 7: Technical Features
The technical data are only indicative and they can be changed without notice. 6. RUMOR LEVEL The maximum acoustic pressure level emitted by electric scissors DS504 is about 60 dB (A). Noise tests have been carried out in compliance with Standard UNI EN ISO 11202:2010. -
Page 8: Use Warnings
· Always pay attention to the electric cable position to prevent it from being cut or damaged by the blade. · It is allowed to assemble electric scissors DS504 on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... - Page 9 10. USE To use the electric scissors manually, proceed as follows: 1) Lay the material to be cut on a table; 2) Connect the scissors to the power supply; 3) Put the material on the cutting foot; 4) Enable the enabling push button (see pict. 3); 5) Push the electric scissors in the desired direction, being careful to keep the material in front of them as stretched as possible and preventing it from...
-
Page 10: Blade Sharpening
12. REPLACEMENT OF THE MOTOR BRUSHES Electric scissors DS504 are provided with a high power permanent magnet motor and torque. For this reason it is necessary to check periodically if the carbon brushes are worn in order not to jeopardize the motor operation and its duration period. -
Page 11: Blade Replacement
(the one with the writing Rasor) positioned towards the external side of the electric scissors. 6) Assemble all the components again and carry out... -
Page 12: Troubleshooting
MOTOR FRAME WITH MAGNETS F 50310F1 FUSE 1A F 5066 F 7002 PLASTIC FLEXIBLE CABLE GLAND FASTENING SCREW COMPLETE SET OF DS504 F 5018/1 PAIR OF PERMANENT MAGNETS 110 V COMPLETE ROTOR F 5067 PLATE LOCKING THE THREADS PA FRN503... - Page 13 ® ® dal 1946 dal 1946...
-
Page 14: Warranty
The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. If in-warranty goods need to be repaired, the customer must always send the complete scissors to Rasor ®... - Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
