Summary of Contents for RASOR TT702 TurfTrimmer

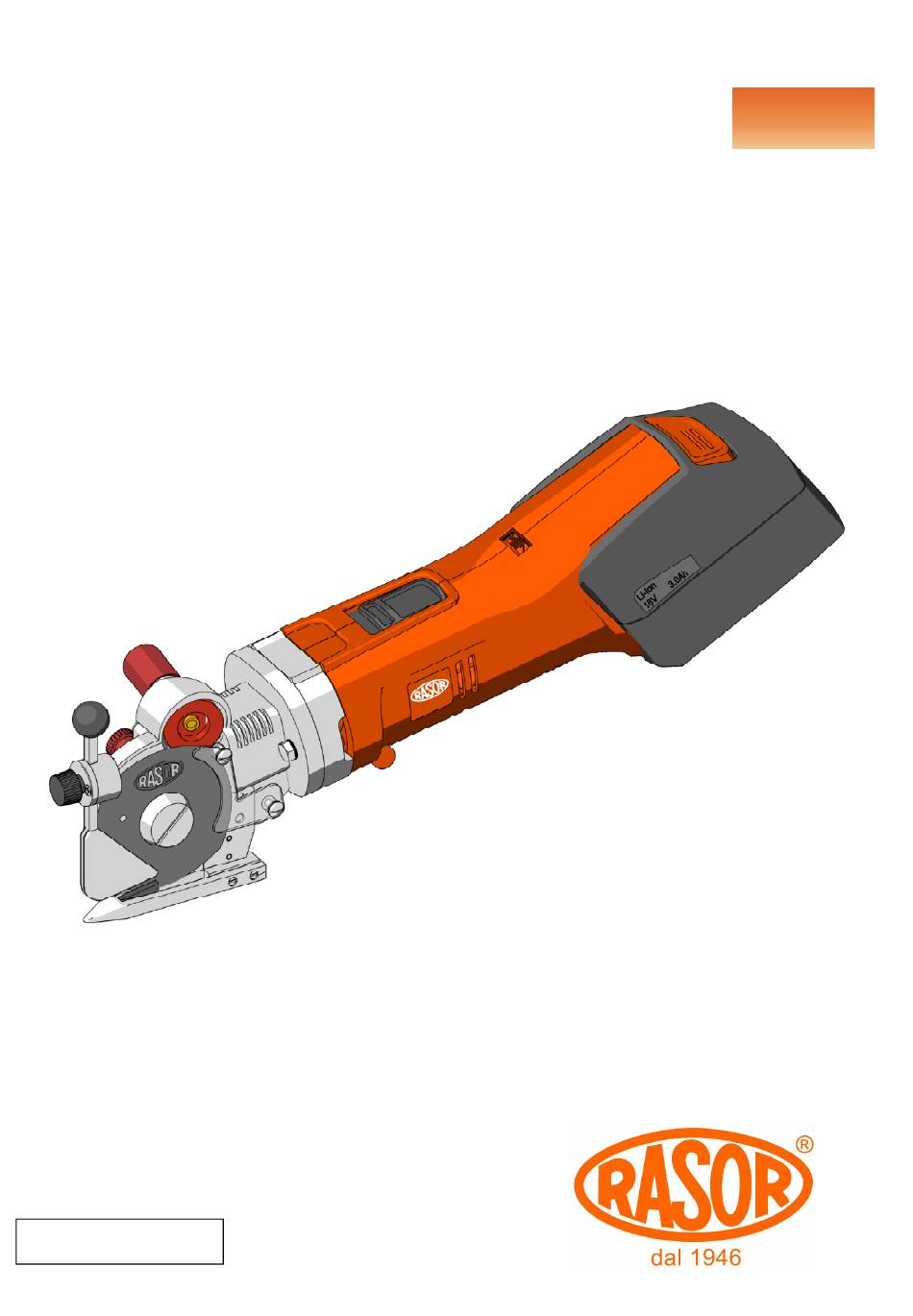

- Page 1 USE MANUAL English BATTERY SCISSORS MOD. TT702 TurfTrimmer ED.1-03/14 SERIAL NUMBER...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended using only original spare parts and to contact the head office...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES This manual is an integral part of battery scissors TT702 TurfTrimmer and must be carefully read before using it, since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care. - Page 4 Moreover, they cannot work in case of rain. In case of damage or malfunction, battery scissors TT702 TurfTrimmer must not be used until the Customer Care Technical Service has repaired them.
-
Page 5: Transport And Packing
22. TRANSPORT AND PACKING The scissors are delivered in a carrying case with the battery and the charger. The code of the ordered product and its serial number are indicated outside the package (see picture 1). The following accessories are contained in a bag inside the carrying case: 1) Quadrangular blade (4 sides);... -
Page 6: Product Description
4. PRODUCT DESCRIPTION This manual describes battery scissors model T702 TurfTrimmer which are used in order to cut synthetic (sports and ornamental) grass and surfaces (e.g. playgrounds). The battery scissors are effective on all types of grass, with any kind of fibre, with classical or thermowelded backings. - Page 7 (A). NOTE It is advisable for battery scissors TT702 TurfTrimmer owners to verify the compliance with the standard concerning safety of workers: Italian legislative decree 81/08. The use of ear protecting devices is compulsory.
-
Page 8: Use Warnings
· Only one operator must use the battery scissors always standing behind the guide handle. Do not make any adjustment while the blade is working. · It is allowed to assemble battery scissors TT702 TurfTrimmer on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ®... - Page 9 10. RULES FOR THE CARE OF THE LITHIUM-ION BATTERIES The following rules should be noted when caring for your lithium-ion batteries if you want to maintain the performance of the energy store for as long as possible: · The first charge is crucial. Fully charge the battery before using it for the first time. ·...
-
Page 10: Speed Regulation
WARNING Using the battery scissors TT702 TurfTrimmer with high blade speed accelerates the wear of the moving parts such as blade, counterblade and gear pair. The high blade speed determines also a faster loss of battery charge. -
Page 11: Battery Charging
13. BATTERY CHARGING When the battery is discharged, it is necessary to charge it using exclusively the charger provided with the tool. WARNING Always check if the charger voltage corresponds to the network voltage of the country where the scissors are used. WARNING Do NOT use chargers that are different from the one provided (FEIN ALG 50 - 50Hz/230V - 10,8-18V) - (FEIN ALG 30 -50Hz/230V - 10,8-18V optional). -
Page 12: Blade Sharpening
14. BLADE SHARPENING After many hours of a continuative use of the battery scissors or if they are not able to cut anymore, it is necessary to sharp the blade. To carry out this operation, start the blade and press sharpening button “1” for 3-4 seconds (as shown in picture 8). -
Page 13: Blade Replacement
Rasor positioned towards the external side of the battery scissors. 6) Assemble all the components again and carry out... -
Page 14: Troubleshooting
17. TROUBLESHOOTING PROBLEM SOLUTION à Check that blade and counterblade contact with each other Check the kind of material Sharpen the blade The material is not cut or it gets stuck between the blade and the counterblade Check the material thickness Make sure that the motor turns correctly Reduce the feeding speed Check the counterblade integrity... - Page 15 ® dal 1946...
-
Page 16: Warranty
The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. If in-warranty goods need to be repaired, the customer must always send the complete machine to Rasor ®... - Page 17 CERTIFICATO PER BATTERIE AL LITIO TRANSPORTATION CERTIFICATE Concerning the transport according to the dangerous goods regulations of the different transport modes as in force since January, 1st 2003 and changes effective from 2013 WE HEREWITH CERTIFY THAT EACH BATTERY PACK IS OF THE TYPE PROVED TO MEET THE REQUIREMENTS OF EACH APPLICABLE TEST IN THE UN MANUAL OF TESTS AND CRITERIA, PART III, SUB-SECTION 38.3, Rev.5, Amend.1 CERTIFICATE / REPORT NO.: BU-2013-000402-UN...
-
Page 19: Declaration Of Conformity
12100:2010. Noise tests have been carried out according to UNI EN ISO 11202:2010 Standards. Battery scissors TT702 TurfTrimmer have been produced according to workmanlike standards. We declare that the above-mentioned goods comply with the standards in force concerning safety and hygiene at work that can be applied to the material itself according to the Italian legislative decree No. - Page 20 Authorized dealer (Stamp)
