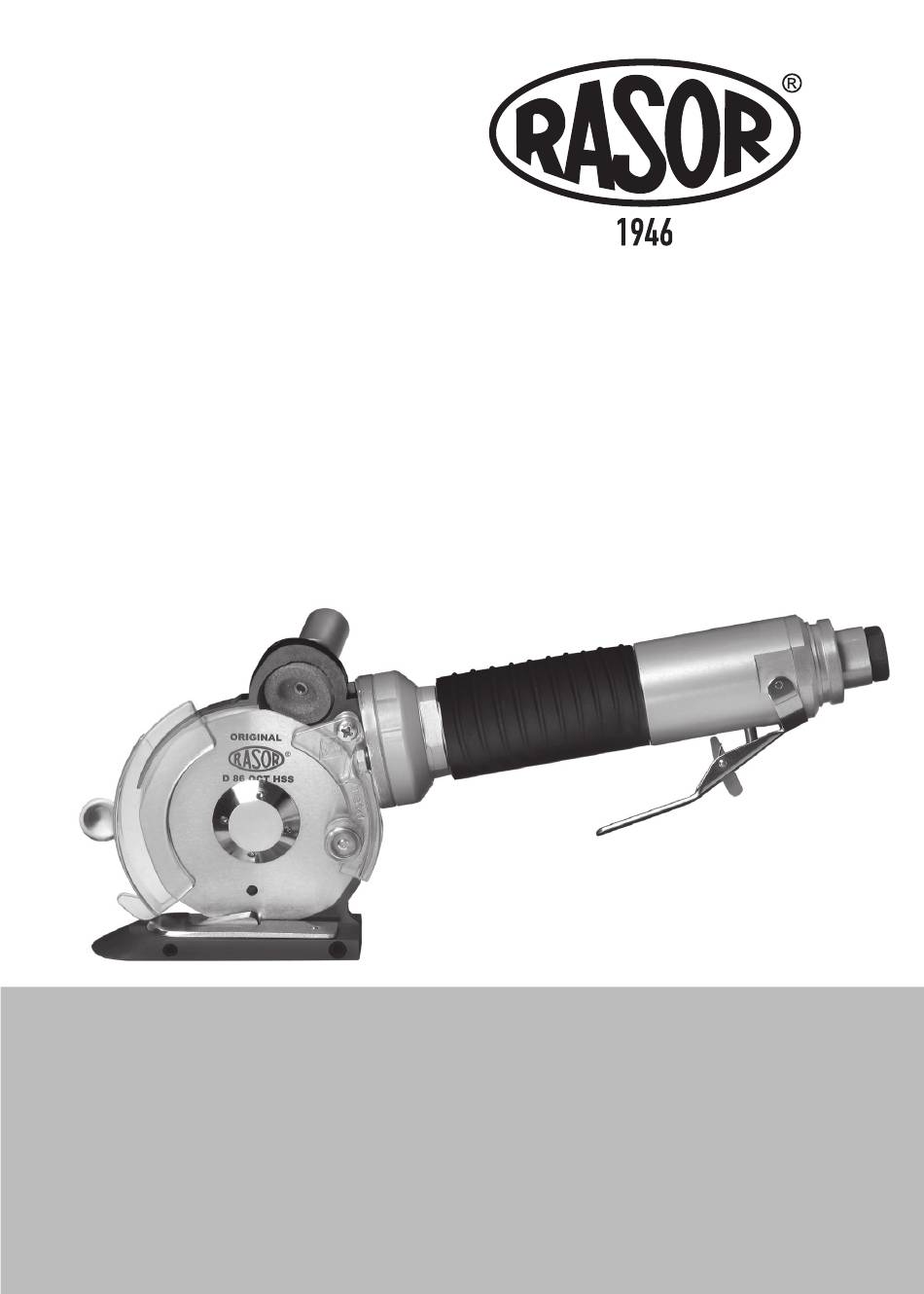

- Page 1 FP862 PNEUMATIC SCISSORS USE MANUAL...
- Page 2 All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor ® products, it is recommended to use only original spare parts and to contact the head...
-
Page 3: General Safety Rules
Do not use large clothes or accessories that might get stuck in the moving parts. • GOGGLES AND PROTECTIVE METAL MESH GLOVES. Always use goggles, protective metal mesh gloves approved by Rasor during ® use and maintenance operations (according to UNI EN 388:2004 standard). -
Page 4: Informative Letter
The original configuration of the pneumatic scissors must not be changed at all. On receiving the machine make sure the supply corresponds to what has been ordered. In case of non-compliance immediately inform Rasor ® Also make sure the scissors have not been damaged during transport. -
Page 5: Transport And Packing
In such a case, the operator is the only person responsible. Modello FP862 Numero di matricola Dati 1400... -
Page 6: Descrizione Prodotto
4. DESCRIZIONE PRODOTTO The fixture described in this manual is a pneumatic scissor model FP 862 which is used in order to quickly cut fabrics in the textile industry and other materials. It is extremely versatile, light and precise in the cutting operation, suitable also for very difficult cuttings. Thanks to the use of a supporting front foot and of an effective cutting system with pentagonal or octagonal blade, it is possible to use the pneumatic scissors to cut different materials, such as wool, cotton, synthetic fabrics, leather, eco leather, silk, paper patterns,... -
Page 7: Technical Features
5. TECHNICAL FEATURES Pneumatic scissors FP 862 features Features of the available blades Blade diameter 86 mm with hard-metal counterblade 86THSS HSS steel octagonal blade 1400 rev./min Blade speed 86PHSS HSS steel pentagonal blade HSS steel octagonal blade with TIN Cutting working depth about 25 mm 86THSSTN... -
Page 8: Use Warnings
• It is allowed to assemble pneumatic scissors FP 862 on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor ® • The pneumatic scissors FP 862 are equipped with lever starter intelocked with a pawl/ notch reset device in order to prevent accidental lever operations. -
Page 9: Residual Risks
9. RESIDUAL RISKS Even though the pneumatic scissors are safe, operators must pay attention to preserve their and other people’s safety. The cutting blade can work even when the protective device is disassembled. 10. USE To use the pneumatic scissors manually, proceed as follows: Lay the material to be cut on the table;... - Page 10 11. AIR PRESSURE GAUGE (OPTION) The pneumatic scissors must be necessarily fed with lubricated air with a pressure of 4-6 bar. Rasor offers, as option, a reduction unit filter with a ® pressure gauge already calibrated with the quantity of oil to be delivered as option.
-
Page 11: Blade Replacement
(the one with the writing Rasor) positioned towards the external side of the pneumatic scissors. 6) Assemble all the components again and carry out... -
Page 12: Troubleshooting
15. TROUBLESHOOTING PROBLEM SOLUTION � � C heck the counte rbla de inte grity C heck the k ind of fa bric Sha rpe n the bla de T he fabric is not cut or it gets stuck Che ck the fa bric thickne ss between the blade and the counterblade Che ck the com pa tibility be twe e n bla de a nd fa bric Ma k e sure tha t the turbine turns corre ctly... -
Page 14: Warranty
The warranty covers all manufacturing and material defects. Replacement and repair operations are covered only if carried out by our company and at our workshop. In case of returned goods for repair under warranty, the Customer must send to Rasor always ®... - Page 15 RASOR ELETTROMECCANICA SRL Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 info@rasor-cutters.com www.rasor-cutters.com FOLLOW US:...
