Shared Maintenance
Offering:
Adjustment Item Menu Guide
For safe and correct use, be sure to read Safety Information separately
provided before using the machine.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pro 8400S and is the answer not in the manual?

Questions and answers

Summary of Contents for Ricoh Pro 8400S

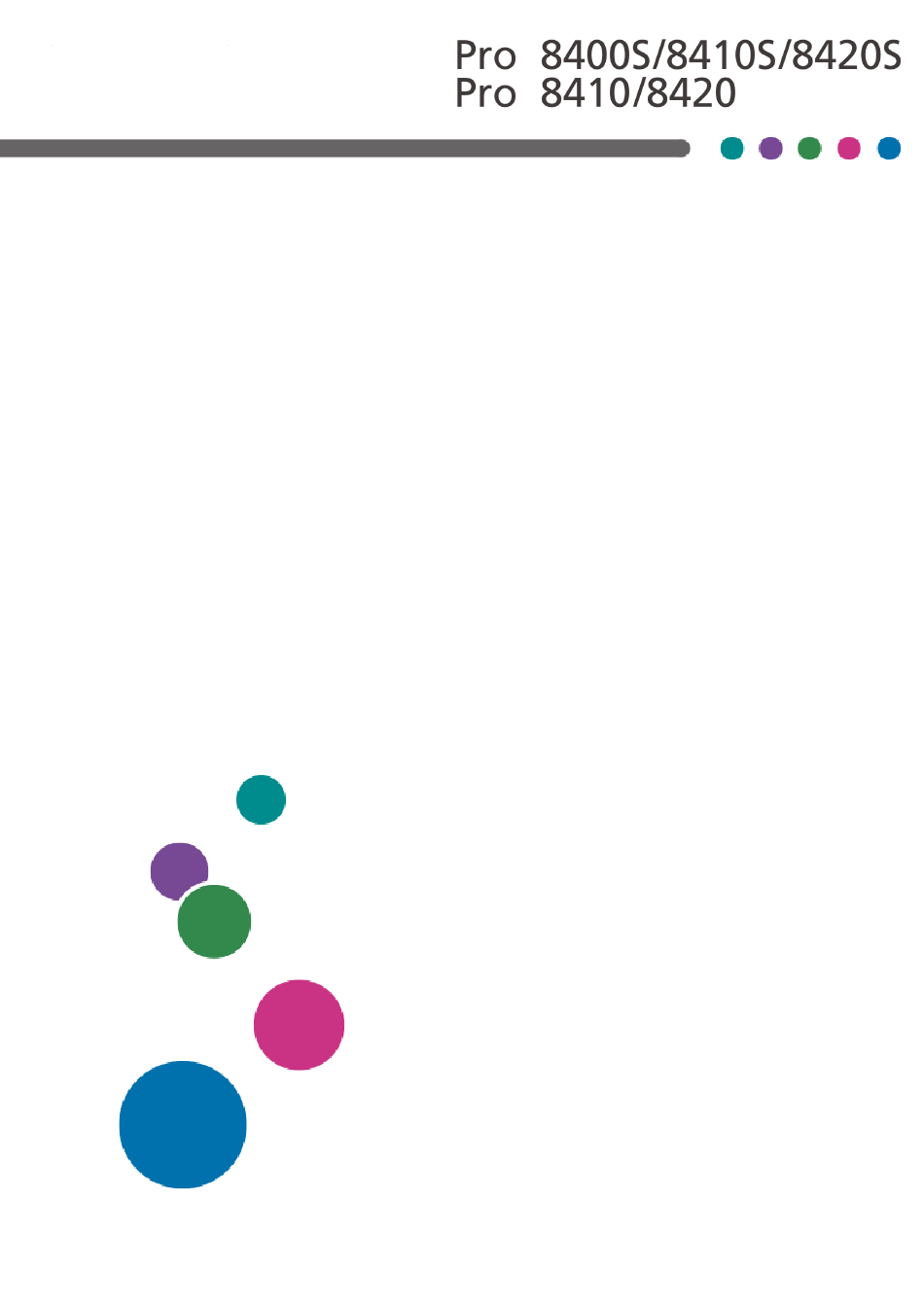

  • Page 1 Shared Maintenance Offering: Adjustment Item Menu Guide For safe and correct use, be sure to read Safety Information separately provided before using the machine.
  • Page 3 TABLE OF CONTENTS 1. Read This First Introduction ......................... 11 How to Read This Manual ....................12 Symbols ..........................12 Disclaimer ........................12 Notes ..........................12 Manuals for This Machine ....................13 Paper Feed Direction of Printed Copies (Side 1/Side 2) ............ 14 2.
  • Page 4 0211 Toner Refreshing Mode ..................37 0212 Productivity Priority Mode ..................37 0213 Continuous Slip Sheet Feed Mode ................. 38 0214 Pressure Position: Nip Width ................. 38 Main Unit: Paper Feed/Output .................... 39 0301 Double Feed Detection ..................39 0302 When Double Feed is Detected ................39 0304 Skew Detection ......................
  • Page 5 0522 Execute Charger Cleaning ..................59 0523 Switch Print Screen ....................59 0524 Back Up / Restore Custom Paper Data ..............59 Finishing: Finisher 1 ......................61 0601 Staple Position for Booklet ..................61 0602 Folding Position for Booklet................... 62 0603 Staple Position: Across Feed 1 ................
  • Page 6 0631 Output Trail Edge Press Setting ................82 0632 Output Fan Setting ....................83 0633 Output Fan Level ....................83 0634 Maximum Stacked Sheets in Output Tray ............. 83 0635 Maximum Stacked Sheets in Output Tray: Stapled Signature ......84 0636 Maximum Stacked Sheets in Output Tray: Envelope ..........
  • Page 7 0724 Paper Alignment Gap for Stapling ............... 104 0725 Paper Alignment Gap for Booklet ................ 105 0726 Paper Tapping for Extra Feed for Stapling ............105 0727 Shift of Alignment Claw for Booklet ..............106 0728 Use Exit Guide for Stapling: Large ............... 107 0729 Use Exit Guide for Stapling: Small ...............
  • Page 8 0901 Z-fold Position 1 ....................125 0902 Z-fold Position 2 ....................125 0903 Half Fold Position ....................126 0904 Letter Fold-out Position 1: 1 sheet Fold.............. 127 0905 Letter Fold-out Position 1: Multi-sheet Fold ............128 0906 Letter Fold-out Position 2: 1 sheet Fold.............. 129 0907 Letter Fold-out Position 2: Multi-sheet Fold ............
  • Page 9 Backing up Custom Paper Profiles Registered Under the Edit Custom Paper Setting 150 Paper Presets in "Advanced Settings" ................152 Displaying the Paper Profile Version ................152 5. Details of Menu Items in Advanced Settings Machine: Image Position ....................153 001 Image Position: Across Feed: Side 1 ..............
  • Page 10 029 Fusing Pressure Roller On Before Fusing .............. 164 030 Fusing Pressure Roller On Before Fusing: Start Timing ........164 031 Cleaning Web Rotation Interval ................165 032 Erase Margin: Leading Edge ................... 165 033 Erase Margin: Trailing Edge ..................165 034 Fusing Nip Width Adjustment ................
  • Page 11 062 2-T LCT: Return Fan Level: Acr:S/Fd:m ..............176 063 2-T LCT: Return Fan Level: Acr:S/Fd:l ..............176 064 2-T LCT: Return Fan Level: Acr:L/Fd:s ..............176 065 2-T LCT: Return Fan Level: Acr:L/Fd:m ..............177 066 2-T LCT: Return Fan Level: Acr:L/Fd:l ..............177 067 2-Tray LCT: Updraft Fan Shutter ................
  • Page 12 096 Switchback Entrance Roller Feed Speed............... 187 097 Switchback Exit Roller Feed Speed ............... 187 098 Decurler Feed Speed: Adj Off................. 187 099 Decurler Feed Speed: Adj Weak ................187 100 Decurler Feed Speed: Adj Strong ................188 101 Process Speed Setting ................... 188 102 Process Speed Setting ...................
  • Page 13 1. Read This First Introduction This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy place for quick reference.
  • Page 14 1. Read This First How to Read This Manual Symbols This manual uses the following symbols: Indicates points to pay attention to when using functions. This symbol indicates points that may result in the product or service becoming unusable or result in the loss of data if the instructions are not obeyed.
  • Page 15 Manuals for This Machine Manuals for This Machine The following manuals are for skilled operators only. Shared Maintenance Offering: Adjustment Item Menu Guide This manual explains the items in [Adjustment Settings for Skilled Operators] and the advanced settings for custom paper adjustment in "Advanced Settings". Shared Maintenance Offering: Regular Maintenance/Replacement Guide This manual explains how to replace the machine's components and how to clean them.
  • Page 16 1. Read This First Paper Feed Direction of Printed Copies (Side 1/Side 2) Depending on the setting, printed copies are fed as follows: Side 1 is the surface of the paper printed during one-sided printing, or the surface of the first print during duplex printing.
  • Page 17 Paper Feed Direction of Printed Copies (Side 1/Side 2) Single-sided printing: Printed side face up A. Side 1 B. Paper feed direction of Side 1 Duplex printing: Printed side face up A. Side 1 B. Paper feed direction of Side 1 C.
  • Page 18 1. Read This First...
  • Page 19 2. Adjustment Settings for Skilled Operators Displaying the Adjustment Settings for Skilled Operators Button To use the Adjustment Settings for Skilled Operators, you must first configure your machine's Administrator Authentication Management setting. • When administrator authentication is enabled, take care not to forget the administrator's login username and password.
  • Page 20 2. Adjustment Settings for Skilled Operators Accessing Adjustment Settings for Skilled Operators 1. On the Home screen, press [Adjustment Settings for Skilled Operators]. 2. Press [Login]. 3. Enter your login user name, and then press [OK]. If you are logging on as the administrator for the first time, enter "admin". 4.
  • Page 21 Layout of Adjustment Settings for Skilled Operators Layout of Adjustment Settings for Skilled Operators This section explains how to use Adjustment Settings for Skilled Operators. 1. Adjustment items Adjustment items are displayed in this area. When you select an item, its configuration screen will then open.
  • Page 22 2. Adjustment Settings for Skilled Operators Features of the Displayed Items and Setting Operations The following operations are available for each adjustment item: • Value setting • Item setting • Executing • Display only Value setting Press [ ] or [ ] to increase or decrease the value respectively, or use the numeric keypad to enter the value.
  • Page 23 Features of the Displayed Items and Setting Operations Display only You can check the setting of the selected item.
  • Page 24 2. Adjustment Settings for Skilled Operators Notes on How Adjustment Settings Are Applied to Printed Copies The adjustment settings are applied to printed copies according to the settings specified for each paper tray, paper size, and paper weight. Depending on the adjustment setting, the same settings specified under different categories may be applied to printed copies concurrently.
  • Page 25 Notes on How Adjustment Settings Are Applied to Printed Copies The settings are applied only to printed copies of each paper size. • For information about the paper tray, paper thickness, and tray paper size settings that can be specified for a particular function, see the manual for the relevant function.
  • Page 26 2. Adjustment Settings for Skilled Operators...
  • Page 27 3. Details of Menu Items in Adjustment Settings for Skilled Operators Main Unit: Image Position 0101 Image Position: With Feed Adjust the image position printed on the paper by adjusting the start timing of the registration. You cannot individually adjust the image position on sides 1 and 2. Side 1 Press [ ] to shift the image to the right (trailing edge).
  • Page 28 3. Details of Menu Items in Adjustment Settings for Skilled Operators Side 2 Press [ ] to shift the image to the left (trailing edge). Press [ ] to shift the image to the right (leading edge). Setting Items Default Max.
  • Page 29 Main Unit: Image Position • If the trailing-edge margin on Side 1 of the paper is too narrow, paper jams may occur when printing on the back side of paper during duplex printing. • The image position may change depending on the operating environment, etc. If the image position deviates significantly, make adjustments each time.
  • Page 30 3. Details of Menu Items in Adjustment Settings for Skilled Operators Side 2 Press [ ] to shift the image to the top. Press [ ] to shift the image to the bottom. Setting Items Default Max. Min. Step Unit Value Value Value...
  • Page 31 Main Unit: Image Position • This setting is not effective for paper fed from paper trays with custom paper presets. For such paper, the value specified in [001 Image Position: Across Feed: Side 1] and [003 Image Position: Across Feed: Side 2] in "Advanced Settings" takes precedence.
  • Page 32 For such paper, the value specified in [013 Deactivate Adjustment Across Feed] in "Advanced Settings" takes precedence. 0106 Select Test Pattern for Image Position Adjustment This function is available for Pro 8400S, Pro 8410S and Pro 8420S. Select Test Pattern for Image Position Adjustment...
  • Page 33 [Copy Image] [Frame Image] 0107 ADF Adjustment This function is available for Pro 8400S, Pro 8410S and Pro 8420S. Adjust the position and scaling of image when original is scanned by Auto Document Feeder. By specifying this setting, you can correct image misalignment, expansion, and shrinkage due to non-uniform paper feeding.
  • Page 34 [Magnification: With Feed] 0108 ADF Double Feed Detection This function is available for Pro 8400S, Pro 8410S and Pro 8420S. Select whether to detect ADF double feed. If [On] is selected, the machine stops printing and displays a message reporting a paper jam when it detects multiple feeding.
  • Page 35 Main Unit: Image Quality Main Unit: Image Quality 0201 Erase Margin: With Feed Adjust erase margin of paper edge with feed. By increasing the mask width, you can increase the paper margin at the leading edge, or trailing edge of the paper. If misfeeding of paper occurs when using loose paper such as thin or coated paper, increase the mask width.
  • Page 36 3. Details of Menu Items in Adjustment Settings for Skilled Operators If the density does not change after applying this function several times, contact your sales or service representative. Setting Items Remarks [Image Density Press [OK]. Adjustment: Manual Execute] • The machine executes automatic image density adjustment after a set interval or after printing a specified number of sheets.
  • Page 37 Main Unit: Image Quality 0205 Line Width Adjust the line width of printing. Halftone dot and fine line becomes thicker when the number increases. After setting change, image density is adjusted automatically before print start. Setting Items Default Max. Min. Step Unit Value...
  • Page 38 Press [ ] or [ ] to adjust the temperature. Setting Items Default Value Max. Min. Step Unit Value Value [Temperature on 150 (Pro 8400S) degree(s Standby Mode] 155 (Pro 8410/Pro 8410S) 160 (Pro 8420/Pro 8420S) [Temperature on 155 (Pro 8400S) Low Power Mode]...
  • Page 39 Main Unit: Image Quality • Jitter does not occur with A4 , 8 or smaller paper. • This setting is not effective for paper fed from paper trays with custom paper presets. For such paper, the value specified in [022 Avoid Ppr Trns Shock Jitter: Interval] in "Advanced Settings"...
  • Page 40 3. Details of Menu Items in Adjustment Settings for Skilled Operators 0213 Continuous Slip Sheet Feed Mode Set the stop of imaging unit with continuous slip sheet feed mode. Continuous slip sheet feeding causes the imaging unit to run idle, causing image problems including tonner dispersion, scumming, streaks, uneven gloss, and gloss streaks.
  • Page 41 Main Unit: Paper Feed/Output Main Unit: Paper Feed/Output 0301 Double Feed Detection Set whether to detect double feed. If [On] is selected, the machine stops when it detects paper double feeding, so as to prevent mixing of unprinted paper. The machine may not correctly detect double feeding when using special paper (two-ply paper such as release paper).
  • Page 42 3. Details of Menu Items in Adjustment Settings for Skilled Operators If [Suspended After Ppr. Dvrsion.] is selected, the machine stops printing if a double feed is detected, then delivers the sheets to the paper trap inside the machine at the bottom left, and displays a paper misfeed message.
  • Page 43 Main Unit: Paper Feed/Output • You can adjust the skew detection level by specifying [0305 Skew Detection Level]. • This setting is not effective for paper fed from paper trays with custom paper presets. For such paper, the value specified in [087 Skew Detection] in "Advanced Settings"...
  • Page 44 3. Details of Menu Items in Adjustment Settings for Skilled Operators The Wide LCT fans sheets by blowing air between the sheets before feeding them. By increasing the airflow, you can reduce multiple feeding and paper jams when printing on coated or thick paper. Press [ ] to increase the airflow or [ ] to decrease.
  • Page 45 Main Unit: Paper Feed/Output Setting Items Values Default Value [Wide LCT: Tray 4] [Auto] [Auto] [On] [Wide LCT: Tray 5] [Off] [Wide LCT: Tray 6] [LCT: Tray 4] [LCT: Tray 5] [LCT: Tray 6] [Tray A] • This setting is not effective for paper fed from paper trays with custom paper presets.
  • Page 46 3. Details of Menu Items in Adjustment Settings for Skilled Operators • Also, note that optimum printing speed might not be possible if the paper separation time is increased. 0310 Correct Output Paper Curl Select the paper curl correction mode and correction amount. Select the method according to the direction and degree of curl.
  • Page 47 Main Unit: Paper Feed/Output Setting Items Values Default Value [Tray 1] [Off] [On] [On] [Tray 2] [Tray 3] [Tray 4] [Tray 5] [Tray 6] [Tray A] [2 Sided] [Tray T1] [Tray T2] [Tray T3] [Tray T4] [Tray T5] [Tray T6] 0312 Lower Jam Detection Strictness Set whether to detect jam relating to image position adjustment.
  • Page 48 3. Details of Menu Items in Adjustment Settings for Skilled Operators 0313 Operation Set for When Misfeed Occurs Select the machine behavior when printing stops due to double-feeds or over-skews. Setting Items Values Default Value [Action After Paper Diversion] [Suspend] [Cont.
  • Page 49 Main Unit: Maintenance Main Unit: Maintenance 0502 Execute Photoconductor Refreshing Remove the dirt on the Drum surface. It takes about 4 minutes. Do not open the Front Cover during the operation. Setting Item Remarks [Execute Photoconductor Press [OK]. Refreshing] 0503 Screw-on Cap to Replace Toner Bottle Press [OK] to close the Toner Bottle Cap.
  • Page 50 3. Details of Menu Items in Adjustment Settings for Skilled Operators Status Causes Solutions Succeeded (developer replenished) Developer not Developer in the developer A new developer bottle is discharged unit has not been required. Contact your discharged. service representative. Developer not •...
  • Page 51 Main Unit: Maintenance Status Causes Solutions Succeeded (developer discharged) Developer not • The developer bottle is Detach the developer bottle, discharged not attached to the attach it to the outlet, and outlet. then try the operation again. • The developer bottle is attached to the outlet, but the outlet shutter is not open.
  • Page 52 3. Details of Menu Items in Adjustment Settings for Skilled Operators 0512 Execute ITB Manual Lubrication Apply lubricant to the intermediate transfer belt. Lubrication makes the surface of the intermediate transfer belt smoother, which extends the life of the cleaning unit for the intermediate transfer belt. This operation takes about 5 minutes during which a message appears on the control panel.
  • Page 53 Main Unit: Maintenance Setting Items Values [Wide LCT: Tray 4] Press [OK]. [Wide LCT: Tray 5] [Wide LCT: Tray 6] [Tray 4] [Tray 5] [Tray 6] [Tray A] [ADF] [[Clean] Scanner Unit: Contact Glass] [[Clean] Print Cartridge Port] [[Clean] ITB Cleaning Unit] [[Clean] Paper Transfer Unit: Paper Path] [[Clean] Paper Transfer...
  • Page 54 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Values Press [OK]. [[Clean] ADF] [[Clean] 2-Tray LCT: Paper Path 1] [[Clean] 2-Tray LCT: Paper Path 2] [[Clean] 2-Tray LCT: Tray T1, T2: Feed Belt] [[Clean] 2-Tray LCT: Tray T3, T4: Feed Belt] [[Clean] 2-Tray LCT: Tray T5, T6: Feed Belt]...
  • Page 55 Main Unit: Maintenance Setting Items Values [[Clean] LCT: Tray 5: Paper Press [OK]. Path] [[Clean] LCT: Tray 6: Paper Path] [[Clean] LCT: Tray 4: Feed Roller] [[Clean] LCT: Tray 5: Feed Roller] [[Clean] LCT: Tray 6: Feed Roller] [[Clean] First Stacker: Paper Path 1] [[Clean] First Stacker: Paper Path 2]...
  • Page 56 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Values [Corner Staple Unit: Press [OK]. Cartridge (3000 sheets)] 0516 Estimated Life Already Used Display the counter value of replacement and cleaning parts. A message appears when usage reaches the estimated life for replacement or cleaning.
  • Page 57 Main Unit: Maintenance Setting Items Values [[Clean] Scanner Unit: Value display only. Contact Glass] [[Clean] Print Cartridge Port] [[Clean] ITB Cleaning Unit] [[Clean] Paper Transfer Unit: Paper Path] [[Clean] Paper Transfer Roller Unit] [[Clean] Fuser Unit (By User)] [[Clean] Dust Filter (Fuser Vent)] [[Clean] Paper Feed Path] [[Clean] Paper Transfer Path...
  • Page 58 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Values [[Clean] 2-Tray LCT: Tray T5, Value display only. T6: Feed Belt] [[Clean] 2-Tray LCT: Tray T1, T2: Side Fence Sliding Shaft] [[Clean] 2-Tray LCT: Tray T3, T4: Side Fence Sliding Shaft] [[Clean] 2-Tray LCT: Tray T5, T6: Side Fence Sliding Shaft]...
  • Page 59 Main Unit: Maintenance Setting Items Values Value display only. [[Clean] First Stacker: Paper Path 1] [[Clean] First Stacker: Paper Path 2] [Booklet Staple Unit: Cartridge: Front (3500/4500sht)] [Booklet Staple Unit: Cartridge: Back (3500/4500sht)] [Corner Staple Unit: Cartridge (3500/4500 sheets)] [[Clean] Finisher: Shift Tray Paper Path 1] [[Clean] Finisher: Staple Paper Path 1]...
  • Page 60 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Values Value display only. [Humidity] 0518 Temperature / Humidity outside the Machine Display temperature and humidity around the machine. If your service representative requests it, report this information. Setting Items Values [Temperature]...
  • Page 61 Setting Item Values [Execute Charger Cleaning] Press [OK]. 0523 Switch Print Screen This function is available for Pro 8400S, Pro 8410S and Pro 8420S. Set the function displayed when pressing [To Print Screen]. Setting Item Values Default Value [Print Screen]...
  • Page 62 3. Details of Menu Items in Adjustment Settings for Skilled Operators With [Restore Custom Paper Settings], custom paper profiles backed up with [Back Up Custom Paper Settings] can be restored. For details, see page 150 "Backing up and Restoring Custom Paper Profiles". Setting Items Values [Back Up Custom Paper...
  • Page 63 Finishing: Finisher 1 Finishing: Finisher 1 0601 Staple Position for Booklet Adjust the horizontal position of the booklet staples when using Booklet Finisher SR5120. Press [ ] to move the position left, or press [ ] to move it right on the open booklet. Setting Items Default Max.
  • Page 64 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value -1.0 ×13 [F4a ] ×11 ] [Other Paper Sizes] 0602 Folding Position for Booklet Adjust the horizontal position of the folding when using Booklet Finisher SR5120. Press [ ] to move the position left or press [ ] to move it right on the open booklet.
  • Page 65 Finishing: Finisher 1 Setting Items Default Max. Min. Step Unit Value Value Value -1.0 [12×18 ] [11×17 ] ×14 ] ×13 [F4a ] ×11 ] [Other Paper Sizes] 0603 Staple Position: Across Feed 1 Adjust the vertical position of the staple (applied at an edge) when using Finisher SR5110 or Booklet Finisher SR5120.
  • Page 66 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value -2.0 ×13 [F4a ] ×11 ] ×11 ] [8K ] [16K ] [16K ] [Other Paper Sizes] 0604 Staple Position: Across Feed 2 Adjust the vertical distance (up and down) between the staples (dual) when using Finisher SR5110 or Booklet Finisher SR5120.
  • Page 67 Finishing: Finisher 1 Setting Items Default Max. Min. Step Unit Value Value Value 34.0 -14.5 ×13 [F4a ] 34.0 98.0 ×11 ] 34.0 ×11 ] [8K ] 85.0 [16K ] 85.0 [16K ] 12.0 [Other Paper Sizes] 115.0 0605 Staple Position: With Feed Adjust the horizontal position of the staples when using Finisher SR5110 or Booklet Finisher SR5120.
  • Page 68 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value -2.0 ×14 ] ×13 [F4a ] ×11 ] ×11 ] [8K ] [16K ] [16K ] [Other Paper Sizes] 0606 Punch Position: Across Feed Adjust the vertical position of the punch holes when using Finisher SR5110 or Booklet Finisher SR5120.
  • Page 69 Finishing: Finisher 1 0607 Punch Position: With Feed Adjust the horizontal position of the punch holes when using Finisher SR5110 or Booklet Finisher SR5120. Press [ ] to move the position toward the top edge (left) relative to the paper feed direction, or [ ] to move it toward the bottom edge (right).
  • Page 70 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value -0.5 [B5 JIS ] [SRA3 ] [SRA4 ] [310×432 mm ] [226×310 mm ] [13×19 [13×19 ] [13×18 ] ×19 ×18 [12×18 ]...
  • Page 71 Finishing: Finisher 1 The value set here is added to the default values, which are 1, 2, and 3. Set a negative value to reduce the number of times the finisher folds booklets. Set -1, -2, or -3 to not fold booklets that have 1 to 6 sheets, 7 to 10 sheets, or 11 to 30 sheets, respectively.
  • Page 72 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] -2.0 [B4 JIS ] [A4 ] [B5 JIS ] [SRA3 ] [SRA4 ] [310×432 mm ] [226×310 mm ] [13×19 [13×19 ] [13×18 ]...
  • Page 73 Finishing: Finisher 1 Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] -1.0 [B4 JIS ] [A4 ] [A4 ] [B5 JIS ] [B5 JIS ] [11×17 ] ×14 ] ×13 [F4a ] ×11 ] ×11 ] [8K ] [16K ] [16K ]...
  • Page 74 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] -1.0 [B4 JIS ] [A4 ] [A4 ] [B5 JIS ] [B5 JIS ] [11×17 ] ×14 ] ×13 [F4a ] ×11 ]...
  • Page 75 Finishing: Finisher 1 Setting Items Default Max. Min. Step Unit Value Value Value [Paper Weight 1] -1.0 [Paper Weight 2] [Paper Weight 3] [Paper Weight 4] [Paper Weight 5] [Paper Weight 6] [Paper Weight 7] [Paper Weight 8] 0615 Paper Alignment for Stapling:Paper Weight:Across Feed:2nd Adjust the width of the staple jogger to reduce the dispersion of paper orientation in right angle for each paper weight when using Finisher SR5110 or Booklet Finisher SR5120.
  • Page 76 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value [Paper Weight 7] -1.0 [Paper Weight 8] 0616 Paper Alignment in Shift Tray: Across Feed Adjust the width of paper alignment jogger on shift tray when using Finisher SR5110 or Booklet Finisher SR5120.
  • Page 77 Finishing: Finisher 1 Setting Items Default Max. Min. Step Unit Value Value Value -1.0 ×8 ×8 [Other Paper Sizes] 0617 Paper Alignment for Stapling: With Feed: 1st Time Adjust tip stopper movement when using edge stapling when using Finisher SR5110 or Booklet Finisher SR5120.
  • Page 78 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value [8K ] -2.5 [16K ] [16K ] [Other Paper Sizes] 0618 Paper Alignment for Stapling: With Feed: 2nd Time Adjust tip stopper movement when using edge stapling when using Finisher SR5110 or Booklet Finisher SR5120.
  • Page 79 Finishing: Finisher 1 Setting Items Default Max. Min. Step Unit Value Value Value [8K ] -2.5 [16K ] [16K ] [Other Paper Sizes] 0619 Paper Alignment for Stapling:Paper Weight:With Feed:1st Adjust tip stopper movement when using edge stapling when using Finisher SR5110 or Booklet Finisher SR5120.
  • Page 80 3. Details of Menu Items in Adjustment Settings for Skilled Operators Use [ ] or [ ] to increase or decrease movement. Setting Items Default Max. Min. Step Unit Value Value Value [Paper Weight 1] -2.5 [Paper Weight 2] [Paper Weight 3] [Paper Weight 4] [Paper Weight 5] [Paper Weight 6]...
  • Page 81 Finishing: Finisher 1 Setting Item Values Default Value [Z-fold Skew Correction] [Off] [On (Reverse)] [On] [On (Reverse)] 0623 Amount of Z-fold Skew Correction Adjust the striking amount of paper during Z-folding skew correction when using Booklet Finisher SR5120. Use this if the Z-fold skew correction causes problems. With the factory default setting of "0.0", the length of the sheets moved is set to 7 mm.
  • Page 82 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value [Correct Z-fold Skew: -3.0 Reverse] 0625 Amount of Punch Skew Correction Adjust the punch skew level when using Finisher SR5110 or Booklet Finisher SR5120. It reduces the punch skew due to paper size, thickness and curl.
  • Page 83 Finishing: Finisher 1 0627 Paper Alignment in Shift Tray Setting: Stapled Signature Set the alignment precision of output sheets during shift sorting when using Finisher SR5110 or Booklet Finisher SR5120. Select [Accuracy Priority] to reduce the skew. Setting Item Values Default Value [Paper Alignment in [Speed Priority]...
  • Page 84 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value sheet(s) ×14 ] ×11 ] ×11 ] [8K ] [16K ] [16K ] [Other Paper Sizes] 0630 Output Tray Descending Position Set the tray descent range proper to paper being used when using Finisher SR5110 or Booklet Finisher SR5120.
  • Page 85 Finishing: Finisher 1 Setting Item Values Default Value [Output Trail Edge Press [Auto] [Auto] Setting] [On] [Off] [Coated Paper: On] [Large (More than 364mm): 0632 Output Fan Setting Set the fan operation to the sheets on the shift tray when using Finisher SR5110 or Booklet Finisher SR5120.
  • Page 86 3. Details of Menu Items in Adjustment Settings for Skilled Operators The paper stacking condition can be improved by reducing the number of stacked sheets for paper tray full detection. Setting Items Values Default Value [Small Size (Paper [Default] [Default] Length: Less than 216.1 [Decrease by a Small mm)]...
  • Page 87 Finishing: Finisher 1 0636 Maximum Stacked Sheets in Output Tray: Envelope Set the proper number of envelopes for each envelope size to stack on the shift tray when using Finisher SR5110 or Booklet Finisher SR5120. Setting Item Values Default Value [Maximum Stacked [Default] [Default]...
  • Page 88 3. Details of Menu Items in Adjustment Settings for Skilled Operators 0640 Convert Number of Sheets for Booklet Set the convert number of sheets for a booklet when using Booklet Finisher SR5120. Setting Items Default Max. Min. Step Unit Value Value Value [Paper Weight 1]...
  • Page 89 Finishing: Finisher 1 Setting Items Default Max.Valu Min. Step Unit Value Value [8K ] -5.0 [16K ] [16K ] [Other Paper Sizes] 0642 Paper Alignment Angle in Shift Tray Adjust the angle of Paper Alignment Jogger on the Shift Tray when the support tray is set.
  • Page 90 3. Details of Menu Items in Adjustment Settings for Skilled Operators Finishing: Finisher 2 0701 Paper Alignment for Stapling: Across Feed Adjust the width of the staple jogger when using the staple function on Finisher SR5130 or Booklet Finisher SR5140. Use this to reduce the vertical variation in paper alignment due to differing size, thickness, or paper curl.
  • Page 91 Finishing: Finisher 2 Setting Items Default Max. Min. Step Unit Value Value Value -1.5 [16K ] [Other Paper Sizes] 0702 Paper Alignment for Booklet: Across Feed Adjust the width of the staple jogger when using Booklet Finisher SR5140. Use this to reduce the vertical variation in paper alignment due to differing size, thickness, or paper curl.
  • Page 92 3. Details of Menu Items in Adjustment Settings for Skilled Operators 0703 Staple Position Adjust the vertical position of the staple when using the Finisher SR5130 or Booklet Finisher SR5140. Press [ ] to move the stapling position away from the side edge of the sheet or [ ] to move it toward the edge.
  • Page 93 Finishing: Finisher 2 Setting Items Default Max. Min. Step Unit Value Value Value -3.0 [B4 JIS ] [A4 ] [B5 JIS ] [11×17 ] ×14 ] ×13 ×11 ] [12×18 ] [8K ] [Other Paper Sizes] 0705 Folding Position for Booklet Adjust the horizontal position of the folding when using Booklet Finisher SR5140.
  • Page 94 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value -3.0 [Other Paper Sizes] 0706 Folding Position for Booklet: By Number of Sheets Adjust the folding position for each number of sheets when using Booklet Finisher SR5140.
  • Page 95 Finishing: Finisher 2 Setting Items Default Max. Min. Step Unit Value Value Value [11×17 : 16 sheets or -3.0 more] ×14 : 1-5 sheet(s)] ×14 : 6-10 sheets] ×14 : 11-15 sheets] ×14 : 16 sheets or more] ×13 : 1-5 sheet(s)] ×13 : 6-10 sheets] ×13...
  • Page 96 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value -3.0 [Other Paper Sizes: 1-5 sheet(s)] [Other Paper Sizes: 6-10 sheets] [Other Paper Sizes: 11-15 sheets] [Other Paper Sizes: 16 sheets or more] 0707 Number of Sheet Align for Stapling Specify the number of sheets to align for stapling at one time.
  • Page 97 Finishing: Finisher 2 Setting Items Default Max. Min. Step Unit Value Value Value sheet(s) [16K ] [16K ] [Other Paper Sizes] 0708 Number of Sheet Align for Booklet Set the number of sheets to align for booklet at one time. Adjust it when sheets are not aligned due to the type, condition, or number of sheets.
  • Page 98 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Item Values Default Value [Shift Tray High-Volume [On] [On] Stacking (Booklet [Off] Finishing Restricted)] 0713 Control Output If Full Shift Tray Detected Specify the priority for tray full detection when using the shift tray with Finisher SR5130 or Booklet Finisher SR5140.
  • Page 99 Finishing: Finisher 2 Setting Items Default Max. Min. Step Unit Value Value Value -7.5 [4 Holes Type NE] [2 Holes Type US] 0715 Punch Position: Across Feed Adjust the vertical position (top and bottom) of the punch holes when using Finisher SR5130 or Booklet Finisher SR5140.
  • Page 100 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] -5.0 [B4 JIS ] [A4 ] [A4 ] [B5 JIS ] [B5 JIS ] [A5 ] [11×17 ] ×14 ] ×13 ×11 ]...
  • Page 101 Finishing: Finisher 2 Setting Items Values Default Value [A4 ] [On] [On] [Off] [A4 ] [B5 JIS ] [B5 JIS ] [A5 ] [11×17 ] ×14 ] ×13 ×11 ] ×11 ] ×8 [12×18 ] [8K ] [16K ] [16K ] [Other Paper Sizes] 0718 Paper Alignment in Shift Tray: Across Feed Adjust the width of the paper alignment jogger...
  • Page 102 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value -1.5 [A4 ] [B5 JIS ] [A5 ] [11×17 ] ×14 ] ×13 ×11 ] ×11 ] ×8 [8K ] [16K ] [Other Paper Sizes] *1 This guide is located in the finisher and aligns the printed sheets.
  • Page 103 Finishing: Finisher 2 Setting Items Default Max. Min. Step Unit Value Value Value degree(s ×14 ] ×13 ×11 ] ×11 ] ×8 [8K ] [16K ] [Other Paper Sizes] *1 This guide is located in the finisher and aligns the printed sheets. 0720 Paper Alignment in Shift Tray Setting Specify whether to use the paper alignment jogger of the shift tray when using the shift...
  • Page 104 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Values Default Value [8K ] [On] [On] [Off] [16K ] [Other Paper Sizes] *1 This guide is located in the finisher and aligns the printed sheets. 0721 Number of Jogs before Stapling: Across Feed Specify the number of times to align the paper before corner stapling with Finisher SR5130 or Booklet Finisher SR5140.
  • Page 105 Finishing: Finisher 2 0722 Number of Jogs before Booklet Stapling: Across Feed Specify how many times to align the paper before booklet stapling with Booklet Finisher SR5140. Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] cycle(s) [B4 JIS ] [A4 ] [B5 JIS ]...
  • Page 106 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Values Default Value [High] [High] ×13 [Middle] ×11 ] [Low] [12×18 ] [8K ] [Other Paper Sizes] 0724 Paper Alignment Gap for Stapling When corner stapling with Finisher SR5130 or Booklet Finisher SR5140, sheets are momentarily stopped in the paper path and then delivered to the stapling unit in stacks of 2 to prevent a decrease in the throughput.
  • Page 107 Finishing: Finisher 2 Setting Items Default Max. Min. Step Unit Value Value Value [Other Paper Sizes] 0725 Paper Alignment Gap for Booklet When booklet stapling with Booklet Finisher SR5140, sheets are momentarily stopped in the paper path and then delivered to the stapling unit in stacks of 3 to prevent a decrease in the throughput.
  • Page 108 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] [B4 JIS ] [A4 ] [A4 ] [B5 JIS ] [B5 JIS ] [11×17 ] ×14 ] ×13 ×11 ] ×11 ]...
  • Page 109 Finishing: Finisher 2 Setting Items Default Max. Min. Step Unit Value Value Value ×14 ] ×13 ×11 ] [12×18 ] [8K ] [Other Paper Sizes] 0728 Use Exit Guide for Stapling: Large When corner stapling with Finisher SR5130 or Booklet Finisher SR5140, there is a paper exit guide that props up the portion of the paper that does not fit inside the machine.
  • Page 110 3. Details of Menu Items in Adjustment Settings for Skilled Operators 0730 Position of Exit Guide for Stapling When corner stapling with Finisher SR5130 or Booklet Finisher SR5140, there is a paper exit guide that props up the portion of the paper that does not fit inside the machine. Adjust the width of this paper exit guide.
  • Page 111 Finishing: Finisher 2 0733 Staple Near-end Notification Specify the conditions for displaying the notification for when the staples are almost out. • Near end threshold: Specify the remaining number of staples that designates the Near End status. • Set number of remaining staples: Specify the number of remaining staples. •...
  • Page 112 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value -3.0 [B4 JIS ] [A4 ] [B5 JIS ] [11×17 ] ×14 ] ×13 ×11 ] [12×18 ] [8K ] [Other Paper Sizes] 0735 Base Fence Position for Corner Stapling: Across Feed Adjust the width of the base fence that holds the paper for corner stapling with Finisher...
  • Page 113 Finishing: Finisher 2 Setting Items Default Max. Min. Step Unit Value Value Value -6.0 ×11 ] [8K ] [16K ] [16K ] [Other Paper Sizes] • Depending on how the range for [Base Fence Position for Corner Stapling: Across Feed] and other adjustable parameters are set, damage to the base fence may result.
  • Page 114 3. Details of Menu Items in Adjustment Settings for Skilled Operators Finishing: Fold 0801 Z-fold Position 1 Adjust the folding position on the front end side when Z-folding is done by the Paper Folding Unit. Setting Items Default Max. Min. Step Unit Value...
  • Page 115 Finishing: Fold Setting Items Default Max. Min. Step Unit Value Value Value -4.0 [B4 JIS ] [A4 ] [12×18 ] [11×17 ] ×14 ] ×11 ] [8K ] [Other Paper Sizes] 0803 Half Fold Position: 1 sheet Fold Adjust the folding position when Folding in Two is done by the Paper Folding Unit. It applies when Single Folding is selected.
  • Page 116 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value [13×18 ] -4.0 ×19 ×18 [12×18 ] [11×17 ] ×14 ] ×11 ] [8K ] [Other Paper Sizes] 0804 Half Fold Position: Multi-sheet Fold Adjust the folding position when Folding in Two is done by the Paper Folding Unit.
  • Page 117 Finishing: Fold Setting Items Default Max. Min. Step Unit Value Value Value [13×19 ] -4.0 [13×18 ] ×19 ×18 [12×18 ] [11×17 ] ×14 ] ×11 ] [8K ] [Other Paper Sizes] 0805 Letter Fold-out Position 1: 1 sheet Fold Adjust the folding position on the front end side when Outside 3 Folding is done by the Paper Folding Unit.
  • Page 118 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value [8K ] -4.0 [Other Paper Sizes] 0806 Letter Fold-out Position 1: Multi-sheet Fold Adjust the folding position on the front end side when Outside 3 Folding is done by the Paper Folding Unit.
  • Page 119 Finishing: Fold Setting Items Default Max. Min. Step Unit Value Value Value [B4 JIS ] -4.0 [A4 ] [B5 JIS ] -3.0 [12×18 ] -4.0 [11×17 ] ×14 ] ×11 ] [8K ] [Other Paper Sizes] 0808 Letter Fold-out Position 2: Multi-sheet Fold Adjust the folding position on the rear end side when Outside 3 Folding is done by the Paper Folding Unit.
  • Page 120 3. Details of Menu Items in Adjustment Settings for Skilled Operators 0809 Letter Fold-in Position 1: 1 sheet Fold Adjust the folding position on the front end side when Inside 3 Folding is done by the Paper Folding Unit. It applies when Single Folding is selected. Setting Items Default Max.
  • Page 121 Finishing: Fold Setting Items Default Max. Min. Step Unit Value Value Value [B5 JIS ] -4.0 [12×18 ] [11×17 ] ×14 ] ×11 ] [8K ] [Other Paper Sizes] 0811 Letter Fold-in Position 2: 1 sheet Fold Adjust the folding position on the rear end side when Inside 3 Folding is done by the Paper Folding Unit.
  • Page 122 3. Details of Menu Items in Adjustment Settings for Skilled Operators 0812 Letter Fold-in Position 2: Multi-sheet Fold Adjust the folding position on the rear end side when Inside 3 Folding is done by the Paper Folding Unit. It applies when Overlap Folding is selected. Setting Items Default Max.
  • Page 123 Finishing: Fold Setting Items Default Max. Min. Step Unit Value Value Value [B4 JIS ] -4.0 [A4 ] [B5 JIS ] [12×18 ] [11×17 ] ×14 ] ×11 ] [8K ] [Other Paper Sizes] 0814 Double Parallel Fold Position 2 Adjust the second folding position when Parallel Folding is done by the Paper Folding Unit.
  • Page 124 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value -4.0 [Other Paper Sizes] 0815 Gate Fold Position 1 Adjust the folding position on the front end side when Gate Folding is done by the Paper Folding Unit.
  • Page 125 Finishing: Fold Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] -4.0 [B4 JIS ] [A4 ] [B5 JIS ] [11×17 ] ×14 ] ×11 ] [8K ] [Other Paper Sizes] 0817 Gate Fold Position 3 Adjust the center folding position when Gate Folding is done by the Paper Folding Unit. Setting Items Default Max.
  • Page 126 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value -4.0 [Other Paper Sizes] 0818 Folding Unit Tray Full Detection Set whether to detect if Folder Tray is full of output sheets. By setting to [On], it continues printing up to [Number of Sheets Folded after Full Detection], then shows a message.
  • Page 127 Finishing: Fold Finishing: Fold 0901 Z-fold Position 1 Adjust the edge of Z-folding when Z-folding is done by the Paper Folding Unit. Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] -4.0 [B4 JIS ] [A4 ] [11×17 ] ×14 ] ×11 ]...
  • Page 128 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] -4.0 [B4 JIS ] [A4 ] [11×17 ] ×14 ] ×11 ] [8K ] ×13 [Other Paper Sizes] 0903 Half Fold Position Adjust the edge of folding when Folding in Two is done by the Paper Folding Unit.
  • Page 129 Finishing: Fold Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] -4.0 [B4 JIS ] [A4 ] [11×17 ] ×14 ] ×11 ] [12×18 ] [8K ] [B5 JIS ] [13×19 ] ×13 ×19 ×18 [13×19 [13×18 ] [SRA3 ] [SRA4 ] [A4 ]...
  • Page 130 3. Details of Menu Items in Adjustment Settings for Skilled Operators • [A3 ]、[11 × 17 ]、[Other Paper Sizes] • [B4 JIS ]、[A4 ]、[8 × 14 ]、[8 × 11 ]、[8 ×13 Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] -4.0...
  • Page 131 Finishing: Fold • [A4 ]、[Other Paper Sizes] • [8 × 11 ] Setting Items Default Max. Min. Step Unit Value Value Value [A4 ] -4.0 ×11 ] [Other Paper Sizes] 0906 Letter Fold-out Position 2: 1 sheet Fold Adjust the outer frame size when Outside 3 Folding is done by the Paper Folding Unit. It is applied when Single Folding is selected.
  • Page 132 3. Details of Menu Items in Adjustment Settings for Skilled Operators • [ B4 JIS ]、[A4 ]、[8 × 14 ]、[8 × 11 ]、[8 ×13 Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] -4.0 [ B4 JIS ] [A4 ] [11×17 ] ×14 ]...
  • Page 133 Finishing: Fold • [Other Paper Sizes] Setting Items Default Max. Min. Step Unit Value Value Value [A4 ] -4.0 ×11 ] [Other Paper Sizes] 0908 Letter Fold-in Position 1: 1 sheet Fold Adjust the edge of folding when Inside 3 Folding is done by the Paper Folding Unit. It applies when Single Folding is selected.
  • Page 134 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value -4.0 ×14 ] ×11 ] ×13 [Other Paper Sizes] 0909 Letter Fold-in Position 1: Multi-sheet Fold Adjust the edge of folding when Inside 3 Folding is done by the Paper Folding Unit. It applies when Overlap Folding is selected.
  • Page 135 Finishing: Fold • [A3 ]、[11 × 17 ]、[Other Paper Sizes] • [A4 ]、[8 × 14 ]、[8 × 11 ]、[8 ×13 Setting Items Default Max. Min. Step Unit Value Value Value [A3 ] -4.0 [A4 ] [11×17 ] ×14 ] ×11 ] ×13 [Other Paper Sizes] 0911 Letter Fold-in Position 2: Multi-sheet Fold...
  • Page 136 3. Details of Menu Items in Adjustment Settings for Skilled Operators • [Other Paper Sizes] Setting Items Default Max. Min. Step Unit Value Value Value [A4 ] -4.0 ×11 ] [Other Paper Sizes] 0912 Folding Unit Tray Full Detection Set whether to detect if Folding Unit Tray is full of output sheets. If [On] is set, the machine detects when Folding Unit Tray is full, then shows a message.
  • Page 137 Finishing: Perfect Binder Finishing: Perfect Binder 1001 Cover Sheet Position for Perfect Binding: With Feed For Perfect Binding, correct the positional deviation in the feeding direction of the front cover and middle paper bundle. When you bind the copies with the perfect binder, make this adjustment if the center of the book block's spine and the center of the cover sheet are misaligned vertically.
  • Page 138 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Item Default Max. Min. Step Unit Value Value Value [Cover Sheet Position for -5.0 Perfect Binding: Across Feed] 1003 Perfect Binding Finishing Angle Adjust the right angle of the three sides when cutting a bundle of paper. Make this adjustment if the three edges of the deck of paper cut by the perfect binder are not square.
  • Page 139 Finishing: Perfect Binder Setting Item Default Max. Min. Step Unit Value Value Value [Applying Binding Glue] 0.00 0.30 -0.30 0.05...
  • Page 140 3. Details of Menu Items in Adjustment Settings for Skilled Operators Finishing: Stacker 1101 Paper Alignment in Stacker Tray: Across Feed 1 Adjust the alignment width in the rear end jogger at the Stacker to reduce dispersion of sheets in the vertical direction for each paper size. Press [ ] to make the width of the jogger wider, or [ ] to make narrower.
  • Page 141 Finishing: Stacker 1102 Paper Alignment in Stacker Tray: Across Feed 2 Adjust the alignment width in the front end jogger at the Stacker to reduce dispersion of sheets in the vertical direction for each paper size. Press [ ] to make the width of the jogger wider, or [ ] to make narrower. Setting Items Default Max.
  • Page 142 3. Details of Menu Items in Adjustment Settings for Skilled Operators Setting Items Default Max. Min. Step Unit Value Value Value -1.0 [B5 JIS ] [B5 JIS ] [A5 ] [A5 ] [11×17 ] ×14 ] ×11 ] ×11 ] ×8 ×8 [Other Paper Sizes]...
  • Page 143 Finishing: Stacker Setting Items Default Max. Min. Step Unit Value Value Value [B5 JIS ] -1.0 [A5 ] [A5 ] [11×17 ] ×14 ] ×11 ] ×11 ] ×8 ×8 [Other Paper Sizes] 1105 Paper Alignment in 2nd Stacker Tray: Across Feed 2 Adjust the alignment width of the front end jogger of the Second Stacker when connected.
  • Page 144 3. Details of Menu Items in Adjustment Settings for Skilled Operators 1106 Paper Alignment in 2nd Stacker Tray: With Feed Adjust the alignment position of the Tip Stopper of the Second Stacker when connected. It reduces dispersion of sheets in the feeding direction for each paper size. Press [ ] to decrease the travel distance, or [ ] to increase.
  • Page 145 Finishing: Stacker The maximum number of sheets you can set differs depending on the size, thickness, and paper curl. Set the maximum number by specifying a ratio based on the number of sheets. Select [Large Size] when using paper whose vertical and horizontal lengths are 210 mm or longer whose area is 8 11 or wider.
  • Page 146 3. Details of Menu Items in Adjustment Settings for Skilled Operators Finishing: Interposer 1201 Interposer: Double Feed Detection Set whether to detect double feed. If this is set to [On], the machine detects double feeding and so keeps unintended blank sheets out of the delivered paper.
  • Page 147 Finishing: Interposer Setting Items Default Max. Min. Step Unit Value Value Value [Interposer Upper Tray] [Interposer Lower Tray]...
  • Page 148 3. Details of Menu Items in Adjustment Settings for Skilled Operators...
  • Page 149 4. Custom Paper Settings for Administrators Accessing Advanced Settings Only the machine administrator can adjust the custom paper profiles registered in [Advanced Settings]. To directly access the advanced settings for custom paper adjustment, you must first configure your machine's Administrator Authentication Management settings. See page 17 "Displaying the Adjustment Settings for Skilled Operators Button".
  • Page 150 4. Custom Paper Settings for Administrators Description of Paper Icons You can check the custom paper status by checking the paper icon in the [Edit Custom Paper] screen. If you change the custom paper profile in the advanced settings, the paper icon changes as follows: 1.
  • Page 151 Deleting Saved Custom Paper Profiles Deleting Saved Custom Paper Profiles To directly access the advanced settings for custom paper adjustment, you must first configure your machine's Administrator Authentication Management setting. See page 17 "Displaying the Adjustment Settings for Skilled Operators Button". 1.
  • Page 152 4. Custom Paper Settings for Administrators Backing up and Restoring Custom Paper Profiles Backing up Custom Paper Profiles Registered Under the Edit Custom Paper Setting The machine administrator can save all types of registered custom paper to the paper library in an SD card at one time. Backing up the Data 1.
  • Page 153 Backing up and Restoring Custom Paper Profiles 5. Enter your login password, and then press [OK]. 6. Press [05 Main Unit: Maintenance]. 7. Press [0524 Back Up / Restore Custom Paper Data]. 8. Insert the SD card containing the backup custom paper profiles into the media slot on the side of the control panel.
  • Page 154 4. Custom Paper Settings for Administrators Paper Presets in "Advanced Settings" In "Advanced Settings", there are paper presets for various types of commercially- available paper. Even if you select a paper preset corresponding to a commercially- available paper from the Paper Library and register it in the [Edit Custom Paper] screen, the preset, depending on the custom paper profile version, may not be an exact match for the actual paper.
  • Page 155 5. Details of Menu Items in Advanced Settings Machine: Image Position 001 Image Position: Across Feed: Side 1 Adjust the vertical position of the image to be printed on Side 1 of the paper. Setting Item Max. Min. Step Unit Value Value Image Position: Across Feed: Side 1...
  • Page 156 5. Details of Menu Items in Advanced Settings Setting Item Max. Min. Step Unit Value Value Image Position: Across Feed: Side 2 -3.0 004 Image Position: With Feed: Side 2 Adjust the horizontal position of the image to be printed on Side 2 of the paper. Setting Item Max.
  • Page 157 Machine: Image Position 006 Magnification: With Feed: Side 1 Adjust the horizontal image scaling on Side 1 of the paper according to the paper expansion or shrinkage. Setting Item Max. Min. Step Unit Value Value Magnification: With Feed: Side 1 0.500 -0.500 0.025...
  • Page 158 5. Details of Menu Items in Advanced Settings Setting Item Max. Min. Step Unit Value Value Magnification: With Feed: Side 2 0.500 -0.500 0.025 009 Trapezoidal Distortion: Side 1: Front Adjust the perpendicularity (image magnification in the perpendicular direction at the front) of Side 1.
  • Page 159 Machine: Image Position 011 Trapezoidal Distortion: Side 2: Front Adjust the perpendicularity (image magnification in the perpendicular direction at the front) of Side 2. Setting Item Max. Min. Step Unit Value Value Trapezoidal Distortion: Side 2: Front 0.400 -0.400 0.001 012 Trapezoidal Distortion: Side 2: Back Adjust the perpendicularity (image magnification in the perpendicular direction at the back) of Side 2.
  • Page 160 5. Details of Menu Items in Advanced Settings Setting Item Values Deactivate Image Position [Deactivate] Adjustment Across Feed [Deactivate Only Jam Detection] [Activate]...
  • Page 161 Machine: Image Quality Machine: Image Quality 014 Maximum Image Density: K Adjust the maximum image density. Use this to adjust the density of the printed image. Depending on the paper being used, it may be necessary to make this adjustment to achieve optimal toner adhesion. Setting Item Max.
  • Page 162 5. Details of Menu Items in Advanced Settings Setting Item Max. Min. Step Unit Value Value Paper Transfer Output: Side 2 -400 018 Paper Transfer Output: Leading Edge Adjust the correction amount and range of paper transfer output for leading edge. Use this to reduce image quality degradation at the leading edge of the paper.
  • Page 163 Machine: Image Quality Setting Item Max. Min. Step Unit Value Value Paper Transfer Output: Trailing Edge Length 022 Avoid Ppr Trns Shock Jitter: Interval Set whether to extend the paper feed interval. If [On] is selected, the machine adjusts the interval between sheets to reduce jitter. However, the throughput may be reduced when you use paper larger than A4 or 8 14 .
  • Page 164 5. Details of Menu Items in Advanced Settings 024 Additional Fusing Temp 1 Adjust the fusing unit's accumulated temperature for a specific time after a job starts. Depending on the operating environment, the fusing temperature may drop before paper is transferred to the fusing unit. Use this function to prevent the fusing temperature dropping.
  • Page 165 Machine: Image Quality Setting Item Values Initial CPM Setting: Low Temp [Do not Reduce] (Full speed) [Reduce Level 1] (80% of full speed) [Reduce Level 2] (65% of full speed) [Reduce Level 3] (50% of full speed) • The setting will take effect if the ambient temperature is 17°C (62.6°F) or lower. Since the temperature of the fusing unit may decrease in a cold environment, specify this setting in addition to [Initial CPM Setting].
  • Page 166 5. Details of Menu Items in Advanced Settings • Decreasing the temperature too much may cause the toner to not properly fuse to the paper. (cold offset). 029 Fusing Pressure Roller On Before Fusing Specify whether or not to have the fusing pressure roller come into contact with the fusing belt before the printing operation (paper feeding) starts.
  • Page 167 Machine: Image Quality 031 Cleaning Web Rotation Interval Specify the interval between each activation of the cleaning web. You can remove stains from the fusing pressure roller by reducing the interval between each activation of the cleaning web. However, doing this causes the cleaning web to wear out faster, resulting in more frequent replacement.
  • Page 168 5. Details of Menu Items in Advanced Settings Setting Item Max. Min. Step Unit Value Value Erase Margin: Trailing Edge 034 Fusing Nip Width Adjustment Adjust the nip width between the fusing belt and the pressure roller. You can reduce creases produced during printing. The default setting is [Standard].
  • Page 169 Machine: Paper Feed/ Output Machine: Paper Feed/ Output 035 3-Tray LCT: Fan Setting Specify the movement of the three-tray wide LCT fan. If [On] is selected, air is discharged from the duct in the paper tray. By blowing air between the sheets, sheets stuck to each other can be separated. Setting Item Values 3-Tray LCT: Fan Setting...
  • Page 170 5. Details of Menu Items in Advanced Settings 038 2-T LCT: Updraft Fan Level: Acr:S/Fd:m Adjust the airflow of the updraft fan of the two-tray wide LCT. Press [ ] to increase the airflow or [ ] to decrease. This adjustment setting appears when the paper size is set within the range of 100.0 mm to 150.0 mm for the main scanning length (width) and 148.1 mm to 487.7 mm for the sub-scanning length (paper length).
  • Page 171 Machine: Paper Feed/ Output 041 2-T LCT: Updraft Fan Level: Acr:L/Fd:m Adjust the airflow of the updraft fan of the two-tray wide LCT. Press [ ] to increase the airflow or [ ] to decrease. This adjustment setting appears when the paper size is set within the range of 150.1 mm to 330.2 mm for the main scanning length (width) and 148.1 mm to 487.7 mm for the sub-scanning length (paper length).
  • Page 172 5. Details of Menu Items in Advanced Settings 044 2-T LCT: Blower Fan Level: Acr:S/Fd:m Adjust the airflow of the blower fan of the two-tray wide LCT. Press [ ] to increase the airflow or [ ] to decrease. This adjustment setting appears when the paper size is set within the range of 100.0 mm to 150.0 mm for the main scanning length (width) and 148.1 mm to 487.7 mm for the sub-scanning length (paper length).
  • Page 173 Machine: Paper Feed/ Output 047 2-T LCT: Blower Fan Level: Acr:L/Fd:m Adjust the airflow of the blower fan of the two-tray wide LCT. Press [ ] to increase the airflow or [ ] to decrease. This adjustment setting appears when the paper size is set within the range of 150.1 mm to 330.2 mm for the main scanning length (width) and 148.1 mm to 487.7 mm for the sub-scanning length (paper length).
  • Page 174 5. Details of Menu Items in Advanced Settings 050 2-T LCT: Side Fan Level: Acr:S/Fd:m Adjust the airflow of the side fan of the two-tray wide LCT. Press [ ] to increase the airflow or [ ] to decrease. This adjustment setting appears when the paper size is set within the range of 100.0 mm to 150.0 mm for the main scanning length (width) and 148.1 mm to 487.7 mm for the sub-scanning length (paper length).
  • Page 175 Machine: Paper Feed/ Output 053 2-T LCT: Side Fan Level: Acr:L/Fd:m Adjust the airflow of the side fan of the two-tray wide LCT. Press [ ] to increase the airflow or [ ] to decrease. This adjustment setting appears when the paper size is set within the range of 150.1 mm to 330.2 mm for the main scanning length (width) and 148.1 mm to 487.7 mm for the sub-scanning length (paper length).
  • Page 176 5. Details of Menu Items in Advanced Settings 056 2-T LCT: Vacuum Fan Level: Acr:S/Fd:m Adjust the airflow of the vacuum fan of the two-tray wide LCT. Press [ ] to increase the airflow or [ ] to decrease. This adjustment setting appears when the paper size is set within the range of 100.0 mm to 150.0 mm for the main scanning length (width) and 148.1 mm to 487.7 mm for the sub-scanning length (paper length).
  • Page 177 Machine: Paper Feed/ Output 059 2-T LCT: Vacuum Fan Level: Acr:L/Fd:m Adjust the airflow of the vacuum fan of the two-tray wide LCT. Press [ ] to increase the airflow or [ ] to decrease. This adjustment setting appears when the paper size is set within the range of 150.1 mm to 330.2 mm for the main scanning length (width) and 148.1 mm to 487.7 mm for the sub-scanning length (paper length).
  • Page 178 5. Details of Menu Items in Advanced Settings 062 2-T LCT: Return Fan Level: Acr:S/Fd:m Adjust the airflow of the return fan of the two-tray wide LCT. Press [ ] to increase the airflow or [ ] to decrease. This adjustment setting appears when the paper size is set within the range of 100.0 mm to 150.0 mm for the main scanning length (width) and 148.1 mm to 487.7 mm for the sub-scanning length (paper length).
  • Page 179 Machine: Paper Feed/ Output 065 2-T LCT: Return Fan Level: Acr:L/Fd:m Adjust the airflow of the return fan of the two-tray wide LCT. Press [ ] to increase the airflow or [ ] to decrease. This adjustment setting appears when the paper size is set within the range of 150.1 mm to 330.2 mm for the main scanning length (width) and 148.1 mm to 487.7 mm for the sub-scanning length (paper length).
  • Page 180 5. Details of Menu Items in Advanced Settings If this value is set to [On], the shutter is opened and closed each time paper is fed. If this value is set to [Off], the shutter remains close at all time. Setting Item Values 2-Tray LCT: Return Fan Shutter...
  • Page 181 Machine: Paper Feed/ Output 072 2-Tray LCT: Extend Fan Operating Time Specify the length of time for the fan to blow air on the paper. Increasing the length of time for the fan to operate enhances the degree of paper separation, but it also increases the intervals between paper feeding and may reduce the throughput.
  • Page 182 5. Details of Menu Items in Advanced Settings If paper misfeeds persist even after setting the assist mode to On, enter the measured paper thickness. If the entered paper thickness is not appropriate, paper misfeeds or double-feeding paper jams may occur. Setting Item Max.
  • Page 183 Machine: Paper Feed/ Output Setting Item Values Interposer: Fan Setting [On] [Off] 079 Interposer: Fan Level Adjust the fan level of Interposer. Press [ ] to increase the airflow or [ ] to decrease. Setting Item Max. Min. Step Unit Value Value Interposer: Fan Level...
  • Page 184 5. Details of Menu Items in Advanced Settings Setting Item Values Shift Tray Jogger: Z-fold Paper [On] [Off] 082 Shift Tray Jogger: Half Fold Paper Specify how the paper delivery jogger on the finisher shift tray operates for half-folded sheets. Specify [On] to activate the jogger to align the output paper in the vertical direction.
  • Page 185 Machine: Paper Feed/ Output Setting Item Values Shift Tray Jogger: Letter Fold Paper [On] [Off] 084 Correct Paper Curl: Correction Mode Select the mode and amount of curl correction for output paper. Setting Item Values Correct Paper Curl: Correction Mode [0.Correct U Curl: Sml] [1.Correct U Curl: Med] [2.Correct U Curl: Lrg]...
  • Page 186 5. Details of Menu Items in Advanced Settings 086 Illumination Mode for Color Paper Detection Adjust the luminance of the contact image sensor (CIS). The machine's contact image sensor (CIS) may fail to correctly detect paper edges when dark colored paper or paper printed to its edges is used. In such a case, adjust the luminance so that the sensor can correctly detect paper edges.
  • Page 187 Machine: Paper Feed/ Output 089 Registration Gate Position Setting Adjust optimum value to increase the accuracy of Skew Correction depending on paper weight. If the image is highly skewed, adjust the value to [ ] direction for thin paper, [ ] direction for thick paper.
  • Page 188 5. Details of Menu Items in Advanced Settings Setting Item Max. Min. Step Unit Value Value Transfer Timing Roller Feed Speed -1.0 092 Paper Transfer Roller Feed Speed Adjusts the paper transfer roller speed. Setting Item Max. Min. Step Unit Value Value Paper Transfer Roller Feed Speed...
  • Page 189 Machine: Paper Feed/ Output 096 Switchback Entrance Roller Feed Speed Adjusts the switchback entrance roller speed. Setting Item Max. Min. Step Unit Value Value Switchback Entrance Roller Feed Speed -3.0 097 Switchback Exit Roller Feed Speed Adjusts the switchback exit roller speed. Setting Item Max.
  • Page 190 5. Details of Menu Items in Advanced Settings 100 Decurler Feed Speed: Adj Strong Adjust the paper feed speed of the decurler unit when [0310 Correct Output Paper Curl] in the [Adjustment Settings for Skilled Operators] menu is set to "Strong". Press [ ] to increase the speed and [ ] to reduce it.
  • Page 191 Values below are those when printing is performed using in A4/LT size paper. • [High] (full speed) 96 cpm (Pro 8400S) Setting Item Values Process Speed Setting [High] • With this option, the processing speed of Pro 8400S cannot be changed and is fixed at 96 cpm.
  • Page 192 5. Details of Menu Items in Advanced Settings 104 Paper Feed Interval Setting Adjust the interval between the feeding of each sheet. The standard interval is "100". If you set this to "50", the throughput will be reduced in half. Press [ ] to increase the interval and [ ] to reduce it.
