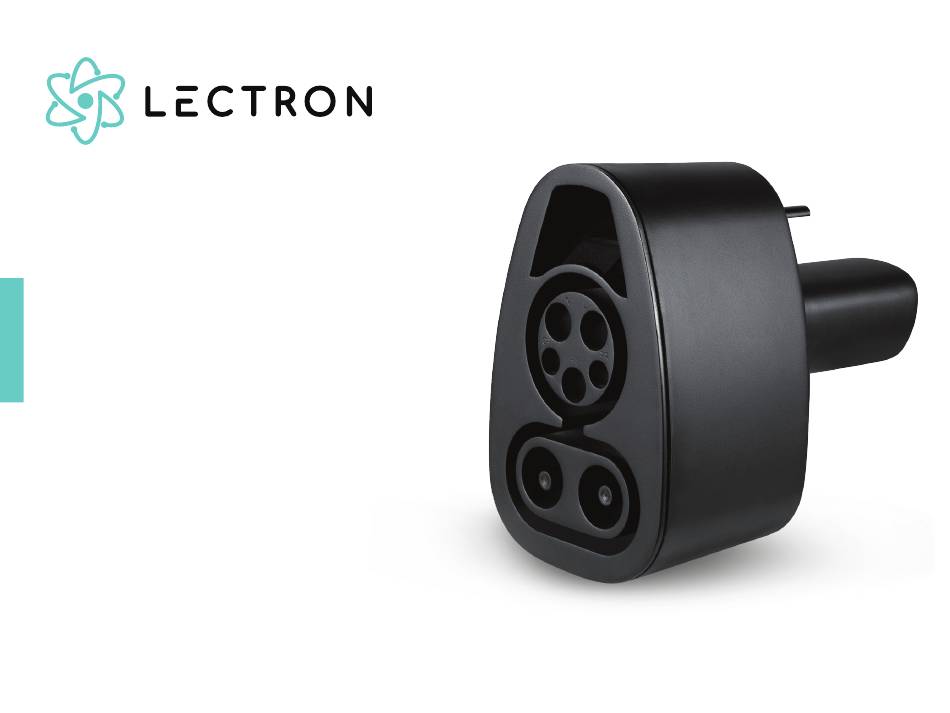

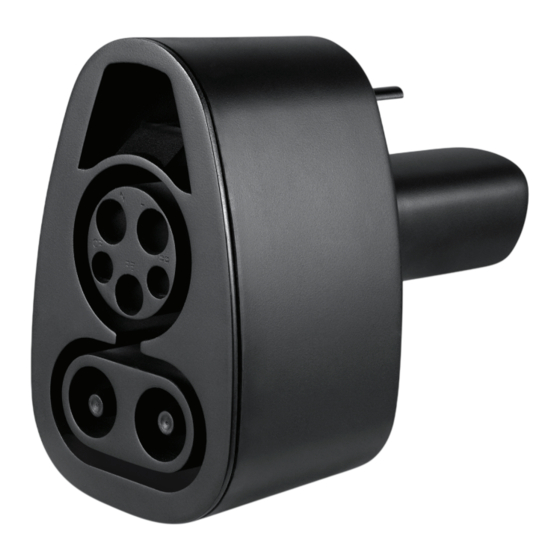

- Page 1 C C S 1 T O T E S L A A D A P T E R U S E R M A N U A L...
- Page 2 C O N T E N T S Product introduction ............................Warnings ................................What’s Included ..............................Introduction to Parts ............................Before You Use ..............................Charging Time ..............................Connecting the Adapter ..........................Removing the Adapter ..........................Troubleshooting ..............................Specifications ..............................
- Page 3 This adapter is intended only to be used with Tesla vehicles. Do not use it for any other purpose. • Do not use the CCS1 to Tesla Adapter if it is defective, appears cracked, broken, damaged or fails to operate.
- Page 4 W H A T ' S I N C L U D E D 1 x CCS1 to Tesla adapter C O M P A T I B I L I T Y Tesla | NACS CCS1 Connector Port...
- Page 5 I N T R O D U C T I O N T O P A R T S 1. CCS1 port 2. Insert stopper 3. Tesla plug...
- Page 6 -22˚F to 122˚F Storage temperature: -40˚F to 185˚F WARNING: Do not store the CCS1 to Tesla Adapter outside of the storage temperature range. C H A R G I N G T I M E Charging time may vary according to charging station power, ambient temperature, and battery temperature.
- Page 7 C O N N E C T I N G T H E A D A P T E R 1. Open the Tesla charge port. 2. Insert the CCS1 charging cable into the CCS1 port on the adapter. It will click firmly in place.
- Page 8 Charging Time Remaining 35 min 104 mi 125 kW 522 mi/hr +5 mi NOTE: Make sure that the adapter and CCS1 charging cable are firmly connected, and that the adapter is plugged into the Tesla charge port.
- Page 9 R E M O V I N G T H E A D A P T E R NOTE: Only remove the adapter from the charge port once charging is completed. 1. Hold both the charger handle and the adapter and securely pull them out of the Tesla charge port. NOTE: Do not press the unlock button on the handle while pulling it out of the charge port.
- Page 10 Check the charging status on both the CCS1 charger and your Tesla touchscreen. • If your car has been in an accident, Tesla may restrict or disable the use of a CCS1 adapter. • If your Tesla is still not charging, email our customer service at contact@ev-lectron.com...
- Page 11 S P E C I F I C A T I O N S Rated value: 500A 500V DC Insulation resistance: >5MΩ (DC 500V) Withstand voltage: 2000V AC/5s Shell: Thermoplastic EV connector: Tesla Dimensions: 4.8 x 3 x 5.3 in IP rating: IP44 Operating temp:...
- Page 12 G E T M O R E S U P P O R T Need assistance? For maintenance, servicing, or replacements, please contact our support team by scanning the QR code or emailing us at contact@ev-lectron.com www.ev-lectron.com Made in China...
