- Page 1 CCS1 to Tesla Adapter USER MANUAL...
-
Page 2: Product Introduction
2. This adapter is intended only to be used with Tesla vehicles. Do not use it for any other purpose. 3. Do not use the CCS1 to Tesla Adapter if it is defective, appears cracked, broken, damaged or fails to operate. -
Page 3: Before You Use
5. Do not disconnect the CCS1 to Tesla Adapter while the vehicle is charging. 6. Protect the CCS1 to Tesla Adapter from any water or moisture. 7. Handle with care whenever moving or transporting it. Store in a safe location. -
Page 4: Charging Time

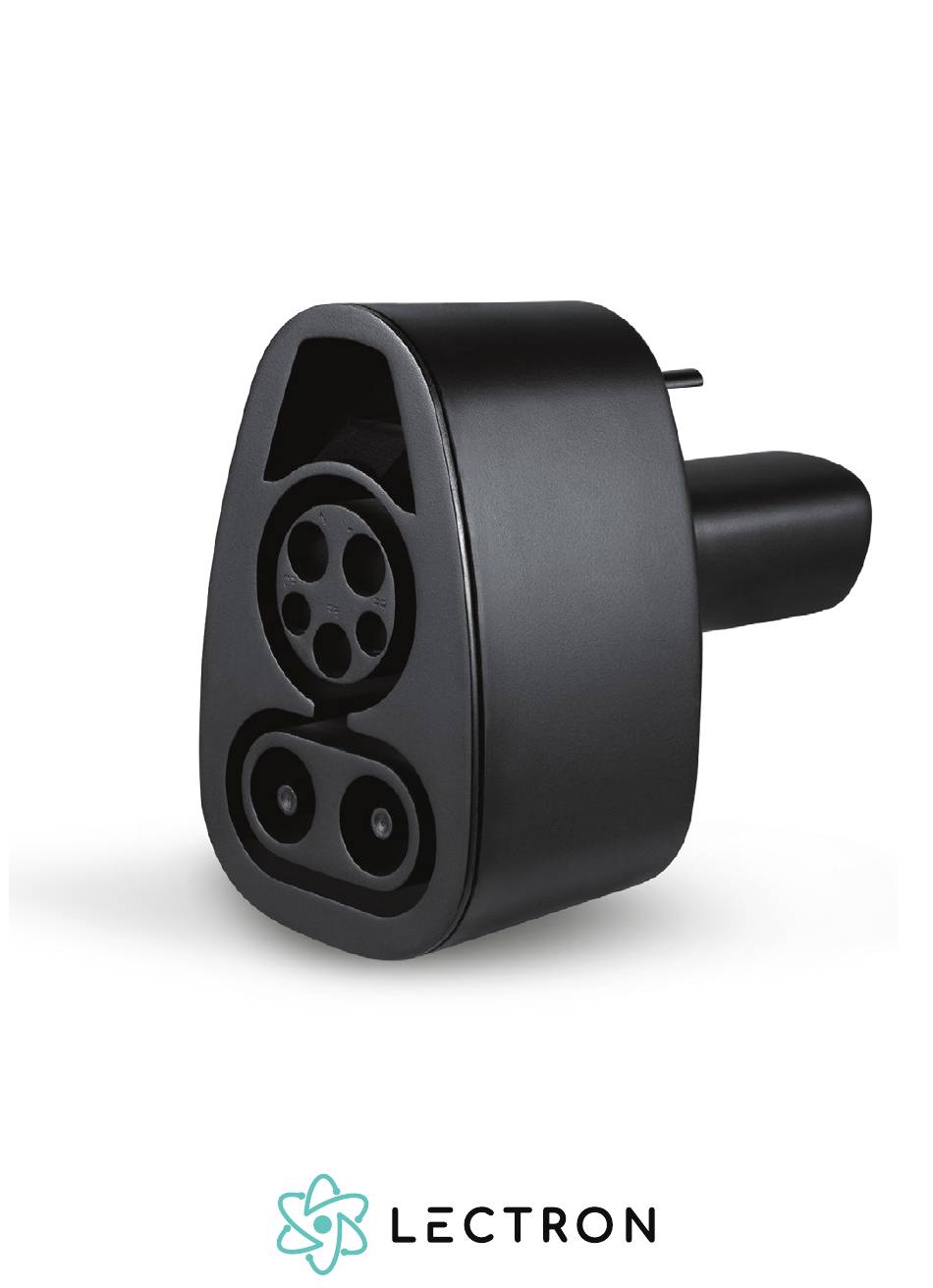

Introduction to Parts CCS1 port Insert stopper Tesla plug Charging Time Charging time may vary according to charging station power, ambient temperature, and battery temperature. If the temperature of the adapter reaches 180 °F, the vehicle will reduce the charging power. If the temperature reaches 185 °F, the charging will shut off. -
Page 5: Connecting The Adapter
Connecting the Adapter 1. Open the Tesla charge port. 2. Insert the CCS1 charging cable into the CCS1 port on the adapter. It will click firmly in place. Page 4... - Page 6 3. Insert the adapter into the Tesla charge port and wait for the vehicle to signal that it has accepted the charger with a pulsating green "T" light next to the charge port (the touchscreen also shows the real-time charging status). Insert stopper Note: The insert stopper on the adapter will keep it from being inserted too far and damaging the vehicle's charge port.
-
Page 7: Removing The Adapter
Removing the Adapter Note: Only remove the adapter from the charge port once charging is completed. 1. Hold both the charger handle and the adapter and securely pull them out of the Tesla charge port. Note: Do not press the unlock button on the handle while pulling it out of the charge port. -
Page 8: Troubleshooting
If your car has been in an accident, Tesla may restrict or disable the use of a CCS1 adapter. • If your Tesla is still not charging, email our customer service at contact@ev-lectron.com. Specifications Rated value: 300A 500V DC Insulation resistance: >5M (DC 500V) - Page 9 Get More Support Scan the QR code below or email us at contact@ev-lectron.com. www.ev-lectron.com Made in China...
