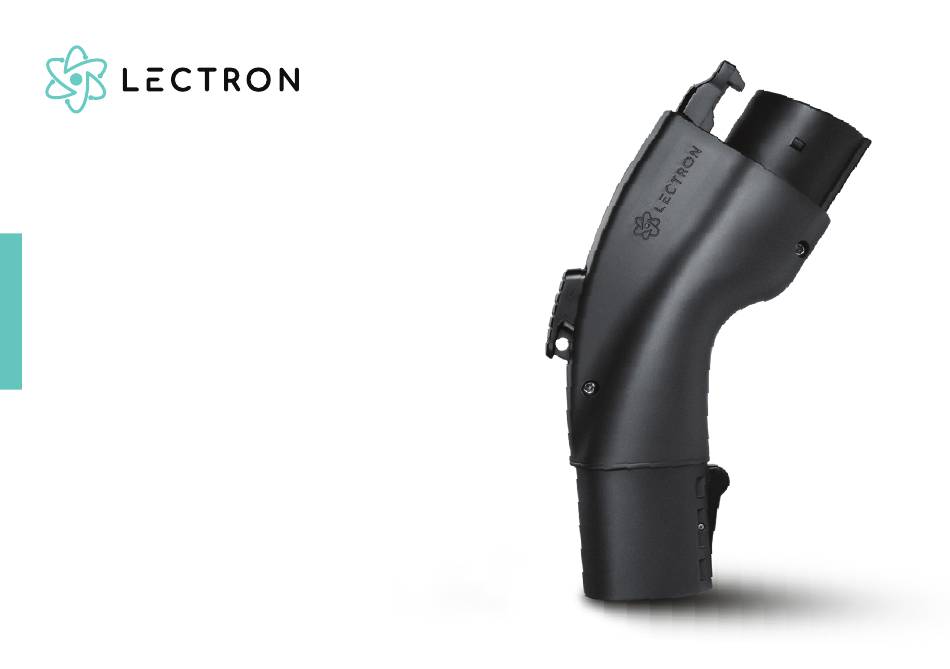

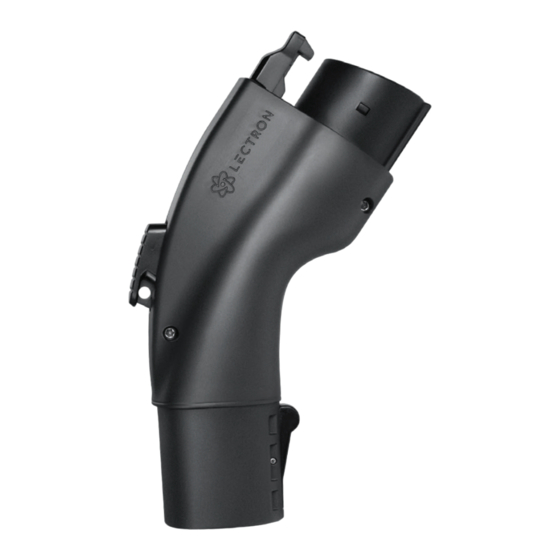

- Page 1 T E S L A T O J 1 7 7 2 Adapter U S E R M A N U A L...
-
Page 2: Table Of Contents
C O N T E N T S Welcome to Lectron ..................What’s Included ....................Introduction to Parts ..................How to Use ......................FAQ ..........................Specifications ....................... Get More Support ..................... -
Page 3: Welcome To Lectron
W E L C O M E T O L E C T R O N Thank you for choosing the Lectron 48A Tesla to J1772 Charger. This user manual is designed and deliver a consistent to help you charge your electric... -
Page 4: What's Included
W H A T ’ S I N C L U D E D C O M P A T I B I L I T Y Tesla to J1772 Adapter Tesla High Power Wall Connector Tesla Destination Charger Gen 1, 2, 3 Tesla Mobile Connector 1 x Tesla to J1772 Adapter... -
Page 5: Introduction To Parts
I N T R O D U C T I O N T O P A R T S J1772 1. Tesla Adapter plug 2. Lectron J1772 plug Tesla... -
Page 6: How To Use
H O W T O U S E 1. Connect the Tesla Charger 2. Firmly plug in the Lectron to the Lectron Adapter. Adapter into your J1772 Wait at least 30s before electric vehicle. connecting it to your J1772 electric vehicle. -
Page 7: Faq
Is the Lectron Adapter portable Tesla charger, different waterproof? Tesla charging stations models, The Lectron Adapter is IP54- different J1772 EV car models rated making it weatherproof. used with different battery However, it is recommended sizes, etc... to not let the Lectron Adapter get wet. -
Page 8: Specifications
S P E C I F I C A T I O N S Voltage Max 250V AC Current Max 48A Operating temp -22˚F to +122˚F Charging port SAE J1772 Standard Connector port Tesla US Weight 1.12 lbs... -
Page 9: Get More Support
G E T M O R E S U P P O R T Need assistance? Scan the QR code below or email us at contact@ev-lectron.com Contact us... - Page 10 Made in China...
