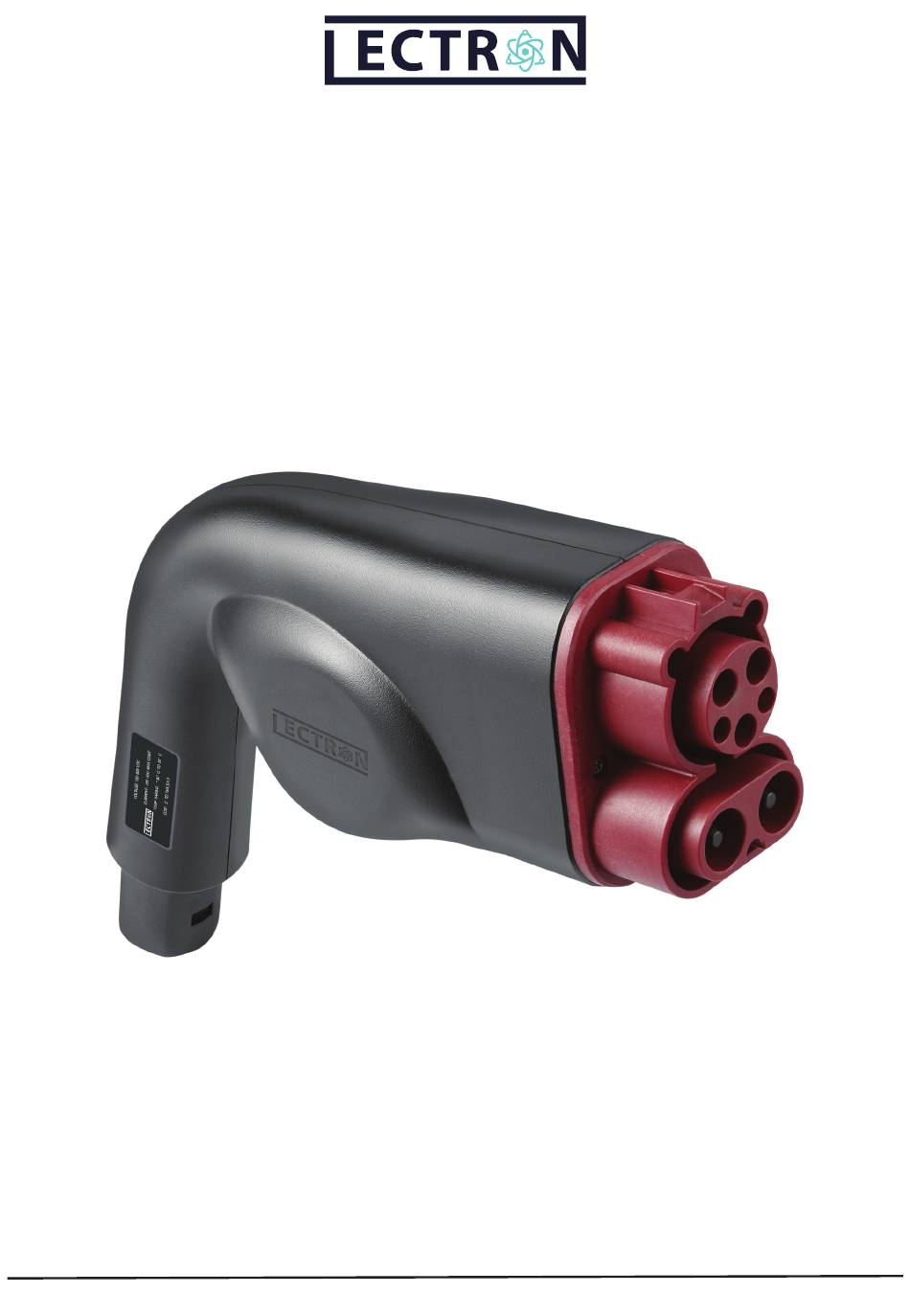

- Page 1 Combined Charging System (CCS - Type 1) to Tesla Charging Adapter User Manual Need help? Send us an email at: contact@ev-lectron.com...
-
Page 2: Package Includes
After charging, press the button to unlock the car 2. Do not use the CCS1 to Tesla Adapter if it is defective, appears cracked, frayed, and pull out the adapter. -
Page 3: Charging Your Vehicle
3. Open the charging port of your Tesla and plug the CCS1 Adapter into it. Charging Your Vehicle Plugging In 1. Press the Power button to turn on the adapter until the LED turns green. 2. Firmly attach the CCS1 Adapter to the end of the charging station’s cable, ensuring that the adapter is fully connected. -
Page 4: Firmware Update
finish charging, press the Power button on the CCS1 Adapter to unlock it. It • It may be that the CCS1 to Tesla Adapter has not been used for a long time, is NOT recommended to interrupt the charging process by pressing the Power causing it to fail to turn on. -
Page 5: Specification
Specification Voltage : 100 - 800 V DC Current : 200 A DC Max Temperature Rating : -22 °F to 122 °F For more information, visit: www.ev-lectron.com or contact us at contact@ev-lectron.com Made in China...
