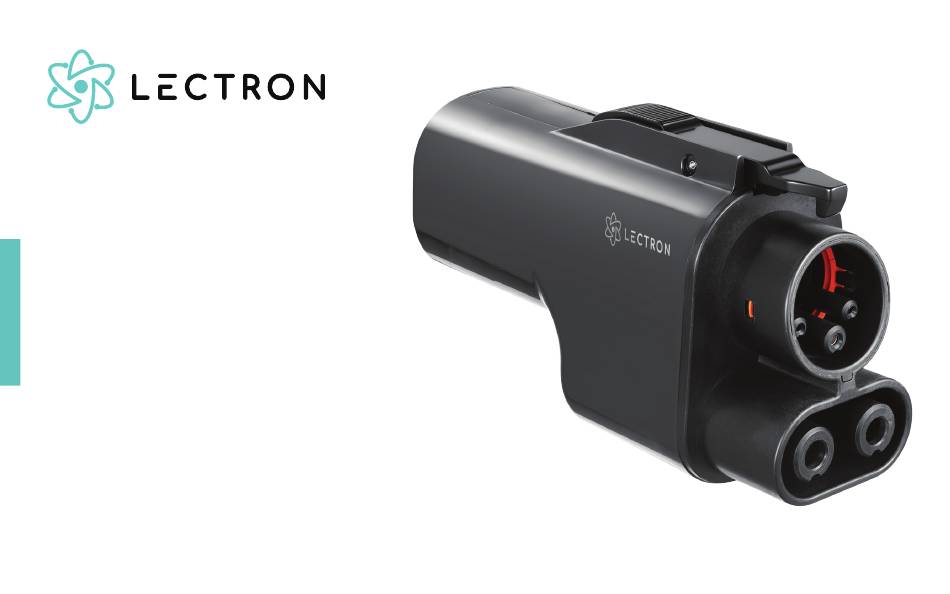

- Page 1 V O R T E X P L U G S U P E R C H A R G E R T O C C S 1 A D A P T E R U S E R M A N U A L...
-
Page 2: Table Of Contents
C O N T E N T S Introduction .......................................... Safety Instructions ......................................What’s Included ......................................Parts Overview ......................................... Before Use ........................................... Charging Time ......................................... Connecting the Vortex Plug .................................. Disconnecting the Vortex Plug ................................Troubleshooting ......................................Specifications ........................................ -
Page 3: Introduction

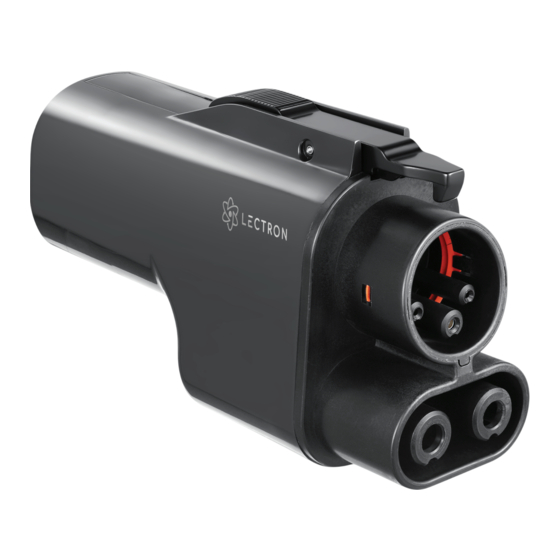

I N T R O D U C T I O N T O T H E V O R T E X P L U G The Lectron Vortex Plug is a NACS to CCS1 adapter that enables CCS1 vehicles within the North American Charging Standard (NACS) Alliance to access Tesla Supercharger stations. -
Page 4: What's Included
Do not clean with detergent. • Do not open or modify the adapter. Contact Lectron Customer Support at contact@ev-lectron.com for usage guidelines, maintenance, or repairs. • W H A T ’ S I N C L U D E D... -
Page 5: Parts Overview
P A R T S O V E R V I E W CCS1 Coupler NACS Supercharger Inlet CCS1 Unlock Latch NACS Unlock Button... -
Page 6: Before Use
Charging time varies depending on the Supercharger station, electric vehicle specifications, environmental conditions, and battery temperature. The Vortex Plug includes built-in temperature monitoring. Charging power may decrease if the terminal exceeds 95°F. Operation shuts off if the charging coupler reaches 140°F. If you encounter operation shut off, please email... -
Page 7: Connecting The Vortex Plug
C O N N E C T I N G T H E V O R T E X P L U G 1. Open your EV charging port and press the CCS1 2. Press the NACS unlock button and connect the unlock latch on the adapter, before plugging the Supercharger coupler to the NACS Supercharger adapter and coupler into your vehicle. - Page 8 3. Allow a brief pause for the vehicle and charger to 4. Begin charging following the station begin communicating. Check the internal EV guidelines. display for a successful connection. Charging Time Remaining 35 min 104 mi 125 kW 522 mi/hr +5 mi...
-
Page 9: Disconnecting The Vortex Plug
D I S C O N N E C T I N G T H E V O R T E X P L U G 1. Only remove the Vortex Plug once charging 3. Press the CCS1 unlock latch on the adapter to is complete. -
Page 10: Troubleshooting
If the vehicle fails to initiate charging, please consider the following steps: 1. Ensure the Supercharger supports CCS1 vehicles. 2. Check for firm connections at both the NACS and CCS1 ends of the Vortex Plug. 3. Safely unplug following the user manual procedure, then begin the connection process again. -
Page 11: Specifications
NACS Supercharger Weight: 2 lbs Materials: PC/PA66/Copper Disclaimer: The Lectron Vortex Plug (NACS to CCS1 Adapter) is exclusively intended for safe use with CCS1 compatible vehicles authorized by Tesla for Supercharger Access. For detailed compatibility information, please contact your vehicle supplier. - Page 12 G E T M O R E S U P P O R T Need assistance? For maintenance, servicing, or replacements, please contact our support team by scanning the QR code or emailing us at contact@ev-lectron.com www.ev-lectron.com Made in China...
