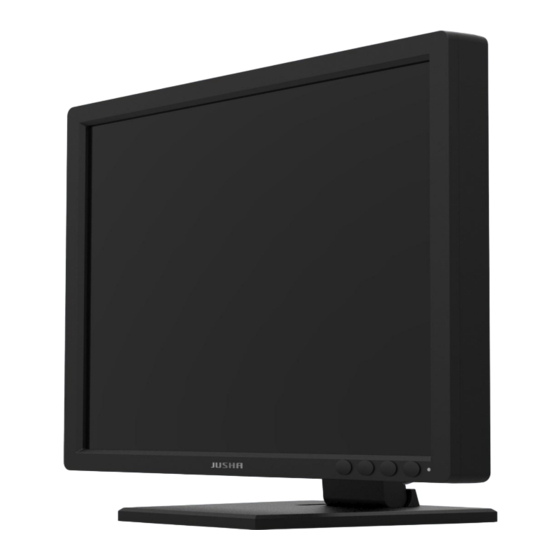

- Page 1 JUSHA 1MP Medical Monitor R193G User Manual...
- Page 2 Hanzhongmen Street, Nanjing City, Jiangsu Province, 210036 China Tel: 0086-25-83305050 Fax: 0086-25-58783273 Free Hotline: 400-820-0556 800-820-0556 Visit us at the website: www.jusha.com.cn © Nanjing Jusha Display Technology Co., Ltd. /All rights reserved /2018. 3060300281 A/0 Published by Nanjing Jusha Display Technology Co.,Ltd.
- Page 3 Contents Contents 1. Manual instructions........................2 1.1 About this manual.........................2 1.2 Explanation of symbols......................2 1.3 Safety information.........................3 About the powering and grounding................... 4 About the Maintenance and repairs...................5 Recommendations for use....................5 2. Overview.............................7 2.1 Features..........................7 2.2 Packing list..........................7 2.3 Front view and keypad......................8 2.4 Rear view and connection panel...................9 3.
- Page 4 Our product is subject to change without further notice. For any further questions about this manual, you are welcome to contact Nanjing Jusha Display Technology Co., Ltd. (hereinafter referred to as JUSHA). 1.2 Explanation of symbols This manual and product use the symbols below.
- Page 5 Waste Electrical and Electronic Equipment Directive (WEEE) 2002/96/EC Waste disposal should comply with local regulations. Recommend to refer the User Manual Manufacturer information JUSHA trademark Product serial number *The display meets the appropriate certification standards only by using the medical-level power supply. 1.3 Safety information...
- Page 6 Overview outlet. Place the device on a flat, solid and stable surface that can support the weight of at least 3 devices. If you use an unstable cart or stand, the device may fall, causing damage to the device or even injury to people. ...
- Page 7 If the product starts smoking with a burnt smell or abnormal noise, cut off the power immediately and contact Nanjing Jusha Display Technology Co. for help. The maintenance work must be carried out by qualified personnel. Do not repair or modify the equipment by yourself, otherwise it may cause damage to the equipment or personal injury.
- Page 8 Overview cause potential electrostatic hazards to the display. The LCD backlight has a certain service life. We strongly recommend using the recommended brightness and turn off the display when unused to maximize its life. Handling of waste equipment should comply with local regulations.
- Page 9 DICOM compliance To ensure that the display always presents the most accurate image effect, JUSHA carefully measures and sets each of its gray scales during the display production, to ensure that the display produced conforms to the DICOM standards.
- Page 10 2. If there is any accessories damage or loss, please contact us. 3. Please only use the original accessories supplied with the monitor. Nanjing Jusha Display Technology Co., Ltd is not responsible for any technical problems caused by using third-party accessories.
- Page 11 Power on and with signal Note: There is each key logo on the key board. See "4. Display Settings" for specific operation methods and functions. 2.4 Rear view and connection panel Rear schematic view of Jusha professional monitor series is as follows:...
- Page 12 Overview AC Power input USB port DP port HDMI port DVI-I port Note： The USB port is only used for internal UART.
- Page 13 monitor installation 3. Monitor installation 3.1 Connect the video signal cable and the power supply 1.Uses video signal lines to connect the display to the computer host graphics card. Take the DVI signal, for example. Connect the DVI on the graphics card to the DVI interface corresponding to the display via the video signal lines Warning: Please read the 1.3 Safety Information section carefully before...
- Page 14 Warning: 1、Contact a technician for the installation. JUSHA is not responsible for any damages to the product or harm when the installation is done by the customer.
- Page 15 monitor settings Monitor settings 4.1Turn on the monitor Turn on the host connected to the display. If the display and the graphics card and the graphics card drive are being correctly installed, open the display by pressing the boat type switch on the bottom right side of the display.
- Page 16 monitor settings 2、OSD MENU： Note: The menu here is just a schematic diagram. Different monitors’ OSD menus are different. Please take the actual menu as standard. The following table shows structure of the OSD menu. Main Sub-menu Remark Default Menu Backlight 0-100，step 10 Contrast...
- Page 17 monitor settings (R191) Aspect Full Full，ASPECT Ratio monitor Auto Selectable when source is Adjust DVI-A (VGA), SOG Chinese, English English Language SETUP Factory Reset CUSTOM RESERVE Note: This product menu options and specifications are subject to change without notice. 4.4 Operation button and OSD menu 4.4.1 Adjust backlight/contrast menu 1.
- Page 18 monitor settings 4. Press DOWN key to adjust cursor to next item in the second level menu. 5. Press left/right key to adjust the parameter of the item cursor located in the second level menu. 6. In the secondary menu, press EXIT to return to the first level menu;...
- Page 19 Air pressure: 700hPa~1060hPa Prevent water from leaking Temperature: -20°C to 60°C Environment for transportation and Humidity: 10% - 90% no condensation storage Air pressure: 200hPa~1060hPa Certification standards CCC, CE Note: The specifications of JUSHA products are subject to change without notice.
- Page 20 Contact information 5.2 Environmental protection specifications The raw materials used in this product meet RoHS and does not contain harmful substances such as lead and mercury. 5.3 Safety standards In Accordance with Safety standards GB4943.1-2011 Authentication 5.3 Electromagnetic compatibility The electromagnetic compatibility of this product meets the following standards: Electromagnetic GB/T9254-2008;...
- Page 21 Therefore, please consult your seller whether he/she provides relevant maintenance service. JUSHA will neither take any responsibility nor authorize anyone to take any responsibility for product distribution and its use. Please read carefully the related documents, operation instruction and labels on package before you apply the product so that you can use and maintain the product properly.
- Page 22 All information in this user's manual, including all design and related materials is owned by Nanjing JUSHA Display Technology Co., Ltd., who reserves all patents, copyrights, and other exclusive rights in this user manual. Without the clear authorization of Nanjing JUSHA Display Technology Co., Ltd., no one shall copy the design of the product, copy, use and sell the product.
- Page 23 6.3 Proprietary rights Nanjing Jusha Display Technology Co., Ltd keeps the copyright of this manual and other related ownership. It is not allowed to copy, use or sell this product without authorization of Nanjing JUSHA Display Technology Co., Ltd...
