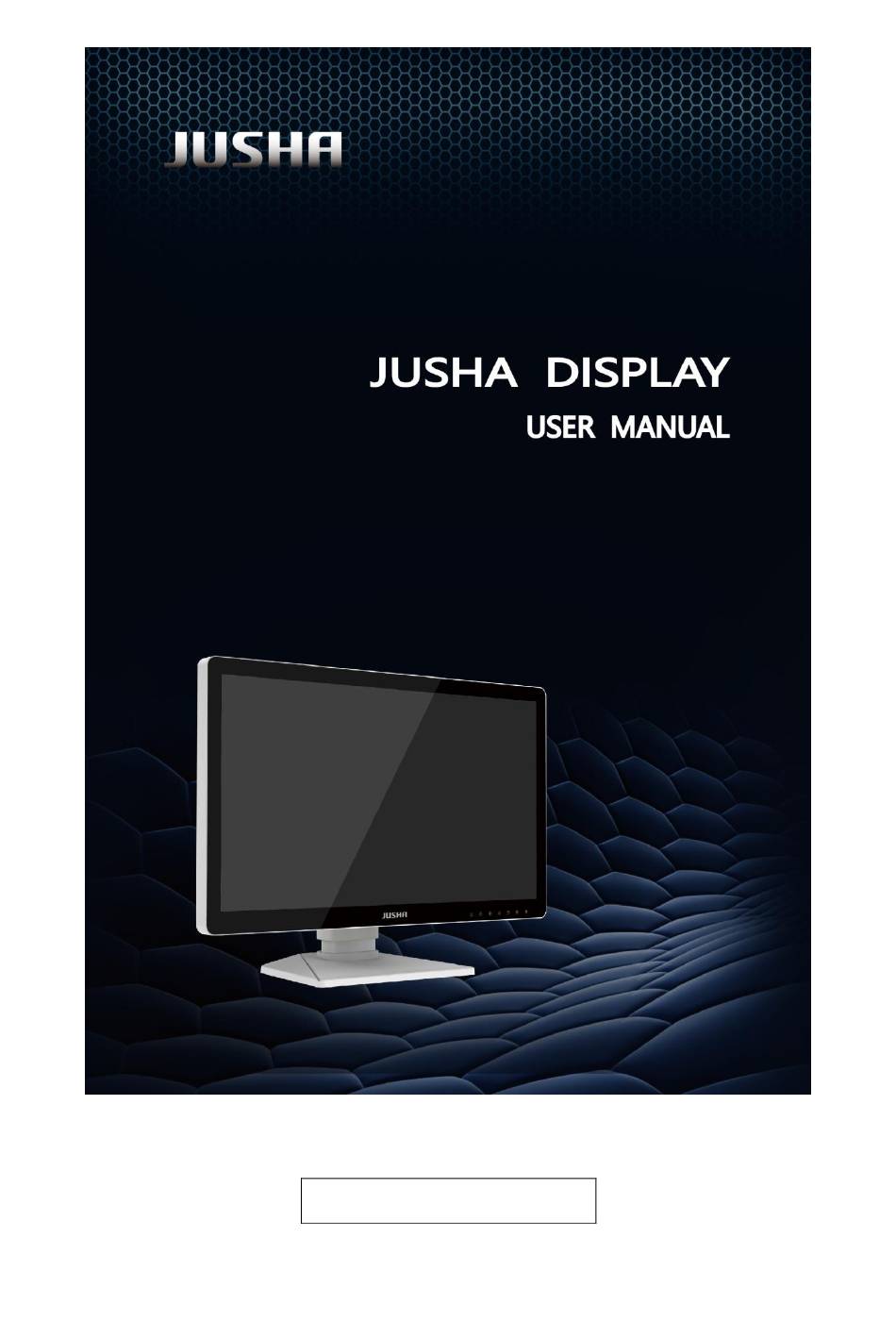

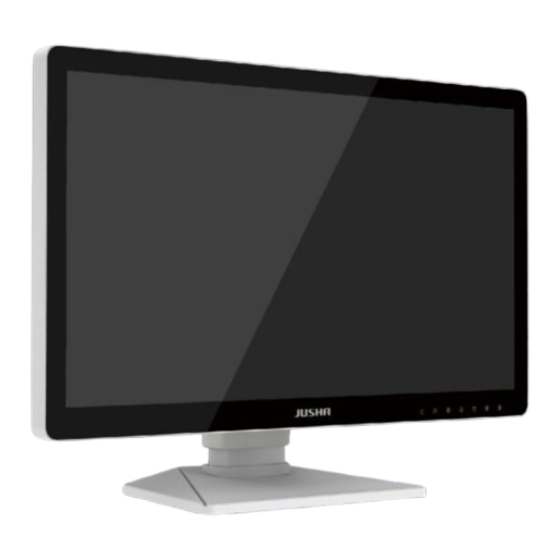

- Page 1 Model E270AG...
- Page 2 8A, Block 1, Nanjing International Service Outsourcing Mansion, No. 301 Hanzhongmen Street, Nanjing City, Jiangsu Province, 210036 Ch Tele: 025-83305050 Fax: 025-58783273 Visit us at the website: www.jusha.com.cn © Nanjing Jusha Display Technology Co., Ltd. 2021. All rights reserved. Published by Nanjing Jusha Display Technology Co., Ltd.
- Page 5 Content CONTENTS Manual instructions ......................2 About this manual ....................2 Explanation of symbols ................... 2 Safety information ....................4 Overview ..........................8 Packing list ........................8 Front view and keypad ..................9 The backside view of the monitor ..............10 Monitor installation ......................
- Page 6 ⚫ For any further questions about this manual, you are welcome to contact Nanjing JUSHA Display Technology Co., Ltd. Explanation of symbols This manual and product use the symbols below.
- Page 7 SGS and qualified for North American market. Gives information of the Authorized European representatives Compliance ROHS instruction Waste Electrical and Electronic Equipment Directive (WEEE) 2002/96/EC Waste disposal should comply with local regulations. Recommend to refer the User Manual Manufacturer information JUSHA trademark...
- Page 8 Manual instructions Product serial number Don’t touch * This monitor complies with these standards only when a medical grade power supply is used. Power supply is specified as a part of me equipment. Safety information Read all the important safety information before installing and operating your monitor.
- Page 9 Manual instructions ◼ Keep small object away from the product. If small object gets into the monitor, please shut off power supply immediately and contact us for technical support. About the power and ground ◼ Please use power cord provided with the monitor, and insert the plug into the socket firmly.
- Page 10 Manual instructions possible and pull out the plug from the socket. Please contact JUSHA for technical support. ◼ Repairing is limited to trained engineers. Do not try to repair or disassemble the product by yourself. It may cause product damage or personal injury.
- Page 11 Manual instructions interference: ◆ Relocate or reorient the device under interference. ◆ Set up curtain appliance between the monitor and the device under interference. ◆ Plug the monitor and the devices under interference into different power sockets. warning: ！ 1. This monitor is Class A digital devices. It can only be used indoors.
- Page 12 Overview 2. Overview Thank you for using JUSHA endoscopic surgery professional monitors.JUSHA endoscopic surgery professional medical monitor is designed for endoscope host, ICU display, operation room to display high-quality video and images. Packing list JUSHA endoscopic surgery professional medical monitor comes with: ◼...
- Page 13 Overview Please only use the original accessories supplied with the monitor. JUSHA is not responsible for any technical problems caused by using Third-party accessories. Packing list is for reference only, different models need to match different packing list, Please refer to the packing list in the product box.
- Page 14 Overview 1. Lights up in white, indicates monitor in, power-on state 2. Touch Power Key，lights up in orange, indicates monitor in power-on standby 3. Light off, indicates monitor in power-off status Source Select Select the input source Down key Select the next menu item Up key Selects the previous menu item 1.
- Page 15 Overview P2.4 interface definition Connectors description： DVI outpue SDI input/output DVI input VGA input Ground hole RS232/reserved S-VIDEO input CVBS output CVBS input 2 CVBS input1 11 Pr/R input Pb/B input 13 Y/G input HS/CS input 15 DC power switch DC power input...
- Page 16 1. Plug one side of the signal wire into monitor’s back interface, and the other side into endoscopic host’s interface, then Tighten the screws. E270AG supports desktop, and E270AG-C supports wall design, which should withstand the force of 10kg at least.
- Page 17 Monitor installation P3.2 six views withbase 2. Connect to the operating room grounding system through the PE ground which is on the back of the monitor. 3. Connect power adaptor to power wire firstly, and then plug power adaptor into monitor’s power input port, finally power LED indicater will turns orange.
- Page 18 Monitor installation Plug Shape ANSI/UL 817 DIN VDE 0620- Standard CSA-C22.2 BS1363/BS546 1:2010 No.21 Standard 120V 230V 230V Country/Ar Brazil Japan Korea Plug Shape Standard NBR14136 JIS 8303 KSC8305:2002R Voltage 220V 110V 220V Country/Ar Denmark Singapore China Plug Shape Standard SB 107-2-D1 SS145 GB15934-2008...
- Page 19 Monitor settings Turn on the monitor Turn the power on, the power indicator will turn white, and the monitor's screen will display the JUSHA boot screen, indicating that the monitor is running. Warning Only the original power cord and adaptor shall be used.
- Page 20 Monitor settings Turn off the monitor Press the Power Switch key, and the Power Indicator will turn orange,then unplug the power cord. Recommendation: The connector / cable of the adapter should be placed in an easily accessible place. Menu Instruction A seven buttons keypad, located at the lower right bottom on the front of the monitor, which allows users to adjust monitor’s parameters by using the On Screen Display...
- Page 21 Monitor settings in the user menu. The target source is selected; press the “ ” button to change the target sourceIn the signal source selection menu. 4.5.3 Functional specification Press the “MENU” key once to open the user menu P4.2 User OSD...
- Page 22 Monitor settings The structure of user menu and functional specification： Item description Default User1 Mode, in this mode, the first user ’s preference Mode 1 parameters(such as brightness, sharpness) shall be stored. User2 Mode, in this mode, the second user ’s preference Mode 2 parameters(such as brightness,...
- Page 23 Monitor settings parameters(such as brightness, sharpness) shall be stored. User6 Mode, in this mode, color parameters(such as Mode 6 brightness, saturation) shall be bypassed. Full Picture full-screen original set the original Ratio Compare the horizontal and vertical scaling ratio, set the maximum ratio direction full Max Ratio display, set another...
- Page 24 Monitor settings vertical display ratio as 4:3 Set the screen horizontal and vertical display ratio as 5:4 Set the screen horizontal and 16:9 vertical display ratio as 16:9 Set the screen horizontal and 16:10 vertical display ratio as 16:10 Scale up 5% Scale Scale up 10% Ratio...
- Page 25 Monitor settings 5500K color 5500K temperature effective 6500K color 6500K temperature effective 8000K color Color 8000K temperature 6500K Temp effective 9300K color 9300K temperature effective LCD Panel’s color Bypass temperature User 6500K High Sharpness level-high Sharpness level- Middle Sharpne middle Sharpness level-low Close sharpness Noise reduction...
- Page 26 Monitor settings Open the picture out POP 1 picture mode 1 Open the picture out POP 2 picture mode 2 The sub source shall be determined by the main source, please refer to Table 1 to find the selection CVBS Source rule of main source and sub source in...
- Page 27 Monitor settings Close the Function that called out of gray rang Open the Function that key lock Key lock Close the Function that key lock Mirror Mirror image on Image Mirror image off Buzzer on Buzzer Buzzer off Factory Reset user Reset parameters ：...
- Page 28 Important information Important information Technical specifications Input voltage DC 24V Standbypower <0.5W consumption Consumption(nomi <83W nal) 27 inches, Color Active Matrix Liquid LCD Panel Crystal Display Brightness 800cd/㎡（Max） Horizontal 178°, Vertical 178° (CR > Viewing Angle Pixels distance 0.3114(H)mm x 0.3114(V)mm Resolution 1920x1080 Visual Size...
- Page 29 Important information Notice： The specifications of JUSHA products are subject to change without notice. E270AG,E270AGG,E270AG0,E270AG1,E270AG*****,JUSHA- E270AG, JUSHA-E270AGG,JUSHA-E270AG0,JUSHA- E270AG1,JUSHA-E270AG*****（"*"=0-9,A-Z or blank means different customers, not affect product safety and EMC） Safety standards Safety standards for E270AG： IEC 60601-1: 2005 + CORR. 1:2006 the Medical Display + CORR.
- Page 30 Important information Display should not be used adjacent to or stacked with other equipment. If adjacent orstacked use is necessary, the equipment or system should be observed to verify normal operation the configuration in which it will be used. Anyone who connects additional equipment to the signal input part or signal output parts, configuring a medical system, are responsible that the system complies with the requirements of IEC/EN60601-1-2.
- Page 31 Staffs that are responsible for connecting the monitor with system should make sure that installed devices meet IEC 60601-1: 2005 + CORR. 1:2006 + CORR. 2:2007 + AM1:2012 Standard. If there is any question, please contact with JUSHA Engineering Technology Service Department or local marketing representatives.
- Page 32 ,rules, commercial practice, conventions or trade disputes etc. In no event shall JUSHA and its suppliers/franchisers be liable for any special, incidental, punitive, indirect or consequential damages (including, but not limited to, delay...
- Page 33 Declarations JUSHA keeps patents, copyright and its exclusive right and all information in this manual including JUSHA all designs and related materials. Anyone cannot plagiarize JUSHA design or copy its product to sell or use without the company’s explicit authority.
- Page 34 Declarations Proprietary rights Nanjing JUSHA Display Technology Co., Ltd keeps the copyright of this manual and other related ownership. It is not allowed to copy, use or sell this manual without authorization of Nanjing JUSHA Display Technology Co., Lt...
- Page 35 Contact information 7. Contact information Nanjing JUSHA Display Technology Co., Ltd. Address: 8A, Block 1, Nanjing International Service Outsourcing Mansion, No.301 Hanzhongmen Street, Nanjing City, Jiangsu Province, 210036 China Tel: 0086-25-83305050 Fax: 0086-25-58783273 Web: www.jusha.com.cn...
