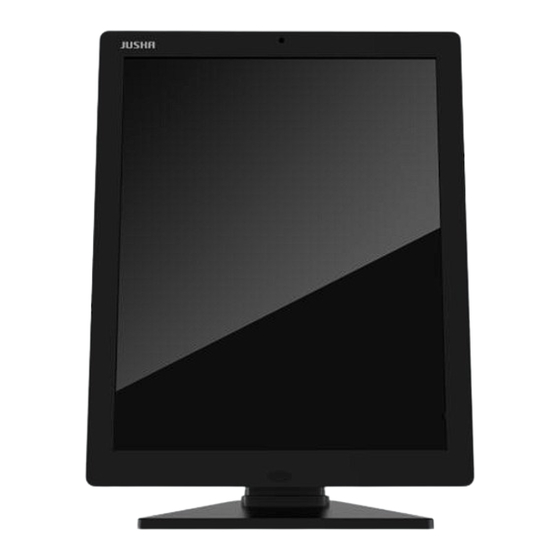

- Page 1 JUSHA 5MP Medical Display JUSHA-M53 User Manual...
- Page 2 8A, Block 1, Nanjing International Service Outsourcing Mansion, No.301 Hanzhongmen Street, Nanjing City, Jiangsu Province, 210036 China Tel: 0086-25-83305050 Fax: 0086-25-58783273 Visit us at the website: www.jusha.com.cn © Nanjing Jusha Display Technology Co., Ltd. 2020. All rights reserved. Published by Nanjing Jusha Display Technology Co., Ltd.
-
Page 3: Table Of Contents
Contents Contents Contents ............................i Manual instructions ........................ 1 About this manual ....................... 1 Explanation of symbols ....................1 Safety information ......................2 Overview ..........................6 Features ......................... 6 Packing list ........................7 Front view and keypad ....................8 Rear view and connection panel ................... 9 Display installation ........................ - Page 4 目录 Malfunction analysis ......................36 Declarations .......................... 38 Legal notice ......................... 38 After sale service declaration ..................40 Proprietary rights ......................40 Contact information ...................... 41...
-
Page 5: Manual Instructions
For any further questions about this manual, you are welcome to contact Nanjing Jusha Display Technology Co., Ltd. (hereinafter referred to as JUSHA). 1.2 Explanation of symbols This manual and product may use the symbols below. -
Page 6: Safety Information
2002/96/EC Waste disposal should comply with local regulations. Recommend to refer the User Manual Manufacturer information JUSHA trademark Product serial number * This display complies with these standards only when a medical grade power supply is used. 1.3 Safety information... - Page 7 Manual instructions to the device. Never use the display in the presence of flammable anesthetics mixture with air, oxygen or nitrous oxide. Never expose the display to rain or moisture. Never use the display near water - e.g. near a bathtub, washbasin, swimming pool, kitchen sink, laundry tub or in a wet basement.
- Page 8 Please contact JUSHA for technical support. Repairing is limited to trained engineers. Do not try to repair or disassemble the product by yourself.
- Page 9 Manual instructions Set up curtain appliance between the display and the device under interference. Plug the display and the devices under interference into different power sockets. Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
-
Page 10: Overview
2.1 Features 16-bit grayscale display JUSHA-M53 is armed with a 16-bit (RGB)image processing chip. It can present up to 65536 grayscale in grayscale image, which contribute to a more exquisite display, a smoother image and guarantee a perfect present of each medical image feature. -
Page 11: Packing List
1. If there is any accessory damage or loss, please contact us. 2. Please only use the original accessories supplied with the display. JUSHA is not responsible for any technical problems caused by using third-part accessories. 3. Please keep the original package. If you need to transport the product,... -
Page 12: Front View And Keypad
Overview 2.3 Front view and keypad Keypad Function Turn on/Turn off the X-ray film View function Move backward/downward or reduce the numeric in menu Move forward/upward or increase the numeric in menu 1. Turn on the menu MENU 2. To go into a submenu 1. -
Page 13: Rear View And Connection Panel
Manual instructions 2.1 Rear view and connection panel Display interfaces: USB interface 1 USB interface2 DP(Display Port) signal input interface DVI signal input interface ○ SmarTouch interface Power input interface... -
Page 14: Display Installation
Display installation 3. Display installation 3.1 Graphic card installation Note: Before start to install the graphic card, please make sure the computer motherboard supports the PCI Express graphic card and has an empty PCI Express x1 Slot. Carefully read the manual of the motherboard about how to install an expansion card. -
Page 15: Connection The Cables
Display installation installation instructions in CD. 3.2 Connection the cables 1. Connect the video signal cable of the display to the computer. This video signal cable can be DVI or DP, depending on the interfaces of the display and graphic card. Note: The display supported video interface scan be found in “5.1 Technical specifications”. -
Page 16: Adjusting The Screen Position
Display installation Warning: Please read the “1.3 Safety information” carefully before connecting the power supply. Otherwise, it may cause electric shock or display permanent damage. 3.3 Adjusting the screen position The position, height and angle can be adjusted to provide the comfortable angle of observation. -
Page 17: Adjusting Screen Height
Display installation 3.3.1 Adjusting screen height To move the screen up and down, please hold the screen at both sides and adjust it to an appropriate height . Warning: When moving the screen down, don’t handle the stand of the display to avoid hand injury. -
Page 18: Rotating Screen
Display installation Note: The allowed tilt angel range for this display is -5° (± 2° ) / +15° (±2° ). The Swivel angel range is -45° (±2° ) / +45° (±2° ). 3.3.3 Rotating screen 1. Please remove all connections of the display at first. 2. -
Page 19: Installing The Display To Wall Or Suspension Arm
Warning: Contact a technician for the installation. JUSHA is not responsible for any damages to the product or harm to customers when the installation is done by the customer... -
Page 20: Multi-Display Configuration
Display installation 3.5 Multi-display configuration Windows provides the multi-display feature that allow applications to make use of multiple display devices at the same time. This is useful whenever you need to maximize your onscreen workspace. For example, two displays can be used at the same time: one is used to view the medical images for diagnosis, while the other is used to browse the patient medical history or write the dialog report. - Page 21 Display installation 2048 x 2560 In the “Screen resolution” control panel, you can: 1. Arrange the logical position of the two displays by dragging the display icons. 2. Browse the connected display devices at the “Display” pull-down menu. 3. Choose different multi-display mode in the “Multiple display” pull- down menu.
-
Page 22: Display Settings
Display settings 4. Display settings 4.1 Turn on the display Turn on a computer connected to the display. Make sure that the display, graphic card and graphic card driver have been installed correctly. Touch ,and the power LED becomes steady green and the the power key display will be switched on. - Page 23 Display settings Note: This menu is just an example, and the content of the menu is variation with different display. Please refer to the actual menu.
- Page 24 Apply special calibration for DSA (Digital Subtraction Angiography) Apply special calibration for DSI (Digital Spot Imaging) Apply special calibration designed by CT/MRI-JS DICOM (Calibration JUSHA for CT/MRI Look-Up-Table) Apply GAMMA2.2 calibration GAMMA 2.2 Apply GAMMA2.4 calibration GAMMA 2.4 Apply GAMMA2.6 calibration GAMMA 2.6...
-
Page 25: Osd Operation
Display settings Enable PI (Presence Induction) PI-ON Disable PI PI-OFF PI-OFF Enable ES(Energy saving ES-ON mode)function ES-OFF ES-OFF Disable ES Note: This product menu options and specification are subject to change without prior notice. 4.4 OSD operation 4.4.1 Open OSD Press the MENU key, the OSD main menu will be displayed on the screen. -
Page 26: Change Brightness
Display settings 4.4.4 Change brightness The brightness of the display can be adjusted, and the operation follows: 1. Press the key to bring up the menu. MENU 2. Press the key to chose the brightness as demand. 3. Press the key to confirm the option. -
Page 27: Rotate Osd
Display settings 1. Touch the menu key to bring up the OSD menu. MENU 2. Touch the key to select【PI-ON】/【PI-OFF】. 3. Press the key to confirm the option. MENU 4.4.8 Rotate OSD The display can be rotated, and the customer can choose the mode of vertical or horizontal as demand. -
Page 28: Important Information
Operating environment Humidity:20% - 85%(No condensation) Air pressure:700hPa - 1060hPa Transportation and storage Temperature:-20°C - 60°C environment Humidity:10% - 90%(No condensation) Air pressure:200hPa - 1060hPa Certification standard CCC,CE Note: The specifications of JUSHA products are subject to change without notice. -
Page 29: Environmental Information
Maintenance 5.2 Environmental information All materials of this product are below the limit requirement in RoHS, without toxic or hazardous substances. 5.3 Safety standard The safety regulations of this product meet the following standards: This device complies with IEC 60601-1: 2012 Safety standard EN 60601-1:2013 GB4943.1-2011... - Page 30 Maintenance Guidance and manufacturer’s declaration Electromagnetic emissions - for all ME EQUIPMENT and ME SYSTEM Table 1:Guidance and manufacturer’s declaration – electromagnetic emissions The display is intended for use in the electromagnetic environment specified below. The customer or the user of the display should assure that it is used in such an environment.
- Page 31 Maintenance Voltage dips, <5% U <5% U Mains power quality short (>95% dip in U (>95% dip in should be that of a interruptions and For 0,5 cycle typical commercial or voltage variations 40% U For 0,5 cycle hospital environment. If on power supply (60% dip in U 40% U...
- Page 32 Maintenance 80MHz 800MHz 800MHz 2.5GHz Where P is the maximum output power rating of the transmitter watts according to the transmitter manufacturer and d is the recommended separation distance in meter (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, should be less than the compliance...
- Page 33 Maintenance communications equipment and the ME EQUIPMENT and ME SYSTEM – for ME EQUIPMENT and ME SYSTEM that are not LIFE-SUPPORTING Table 4:Recommended separation distances between portable and mobile RF communications equipment and the display The display is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
-
Page 34: Emc Guidelines
Otherwise, degradation of the performance of this equipment could result.” The use of accessories and cables other than those specified by NANJING JUSHA DISPLAY TECHNOLOGY CO., LTD., with the exception of accessories and cables sold by NANJING JUSHA DISPLAY TECHNOLOGY CO., LTD. of LCD MEDICAL DISPLAY as replacement parts for internal components, may result in increased EMISSIONS or decreased IMMUNITY of the LCD MEDICAL DISPLAY. -
Page 35: Ems Compliance Table
Maintenance Table 1 - Emission Phenomenon Compliance Electromagnetic environment CISPR 11 RF emissions Professional healthcare facility environment and Group 1, Class A IEC 61000-3-2 Harmonic distortion Professional healthcare facility environment Class A Voltage fluctuations IEC 61000-3-3 Professional healthcare facility environment and flicker Compliance NOTE... - Page 36 Maintenance 1845 1970 2450 2400-2570 Pulse modulation 217Hz, 28V/m 5240 5500 5100-5800 Pulse modulation 217Hz, 9V/m 5785 Table 3 – Input a.c. power Port Immunity test levels Phenomenon Basic EMC standard Professional healthcare facility environment Electrical fast ±2 kV IEC 61000-4-4 transients/burst 100kHz repetition frequency Surges...
-
Page 37: Maintenance
Maintenance 6. Maintenance 1. Avoid screen over-heat Please use the display in the recommended environment, including appropriate temperature, humidity and air pressure. Turn off the display or lower its luminance if not use, or it may cause over-heat damage. In addition, if the screen displays the same image for a long time, it may over-heat and cause damage to some pixels. - Page 38 Maintenance Some chemical cleanser may damage the screen and case of the display. We recommend you to use non-ammonia and non-alcohol based cleanser. We are not liable for damage resulting from ammonia or alcohol based cleanser. 4. Avoid shock and vibration The LCD screen is quite fragile, so avoid strong shock and vibration.
-
Page 39: Cleaning And Disinfection
JUSHA does not recommend the use of any ammonia or alcohol-based cleaners on the monitor screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the monitor. JUSHA will not be liable for damage resulting from use of any ammonia or alcohol based cleaners 7.2 Disinfection... -
Page 40: Malfunction Analysis
Please contact us if failed to resolve problem after reading the recommended solutions followed. To solve the problem, please contact Nanjing Jusha display technology co., Ltd after-sales service or read the manual to find proper solutions. If you use the recommend below solution still can't solve the problem, please contact Nanjing Jusha display technology co., Ltd. - Page 41 Malfunction analysis 1. Connection problem of power wire or signal wire Snowflake on screen 2. Main board static electricity or dust affection the connection of graphic card. 1. Connection problem of power wire or signal wire No figure after displaying well for a while 2.
-
Page 42: Declarations
JUSHA hereby explicitly rejects all warranties and state of any kind, any property or extent whether statutory, express or it leads to any laws ,rules, commercial practice, conventions or trade disputes etc. - Page 43 JUSHA keeps patents, copyright and its exclusive right and all information in this manual including JUSHA all designs and related materials. Anyone cannot plagiarize JUSHA design or copy its product to sell or use without the company’s explicit authority. 39 39...
-
Page 44: After Sale Service Declaration
Quality assurance is only for the product that Nanjing Jusha Display Technology Co.,Ltd provides. Any other third-party equipment problems are beyond the scope of this quality assurance. -
Page 45: Contact Information
声明 10. Contact information Nanjing Jusha Display Technology Co., Ltd. Address: 8A, Block 1, Nanjing International Service Outsourcing Mansion, No.301 Hanzhongmen Street, Nanjing City, Jiangsu Province, 210036 China Tel: 0086-25-83305050 Fax: 0086-25-58783273 Free Hotline:400-820-0556 800-820-0556 Web: cn.jusha.com.cn 41 41...
