Purpose

This document outlines the motor set up for AMS automated boat shade, new motor set-up.

Safety

The "CAUTION" symbol above is a sign that a safety risk is involved and may cause personal injury

and/or product or property damage if not safely adhered to and within the parameters set forth

Moving parts can pinch, crush, or cut. Keep body parts clear at all times.

Resources Required

• Wand provided with shade

• Tape measure

• Phillips screwdriver

Procedure

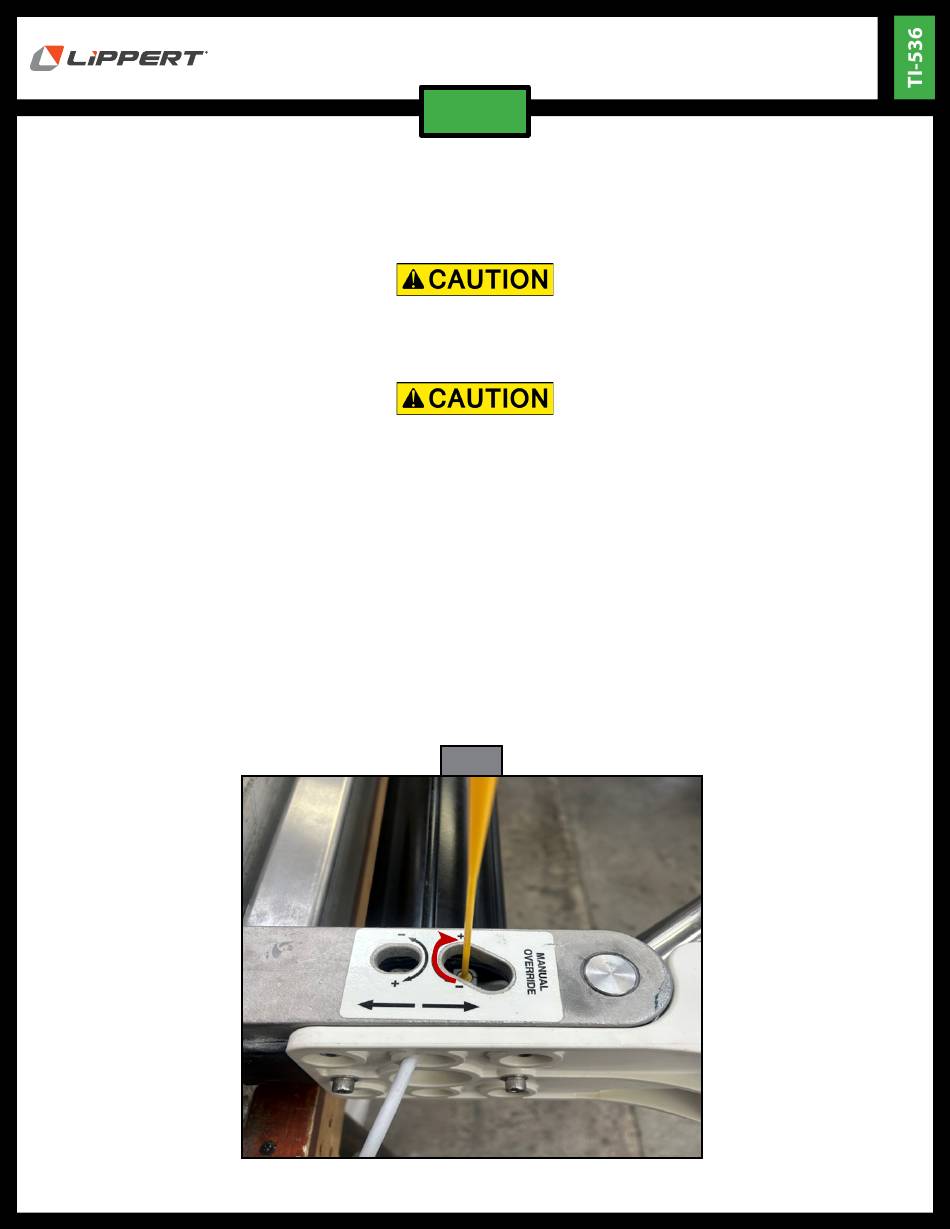

Insert wand as shown in (Fig. 1).

While pressing the extend button, rotate the wand to the position (+) sign until the keder welt track

rotates seven times.

On the seventh rotation, stop the keder welt track on the top of tube, so that the canvas welt can slide

into place.

Rev: 10.24.2024

AMS AUTOMATED BOAT SHADE

NEW MOTOR SET-UP

MARINE

in this manual.

Fig. 1

Page 1

CCD-0008990

Need help?

Do you have a question about the SureShade AMS Series and is the answer not in the manual?

Page 1 AMS AUTOMATED BOAT SHADE NEW MOTOR SET-UP MARINE Purpose This document outlines the motor set up for AMS automated boat shade, new motor set-up. Safety The “CAUTION” symbol above is a sign that a safety risk is involved and may cause personal injury and/or product or property damage if not safely adhered to and within the parameters set forth in this manual.
Page 2 AMS AUTOMATED BOAT SHADE NEW MOTOR SET-UP MARINE Slide the canvas into the keder welt track from the pull pin side of the roller tube. Repeat the same process for the fascia side. Measure the distance of the canvas on each side of the roller tube, they must be even. Repeat the same process for the fascia side.
Page 3 AMS AUTOMATED BOAT SHADE NEW MOTOR SET-UP MARINE 12. While holding the retract button, rotate the wand towards the negative (-) sign (Fig. 4) rapidly until the shade stops and proceed to the next step. Fig. 4 Fig. 5 13. While holding the retract button, rotate the wand toward the positive (+) sign (Fig. 6) until you reach the desired stop location.
