USER MANUAL

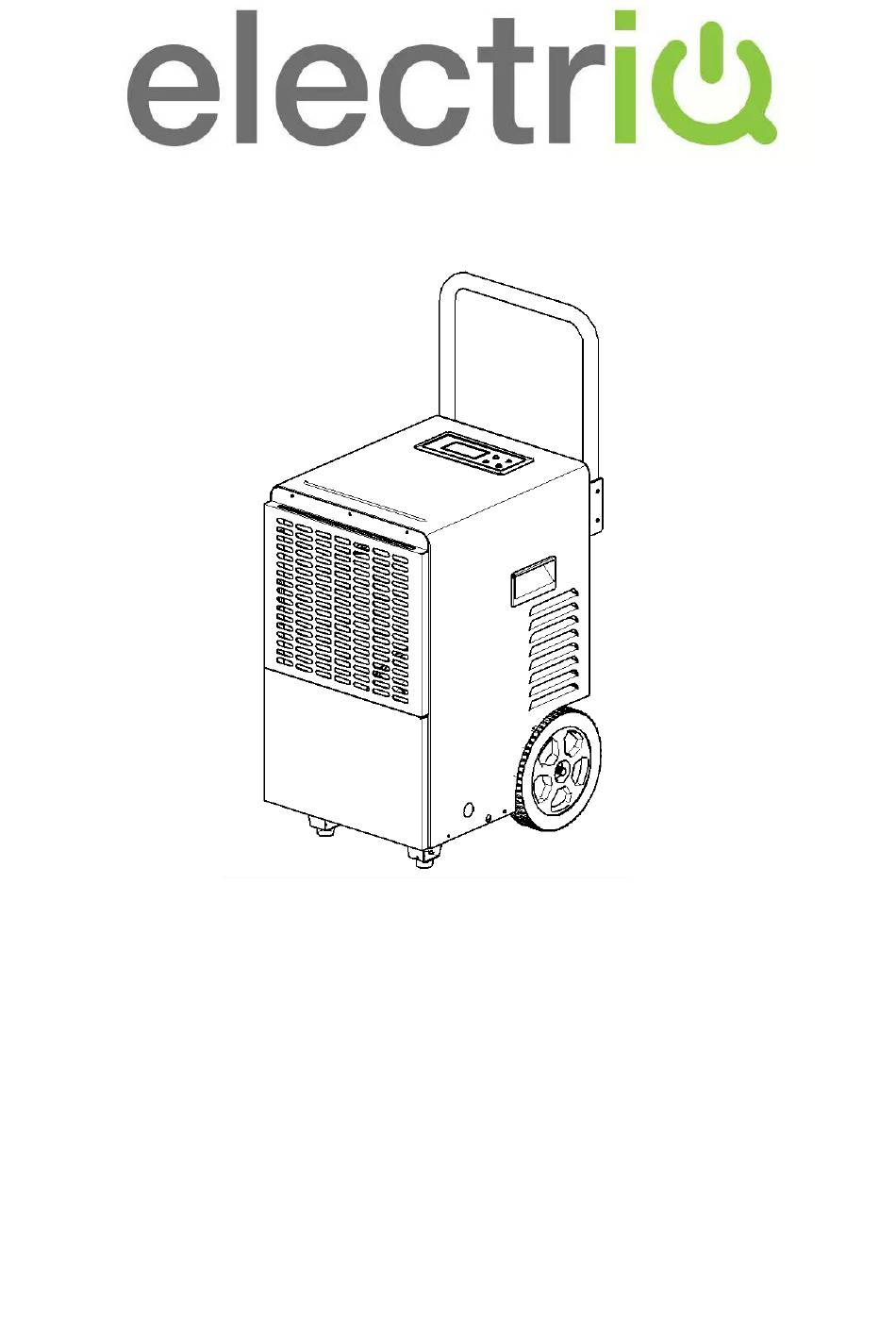

PORTABLE COMMERCIAL / INDUSTRIAL DEHUMIDIFIER
ECD30-V2
30 Litres per day
Thank you for choosing electriQ.
Please read this user manual before using
this innovative dehumidifier.
Please keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals
1
Advertisement
Related Manuals for ElectrIQ ECD30-V2
Summary of Contents for ElectrIQ ECD30-V2
- Page 1 PORTABLE COMMERCIAL / INDUSTRIAL DEHUMIDIFIER ECD30-V2 30 Litres per day Thank you for choosing electriQ. Please read this user manual before using this innovative dehumidifier. Please keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
- Page 3 CONTENTS SAFETY PARTS FEATURES PRODUCT OVERVIEW POSITIONING THE DEHUMIDIFIER ASSEMBLY DRAINAGE OPTIONS CONTROL PANEL OPERATION CARE AND MAINTENANCE TROUBLESHOOTING TECHNICAL SPECIFICATIONS FREQUENTLY ASKED QUESTIONS SUPPORT...
- Page 4 SAFETY INSTRUCTIONS IMPORTANT • Never connect the unit to an electrical outlet • Carefully read the instructions before using an extension cord. If a power outlet is operating the unit. not available, one should be installed by a • This appliance is intended for use in an qualified electrician.
- Page 5 • Do not store or use gasoline, petrol, paint, operated at an ambient temperature between 1°C and 32°C. solvents or other flammable vapours and • Do not dry laundry directly above the unit. liquids in the vicinity of this dehumidifier or any other appliance.
- Page 6 QUICK VISUAL SAFETY GUIDE ON WHERE OR WHEN NOT TO USE YOUR DEHUMIDIFIER Exposed to the Near water If the power cable wires Where small children may weather outdoors are frayed or cut. be left unattended If an extension lead Where it may be Where the power cable Where there is a risk of...
- Page 7 1% between 10 and 95% ensuring your room is not dried too much and power is not wasted. Your dehumidifier belongs to the electriQ dehumidifier range featuring power saving logic. Easy to use controls...
- Page 8 Please note the unit should not be placed directly against a radiator or other heat source. When positioning your electriQ dehumidifier, ensure that it is placed clear of any obstacle that may limit the air movement. Place the dehumidifier on a flat dry surface.
- Page 9 ASSEMBLY The appliance must be fully assembled before plugging in. In order to prevent damage to the compressor, after assembly the unit must be left in an upright position for 2 hours before plugging in. ATTACHING THE HANDLE The handle is supplied resting against the rear of the unit for transportation. Unfold the handle so it is in the upright position and secure using the two bolts provided.
- Page 10 DRAINAGE OPTIONS INTERNAL WATER TANK The appliance is provided with a 7-litre removable water tank. When the tank is full, the machine will automatically shut down and enter standby. The display will show the TANK FULL icon, and an alarm will sound.
- Page 11 CONTROL PANEL Timer Humidity Power Timer Button Button Temperature Defrost Dehumidification Decrease Increase Indicator Indicator Button Button Tank Full Indicator Indicator Press once to turn the unit on. Press again to turn the unit off. Increase the desired humidity between 10% and 95%RH. Also used to adjust the timer duration following pressing the TIMER button Decrease the desired humidity between 10% and 95%RH.
- Page 12 OPERATION • The recommended humidity for a standard room is within the range of 50% to 70%, provided no special requirements are made. • Although the desired humidity can be set as low as 10%, lower settings will act as a continuous mode, as they are unlikely to be achievable in the UK.
- Page 13 CARE AND MAINTENANCE Always shut off the unit and unplug it from the mains before cleaning or performing any maintenance. When it is not in use for long periods, removing the plug from the power socket is advisable. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage to the unit.
- Page 14 The ambient temperature range of the machine is 5-35℃. Increase the LO Error Code detected＜3℃ ambient temperature. Any other malfunctions will need to be reported to electriQ service centre. Do not attempt unauthorised repairs as these may invalidate the warranty.
- Page 15 TECHNICAL SPECIFICATION Model ECD30-V2 Power Supply AC 220-240V/50Hz Dehumidifying 30L/Day (30℃ RH80%) Capacity 20L/Day(27℃ RH60%) 650W(30℃ RH80%) Power 550W(27℃ RH60%) 3A (30℃ RH80%) Rated Current 2.4A(27℃ RH60%) High/Low Pressure 2.5/1.0Mpa Desired Humidity Range 10* to 95% Tank Capacity 7 Litres...
- Page 16 Please contact the local council for details of your local household waste recycling centres. electriQ UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line.
