ElectrIQ ECD30 User Manual

Portable commercial / industrial dehumidifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

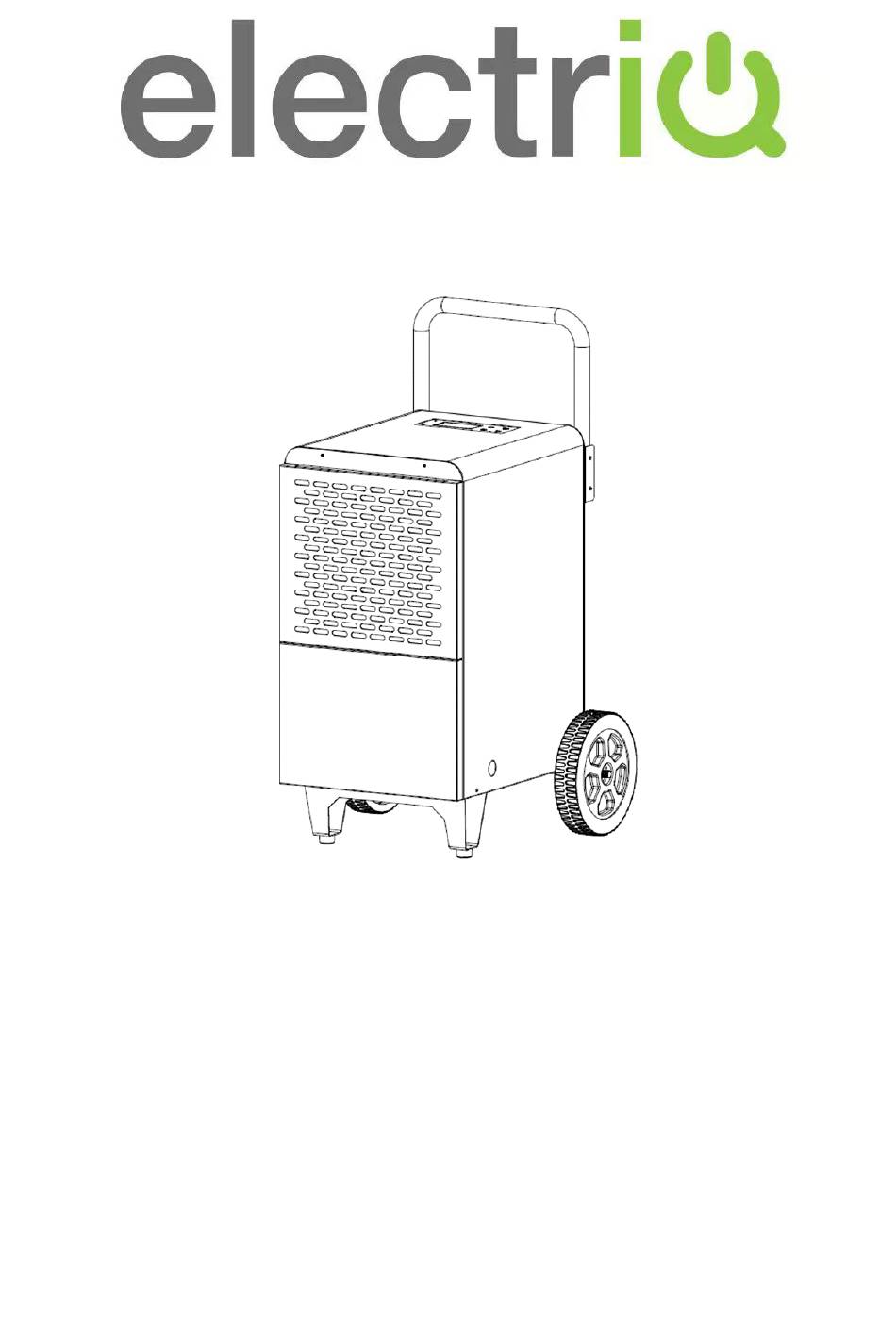

USER MANUAL
PORTABLE COMMERCIAL / INDUSTRIAL DEHUMIDIFIER
ECD30 30 Litres per day
ECD50 50 Litres per day
Thank you for choosing electriQ.
Please read this user manual before using this innovative dehumidifier.
Please keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECD30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ElectrIQ ECD30

Summary of Contents for ElectrIQ ECD30

  • Page 1 ECD30 30 Litres per day ECD50 50 Litres per day Thank you for choosing electriQ. Please read this user manual before using this innovative dehumidifier. Please keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...

  • Page 2: Table Of Contents

    CONTENTS SAFETY PARTS FEATURES PRODUCT OVERVIEW POSITIONING THE DEHUMIDIFIER ASSEMBLY DRAINAGE OPTIONS OPERATION CARE AND MAINTENANCE TROUBLESHOOTING FREQUENTLY ASKED QUESTIONS TECHNICAL SPECIFICATIONS SUPPORT...

  • Page 3: Safety

    SAFETY INSTRUCTIONS IMPORTANT Carefully read the instructions before operating the unit • This appliance is for indoor use only and intended for use in a domestic environment only. • Any other use is not recommended by the manufacturer and may cause fire, electrical shocks or other injury to user or property.
  • Page 4 R290 refrigerant gas complies with European environmental directives. • R290 has a low GWP (Global Warming Potential) of 3. • The ECD30 contains about 120g of R290 refrigerant gas. • The ECD50 contains about 200g of R290 refrigerant gas. •...

  • Page 5: Parts

    VISUAL SAFETY GUIDE ON WHERE OR WHEN NOT TO USE YOUR DEHUMIDIFIER PARTS Bolts (For Handle) 1m Flexible Water Pipe x 1 Bolts (For Axel) x 4 Nuts (For Wheels) x 2 Washers (For Wheels) x 2 Wheels x 2...

  • Page 6: Features

    10%* and 95% ensuring your room is not dried too much and power is not wasted. FEATURES Your dehumidifier belongs to the electriQ dehumidifier range featuring power saving logic. Easy to use controls Cost effective way to combat mould, condensation and damp...

  • Page 7: Positioning The Dehumidifier

    Please note the unit should not be placed directly against a radiator or other heat source. When positioning your electriQ dehumidifier, ensure that it is placed clear of any obstacle that may limit the air movement. Place the dehumidifier on a flat dry surface.

  • Page 8: Assembly

    ASSEMBLY The appliance must be fully assembled before plugging in. In order to prevent damage to the compressor, after assembly the unit must be left in an upright position for 2 hours before plugging in. ATTACHING THE WHEELS 1. Attach the Axel to the base of the appliance using the 4 bolts provided. 2.

  • Page 9: Drainage Options

    DRAINAGE OPTIONS INTERNAL WATER TANK The models are provided with a 7 Litre removeable water tank. When the water tank is full, the machine will automatically shut down and enter standby. The display will show the TANK FULL icon and an alarm will sound.

  • Page 10: Operation

    OPERATION NOTES: • The recommended humidity for a standard room is within the range of 50% to 70%, provided no special requirements are made. • Although the desired humidity can be set as low as 10%, lower settings will act as a continuous mode, as they are unlikely to be achievable in the UK.
  • Page 11 WATER TANK FULL The dehumidifier will display the TANK FULL symbol, bleep, and enter standby mode when the water tank is full. To resume operation the water tank should be emptied and reinserted into the unit. If this happens when the unit is set up with continuous drainage, it indicates either a blockage of the drain pipe, or that the pipe is not going downhill.

  • Page 12: Care And Maintenance

    CARE AND MAINTENANCE Always shut off the unit and unplug it from the mains before cleaning or performing any maintenance. When it is not in use for long periods, it is advisable to remove the plug from the power socket. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage to the unit.

  • Page 13: Troubleshooting

    Refrigerant Leakage well ventilated before attempting to restart. If this does not Code resolve, contact the service centre. Any other malfunctions will need to be reported to electriQ service centre. Do not attempt unauthorised repairs as these may invalidate the warranty.

  • Page 14: Technical Specifications

    TECHNICAL SPECIFICATION Model ECD30 ECD50 Power Supply AC 220-240V/50Hz Dehumidifying 30L/Day (30℃ RH80%) 50L/Day (30℃ RH80%) Capacity Power 500W 900W Rated Current 2.3A 4.0A High/Low Pressure 2.5/1.0Mpa Desired Humidity 10* to 95% Range Tank Capacity 7 Litres Drainage Pipe 12mm...

  • Page 15: Frequently Asked Questions

    Please contact the local council for details of your local household waste recycling centres. electriQ UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line.

This manual is also suitable for:

Ecd50
