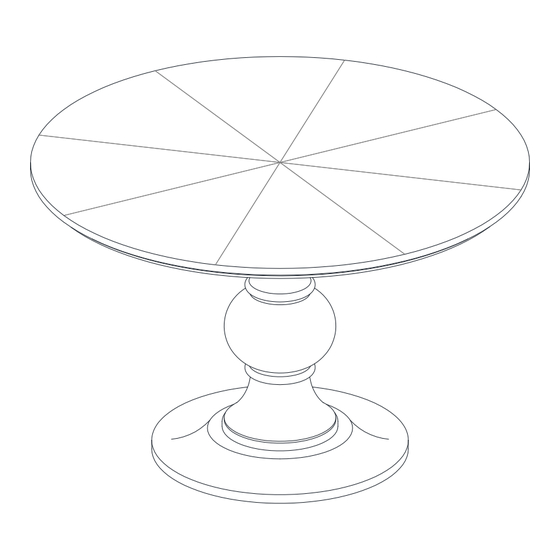

Callie Round Dining Table

If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the

store where it was purchased. Please call our customer service number and have your instructions and

parts list ready to provide the model name, part name or factory number:

Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday

Or visit our web site 24 hours a day, 7 days a week for product assistance at

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.

Stock # PW1425004710036

# PW1425004710074

ADULT ASSEMBLY REQUIRED

1-866-942-5362

www.whalenstyle.com

Or e-mail your request to parts@whalenfurniture.com

PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Date 2024-07-15

LOT NUMBER:

DATE PURCHASED:

Rev. 0001-A

Need help?

Do you have a question about the Callie PW1425004710036 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pioneer Woman Callie PW1425004710036

Page 1 LOT NUMBER: DATE PURCHASED: Callie Round Dining Table Stock # PW1425004710036 # PW1425004710074 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 1-866-942-5362 Pacific Standard Time: 8:30 a.m.
Page 2 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S 1. Maximum load weight 90.7 kg (200 pounds). THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM WEIGHTS INDICATED.
Page 3 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Table Top B- Table Base (Qty. 1) (Qty. 1) C- Pedestal D- Mounting Panel (Qty. 1) (Qty.
Page 4 Assembly Instructions Countersunk holes ① x 4 ③ x 4 ④ x 4 DO NOT fully tighten the bolts initially until all the bolts are ready to assemble. To avoid causing damages to the thread, DO NOT over-tighten the bolts. 1.
Page 5 Assembly Instructions ① x 4 ③ x 4 ④ x 4 3. Ask for assistance to position the Table Top (A) upside down on a level and protected surface. 4. Align and attach the assembled Mounting Panel (D) to the Table Top (A) with four 35 mm Bolts (1), four Lock Washers (3) and four Flat Washers (4).
Page 6 Assembly Instructions Countersunk holes ③ x 4 ④ x 4 ② x 4 5. Align and attach the Table Base (B) to the bottom of the Pedestal (C) with four 80 mm Bolts (2), four Lock Washers (3) and four Flat Washers (4). 6.
Page 7 Assembly Instructions 7. Ask for assistance to lift the unit upright and position it at the desired location.
Page 8 Care and Maintenance  Use a soft, clean cloth that will not scratch the surface when dusting.  Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area.  Using solvents of any kind on your furniture may damage the finish. ...
Page 9 NÚMERO de LOTE: _________ FECHA de COMPRA: Mesa redonda para comedor Callie Modelo # PW1425004710036 # PW1425004710074 ENSAMBLE REQUERIDO POR ADULTO Si tienen alguna pregunta acerca del ensamble o si alguna parte está faltante, no retorne esté producto a la tienda donde lo compro.
Page 10 M Á X I M O P E S O R E C O M E N D A D O 1. Carga máxima de 90.7 kg (200 libras). ESTA UNIDAD DEBE UTILIZARSE CON LOS PESOS MÁXIMOS INDICADOS. SI SE EXCEDE EL PESO MÁXIMO, PODRIA RESULTAR EN UNA INESTABILIDAD DE LA UNIDAD CAUSANDO POSIBLES LESIONES.
Page 11 Lista de partes y material de ferretería Por favor lea completamente las instrucciones y verifique que estén todas las partes y partes de ferretería antes de iniciar el ensamblado A- Tapa de la mesa B- Base de la mesa (Cant. 1) (Cant.
Page 12 Instructivo de ensamble Agujeros avellanados ① x 4 ③ x 4 ④ x 4 NO apriete los pernos hasta que todos los pernos estén listos para el ensamble. Para evitar daños a la rosca, NO sobre apriete los pernos. 1. Desempacar la unidad y confirmar que se tiene todo el material de ferretería y partes requeridas. Ensamblar la unidad en un piso alfombrado o en el cartón vacío para evitar rasguños.
Page 13 Instructivo de ensamble ① x 4 ③ x 4 ④ x 4 3. Pedir asistencia para poner la tapa de la mesa (A) boca abajo en una superficie nivelada y protectora. 4. Alinear y adjuntar el panel de montaje ensamblado (D) a la tapa de la mesa (A) con cuatro pernos de 35 mm (1), cuatro arandelas de presión (3) y cuatro arandelas planas (4).
Page 14 Instructivo de ensamble Agujeros avellanados ③ x 4 ④ x 4 ② x 4 5. Alinear y adjuntar la base de la mesa (B) a la parte inferior del pedestal (C) con 4 pernos de 80 mm (2), cuatro arandelas de presión (3) y cuatro arandelas planas (4). 6.
Page 15 Instructivo de ensamble 7. Pedir asistencia para poner la unidad en posición vertical y cerca del lugar deseado.
Page 16 Mantenimiento y Cuidados  Use una toalla suave y limpia para evitar daños y rayaduras.  Uso de cera para pulir muebles no es necesario. Si desea usar cera, pruébela en un área que no sea visible para revisar su funcionamiento. ...
