Champion Power Equipment 100577 Operator's Manual

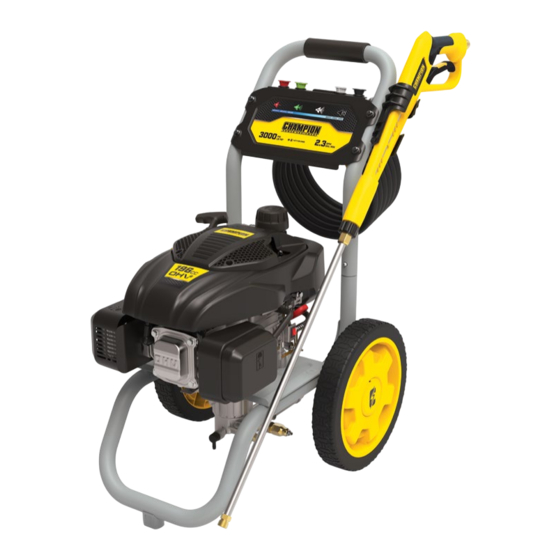

3000 psi pressure washer
Hide thumbs

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
MODEL #100577
3000 PSI PRESSURE WAShER
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
or visit championpowerequipment.com
CAUTION
DO NOT attempt to crank or start the engine before it has been properly filled with the recommended type and amount of oil.
Damage to the engine as a result of failing to follow these instructions will void your warranty.
SAVE ThESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
REV 20210122
Champion Power Equipment, Inc., Santa Fe Springs, CA USA
