Delfield UC4000 Specifications

UC4000 SERIES
Self-Contained Undercounter Refrigerator/Freezer
MODELS:
 UC4048 Undercounter refrigerator

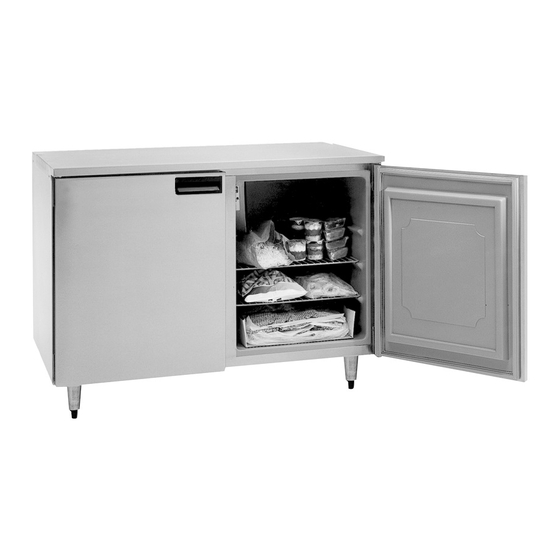

Two section
Model UC4048
SPECIFICATIONS
Exterior top shall be one-piece, 22-gauge stainless
steel with front edge turned down to form nosing and
rear edge turned down.
Exterior bottom shall be one-piece, 14-gauge
galvanized metal. Exterior ends shall be 22-gauge
stainless steel.
Base interior shall be one-piece thermoformed ABS
plastic material, with integral shelf supports. ABS
interior is backed by a limited lifetime warranty. Cabinet
shall have (4) epoxy-coated wire shelves installed. Base
shall be fully insulated with high-density foamed-in-place
polyurethane.
Doors shall have a 22-gauge stainless steel exterior,
with a thermoformed ABS plastic interior liner, and shall
be fully insulated with foamed-in-place polyurethane.
Door handles shall be black, recessed ABS.
 UC4148 Undercounter freezer
Two section
STANDARD FEATURES
• Features Delfield's exclusive ABS interior. ABS is
extremely durable - it won't dent, chip or corrode
and is backed by a limited lifetime warranty
• Stainless steel front, sides and top
• Environmentally friendly R404A refrigerant
• Four epoxy coated wire shelves standard installed
per unit
• Black recessed quick grip handle
• Rugged 6" high heavy duty metal legs
• Door hinging available on either right or left, right
side is standard
• 7' cord and plug supplied
REFRIGERATION SYSTEM
THE FOLLOWING APPLIES TO MODEL UC4048
(REFRIGERATOR) ONLY:
Refrigeration system shall use HFC-404A refrigerant.
Compressor shall be 1/5 h.p., with condenser coil and hot
gas condensate evaporator mounted on rear of cabinet.
Evaporator coil and temperature control shall be mounted
on the interior rear wall of the cabinet. Refrigerant flow
shall be controlled by a capillary tube. Cabinet shall
maintain 36°F to 40°F (2°C to 4°C) interior cabinet
temperature.
THE FOLLOWING APPLIES TO MODEL UC4148
(FREEZER) ONLY:
Refrigeration system shall use HFC-404A refrigerant.
Compressor shall be 1/3 h.p., with condenser coil and hot
gas condensate evaporator mounted on the rear of cabinet.
Evaporator coil and temperature control shall be mounted
on the interior rear wall of the cabinet. Refrigerant flow
980 S. Isabella Road Phone: 800-733-8948
Mt. Pleasant, MI 48858 Fax: 800-669-0619
www.delfield.com Email: info@delfield.com
Project __________________________
Item ____________________________
Quantity _________________________
CSI Section 11400
OPTIONS AND ACCESSORIES
Stainless steel back

Plastic laminate on front

Additional shelf

3.5" (8.9cm) diameter casters (recommended for

under counter)
5" (12.7cm) diameter caster also available

Door lock

220 volt, 50 Hertz electrical system

shall be controlled by a capillary tube. Cabinet shall
maintain -5°F to 0°F (-21°C to -18°C) interior cabinet
temperature.
Electrical connections shall be 115 volt, 60 Hertz,
single phase. Unit shall have a 7' (2.1m) long electrical
cord and NEMA 5-15P plug. Cord and plug shall be
located on rear of cabinet, 16" (40.6cm) above floor,
12" from left side.
Equipment is shipped with loose 6" (15.2cm) high
metal legs with black enamel finish unless mounting is
specified on original sales order.
Approval _________________
Date____________________
