Program Example:
When PLC runs, MTR instruction executes. The status of input points X40-X47 is read 2 times in
the driven order of output points Y40 and Y41, i.e. 16 signals will be generated and stored in
internal relay M10-M17 and M20-M27.
M1000
MTR

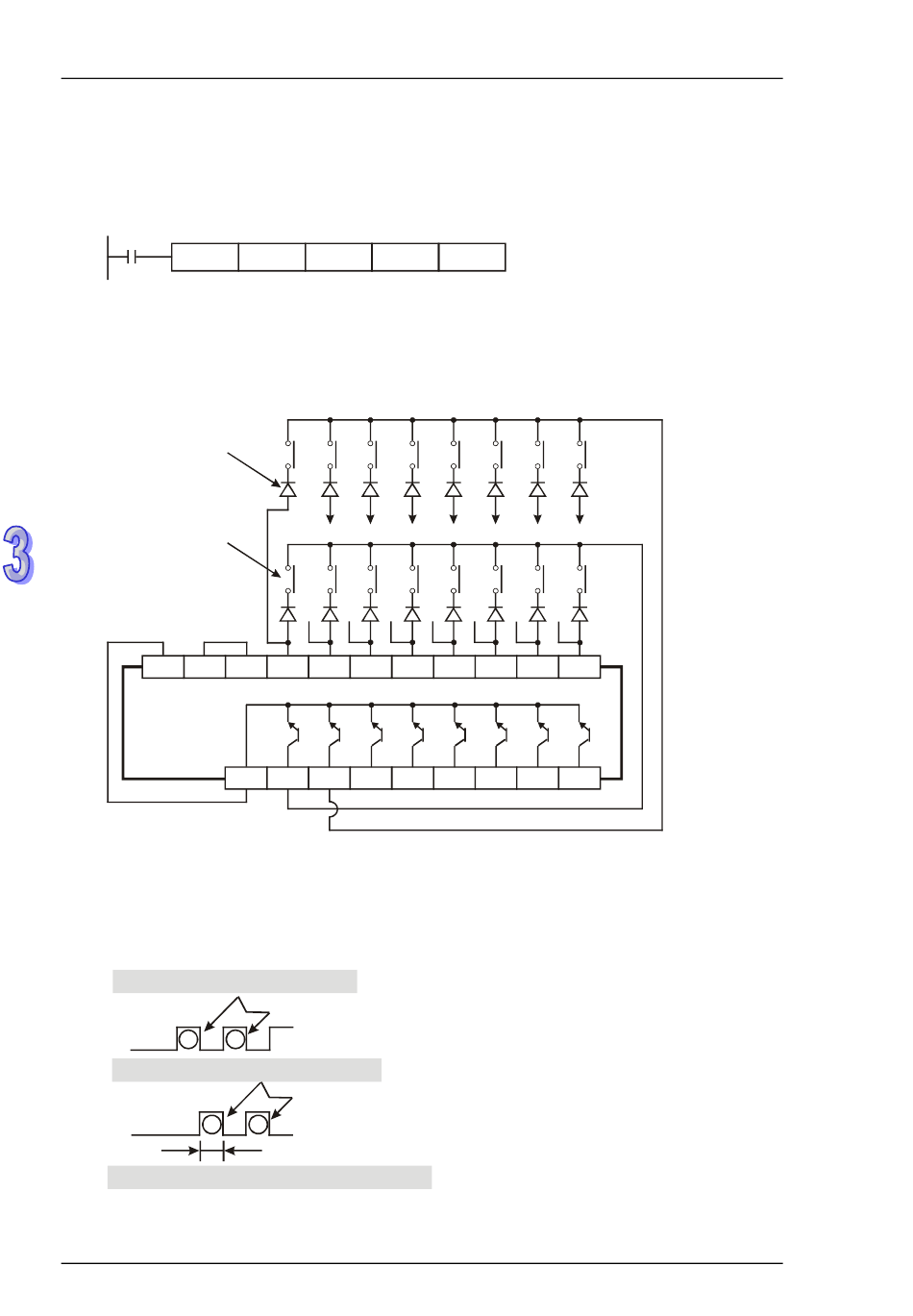

The figure below illustrates the external wiring of the 2-array matrix input loop constructed by X40
to X47 and Y40 to Y41. The 16 switches correspond to the internal relays M10 to M17, M20 to
M27. The wiring should be applied with MTR instruction.
Diode
0.1A/50V
Internal relays
24G +24V S/S
When output Y40 is ON, only inputs in the first array are read. The results are stored in auxiliary
relays M10-M17. After Y40 goes OFF, Y41 turns ON. This time only inputs in the second array are
read. The results are stored in M20-M27.
Read input signal in the 1st array
Y40
1 3
Read input signal in the 2nd array
Y41 2
Processing time of each array: approx. 25ms
3 - 1 3 2
