Summary of Contents for Chauvet Professional MAVERICK STORM 1 HYBRID

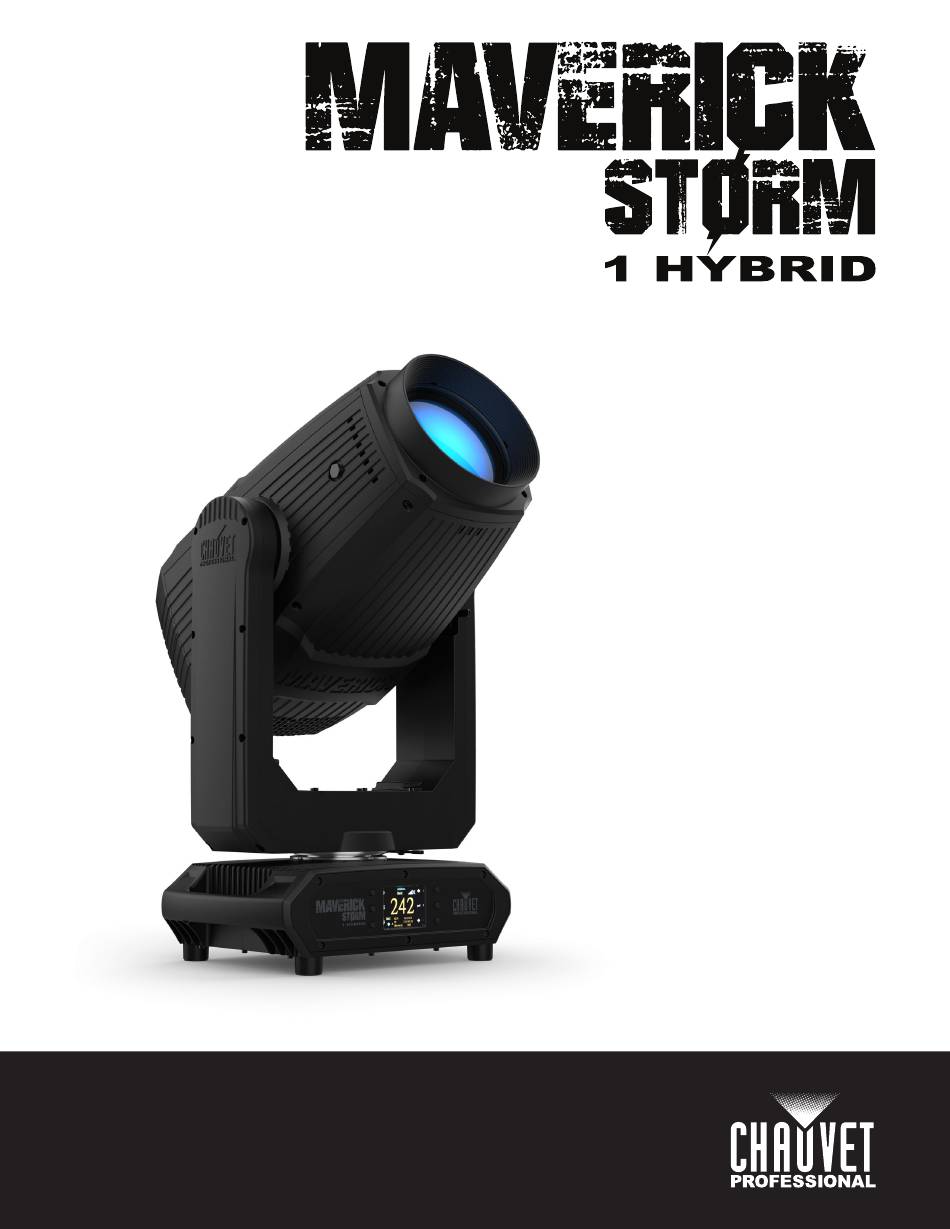

  • Page 1 User Manual Model ID: MAVERICKSTORM1HYBRID...
  • Page 2 Edition Notes The Maverick Storm 1 Hybrid User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Maverick Storm 1 Hybrid as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Maverick, and Maverick Storm are registered trademarks or trademarks of Chauvet &...
  • Page 3 Control Panel Description ................Battery Powered Display ..................12 Home Screen ....................Control Panel Lock..................Passcode ......................12 Technician Mode................... Menu Map ..................... DMX Configuration..................Control Mode...................... 17 Control Personalities ..................17 Starting Address....................17 Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 4 Offset Mode (Zero Adjust)................Web Server ....................5. Maintenance................Product Maintenance ..................Torque Measurements .................. Vacuum Test Measurements ................ Transporting on Truss or Racks..............6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 5 Any reference to data or power connections in this manual assumes the use of Seetronic IP rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 6 • In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 7 This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and the user. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 8 0.8° to 25.6° in Beam mode and 1.3° to 40.8° in Spot mode. This hybrid houses a full arsenal of features: static and rotating gobo wheels, stackable independent prisms, animation wheel and a heavy frost to shift to a distinctive wash. The Maverick Storm 1 Hybrid works with DMX, Art-Net™, sACN, RDM and Lumenradio CRMX™.
  • Page 9 10.78 in 10.78 in 274 mm 274 mm 20.59 in 523 mm 29.72 in 755 mm 21.42 in 544 mm 4.76 in 121 mm 15.27 in 9.88 in 388 mm 251 mm Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 10 3. Setup AC Power The Maverick Storm 1 Hybrid has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
  • Page 11 Setup USB Software Update The Maverick Storm 1 Hybrid allows for software updates with a USB device using the built-in USB port. To update the software using a USB flash drive, do the following: 1. Power on the product, and plug the flash drive into the USB port.
  • Page 12 When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Maverick Storm 1 Hybrid comes with 2 Omega brackets to which the user can directly attach mounting clamps (sold separately). Make sure the clamps are capable of supporting the weight of this product. Use at least two mounting points per product.
  • Page 13 DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com. DMX Linking The Maverick Storm 1 Hybrid can link to a DMX controller using a 5-pin DMX connection or a Lumenradio CRMX™ connection. For more information about DMX, read the DMX primer at: https:// www.chauvetprofessional.com/wp-content/uploads/2016/06/DMX_Primer.pdf.
  • Page 14 Setup Lamp Replacement The Maverick Storm 1 Hybrid is equipped with an OSRAM SIRIUS HRI 420 W lamp. Follow the procedure below to safely change the lamp. Disconnect the product from power before performing this procedure. Procedure 1. Turn the product off and disconnect it from power. Wait at least 15 minutes for the lamp to cool down.
  • Page 15 DO NOT touch the lamp without wearing gloves to avoid leaving grease on the bulb or on the contacts that could reduce the lamp’s life. • ALWAYS change the lamp when it has reached its recommended lifespan to avoid the risk of lamp explosion. Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 16 <RIGHT> Navigates rightwards through the menu list Battery Powered Display The Maverick Storm 1 Hybrid has a battery powered display which enables access to the menu when the product is powered off. Press and hold <MENU> until the display activates (approximately 15 seconds).
  • Page 17 Operation Menu Map Refer to the Maverick Storm 1 Hybrid product page on www.chauvetprofessional.com for the latest menu map. Main Level Programming Levels Description Address 001–512 Sets the starting address Manual Manually set IP address IP Mode DHCP Network sets IP address...
  • Page 18 Reset to factory default settings Settings Auto Test Auto test all functions Pan Fine Tilt Test Manually control and test all settings Manual Test Tilt Fine 0–255 through the control panel P/T Speed Dimmer Dimmer Fine Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 19 _ _ _w Voltage _ _ _V Shows electrical data Current _._A Gravity _ _ _ _ Shows product orientation Error _ _ _ _ _ Shows any errors, or No Error! Information Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 20 Shows all current values from input 000–255 (cont.) Information signals Gobo Rotate Fine Animation Prism1 Prism1 Rotate Prism2 Prism2 Rotate Frost1 Beam Diffraction Focus Focus Fine Focus Auto Zoom Zoom Fine Special Function Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 21 Use control configurations to operate the product with a DMX, Art-Net™, or sACN controller. Control Mode The Maverick Storm 1 Hybrid works with wired DMX, Lumenradio CRMX™, Art-Net™, and sACN control signals. To select which protocol to use: 1. Go to the Settings main level.
  • Page 22 028  029 Frost 030  031 Open 032  187 Color wheel indexing 188  219 Color scroll, fast to slow 220  223 Stop 224  255 Reverse color scroll, slow to fast Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 23 120  123 Gobo 16 shaking, slow to fast 124  127 Open 128  189 Gobo scroll, fast to slow 190  193 Stop 194  255 Reverse gobo scroll, slow to fast Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 24 190  193 Stop 194  255 Reverse prism rotation, slow to fast Frost 000  255 0–100% 000  003 No function Beam diffraction 004  255 0–100% Focus 000  255 0–100% Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 25 190  199 Zoom/focus/frost reset 200  209 All reset 210  219 Blackout on 220  229 Blackout off 230  239 Lamp off 240  255 No function Gobo Wheels Gobo 1 Gobo 2 Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 26 1. Go to the Settings main level. 2. Select the Backlight Timer option. 3. Select the length of the backlight timer, from 30S (30 seconds), 1M (1 minute), 5M (5 minutes), or ON (always on). Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 27 2. Select the Loss of Data option. 3. Select from Hold (holds last signal received) or Close (blacks out fixture). Lamp Settings To access the lamp settings of the Maverick Storm 1 Hybrid: 1. Go to the Setup main level. 2. Select the Lamp Settings option.
  • Page 28 1. Connect the Maverick Storm 1 Hybrid products to receive the Presets by a DMX daisy chain. 2. Make the Maverick Storm 1 Hybrid with the Presets to transfer the first in the DMX daisy chain. 3. Power on all of the products.
  • Page 29 3. Select NO (to cancel) or YES (to reset the product configuration). Test Mode Auto Test To have the Maverick Storm 1 Hybrid automatically test all functions one after the other: 1. Go to the Test main level. 2. Select the Auto Test option.
  • Page 30 Operation Web Server The Maverick Storm 1 Hybrid Web Server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as control setup, manual testing of all functions, firmware updates, and the ability to change the Web Server password.
  • Page 31 25.5 22.1 Allen Key screws head and arm covers 25.5 22.1 Vacuum Test Measurements Use the IP Tester from Chauvet Professional to ensure the product has been reassembled correctly by following the information below: Parameters Values Method Positive Test pressure 2.18 kPa...
  • Page 32 This is to prevent undue stress on the tilt locks and limit the amount of off-axis bounce on internal components. Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 33 5-pin IP rated XLR Neutrik IP rated RJ45 24 or 29 Ordering Product Name Item Name Item Code UPC Number Maverick Storm 1 Hybrid MAVERICKSTORM1HYBRID 08012056 781462224042 UL 1573 CSA C22.2 No. 166 E113093 Maverick Storm 1 Hybrid User Manual Rev. 6...
  • Page 34 For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Maverick Storm 1 Hybrid User Manual Rev. 6...
