Summary of Contents for Chauvet Professional ROGUE R2E SPOT
- Page 1 User Manual Model ID: ROGUER2ESPOT...
- Page 2 Edition Notes The Rogue R2E Spot User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the Rogue R2E Spot as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and Rogue R2E Spot, are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Setup Configuration ..................Pan Reverse ...................... 18 Tilt Reverse ......................18 Screen Reverse ....................18 Pan Angle......................18 Tilt Angle ......................18 Pan and Tilt Movement Blackout ............... 18 Color Movement Blackout .................. 19 Rogue R2E Spot User Manual Rev. 3... - Page 4 Reset Function ....................19 Factory Reset..................... 19 System Information ..................Offset Mode....................5. Maintenance................Product Maintenance ..................Gobo Maintenance..................Transporting on Truss or Racks..............6. Technical Specifications ............Contact Us ..................Warranty & Returns..................Rogue R2E Spot User Manual Rev. 3...
-
Page 5: Before You Begin
Important installation or configuration information. The product may not function correctly if this information is not used. Useful information. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Rogue R2E Spot User Manual Rev. 3... -
Page 6: Safety Notes
• In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. Rogue R2E Spot User Manual Rev. 3... -
Page 7: Fcc Statement Of Compliance
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Rogue R2E Spot User Manual Rev. 3... -
Page 8: Introduction

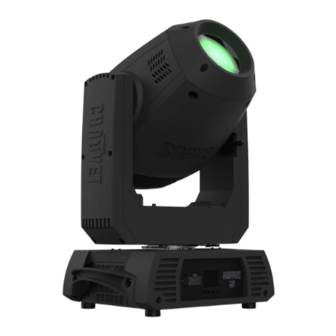

2. Introduction Description Rogue R2E Spot arrives ready for action in a rugged and lightweight body housing an intensely bright optical system and feature-packed effects wheelhouse. Dual gobo wheels combine perfectly to create complex gobo morphing. Dual color wheels offering split colors and continuous variable speed scrolling. -
Page 9: Product Overview
Introduction Product Overview Name USBC Port LCD display Menu buttons Carry handle (x2) Fans Fuse holder Power in/out 3-pin DMX in/out 5-pin DMX in/out Rogue R2E Spot User Manual Rev. 3... -
Page 10: Product Dimensions
8.7 in 204 mm 221 mm 13.0 in 330 mm 20.6 in 523 mm 11.3 in 288 mm 4.1 in 104 mm 14.0 in 356 mm 9.2 in 234 mm 14.0 in 356 mm Rogue R2E Spot User Manual Rev. 3... -
Page 11: Setup
3. Setup AC Power The Rogue R2E Spot has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 12: Usb Update
Setup USB Update The Rogue R2E Spot allows for software update through USB using the built-in USB port. To update the software using a USB type C flash drive, do the following: 1. Power on the fixture and plug the flash drive into the USB port. -
Page 13: Mounting
When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Rogue R2E Spot comes with 2 (140D) Omega brackets to which the user can directly attach the mounting clamps (sold separately). Make sure the clamps are capable of supporting the weight of this product. -
Page 14: Color Wheels
Setup Color Wheels Magnet Color Wheel 2 Color Wheel 1 Gobo Wheels Gobo Wheel 2 Gobo Wheel 1 (Static gobo wheel) (Rotating gobo wheel) Rotating Gobo Dimensions 20 mm 16 mm IMAGE Rogue R2E Spot User Manual Rev. 3... -
Page 15: Gobo Replacement
This provides a layer of protection against the high temperature from the lamp. • All custom gobos in the Rogue R2E Spot gobo wheel 1 must be aluminum or glass. Procedure Follow the recommended procedure below to remove or replace the gobos: 1. -
Page 16: Operation
Selects the 180° pan angle range Selects the 270° tilt angle range Tilt Angle Selects the 180° tilt angle range Selects the 90° tilt angle range BL. O. P/T Move Defines the pan/tilt move-in-black delay Rogue R2E Spot User Manual Rev. 3... -
Page 17: Dmx Configuration
1. Go to the Address main level. 2. Select the starting address (001–512). • The highest recommended starting address for 18CH is 494. • The highest recommended starting address for 21CH is 491. Rogue R2E Spot User Manual Rev. 3... -
Page 18: Control Channel Assignments And Values
049 055 Light Blue 056 063 Dark Yellow 064 127 Split colors 128 191 Clockwise color scroll, slow to fast 192 255 Counterclockwise color scroll, slow to fast Rogue R2E Spot User Manual Rev. 3... - Page 19 128 191 Clockwise gobo scroll, slow to fast 192 255 Counterclockwise gobo scroll, slow to fast Focus 000 255 Far to near 000 004 No function Prism 005 255 Prism Rogue R2E Spot User Manual Rev. 3...
- Page 20 224 231 Movement macro 28 232 239 Movement macro 29 240 247 Movement macro 30 248 255 Movement macro 31 – Movement macro speed 000 255 Fast to slow Rogue R2E Spot User Manual Rev. 3...
- Page 21 160 167 Iris reset 168 175 Frost reset 176 191 No function 192 199 Fan ECO 200 207 Fan full 208 215 Fan auto 216 255 No function Rogue R2E Spot User Manual Rev. 3...
-
Page 22: Test Mode
Operation Test Mode Auto Test To have the Rogue R2E Spot automatically test all functions one after the other: 1. Go to the Run Mode main level. 2. Select the Auto Test option. The Auto Test will end after one full cycle. Press <MENU> at any time to stop. -
Page 23: Color Movement Blackout
To reset the product to original factory settings: 1. Go to the Setup main level. 2. Select the Factory Reset option. 3. Select NO (to cancel) or YES (to reset the product configuration). Rogue R2E Spot User Manual Rev. 3... -
Page 24: System Information
3. Select the “zero” position to adjust, from PAN, TILT, GOBO, GOBO ROT, GOBO2, COLOR1, COLOR2, PRISM, FOCUS, FOCUS-IRIS, IRIS, FROST, DIMMER, MAC4, MAC5, or MAC6. 4. Adjust the “zero” position for the selected function from 000–255. Rogue R2E Spot User Manual Rev. 3... -
Page 25: Maintenance
(needle tip applier recommended). Make sure the gobo holder is rotating freely and is not making any abnormal noise. 8. Reinstall the gobos in the gobo holder. Make sure the gobos are in the correct positions. 9. Reinstall the gobo holder in the unit Rogue R2E Spot User Manual Rev. 3... -
Page 26: Transporting On Truss Or Racks
This is to prevent undue stress on the tilt locks and limit the amount of off-axis bounce on internal components. Rogue R2E Spot User Manual Rev. 3... -
Page 27: Technical Specifications
I/O Connector Channel Range 3-pin & 5-pin XLR 18 or 21 Ordering Product Name Item Name Item Code UPC Number Rogue R2E Spot ROGUER2ESPOT 08012215 781462225636 UL 1573 CSA C22.2 No. 166 E113093 Rogue R2E Spot User Manual Rev. 3... -
Page 28: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Rogue R2E Spot User Manual Rev. 3...
