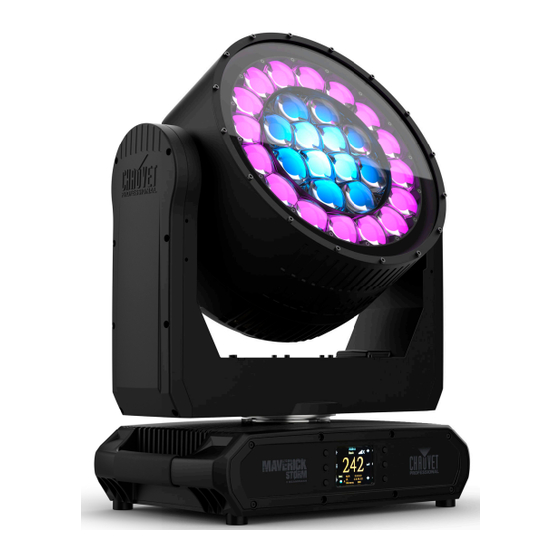

Chauvet Professional Maverick Storm 3 Beam Wash User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Model ID: MAVERICKSTORM3BEAMWASH

Advertisement

Table of Contents
loading

Related Manuals for Chauvet Professional Maverick Storm 3 Beam Wash

Summary of Contents for Chauvet Professional Maverick Storm 3 Beam Wash

  • Page 1 User Manual Model ID: MAVERICKSTORM3BEAMWASH...
  • Page 2 Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Maverick, and Maverick Storm 3 BeamWash are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

  • Page 3: Table Of Contents

    Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... Claims ......................Text Conventions ..................Symbols ......................Safety Notes....................FCC Statement of Compliance ..............RF Exposure Warning for North America and Australia........ Expected LED Lifespan................. 2.
  • Page 4 Table of Contents Single Control Values..................18 Single Control Values..................20 Dual Control Movement Values ................. 28 Dual Control Pixels Values................. 29 Color Chart......................34 Strobe Chart....................... 34 Control Chart...................... 35 Configuration....................Pan Reverse ...................... 36 Tilt Reverse ......................36 Zoom Reverse....................

  • Page 5: Before You Begin

    Before You Begin 1. Before You Begin What Is Included • Maverick Storm 3 BeamWash • (2) 140 D Omega brackets with mounting hardware • Seetronic Powerkon IP65 power cable to bare wire • Quick Reference Guide Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.

  • Page 6: Safety Notes

    Before You Begin Safety Notes Read all the following safety notes before working with this product. These notes contain important information about the installation, usage, and maintenance of this product. This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians.

  • Page 7: Fcc Statement Of Compliance

    Before You Begin FCC Statement of Compliance This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

  • Page 8: Introduction

    Introduction 2. Introduction Description Maverick Storm 3 BeamWash creates new possibilities with two zones of zoom control. Both zones independently zoom from 4.6° to 53.6° allowing for beam and wash combinations from a single fixture. A 16-lens outer zone and 12-lens inner zone combine to deliver a massive 19,062 lumens of output from 28x45W RGBW LEDs.

  • Page 9: Product Dimensions

    Introduction Product Dimensions 22.4 in 568 mm 19 in 482 mm 10 in 254 mm 15.9 in 404 mm 20.8 in 527 mm 4.6 in 117 mm 18.3 in 465 mm 14.8 in 375 mm 11.9 in 303 mm Maverick Storm 3 BeamWash User Manual Rev. 2...

  • Page 10: Setup

    Setup 3. Setup AC Power The Maverick Storm 3 BeamWash has an auto-ranging power supply, and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.

  • Page 11: Signal Connections

    Setup Signal Connections The Maverick Storm 3 BeamWash can receive a DMX, Art-Net™, or sACN, signal. The Maverick Storm 3 BeamWash has two Amphenol XLRnet through ports and 5-pin DMX in and out ports. If using other compatible products with this product, it is possible to control each individually with a single controller.

  • Page 12: Connection Diagram

    Setup Connection Diagram Switch or Router Computer/ Controller (running Art-Net™ or sACN protocol) Maverick Storm 3 BeamWash To other Art-Net™ or sACN devices USB Software Update The Maverick Storm 3 BeamWash allows for software updates with a USB device using the built-in USB port.

  • Page 13: Operation

    Operation 4. Operation Control Panel Description Button Name Function <UP> Navigates upwards through the menu list or increases the value when in a function <MENU> Exits from the current menu or function <DOWN> Navigates downwards through the menu list or decreases the value when in a function <LEFT>...

  • Page 14: Menu Map

    Operation Menu Map Refer to the Maverick Storm 3 BeamWash product page on www.chauvetprofessional.com for the latest menu map. Programming Levels Description Control Settings Control Settings Main Level Basic Standard Advanced Sets the DMX personality: Personality Tour (see Control Personalities) Basic 2 Standard2 Advanced2...
  • Page 15 Operation Programming Levels Description Basic Sets the DMX personality: (see Personality Standard Control Personalities) Advanced Start Address 1–512 Sets the DMX starting address Basic Sets the Art-Net™ personality: Personality Standard (see Control Personalities) ArtNet Advanced Movement Start Address 1–512 Sets the Art-Net™ starting address Universe 0–255 Sets the Art-Net™...
  • Page 16 Operation Main Level Programming Levels Description Auto Test Auto test all functions Tilt P/T Speed Green Blue White Color Test Mode Pattern Manual Test Manually control and test all 000–255 LED Macro settings through the control panel LED Ma. Speed LED Ma.
  • Page 17 Operation Main Level Programming Levels Description Display turns off after 30 seconds Display turns off after 1 minute Backlight Timer Display turns off after 5 minutes Display stays on Hold Holds last signal received Loss of Data Close Blacks out fixture Fan speed according to product Auto temperature...
  • Page 18 Operation Main Level Programming Levels Description V_._ _ _ _ _ _ Shows firmware version Running Mode _ _ _ Shows current running mode Address _ _ _ Shows current starting address Shows current product Temperature _ _ _ temperature in °C Fixture Shows number of hours product Fixture Hours...
  • Page 19 Operation Main Level Programming Levels Description Frequency Pan Fine Tilt Tilt Fine P/T Speed Color Pattern LED Macro LED Ma. Speed LED Ma. Fade Background Background Dim. Big. Dim. Fine Dimmer Dimmer Fine Bg. Dim. Fine Dimmer Dimmer Fine Shutter Zoom1 Zoom2 Sys Info...

  • Page 20: Configuration

    Operation Configuration Use control configurations to operate the product with a DMX, WDMX, Art-Net™, Kling-Net, and sACN control signals. Control Mode The Maverick Storm 3 BeamWash works with wired DMX, WDMX, Art-Net™, Kling-Net, and sACN control signals. To select which single control protocol to use: 1.

  • Page 21: Starting Address

    Operation Starting Address Each product will respond to a unique starting address from the controller. All products with the same starting address will respond in unison. To set the starting address in Single Control mode: 1. Go to the Address Setting level. 2.

  • Page 22: Control Channel Assignments And Values

    Operation Control Channel Assignments and Values Pixel Chart 17 18 25 26 28 27 Single Control Values B: Basic (22 channels), B2: Basic 2 (27 channels), S2: Standard2 (41 channels) B B2 S2 Function Value Percent/Setting 1 Pan 000  255 0–100% 2 Pan fine 000 ...
  • Page 23 Operation B B2 S2 Function Value Percent/Setting Background dimmer 13 13 16 000  255 0–100% (inner plate) Background dimmer fine – – – 000  255 0–100% (inner plate) 14 14 17 Dimmer (ring) 000  255 0–100% – 15 18 Dimmer fine (ring) 000 ...

  • Page 24: Single Control Values

    Operation Single Control Values S: Standard (134 channels), A: Advanced (252 channels), T: Tour (308 channels), A2: Advanced2 (323 channels) A2 Function Value Percent/Setting 1 Pan 000  255 0–100% 2 Pan fine 000  255 0–100% 3 Tilt 000  255 0–100% 4 Tilt fine 000 ...
  • Page 25 Operation A2 Function Value Percent/Setting 24 24 34 Green fine (ring) 000  255 0–100% – 24 24 35 Green fine (inner plate) 000  255 0–100% 25 25 36 Blue (ring) 000  255 0–100% 25 25 37 Blue (inner plate) 000 ...
  • Page 26 Operation A2 Function Value Percent/Setting 37 57 65 80 Blue 4 000  255 0–100% – 58 66 81 Blue fine 4 000  255 0–100% 38 59 67 82 White 4 000  255 0–100% – 60 68 83 White fine 4 000 ...
  • Page 27 Operation A2 Function Value Percent/Setting 55 93 111 126 Red 9 000  255 0–100% – 94 112 127 Red fine 9 000  255 0–100% 56 95 113 128 Green 9 000  255 0–100% – 96 114 129 Green fine 9 000 ...
  • Page 28 Operation A2 Function Value Percent/Setting 74 131 157 172 White 13 000  255 0–100% – 132 158 173 White fine 13 000  255 0–100% – – 159 174 Dimmer 14 000  255 0–100% – – 160 175 Dimmer fine 14 000 ...
  • Page 29 Operation A2 Function Value Percent/Setting 92 167 203 218 Green 18 000  255 0–100% – 168 204 219 Green fine 18 000  255 0–100% 93 169 205 220 Blue 18 000  255 0–100% – 170 206 221 Blue fine 18 000 ...
  • Page 30 Operation A2 Function Value Percent/Setting – – 249 264 Dimmer 23 000  255 0–100% – – 250 265 Dimmer fine 23 000  255 0–100% 111 205 251 266 Red 23 000  255 0–100% – 206 252 267 Red fine 23 000 ...
  • Page 31 Operation A2 Function Value Percent/Setting 129 241 295 310 Blue 27 000  255 0–100% – 242 296 311 Blue fine 27 000  255 0–100% 130 243 297 312 White 27 000  255 0–100% – 244 298 313 White fine 27 000 ...

  • Page 32: Dual Control Movement Values

    Operation Dual Control Movement Values B: Basic (10 channels), S: Standard (22 channels), A: Advanced (28 channels) Function Value Percent/Setting 000  255 0–100% Pan fine 000  255 0–100% Tilt 000  255 0–100% Tilt fine 000  255 0–100% Pan/tilt speed 000 ...

  • Page 33: Dual Control Pixels Values

    Operation Dual Control Pixels Values B: Basic (84 channels), S: Standard (112 channels), A: Advanced (224 channels) Function Value Percent/Setting Red 1 000  255 0–100% – – Red fine 1 000  255 0–100% Green 1 000  255 0–100% –...
  • Page 34 Operation Function Value Percent/Setting 45 Blue 6 000  255 0–100% – – 46 Blue fine 6 000  255 0–100% – 47 White 6 000  255 0–100% – – 48 White fine 6 000  255 0–100% 49 Red 7 000 ...
  • Page 35 Operation Function Value Percent/Setting 91 Green 12 000  255 0–100% – – 92 Green fine 12 000  255 0–100% 93 Blue 12 000  255 0–100% – – 94 Blue fine 12 000  255 0–100% – 95 White 12 000 ...
  • Page 36 Operation Function Value Percent/Setting 137 Red 18 000  255 0–100% – – 138 Red fine 18 000  255 0–100% 139 Green 18 000  255 0–100% – – 140 Green fine 18 000  255 0–100% 141 Blue 18 000 ...
  • Page 37 Operation Function Value Percent/Setting – 183 White 23 000  255 0–100% – – 184 White fine 23 000  255 0–100% 185 Red 24 000  255 0–100% – – 186 Red fine 24 000  255 0–100% 187 Green 24 000 ...

  • Page 38: Color Chart

    Operation Color Chart DMX Value Function Red Value Green Value Blue Value White Value No function 001  002 2700K R: 255 G: 175 B: 0 W: 50 003  004 3200K R: 243 G: 211 B: 0 W: 55 005 ...

  • Page 39: Control Chart

    Operation Control Chart DMX Value Function DMX Value Function 000  009 No function 115  119 Reserved for future use 010  014 Blackout on pan/tilt 120  124 Fan mode ECO 015  019 Reserved for future use 125 ...

  • Page 40: Configuration

    Operation Configuration Pan Reverse To set the orientation of the pan: 1. Go to the Setup main level. 2. Select the Pan Reverse option. 3. Select from NO (normal pan motion), or YES (reversed pan motion). Tilt Reverse To set the orientation of the tilt: 1.

  • Page 41: Display Backlight Timer

    Operation Display Backlight Timer To set how long before an inactive display will turn off: 1. Go to the Setup main level. 2. Select the Backlight Timer option. 3. Select the length of the backlight timer, from 30S (30 seconds), 1M (1 minute), 5M (5 minutes), or ON (always on).

  • Page 42: White Balance

    Operation White Balance To set the custom white balance: 1. Go to the Setup main level. 2. Select the White Balance option. 3. Select from Red, Green, Blue, or White. 4. Select a value from 000–255. Merge Channel To merge the zoom functions: 1.

  • Page 43: Factory Reset

    Operation Factory Reset To reset the product to factory settings: 1. Go to the Settings main level. 2. Select the Factory Settings option. 3. Select NO (to cancel) or YES (to reset the product configuration). Test Mode Auto Test To have the Maverick Storm 3 BeamWash automatically test all functions one after the other: 1.

  • Page 44: Web Server

    Operation Web Server The Maverick Storm 3 BeamWash Web Server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as control setup, manual testing of all functions, firmware updates, and the ability to change the Web Server password. 1.

  • Page 45: Maintenance

    Allen Key screws next to heat pipes on the back: 20.3 Kgf.cm, 17.7 lgb.in • Allen Key screws head covers: 25.5 Kgf.cm, 22.1 lgb.in Vacuum Test Measurements Use the Chauvet Professional IP Tester to ensure that the product has been reassembled correctly following the information below: • Method: Positive •...

  • Page 46: Technical Specifications

    Technical Specifications 6. Technical Specifications Dimensions and Weight Length Width Height Weight 18.98 in (482 mm) 11.93 in (303 mm) 23.74 in (603 mm) 82.45 lb (37.4 kg) Note: Dimensions in inches are rounded. Power Power Supply Type Range Voltage Selection Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging...

  • Page 47: Contact Us

    Contact Us Contact Us General Information Technical Support Chauvet World Headquarters Address: 3360 Davie Rd. Voice: (844) 393-7575 Davie, FL 33314 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com Chauvet U.K. Address: Pod 1 EVO Park Email: UKtech@chauvetlighting.eu...
