Deye SUN-3K-G06P3-EU-AM2-P1 User Manual

Grid-connected pv inverter

Hide thumbs

page of 66

/ 66
Bookmarks

Quick Links

Download this manual

Grid-connected PV Inverter

SUN-3K-G06P3-EU-AM2-P1

SUN-5K-G06P3-EU-AM2-P1

SUN-7K-G06P3-EU-AM2-P1

SUN-9K-G06P3-EU-AM2-P1

SUN-12K-G06P3-EU-AM2-P1

User Manual

SUN-10K-G06P3-EU-AM2-P1

SUN-4K-G06P3-EU-AM2-P1

SUN-6K-G06P3-EU-AM2-P1

SUN-8K-G06P3-EU-AM2-P1

Need help?

Do you have a question about the SUN-3K-G06P3-EU-AM2-P1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Deye SUN-3K-G06P3-EU-AM2-P1

Page 1 Grid-connected PV Inverter SUN-3K-G06P3-EU-AM2-P1 SUN-4K-G06P3-EU-AM2-P1 SUN-5K-G06P3-EU-AM2-P1 SUN-6K-G06P3-EU-AM2-P1 SUN-7K-G06P3-EU-AM2-P1 SUN-8K-G06P3-EU-AM2-P1 SUN-9K-G06P3-EU-AM2-P1 SUN-10K-G06P3-EU-AM2-P1 SUN-12K-G06P3-EU-AM2-P1 User Manual...
Page 2 Contents �. Introduction �� - 2 - 1.1 Appearance Introduction �� - 2 - 1.2 Labels description �� - 3 - 1.3 Parts list �� - 3 - 1.4 Product handling requirements �� - 4 - �. Safety warnings and instructions ��...
Page 3 �. Zero-export function via energy meter �� - 21 - 7.1 Multiple strings and parallel connection meters �� - 30 - 7.2 Use of zero-export function �� - 40 - 7.3 Notes while using zero export function �� - 41 - 7.4 How to browse the load power of your PV grid-tieplant on monitoring platform? - 41 - �.
Page 4 Documents must be stored carefully and be available at all times. Contents may be periodically updated or revised due to product development. The information in this manual is subject to change without notice.The latest manual can be acquired via service@deye.com.cn Photovoltaic Grid-connected System...
Page 5 �. Introduction �.� Appearance Introduction On-grid Inverter can convert solar panel DC power into AC power which can directly input to the grid. Its appearance is shown below.These models contain SUN-3K-G06P3-EU-AM2-P1，SUN-4K-G06P3- EU-AM2-P1, SUN-5K-G06P3-EU-AM2-P1, SUN-6K-G06P3-EU-AM2-P1, SUN-7K-G06P3-EU-AM2-P1, SUN-8K-G06P3-EU-AM2-P1, SUN-9K-G06P3-EU-AM2-P1, SUN-10K-G06P3-EU-AM2-P1, SUN-12K- G06P3-EU-AM2-P1.
Page 6 �.� Parts list Please check the following table, to see whether all the parts are included in the package： Mounting stainless steel screws M4×12 Grid-tied PV String Inverter Wall mounting bracket x1 DC+/DC- Plug connectors Stainless steel anti-collision including metal terminal bolt M6×60 AC power connectors x1 Three-Phase Smart Meter...
Page 7 �.� Product handling requirements Lift the inverter out of the packing box and transport it to designated installation location. transport CAUTION: Improper handling may cause personal injury! • Arrange an appropriate number of personnel to carry the inverter according to its weight, and installation personnel should wear protective equipment such as anti-impact shoes and gloves.
Page 8 �.� Safety instructions Warning: Electrical installation of the inverter must conform to the safety operation rules of the country or local area. Warning: Inverter adopts non-isolated topology structure, hence must insure DC input and AC output are electrical isolated before operating the inverter. Shock Hazard: Prohibit disassembling inverter case, there existing shock hazard, which may cause serious injury or death, please ask qualiﬁed person to repair.

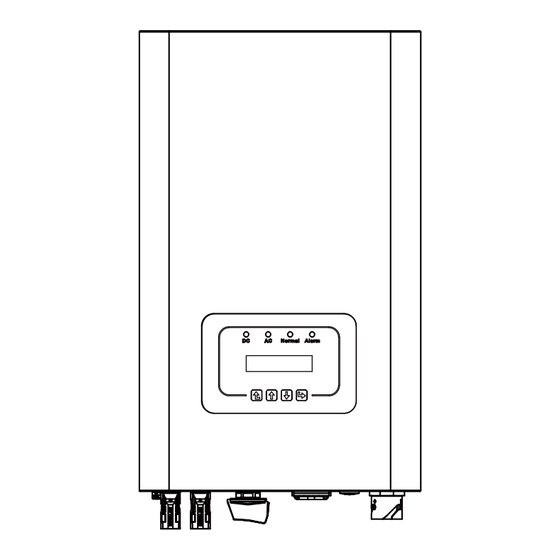

Page 9 �. Operation Interface �.� Interface View Normal Alarm Pic 3.1 Front panel display �.� Status Indicator There are four LED status indicator lights in the front panel of the inverter. Please see table 3.1 for details. Indicator status Explanation Inverter detects DC input oﬀ...
Page 10 �.� LCD Display The two-line Liquid Crystal Display (LCD) is located on the front panel of the Inverter, which shows the following information: Inverter operation status and data; ● Service messages for operator; ● Alarm messages and fault indications. ● �.
Page 11 Install on a wall or strong structure capable of bearing the weight. ● Install vertically with a maximum incline of +15°. If the mounted inverter is tilted to an angle ● greater than the maximum noted, heat dissipation can be inhibited, and may result in less than expected output power.
Page 12 ≥500mm ≥500mm Pic 4.3 Installation Gap �.� Installations Tools Installation tools can refer to the following recommended ones. Also, use other auxiliary tools on site. table 4-1 Tool speciﬁcation Protective goggles Earplugs Anti-dust mask Work gloves Work shoes Utlity Knife Slotted screwdriver Cross screwdriver Percussion drill...
Page 13 �.� Inverter Installation The inverter is designed according to the wall mounted type installation, please use the wall mounted (the brick wall of the expansion bolt) when installing. Anchoring Mounting bracket Stainless steel screws Inverter Pic 4.4 Inverter Installation - 10 -...
Page 14 Procedure shows below: 1. Locate on the appropriate wall according to the bolt position on the mounting bracket, then mark the hole.On the brick wall, the installation must be suitable for the expansion bolt installation. Pic 4.5 Inverter hanging plate installation 2.
Page 15 5 Electrical Connec�on �.� PV Module Selection: When selecting proper PV modules, please be sure to consider below parameters: 1) Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter. 2) Open circuit Voltage (Voc) of PV modules should be higher than min. start voltage. 3) The PV modules used to connected to this inverter shall be Class A rating certiﬁed according to lEC 61730.
Page 16 Safety Hint: Please use approved DC cable for PV system. Cross section（mm ） Cable type Range Recommended value Industry generic PV cable 2.5-4.0 2.5(12AWG) (model: PV1-F) (12-10AWG) Table 5.1 DC Cable Speciﬁcations The steps to assemble the DC connectors are listed as follows: a) Strip oﬀ...
Page 17 Max. DC input current should be 20A. if exceeds, it may damage the inverter and it is not covered by Deye warranty. �.� AC input terminal connection Do not close the DC switch after the DC terminal is connected.Connect the AC terminal to the AC side of the inverter, the AC side is equipped with Three phase AC terminals that can be conveniently connected.
Page 18 Model Cable CSA Cable outer dia Breaker Max cable length 2-3mm 20A/400V 0.75mm² SUN-3K-G06P3-EU-AM2-P1 SUN-4/5/6K-G06P3- 20A/400V 3-4mm 1.0mm² EU-AM2-P1 Outside cable 20A/400V 3-4mm 1.25mm² (3L+N+PE)20m SUN-7K-G06P3-EU-AM2-P1 SUN-8/9K-G06P3- 3.5-4.5mm 20A/400V 1.5mm² EU-AM2-P1 SUN-10/12K-G06P3- 4-5mm 30A/400V 2.5mm² EU-AM2-P1 Table 5.2 Cable information The AC output connector is divided into three parts: matching socket, sleeve and sealingsleeve, as shown in picture 5.7, the steps are as follows:...
Page 19 Step 4: Use the hexagon screwdriver, loosen the bolts of the socket in turn, and insert each cable core into the corresponding jack, and set each screw. The connection hole of AC connection terminal labeling is shown in Picture 5.9. Pic 5.9 AC Connector Hole Pattern Step 5: Set the sleeve and sealing ring in place.
Page 20 Pic 5.11The installation of the shell ground wire Wire Size Cable(mm Model Torque value(max) � 0.75mm 8.5Nm SUN-3K-G06P3-EU-AM2-P1 18AWG 1.0mm 8.5Nm SUN-4/5/6K-G06P3-EU-AM2-P1 16AWG 1.25mm 16AWG 8.5Nm SUN-7K-G06P3-EU-AM2-P1 14AWG 1.5mm...
Page 21 �.� Max. over current protection device In order to protect the inverter AC connection, it is recommended to install a circuit breaker to prevent overcurrent. See table 5.3 below. Rated output Rated output Current for protection Inverter voltage(V) current(A) device(A) SUN-3K-G06P3-EU-AM2 220/230 4.6/4.4A...
Page 22 �.� Installation of datalogger When installing the WiFi stick, tear oﬀ the sealing strip on the inverter. Insert the datalogger into the interface and ﬁx it with a screw. The conﬁguration of the datalogger needs to be performed after various electrical connections have been completed and the inverter DC power on.
Page 23 �.� Start up the inverter When starting up the three phase string inverter, should fellow steps below： 1. Starting switch on the AC breaker. 2. Turn on the DC switch of the photovoltaic module, and if the panel provides suﬃcient starting voltage and power, the inverter will start.
Page 24 7. Zero-export func�on via energy meter There're two kinds of energy meters for this series inverter. First type is Eastron SDM630-Mod- bus V2 which is able to measure the Max. 100A current directly. More details please refer to Pic 7.1 & 7.2. For the Eastron SDM630 MCT 40mA, it needs external CT to measure the current. The CT power range is from 5A-2000A.
Page 25 � � � � � � � � L� L� L� Eastron L� L� L� Gird Load (�,�,�,�) (�,�,�,�) B A G RS �� RS 485 B RS 485 A Eastron SDM630-Modbus V2 Inverter Solar Panel array AC Breaker RS 485 Male...
Page 26 � � � � � � � � L� L� L� Eastron L� L� L� Gird Load (�,�,�,�) (�,�,�,�) B A G RS �� RS 485 B RS 485 A Eastron SDM630-Modbus V2 Inverter Solar Panel array AC Breaker RS 485 Male...
Page 27 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 Eastron 15 16 17 18 19 20 1 2 3 4 Grid voltage Auxiliary Current inputs sampling power supply ��...
Page 28 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 Eastron 15 16 17 18 19 20 1 2 3 4 Grid voltage Auxiliary Current inputs sampling power supply ��...
Page 29 � � � � � � �� L� Grid Load L� Three-Phase Smart Meter (�,�,�,��) (�,�,�,��) L� �� RS �� CHNT DTSU666 Pic 7.9 CHNT meter Inverter Solar Panel array AC Breaker RS 485 Male connector Family load L1 L2 L3 N VCC_5V ��_B RS ��...
Page 30 � � � � � � �� L� Grid Load L� (�,�,�,��) Three-Phase Smart Meter (�,�,�,��) L� �� RS �� CHNT DTSU666 Pic 7.11 CHNT meter Inverter Solar Panel array AC Breaker RS 485 Male connector Family load L1 L2 L3 N VCC_5V ��_B RS ��...
Page 31 � � � �� L� L� Three-Phase Smart Meter L� 230/400V, 3~100A/40mA 50/60Hz �� Phase A current =5.000A 13 14 16 17 19 21 RS�� Phase B current =5.001A CHNT DTSU666 3x230/400V 100A/40mA Pic 7.13 CHNT meter Phase C current =5.002A Inverter...
Page 32 � � � �� L� L� Three-Phase Smart Meter L� 230/400V, 3~100A/40mA 50/60Hz �� Phase A current =5.000A 13 14 16 17 19 21 RS�� Phase B current =5.001A CHNT DTSU666 3x230/400V 100A/40mA Pic 7.15 CHNT meter Phase C current =5.002A Inverter...
Page 33 �.� Multiple strings and parallel connection meters This application is that when the string inverters work in parallel, there is only one power grid and one load, and only one meter can be connected to prevent reverse current, so only this many-to-one anti-reverse current connection can be connected.
Page 34 Name Description Range AVG: Average power of three phase is zero exported. MIN: Phase with minimum load power is zero Exp_Mode AVG/MIN exported, while the other two phase may be in purchase mode. CT ratio of power grid side meter when extern CT is CT_Ratio 1-1000 applied.
Page 35 � � � � � � � � L� L� L� Eastron L� L� L� Gird Load (�,�,�,�) (�,�,�,�) B A G RS �� RS 485 B RS 485 A Eastron SDM630-Modbus V2 Master(Mst) Grid L1 L2 L3 N RS��...
Page 36 � � � � � � � � L� L� L� Eastron L� L� L� Gird Load (�,�,�,�) (�,�,�,�) B A G RS �� RS 485 B RS 485 A Eastron SDM630-Modbus V2 Generator Master(Mst) L1 L2 L3 N RS��...
Page 37 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 Eastron 1 2 3 4 15 16 17 18 19 20 Grid voltage Auxiliary Current inputs sampling power supply ��...
Page 38 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 Eastron 1 2 3 4 15 16 17 18 19 20 Grid voltage Auxiliary Current inputs sampling power supply ��...
Page 39 � � � � � � �� L� Grid Load L� Three-Phase Smart Meter (�,�,�,��) (�,�,�,��) L� �� RS �� CHNT DTSU666 Pic 7.26 CHNT meter Master(Mst) AC Breaker Solar Panel array Slave1(Slv1) AC Breaker Slave2(Slv2) Solar Panel array AC Breaker Solar Panel array AC Breaker...
Page 40 � � � � � � �� L� Grid Load L� Three-Phase Smart Meter (�,�,�,��) (�,�,�,��) L� �� RS �� CHNT DTSU666 Pic 7.28 CHNT meter Master(Mst) AC Breaker Solar Panel array Slave1(Slv1) AC Breaker Slave2(Slv2) Solar Panel array AC Breaker Solar Panel array AC Breaker...
Page 41 � � � �� L� L� Three-Phase Smart Meter L� 230/400V, 3~100A/40mA 50/60Hz �� Phase A current =5.000A 13 14 16 17 19 21 RS�� Phase B current =5.001A CHNT DTSU666 3x230/400V Phase C current =5.002A 100A/40mA Pic 7.30 CHINT meter Master(Mst)
Page 42 � � � �� L� L� Three-Phase Smart Meter L� 230/400V, 3~100A/40mA 50/60Hz �� Phase A current =5.000A 13 14 16 17 19 21 RS�� Phase B current =5.001A CHNT DTSU666 3x230/400V Phase C current =5.002A 100A/40mA Pic 7.32 CHINT meter Master(Mst)
Page 43 �.� Use of zero-export function When the connection is completed, the following steps should be refered to use this function: 1. Turn on the AC switch. 2. Turn on the DC switch, waiting for the inverter's LCD is turned on. 3.
Page 44 �.� Notes while using zero export function For your safety and the operation of limiter function of the inverter, we put forward the following suggestions and precautions: Safety Hint: Under zero export mode we strongly recommend that the two PV arrays are formed by the same number of PV panels of the same size, which will make the inverter more responsive to limit the power.
Page 45 And then choose your system type as “Self-consumption” Edit Plant Cancel Done Address : Basic Info YongJiang Road, Beilum,NingBo, ��, China System Info Yield Info Coordinates : Owner Info Longitude �� .�� Latitude �� .�� ” ” Time Zone : Creation Time : ��/��/��...
Page 46 8. General Opera�on During normal operation, the LCD shows the current status of the inverter, including the current power, total generation, a bar chart of power operation and inverter ID,etc. Press the Up key and the Down key to see the current DC voltage, DC current, AC voltage, AC current,inverter radiator temperature,software version number and Wiﬁ...
Page 47 Ac�veP Q-Mode VRated Q(%) ReactP Exp_Mode Fun- ISO CT_Ra�o 0 Fun RCD FeedIn SelfCheck Shunt ShuntQTY Island Generator Meter G.CT Setup G.MFR Limiter G.FeedIn Running param G.Pout Feed-in V1-V12 G.Cap DC1-Wind OFF/ON MPPT Num DC2-Wind OFF/ON WindTurbine Cancel OF-Derate UF-Uprate WGRa WGraStr LVRT...
Page 48 *Note: These parameters will be avaiable after the meter is Brazil connected successfully. Otherwise, it won't show. EN50549-1-PL EN50549-1 Attention: For running param detail on the LCD display, please IEC61727 refer to the oﬃcial Deye website https://www.deyeinverter.com CUSTOM VDE_4105 VDE_0126 Spain CEI_0-21 G98_G99...
Page 49 �.� The initial interface From the initial interface, you can check PV power, PV voltage, grid voltage, inverter ID, model and other infomation. Power: Power: State: Standby State: Com.Error Pic 8.2 The initial interface Press UP or Down, you can check inverter DC voltage, DC current, AC voltage, AC current and inverter temperature.
Page 50 ImpEp: Daily energy purchased from grid; Total: Total energy purchased from grid. ImpEp: 0.00KWh Total : 0.00KWh Pic 8.11 Electrical energy ExpEp: Daily energy sold to grid; Total: Total energy sold to grid. ExpEp: 0.00KWh Total : 0.00KWh Pic 8.12 Electrical energy �.�...
Page 51 �.�.� ON/OFF setting ON / OFF << Turn ON << Setup Turn OFF Turn ON Turn OFF << Cancel << Cancel Pic 8.15 ON/OFF setting When the inverter is turned oﬀ, it stops working immediately, and go to standby mode and then will go to self-test program again.
Page 52 �.� System param setting System Param includes time set, language set, display set and factory reset. Time Set << Display Set Language Set Factory Reset << Factory Reset Set Restore << Pic 8.17 System Param 20200522 OK English << Polski 08:11:21 Cancel Pic 8.18 Time Bright Delay...
Page 53 �.� Protect Param setting Warning: Engineer Only. We will set the param depends on the safety requirements, so customers don't need to reset it. The password is same as 8.4 Running param PassWord GridStanderd << Advanced Back << Pic 8.24 Password Braszil EN50549-1 EN50549-1-PL <<...
Page 54 OverVolt OverVolt Point 240.0V << Delay 1000ms << OverVolt OverVolt Point 240.0V << Delay 1000ms << OverVolt OverVolt Point 240.0V << Delay 1000ms << UnderVolt UnderVolt Point 235.0V << Delay 1000ms << UnderVolt UnderVolt Point 235.0V << Delay 1000ms << UnderVolt UnderVolt Point...
Page 55 UnderFreq Lv2 UnderFreq Lv2 Point 48.00Hz << Delay 1000ms << UnderFreq Lv3 UnderFreq Lv3 Point 48.00Hz << Delay 1000ms << Reconnection Reconnection 0.0V << Vdown 0.0V << Reconnection Reconnection 0.00Hz << Fdown 0.00Hz << OV 10 Minutes 10 Minutes Enable OFF <<...
Page 56 9. Repair and Maintenance String type inverter doesn’t need regular maintenance. However,debris or dust will aﬀect heat sink’s thermal performance. It is better to clean it with a soft brush. If the surface is too dirty and aﬀect the reading of LCD and LED lamp, you can use wet cloth to clean it up. High Temperature Hazard: When the device is running, the local temperature is too high and the touch can cause burns.
Page 57 Check the solar panel output connection. Failure in reading memory (EEPROM). Restart the inverter if the Read the memory error F�� fault still exists, contact your installer or Deye service. Failure in writing memory (EEPROM). Restart the inverter if the Write the memory error F��...
Page 58 �. Check if the inverter FW version is suitable for the hardware. �. Restart the inverter, if the error still exists, please contact your installer or Deye service. DC leakage ﬂow fault Hardly appear the code. Never ever happened so far.
Page 59 �. Check AC current sensor and its circuit. AC over current(one cycle) �. Restart the inverter, if the fault still exists, contact your installer or Deye service. DC over current Hardly appear the code. Never ever happened so far. Check the AC voltage protection setting. And Check if the AC AC Line W,U over voltage cable is too thin.Check the voltage diﬀerence between LCD and...
Page 60 DC busbar voltage is too low then showing F��, maybe Loss of driver or need update ﬁrmware. �. Restart the inverter, if the fault still exists, contact your installer or Deye service. AC reverse irrigation AC reverse irrigation. AC grid U over current Hardly appear the code.
Page 61 ��.Speciﬁcation SUN-�K-G��P� SUN-�K-G��P� SUN-�K-G��P� SUN-�K-G��P� Model -EU-AM�-P� -EU-AM�-P� -EU-AM�-P� -EU-AM�-P� PV String Input Data Max. PV Input Power(kW) Max. PV Input Voltage(V) 1100 Start-up Voltage(V) MPPT Voltage Range(V) 120-1000 Full Load MPPT Voltage Range(V) 350-850 Rated PV Input Voltage(V) Max. Input Short Circuit Current (A) 30+30 Max.
Page 62 Interface Communication Interface RS485/RS232 Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional) Display LCD+LED General Data Operating Temperature Range (°C) -25 to +60℃,>45℃ derating Permissible Ambient Humidity 0-100% Permissible Altitude (m) 4000m Noise (dB) ＜45 dB Ingress Protection(IP) Rating IP 65 Inverter Topology Non-Isolated Over Voltage Category OVC II(DC),OVC III(AC) 283×463×178 (Excluding connectors and brackets) Cabinet Size（W*H*D）[mm]...
Page 63 Model SUN-�K-G��P� SUN-�K-G��P� SUN-�K-G��P� SUN-��K-G��P� SUN-��K-G��P� -EU-AM�-P� -EU-AM�-P� -EU-AM�-P� -EU-AM�-P� -EU-AM�-P� PV String Input Data Max. PV Input Power(kW) 10.4 11.7 15.6 Max. PV Input Voltage(V) 1100 Start-up Voltage(V) MPPT Voltage Range(V) 120-1000 Full Load MPPT Voltage Range(V) 480-850 Rated PV Input Voltage(V) Max.
Page 64 · Low Voltage Directive 2014/35/EU (LVD) · Restriction of the use of certain hazardous substances 2011/65/EU(RoHS) NINGBO DEYE INVERTER TECHNOLOGY CO., LTD. conﬁrms herewith that the products described in this document are in compliance with the fundamental requirements and other relevant provisions of the above mentioned directives.
Page 65 SUN-7K-G06P3-EU-AM2-P1;SUN-8K-G06P3-EU-AM2-P1;SUN-9K-G06P3-EU-AM2-P1; SUN-10K-G06P3-EU-AM2-P1;SUN-12K-G06P3-EU-AM2-P1;SUN-15K-G06P3-EU-AM2-P1; SUN-6K-G06-LV;SUN-8K-G06-LV; Name and address of the manufacturer: Ningbo Deye Inverter Technology Co., Ltd. No. 26 South YongJiang Road, Daqi, Beilun, NingBo, China This declaration of conformity is issued under the sole responsibility of the manufacturer. Also this product is under manufacturer’s warranty.
Page 66 Add. : No.�� South YongJiang Road, Daqi, Beilun, NingBo, China. Tel. : +�� (�) �� Fax. : +�� (�) �� E-mail. : service@deye.com.cn Web. : www.deyeinverter.com...
